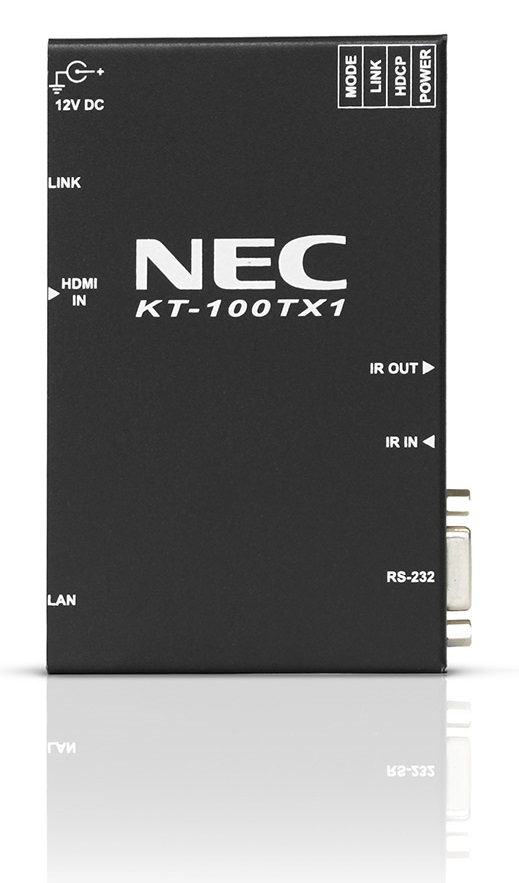

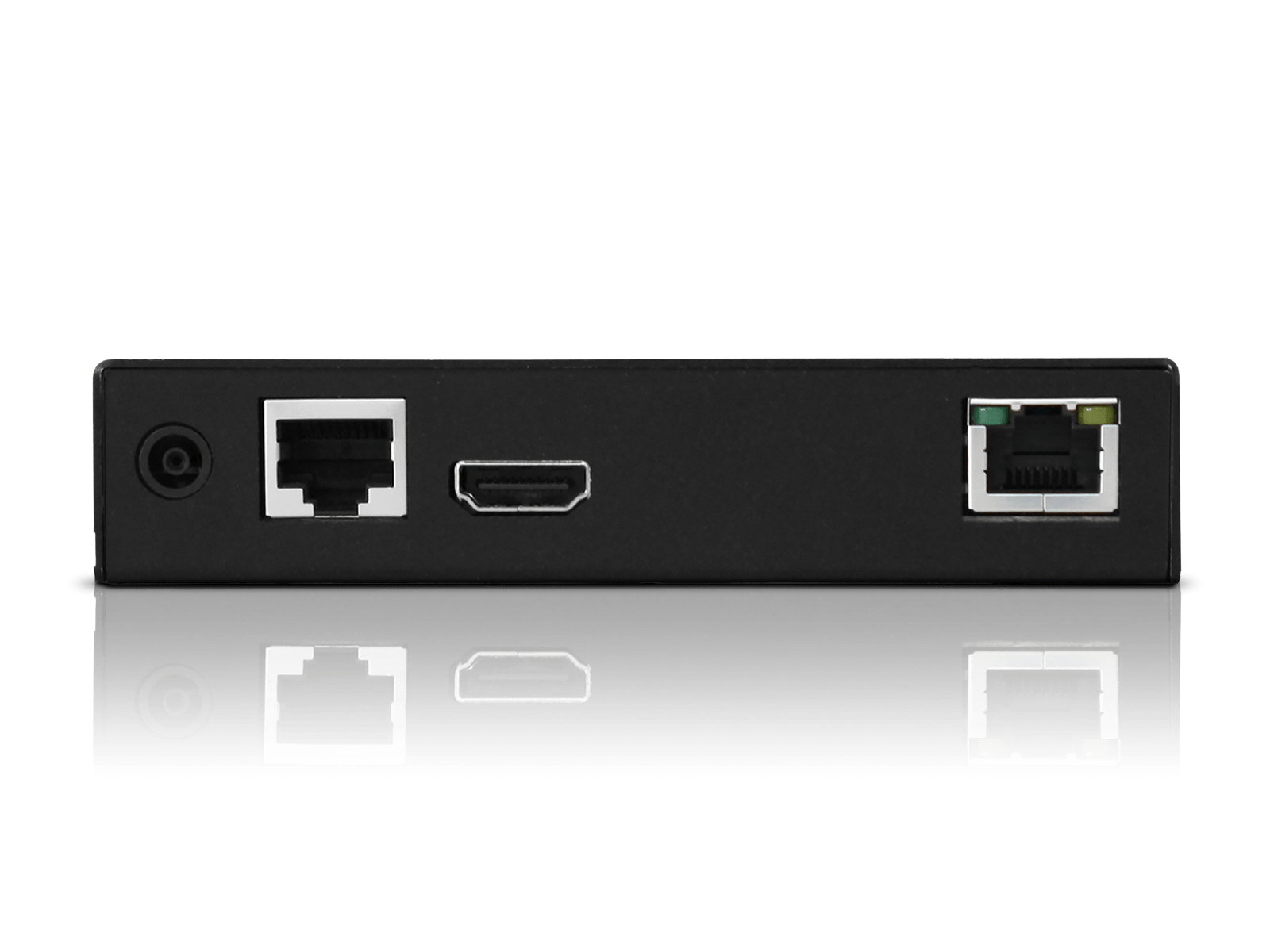

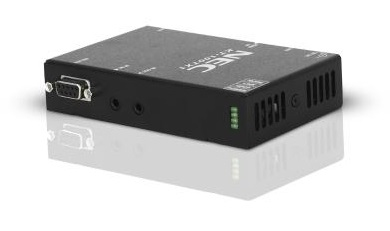

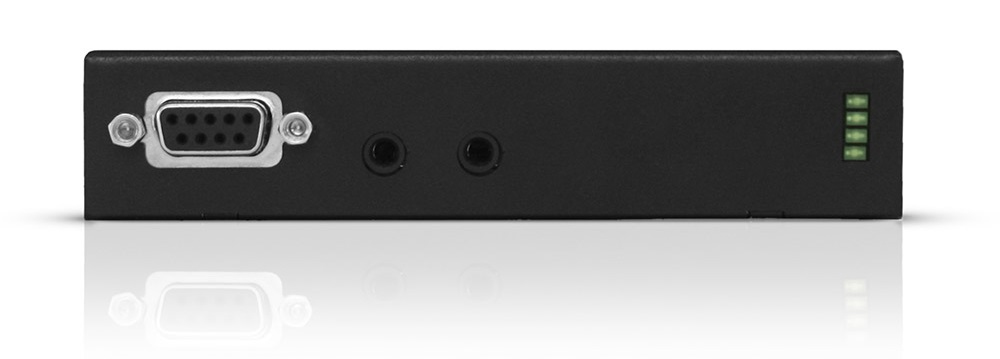

NEC KT-100TX1 AV transmitter

NEC KT-100TX1 AV transmitter

Model KT-100TX1Part no. 100013613EAN 5028695110854

36 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Operating voltage5 V
  • Operating relative humidity (H-H)20 - 80%
  • Transmitter dimensions (WxDxH)114 x 140 x 25 mm
  • Compliance certificatesRoHS
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Operating voltage
5 V
Operating relative humidity (H-H)
20 - 80%
Transmitter dimensions (WxDxH)
114 x 140 x 25 mm
Compliance certificates
RoHS
Brand
NEC
Category
AV Extender
Model
KT-100TX1
Part number
100013613
EAN / UPC
5028695110854
Also known as
NEC KT-100TX1 AV transmitter

Specifications

36 specifications in 8 groups

Features

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance100 m
Audio formats supportedPCM
Bandwidth10.2 Gbit/s
Colour depth8 bit
HDCPYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
CertificationCE, VCCI, RCM, FCC

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
RS-232 input ports1
Remote (IR) input1
Remote (IR) output1
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

Operating voltage5 V
Power consumption (typical)4 W
External power adapterYes
Current2 A

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 90%
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

Transmitter dimensions (WxDxH)114 x 140 x 25 mm
Transmitter weight500 g

Packaging data

Package dimensions (WxDxH)280 x 200 x 70 mm
Package weight1 kg

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS
