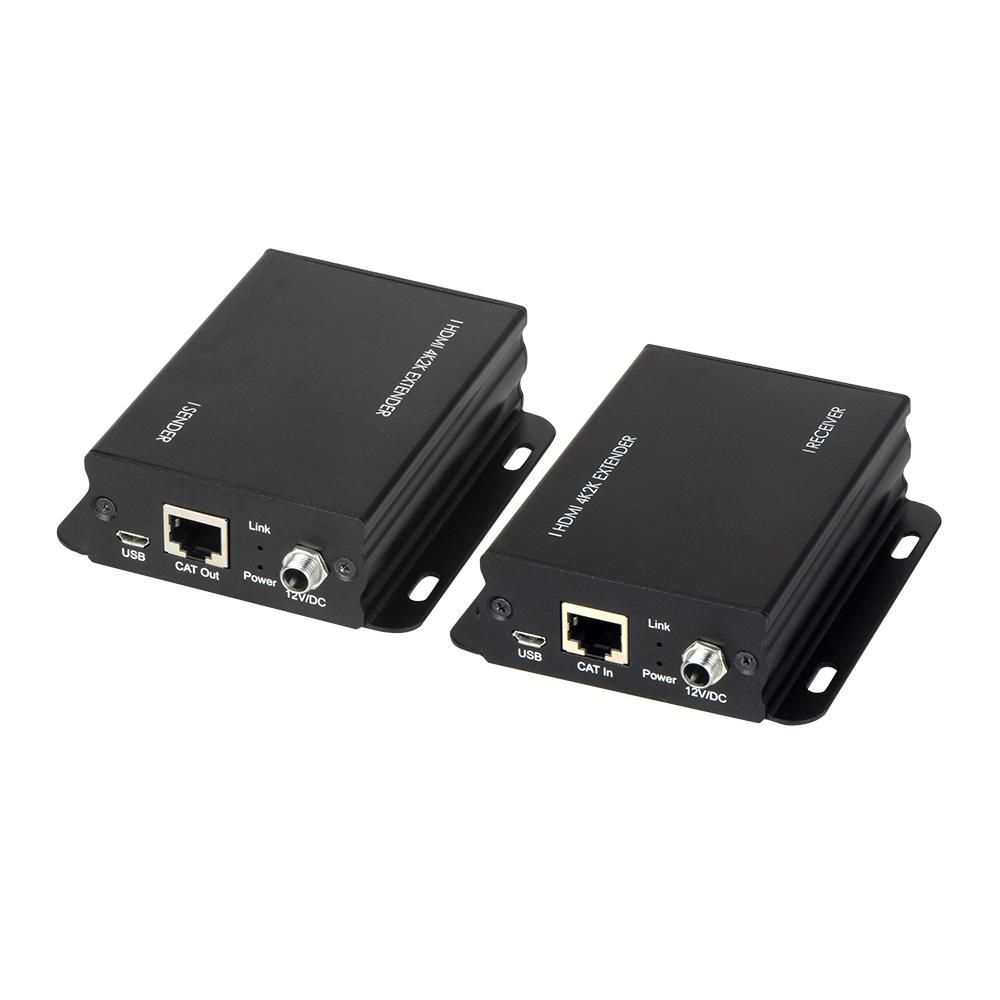

MC-HM-ET15 AV extender AV transmitter & receiver Black
Model MC-HM-ET15
30 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight290 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)5 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 290 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- Microconnect
- Category
- AV Extender
- Model
- MC-HM-ET15
- Part number
- MC-HM-ET15
- Also known as
- Microconnect MC-HM-ET15 AV extender AV transmitter & receiver Black
Specifications
30 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 50 m |
| Bandwidth | 10.2 Gbit/s |
| Carrier frequency | 60 kHz |
| Colour depth | 12 bit |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Supported video modes | 480i |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 290 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 214 mm |
| Package depth | 212 mm |
| Package height | 58 mm |
| Package weight | 590 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR receiver included | Yes |
