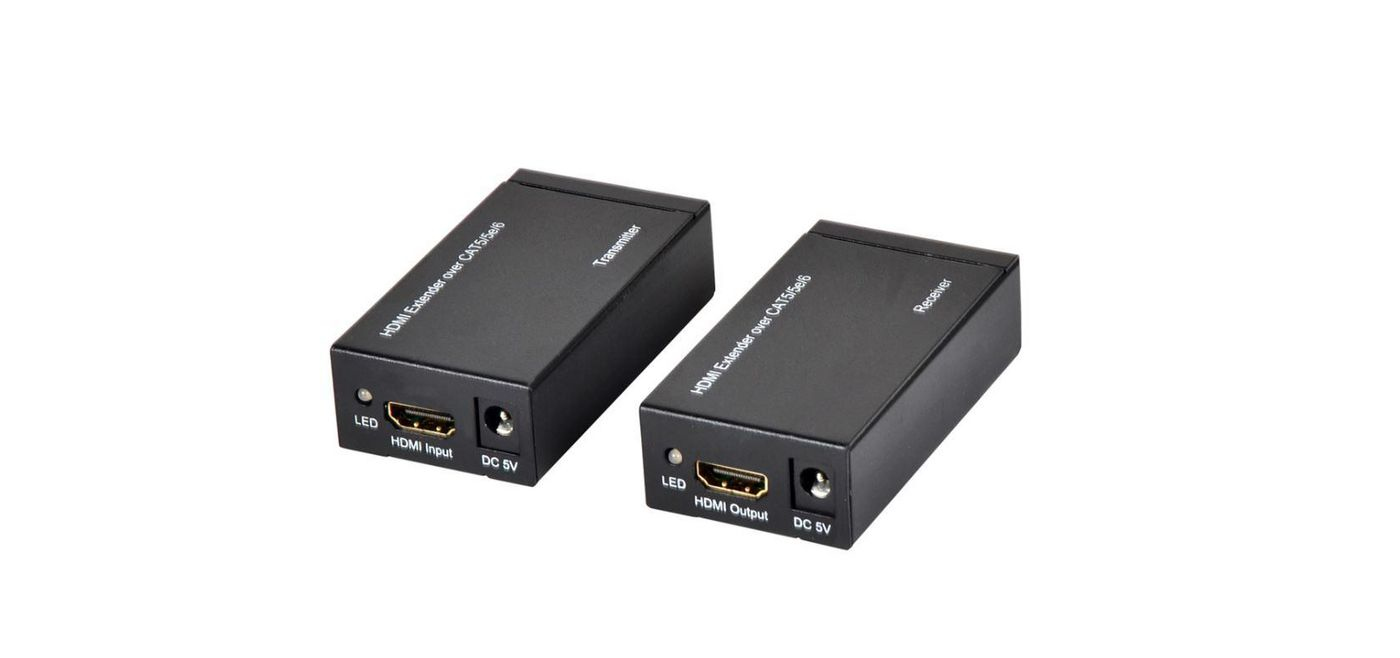

MC-HM-ET06 AV extender AV transmitter & receiver Black
Model MC-HM-ET06
35 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight370 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 85%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 370 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 85%
- Brand
- Microconnect
- Category
- AV Extender
- Model
- MC-HM-ET06
- Part number
- MC-HM-ET06
- Also known as
- Microconnect MC-HM-ET06 AV extender AV transmitter & receiver Black
Specifications
35 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 60 m |
| 3D | Yes |
| Bandwidth | 4.9 Gbit/s |
| HDCP | Yes |
| LED indicators | Yes |
| Supported video modes | 480i |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.2a |
| Number of HDMI outputs | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 5 V |
| Input current | 0.3 A |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|

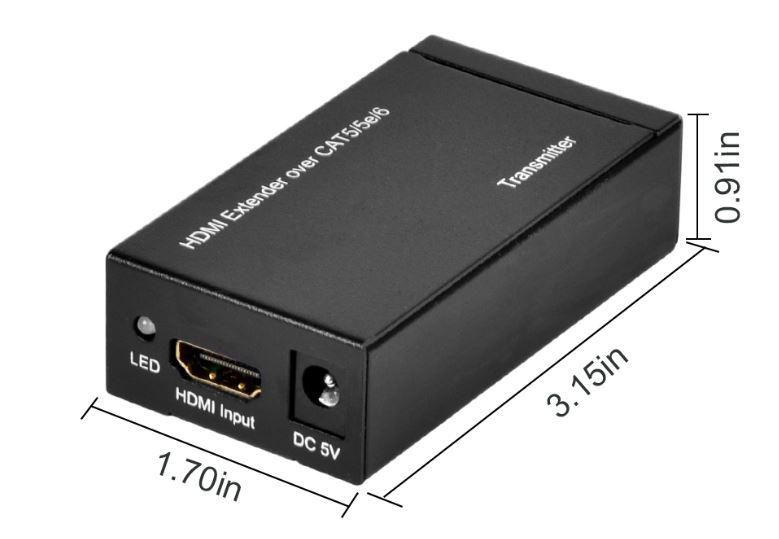

| Width | 82 mm |
| Depth | 45 mm |
| Height | 22 mm |
| Weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 179 mm |
| Package depth | 117 mm |
| Package height | 57 mm |
| Package weight | 400 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
