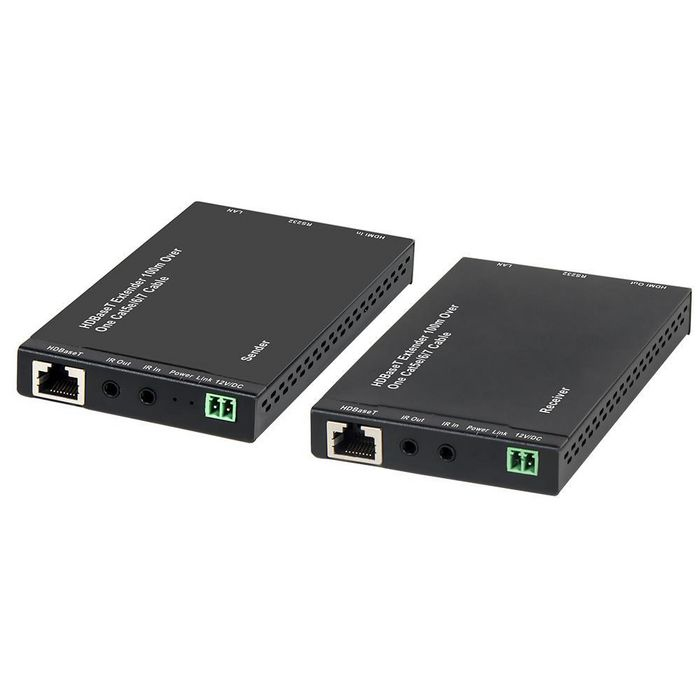

MC-HM-ET01ES AV extender AV transmitter & receiver Black
Model MC-HM-ET01ESEAN 5704174048572
25 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight580 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)0 - 95%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 580 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 0 - 95%
- Brand
- Microconnect
- Category
- AV Extender
- Model
- MC-HM-ET01ES
- Part number
- MC-HM-ET01ES
- EAN / UPC
- 5704174048572
- Also known as
- Microconnect MC-HM-ET01ES AV extender AV transmitter & receiver Black
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| 3D | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 175 mm |
| Package depth | 55 mm |
| Package height | 237 mm |
| Package weight | 665 g |
