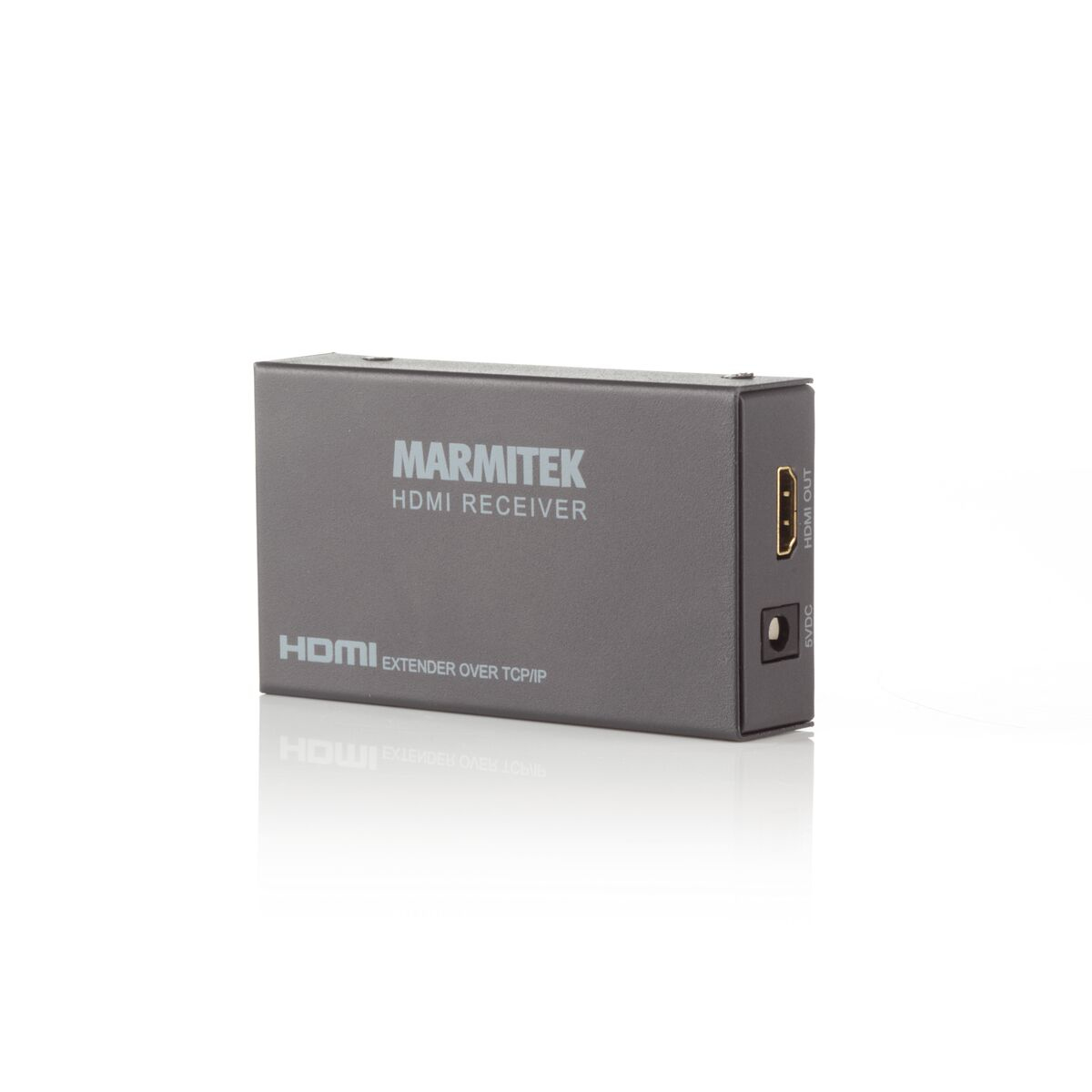

MV90 RX - Extra receiver MegaView 90
Model 25008305
28 specifications
- ConnectivityWired
- TypeAV receiver
- ColourGrey
- Power source typeAC
- Receiver dimensions (WxDxH)105 x 60 x 25 mm
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Colour
- Grey
- Power source type
- AC
- Receiver dimensions (WxDxH)
- 105 x 60 x 25 mm
- Brand
- Marmitek
- Category
- AV Extender
- Model
- 25008305
- Part number
- 25008305
- Also known as
- Marmitek MV90 RX - Extra receiver MegaView 90
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Supported video modes | 480p, 576i, 576p, 1080i, 1080p |
| Video compression formats | H.264 |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operating voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 105 x 60 x 25 mm |
| Receiver weight | 160 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Included power plug types | UK |
| Manual | Yes |
