MegaView 91 - HDMI extender ethernet - 100-120 m - IR return
Model 25008290EAN 8718164532900
38 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 85%
- Receiver dimensions (WxDxH)135 x 84 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 85%
- Receiver dimensions (WxDxH)
- 135 x 84 x 23 mm
- Brand
- Marmitek
- Category
- AV Extender
- Model
- 25008290
- Part number
- 25008290
- EAN / UPC
- 8718164532900
- Also known as
- Marmitek MegaView 91 - HDMI extender ethernet - 100-120 m - IR return
Specifications
38 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 120 m |
| IR pass-through | Yes |
| Supported network protocols | TCP/IP |
| Infrared (IR) frequency range | 30 - 60 kHz |
| Bandwidth | 6.75 Gbit/s |
| Cable length | 1 m |
| Carrier frequency | 60 kHz |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 1.3 |
| Plug and Play | Yes |
| Supported video modes | 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video compression formats | H.264 |
| Product colour | Black |

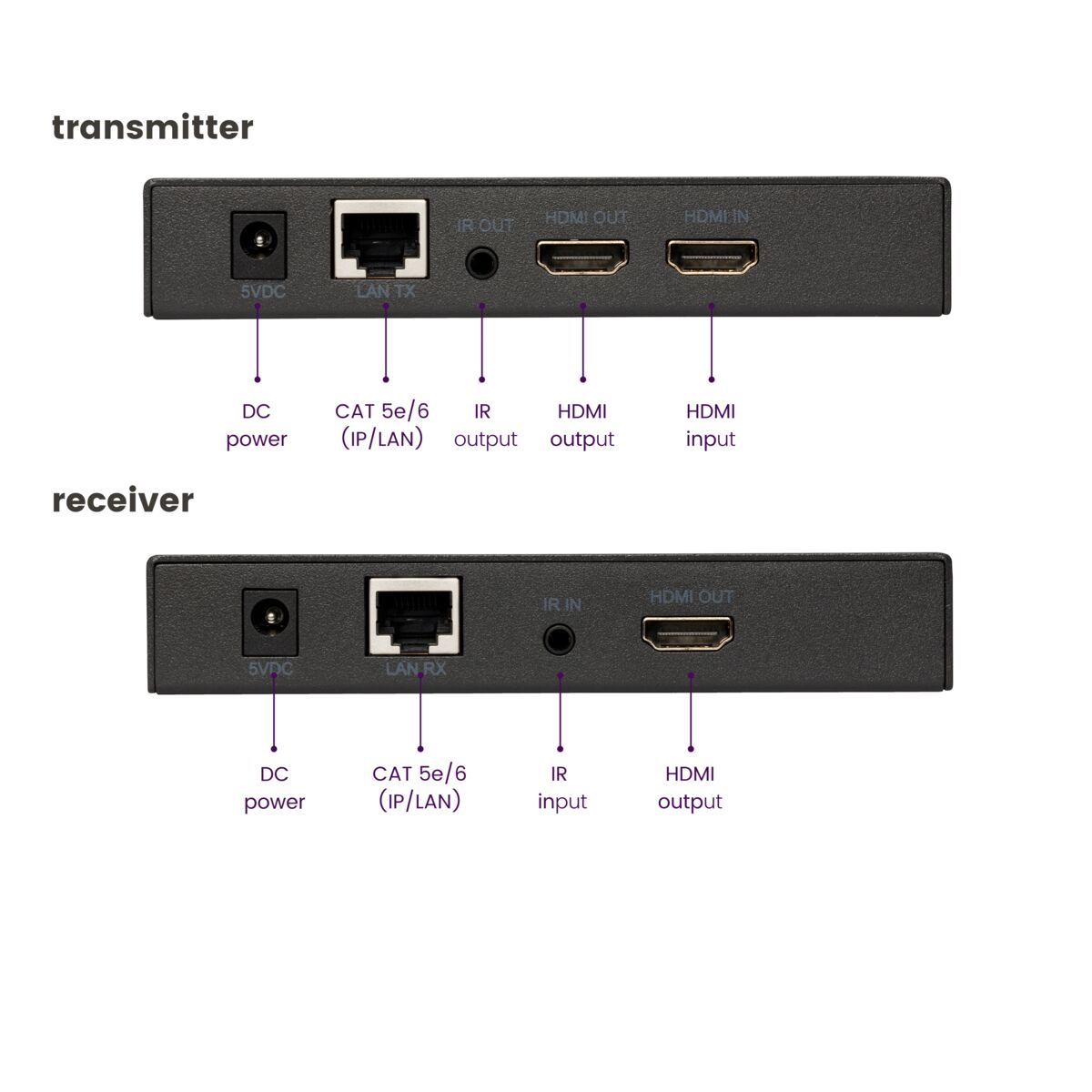

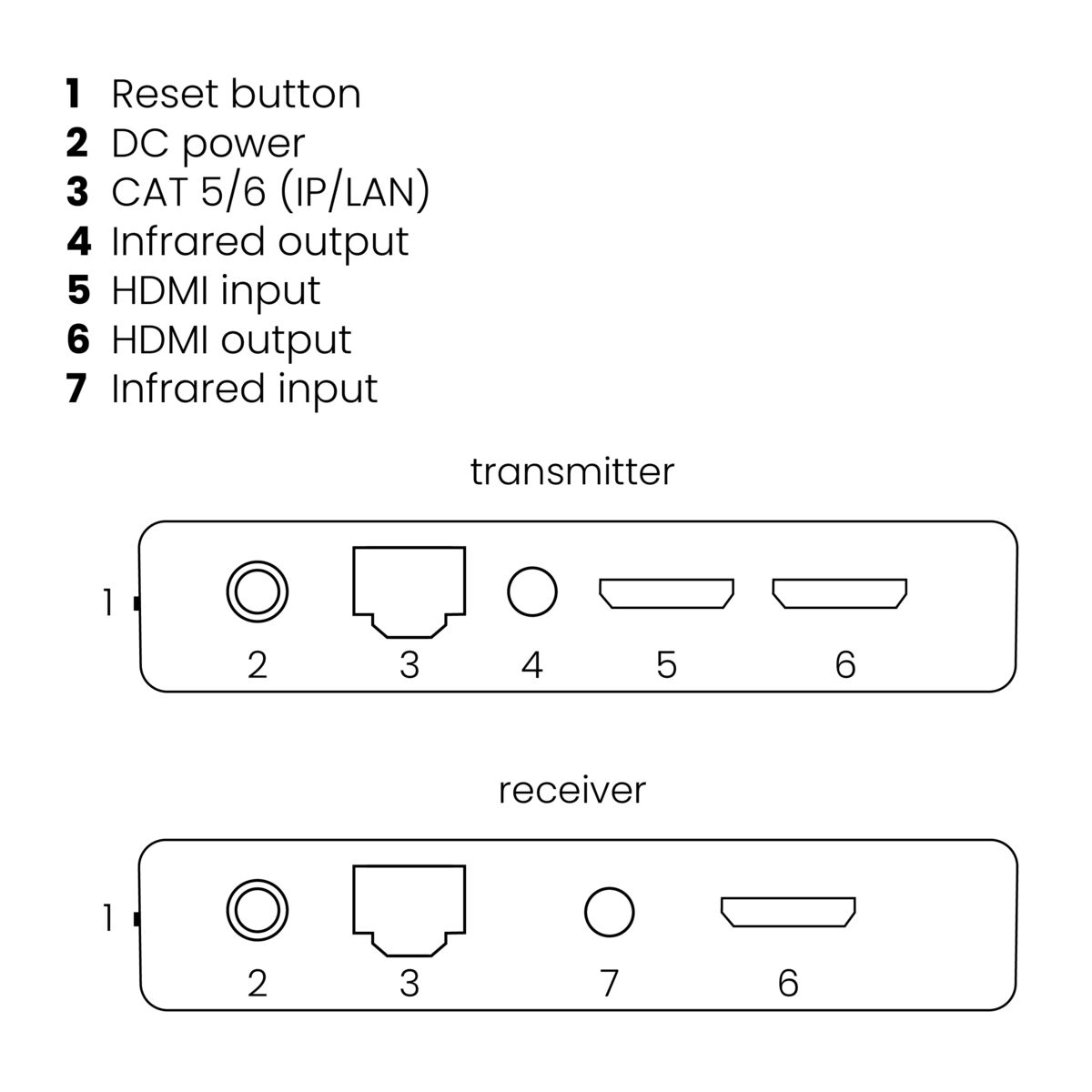

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |

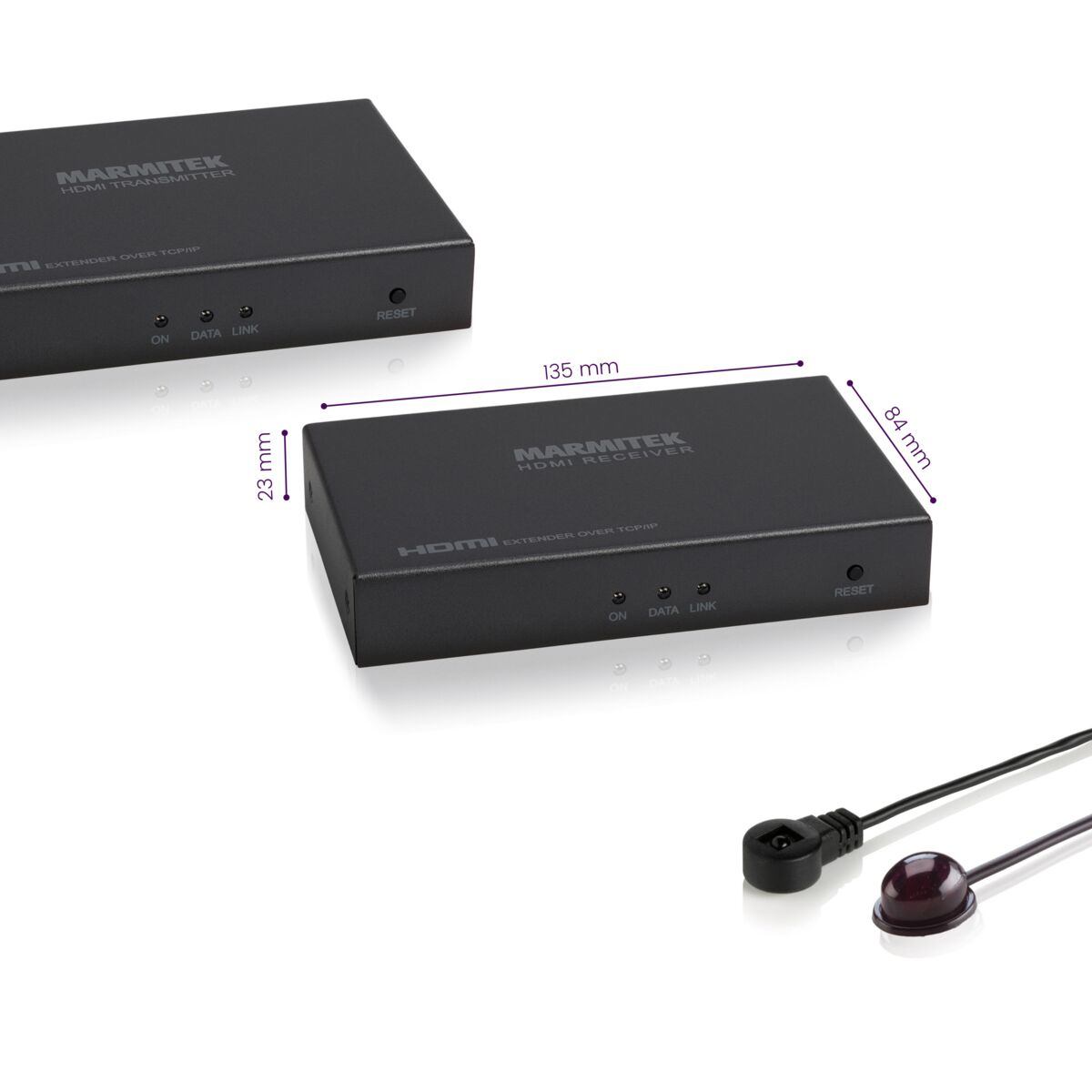

Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 135 x 84 x 23 mm |
| Receiver weight | 330 g |
| Transmitter dimensions (WxDxH) | 135 x 84 x 23 mm |
| Transmitter weight | 330 g |

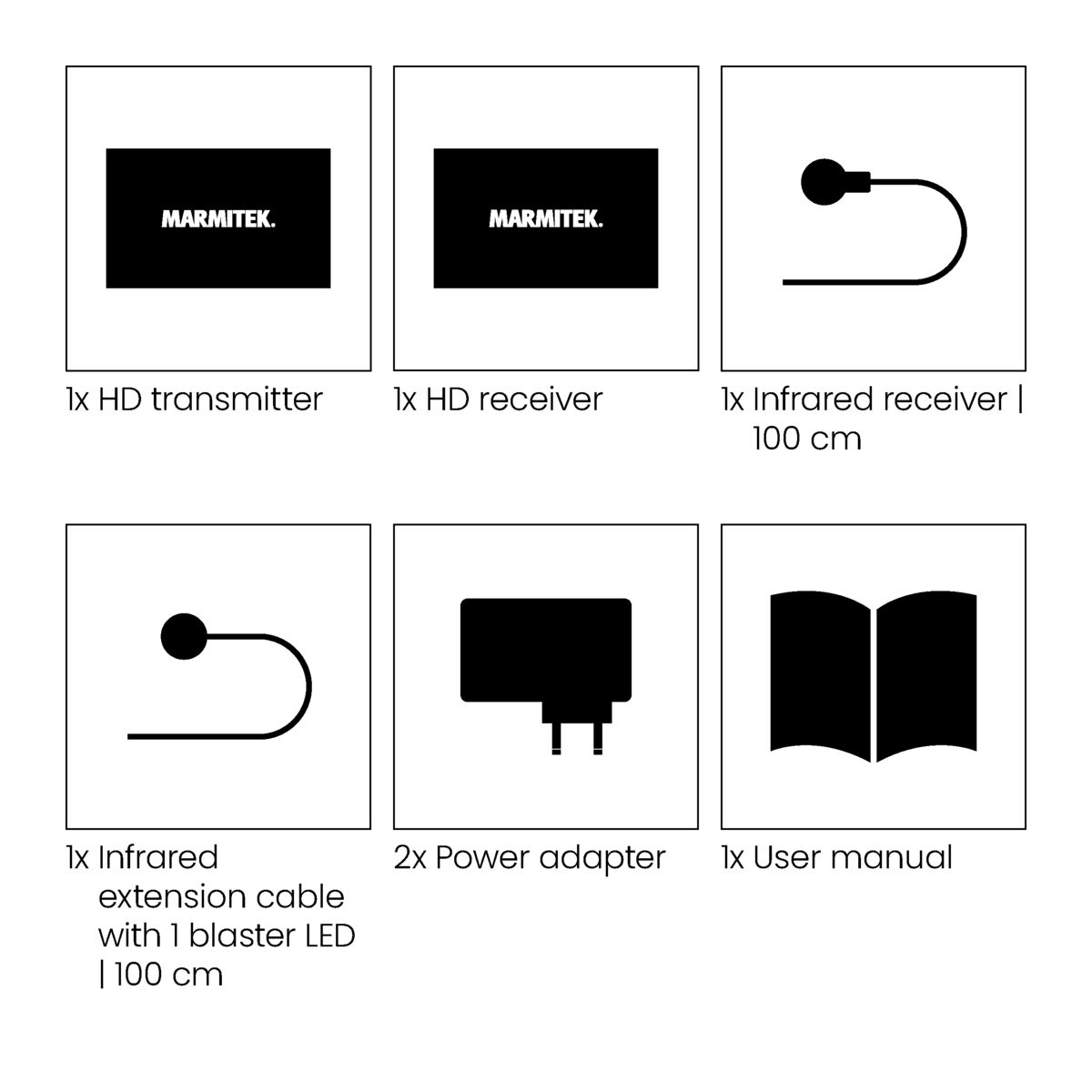

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Frequency | 225 MHz |
