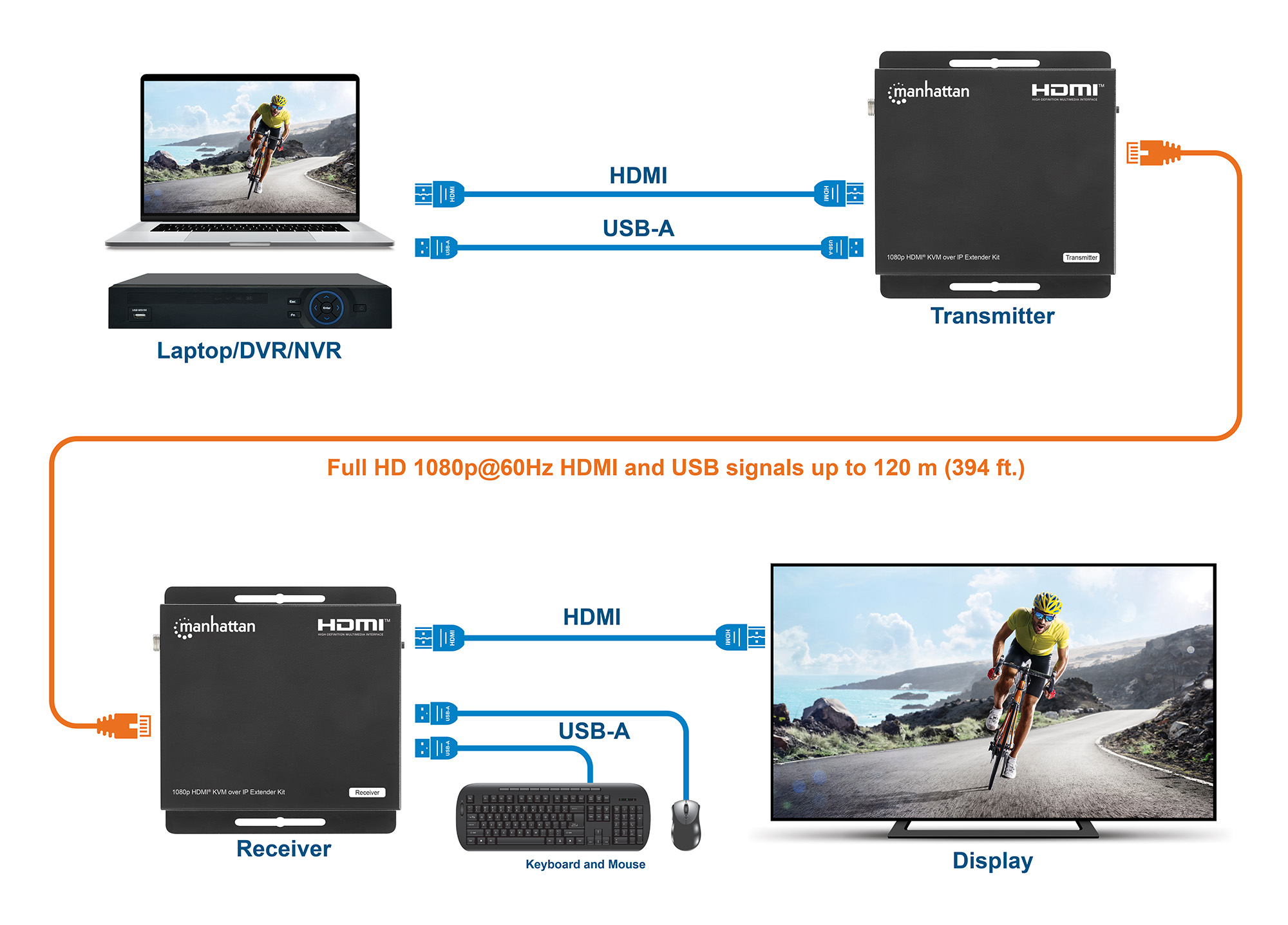

Manhattan 1080p HDMI KVM over IP Extender Kit, Extends 1080p@60Hz signal up to 120m with a single Cat6 Ethernet Cable or an IP-enabled network, Transmitter and
Manhattan

1080p HDMI KVM over IP Extender Kit, Extends 1080p@60Hz signal up to 120m with a single Cat6 Ethernet Cable or an IP-enabled network, Transmitter and

Model 208413EAN 766623208413

53 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight430 g
  • ColourBlack
  • Power source typeDC
  • Operating relative humidity (H-H)5 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
430 g
Colour
Black
Power source type
DC
Operating relative humidity (H-H)
5 - 90%
Brand
Manhattan
Category
AV Extender
Model
208413
Part number
208413
EAN / UPC
766623208413
Also known as
Manhattan 1080p HDMI KVM over IP Extender Kit, Extends 1080p@60Hz signal up to 120m with a single Cat6 Ethernet Cable or an IP-enabled network, Transmitter and

Specifications

53 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat6
Maximum transfer distance120 m
Maximum refresh rate60 Hz
3DYes
Bandwidth4.95 Gbit/s
HDCPYes
HDCP version1.4
LED indicatorsActivity, Link, Power, USB
MaterialMetal
Plug and PlayYes
Supported video modes480p, 720p, 1080i, 1080p
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
HDMI version1.3
Number of HDMI outputs1
USB ports quantity3
USB version2.0
USB connector typeUSB Type-A
DC-in jackYes

Power

Power source typeDC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Operating voltage5 V
Input current0.4 A
Output current1 A
Power consumption (transmitter) (max)3.5 W
Power consumption (receiver) (max)2 W
External power adapterYes

Operational conditions

Operating relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width104 mm
Depth112 mm
Height23 mm
Weight430 g

Packaging data

Package width295 mm
Package depth495 mm
Package height322 mm
Package weight840 g

Packaging content

AC adapter includedYes
ManualYes
Mounting brackets includedYes

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)

Logistics data

Master (outer) case width295 mm
Master (outer) case length495 mm
Master (outer) case height322 mm
Master (outer) case gross weight10 kg
Products per master (outer) case10 pc(s)
