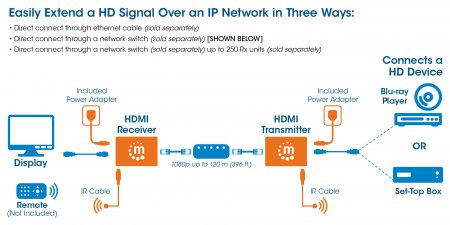

1080p HDMI over IP Extender Kit, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, IR Support, Black, Three Year Warran
Model 207959EAN 766623207959
29 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight660 g
- Operating relative humidity (H-H)20 - 96%
- Width59 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 660 g
- Operating relative humidity (H-H)
- 20 - 96%
- Width
- 59 mm
- Brand
- Manhattan
- Category
- AV Extender
- Model
- 207959
- Part number
- 207959
- EAN / UPC
- 766623207959
- Also known as
- Manhattan 1080p HDMI over IP Extender Kit, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, IR Support, Black, Three Year Warran
Specifications
29 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 180 m |
| Bandwidth | 1.65 Gbit/s |
| Bandwidth | 165 MHz |
| Display Data Channel (DDC) input | 5 V |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Wall mountable | Yes |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 96% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 100 mm |
| Height | 25 mm |
| Weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
