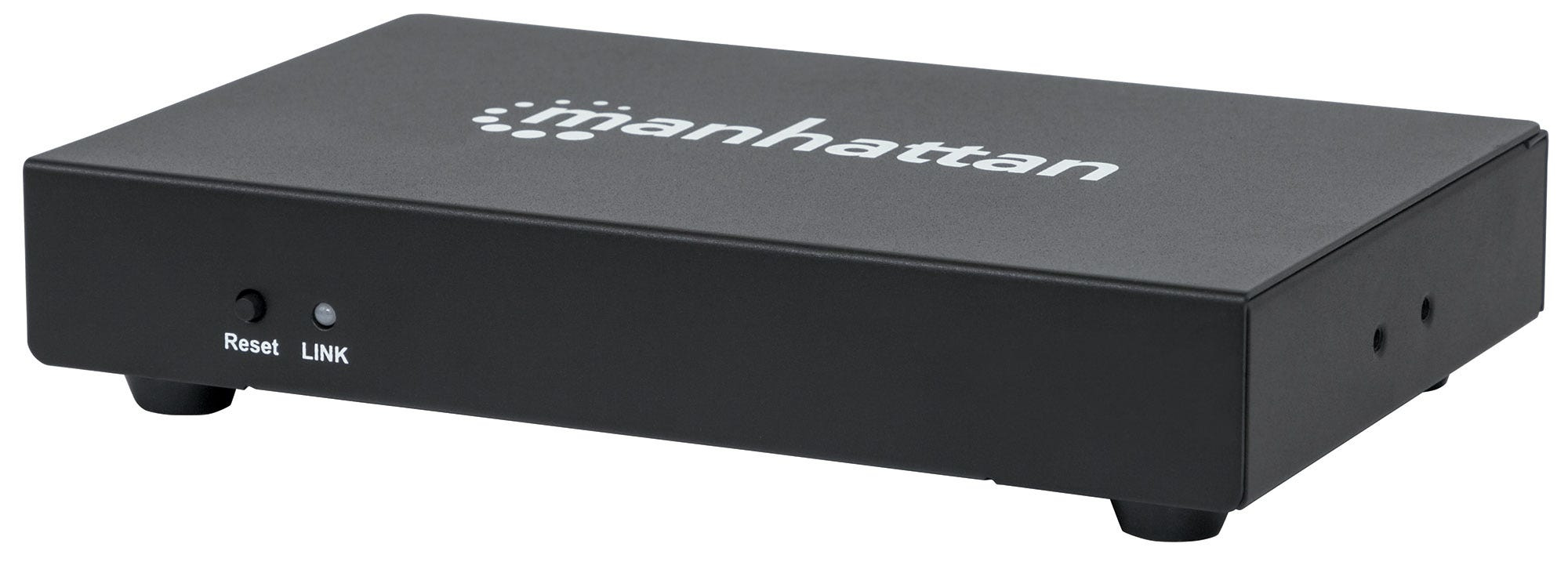

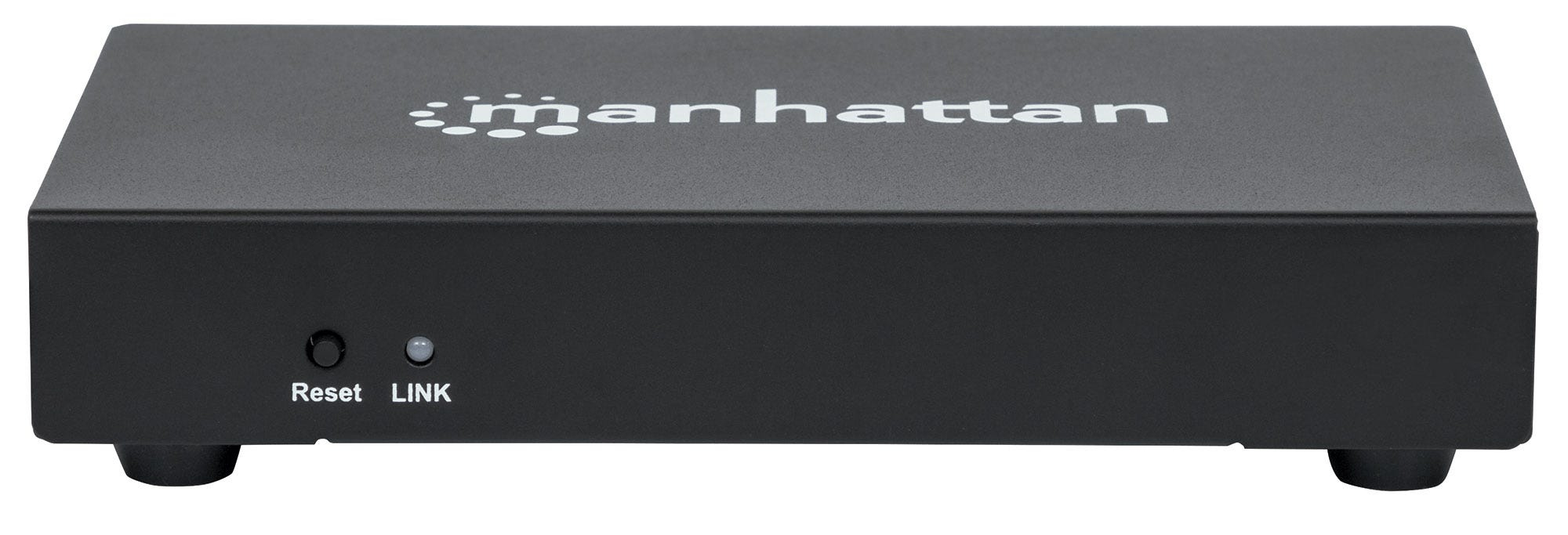

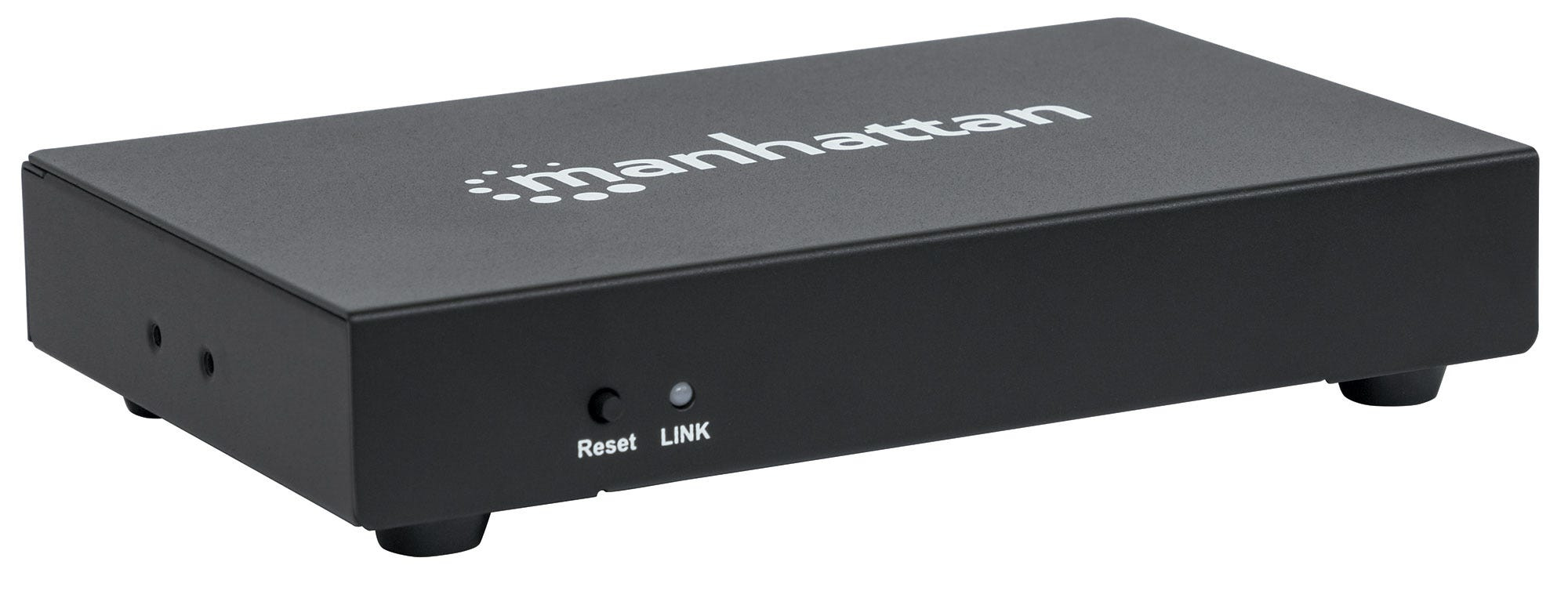

Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter, Splits One Source to Four Outputs, Three Year Warranty

Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter, Splits One Source to Four Outputs, Three Year Warranty

Model 207829EAN 766623207829

35 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight430 g
  • ColourBlack
  • Operating voltage12 V
  • Operating relative humidity (H-H)0 - 96%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
430 g
Colour
Black
Operating voltage
12 V
Operating relative humidity (H-H)
0 - 96%
Brand
Manhattan
Category
AV Extender
Model
207829
Part number
207829
EAN / UPC
766623207829
Also known as
Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter, Splits One Source to Four Outputs, Three Year Warranty

Specifications

35 specifications in 7 groups

Features

TypeAV transmitter
Maximum resolution1920 x 1080 pixels
Cable types supportedCat6
Maximum transfer distance80 m
3DYes
Audio formats supportedLPCM
Bandwidth1.65 Gbit/s
Bandwidth165 MHz
Cable length0.9 m
Display Data Channel (DDC) input5 V
HDCPYes
LED indicatorsPower, Status
MaterialMetal
Plug and PlayYes
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

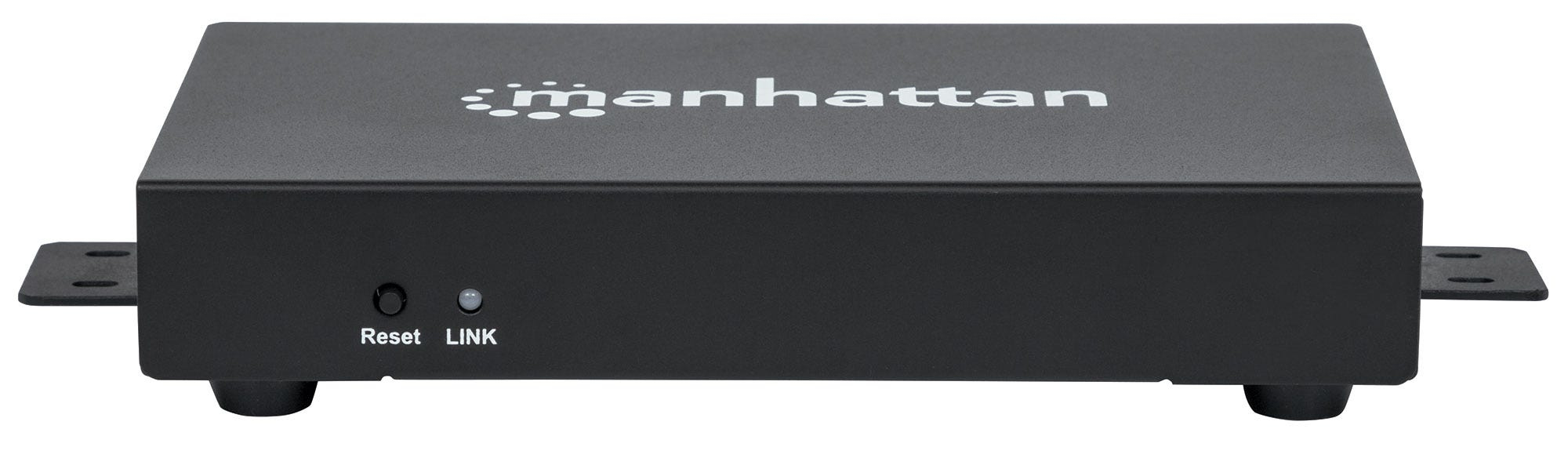

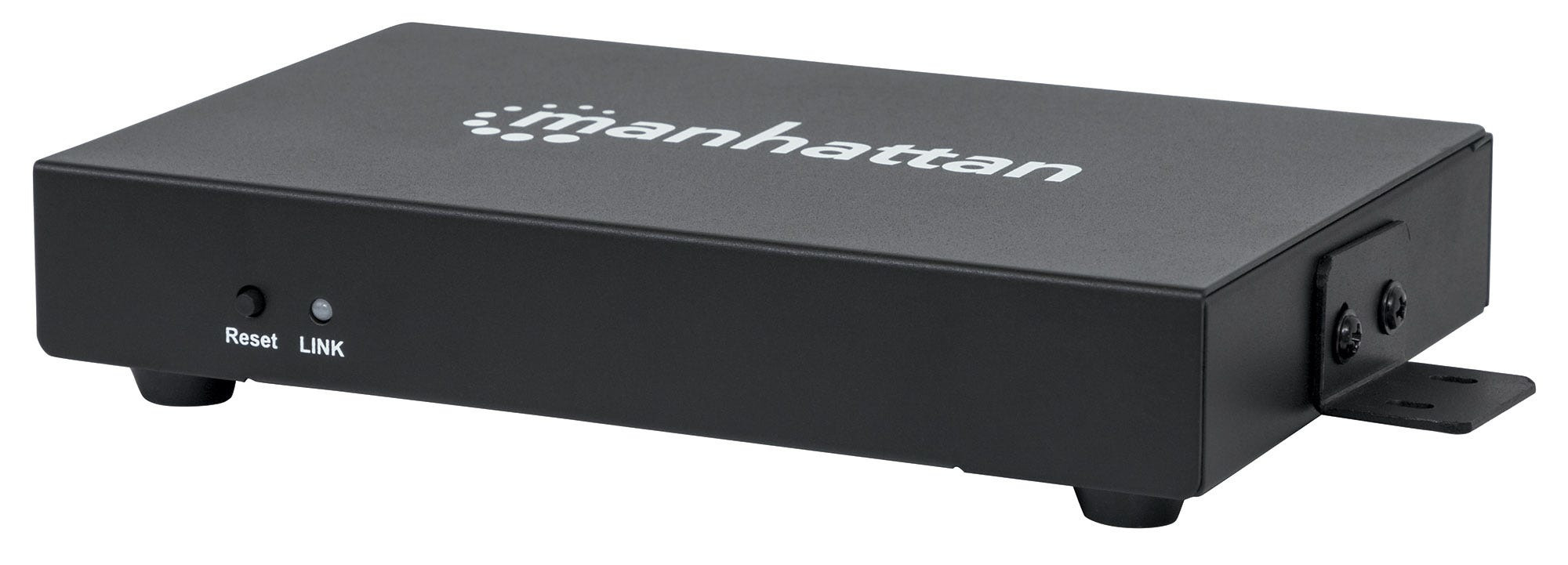

Wall mountableYes
Product colourBlack
CertificationCE, FCC

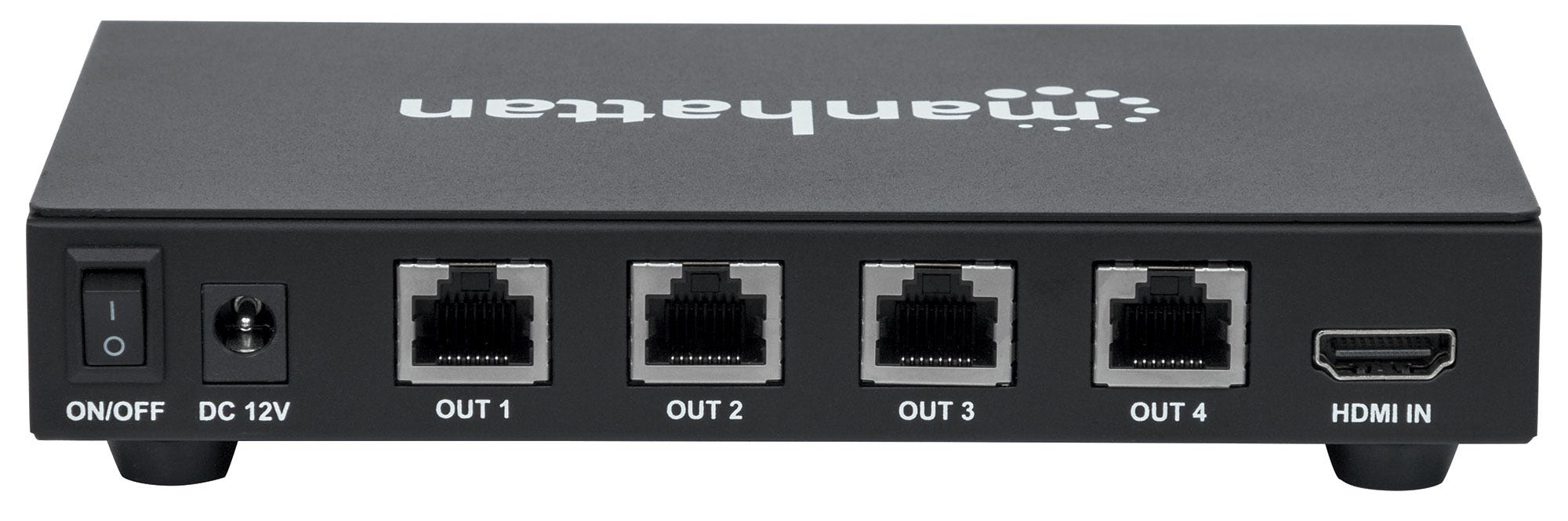

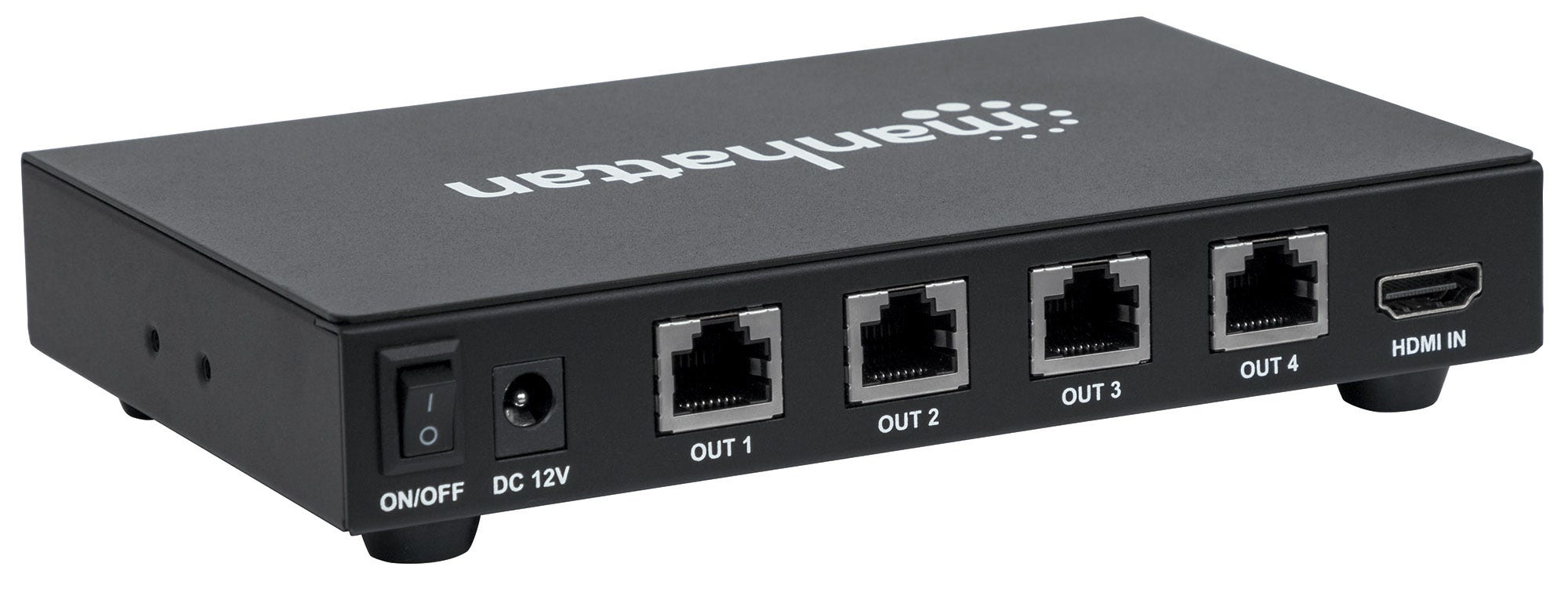

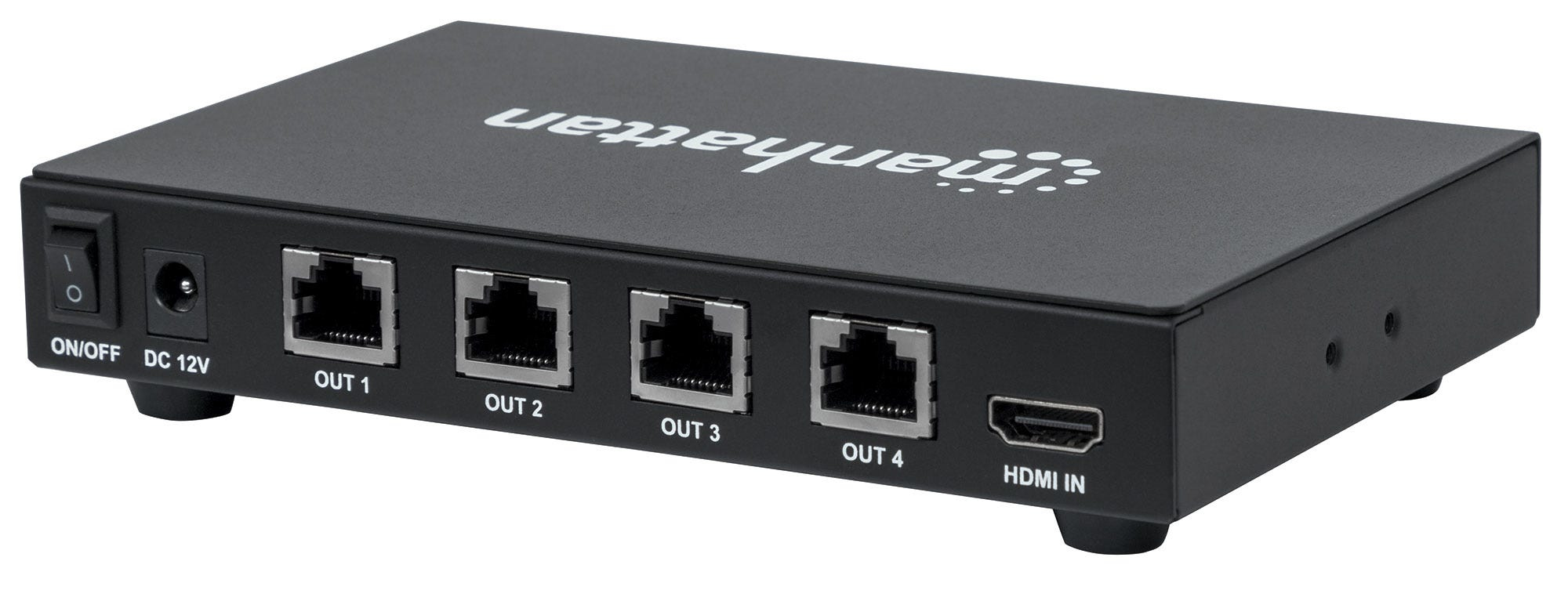

Ports & interfaces

Connectivity technologyWired
RJ-45 output ports4
HDMI in1
HDMI version1.3

Power

Operating voltage12 V
Current1 A

Operational conditions

Operating relative humidity (H-H)0 - 96%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width100 mm
Depth162 mm
Height25 mm
Weight430 g

Packaging content

AC adapter includedYes
Quick start guideYes
Mounting brackets includedYes

Technical details

Compliance certificatesRoHS
