1080p HDMI KVM over IP Extender Kit, HDMI Extender by Single Cat5e/6 up to 120m, with IR and KVM, Black, Three Year Warranty, Retail Box
Model 207683EAN 766623207683
37 specifications
- TypeAV transmitter & receiver
- Weight239 g
- ColourBlack
- HDMI in1
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)5 - 90%
Overview
- Type
- AV transmitter & receiver
- Weight
- 239 g
- Colour
- Black
- HDMI in
- 1
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 5 - 90%
- Brand
- Manhattan
- Category
- AV Extender
- Model
- 207683
- Part number
- 207683
- EAN / UPC
- 766623207683
- Also known as
- Manhattan 1080p HDMI KVM over IP Extender Kit, HDMI Extender by Single Cat5e/6 up to 120m, with IR and KVM, Black, Three Year Warranty, Retail Box
Specifications
37 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6 |
| Bandwidth | 1.65 Gbit/s |
| Bandwidth | 165 MHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Activity, Link, Power |
| Material | Metal |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE RoHS FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 1 |
| HDMI version | 1.3 |
| Number of HDMI outputs | 2 |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.4 A |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 3.5 W |
| Power consumption (receiver) (max) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 90 mm |
| Height | 26 mm |
| Weight | 239 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |

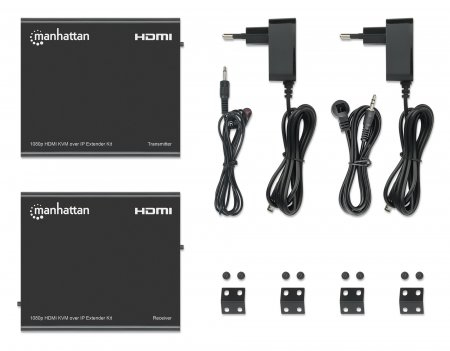

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Mounting brackets included | Yes |
