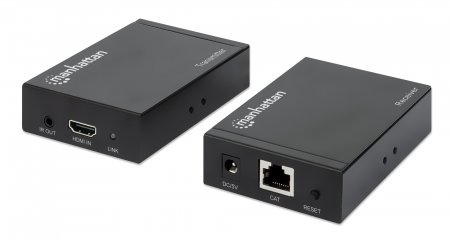

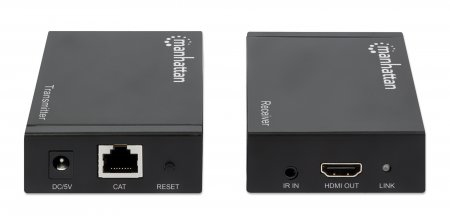

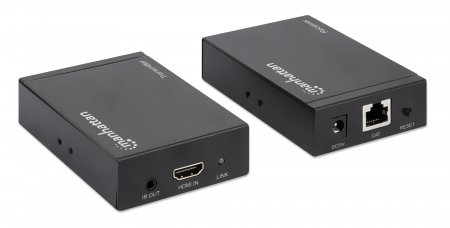

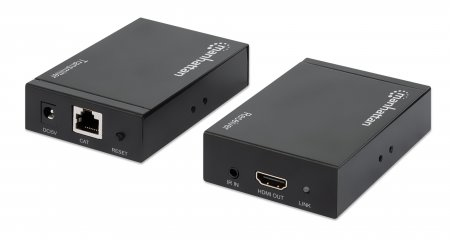

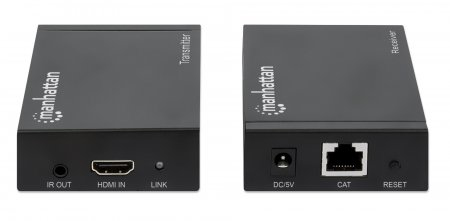

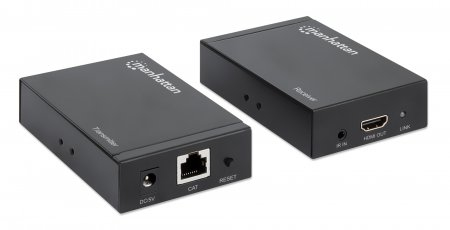

4K HDMI over Ethernet Extender with Integrated Cables, 4K@30Hz, Distances up to 50m with 2x Cat5e or Cat6 Ethernet Cables (not included), Black, Three
Model 207645EAN 766623207645
35 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight685 g
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 685 g
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Manhattan
- Category
- AV Extender
- Model
- 207645
- Part number
- 207645
- EAN / UPC
- 766623207645
- Also known as
- Manhattan 4K HDMI over Ethernet Extender with Integrated Cables, 4K@30Hz, Distances up to 50m with 2x Cat5e or Cat6 Ethernet Cables (not included), Black, Three
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 30 Hz |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| Material | Metal |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE FCC RoHS |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 1 A |
| Power consumption (max) | 3.84 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 66 mm |
| Height | 25 mm |
| Weight | 685 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting brackets included | Yes |
