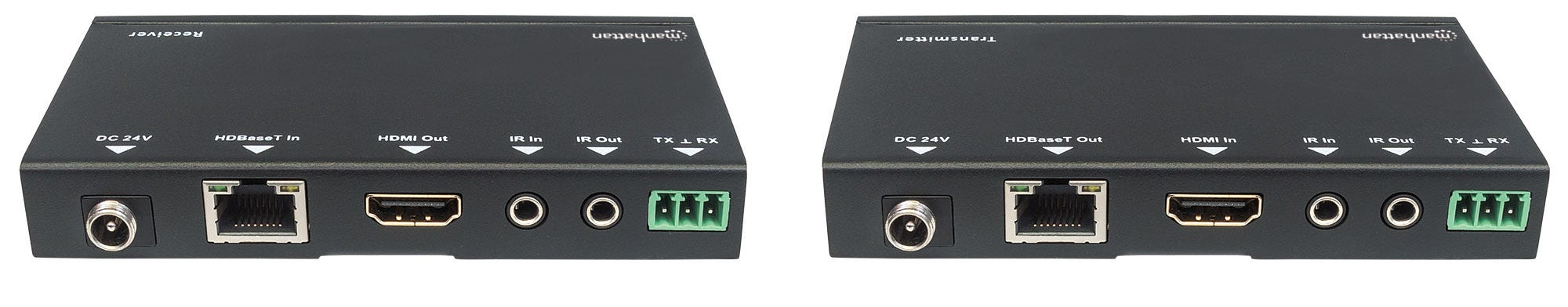

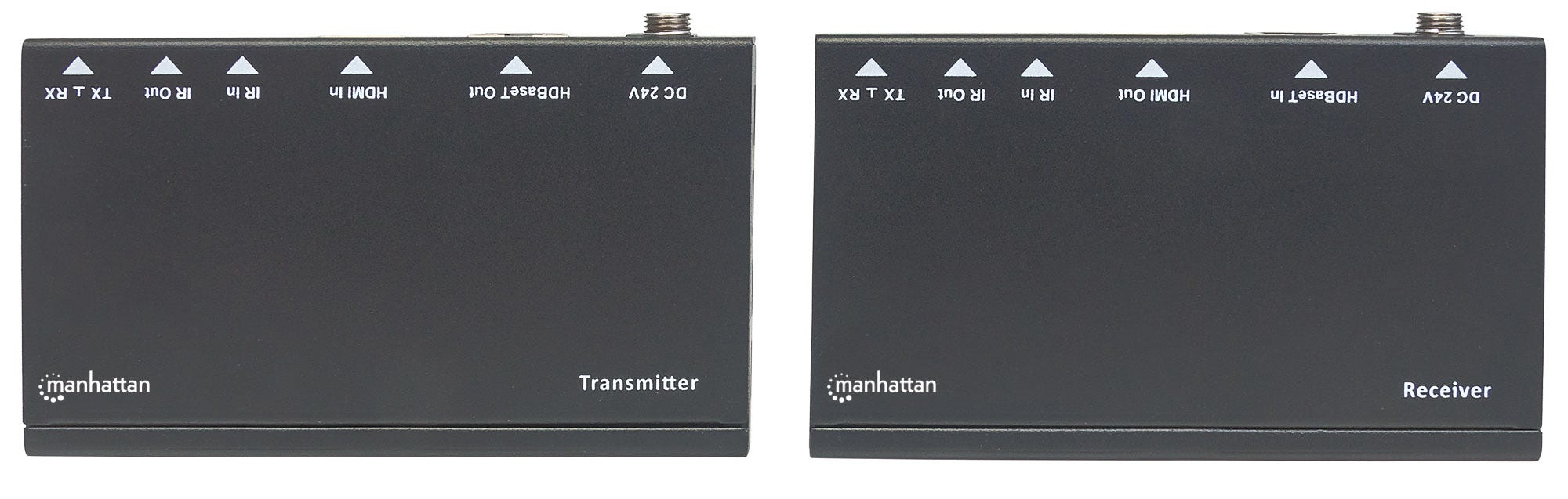

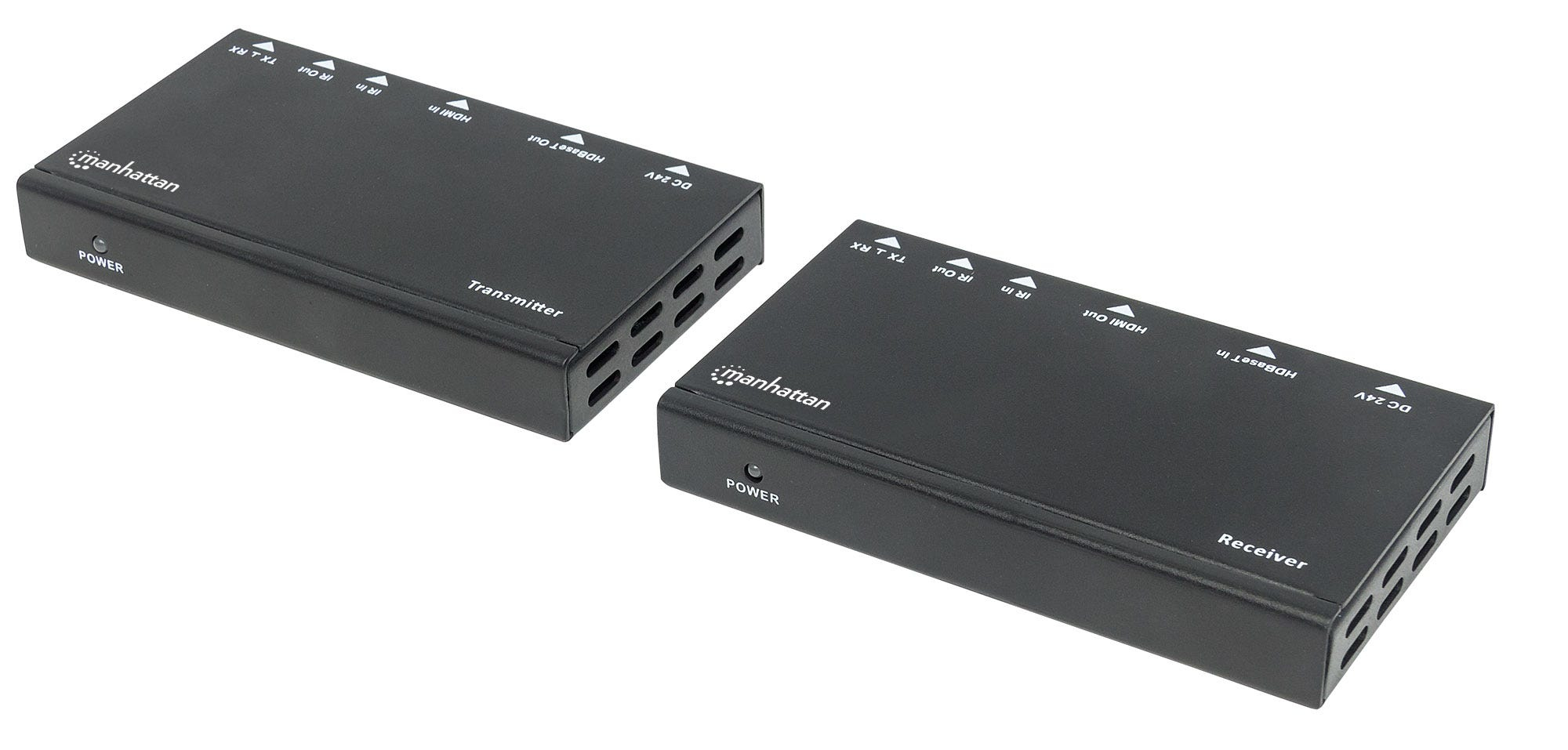

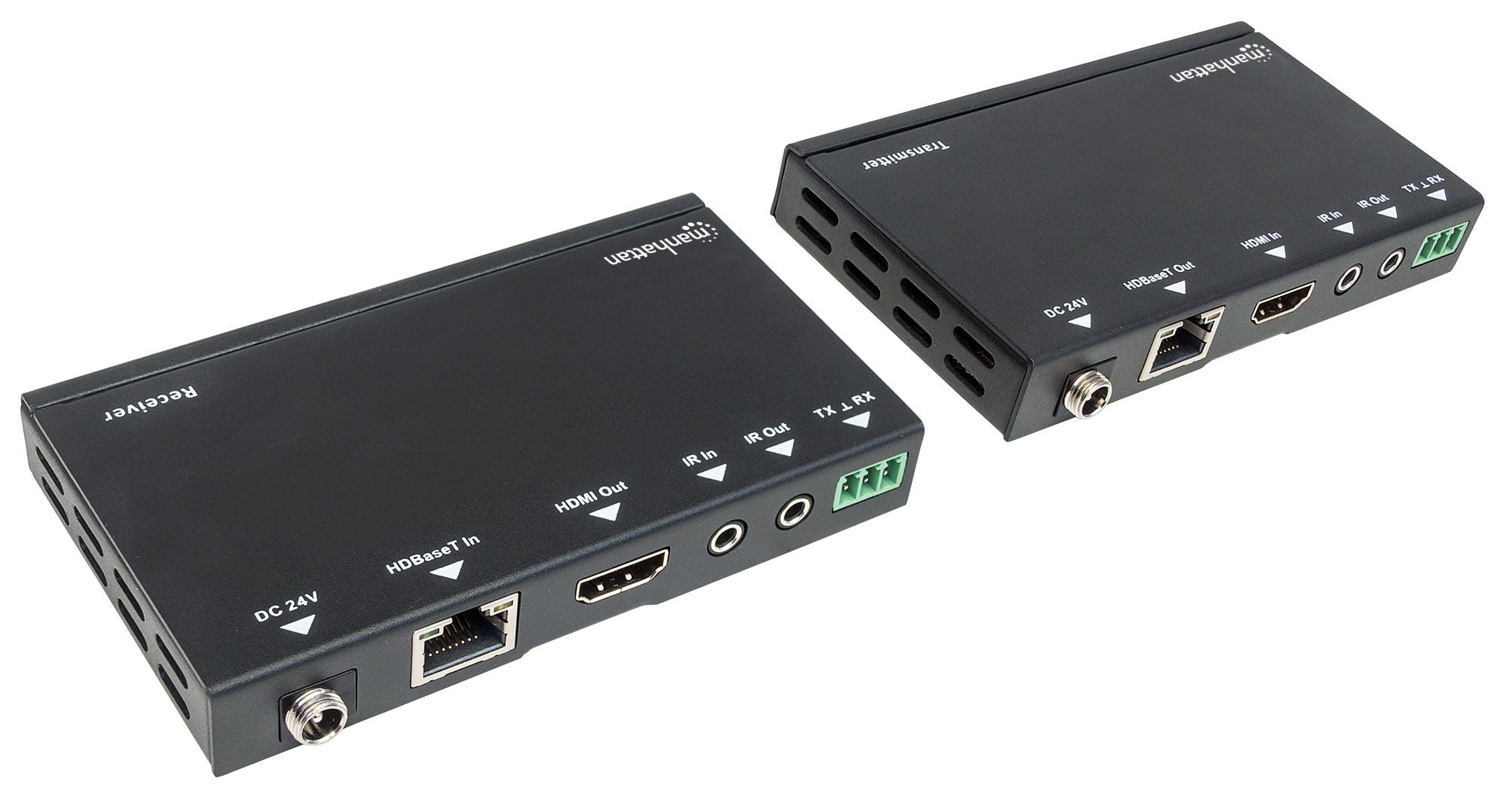

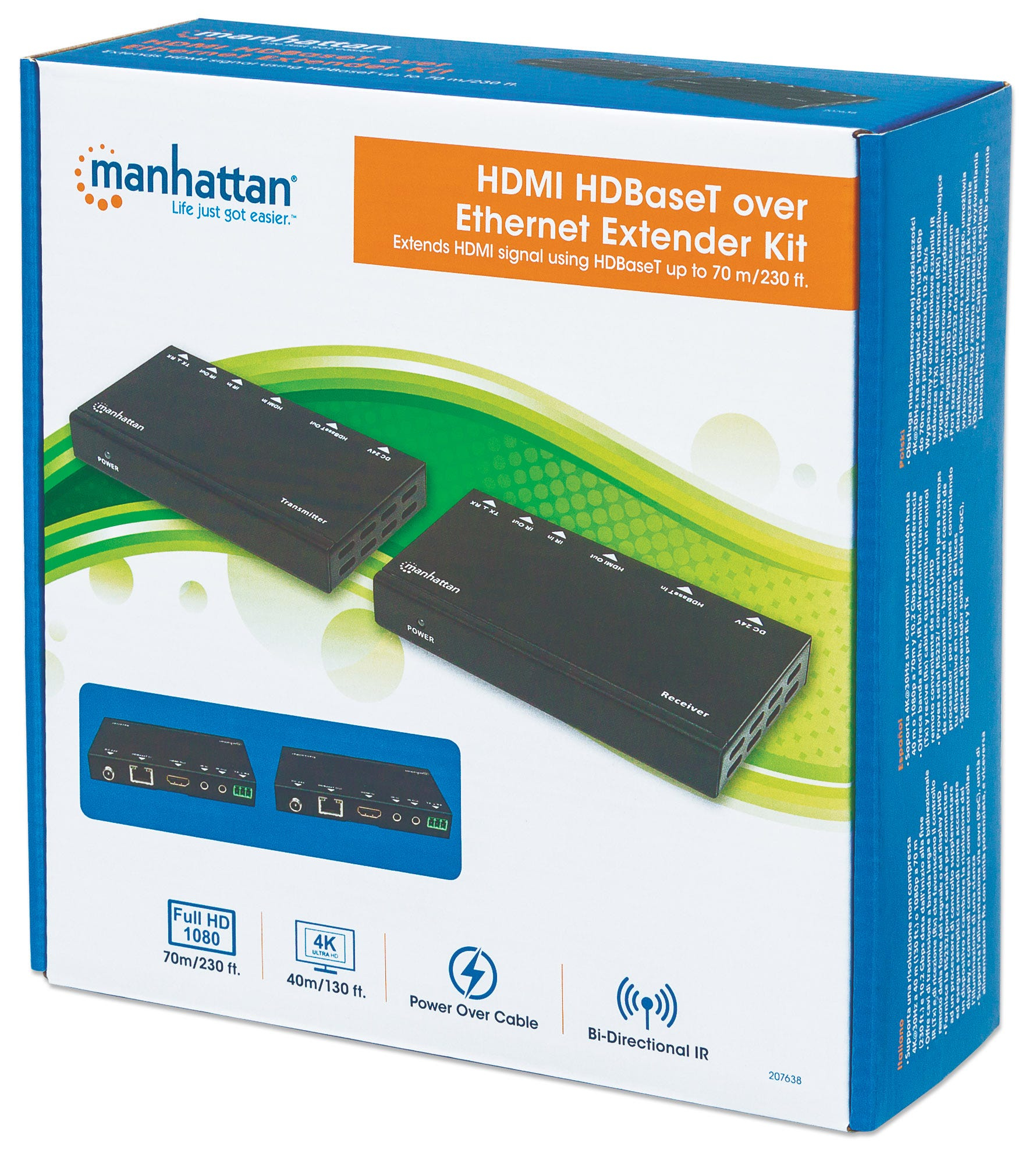

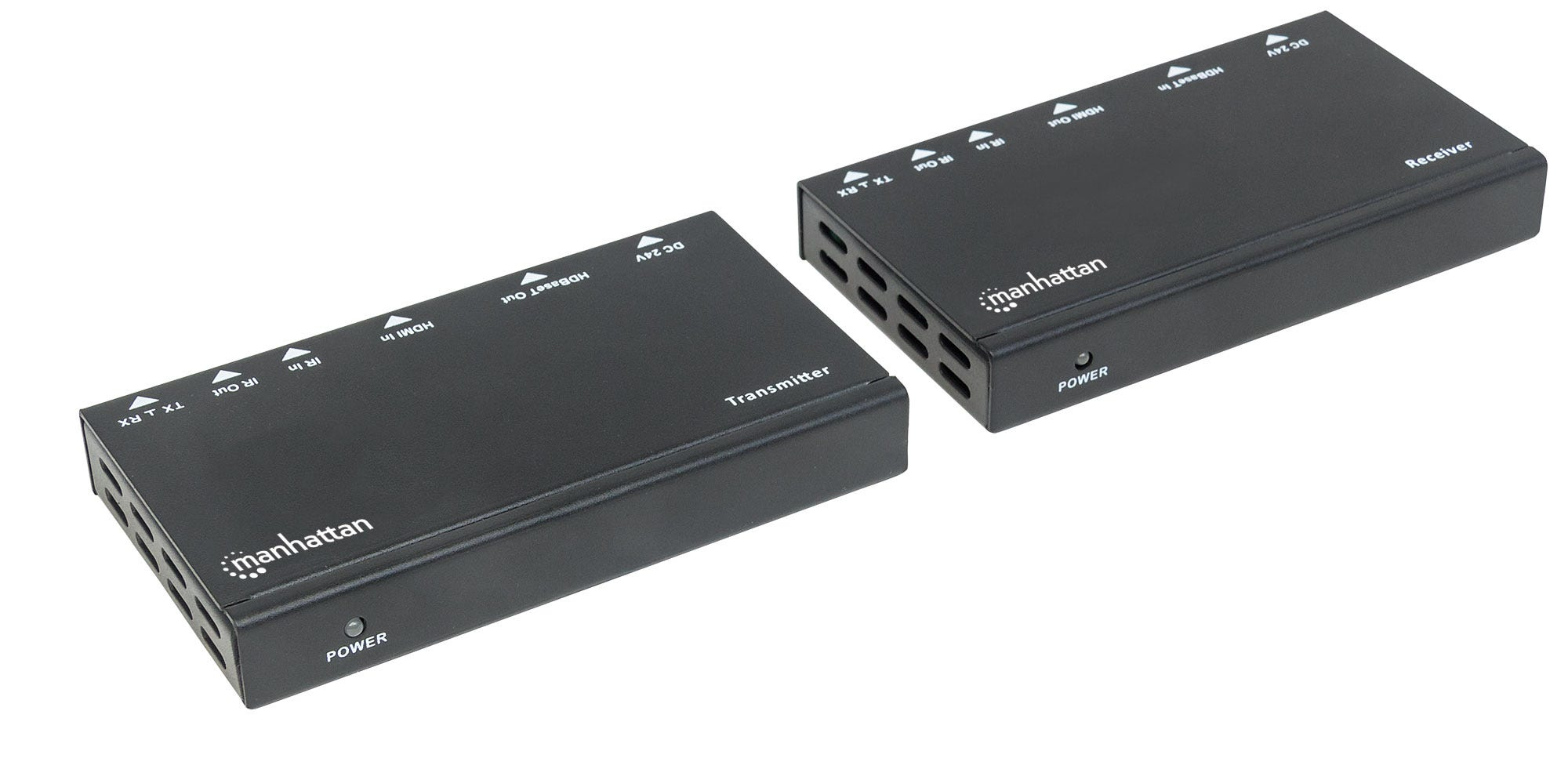

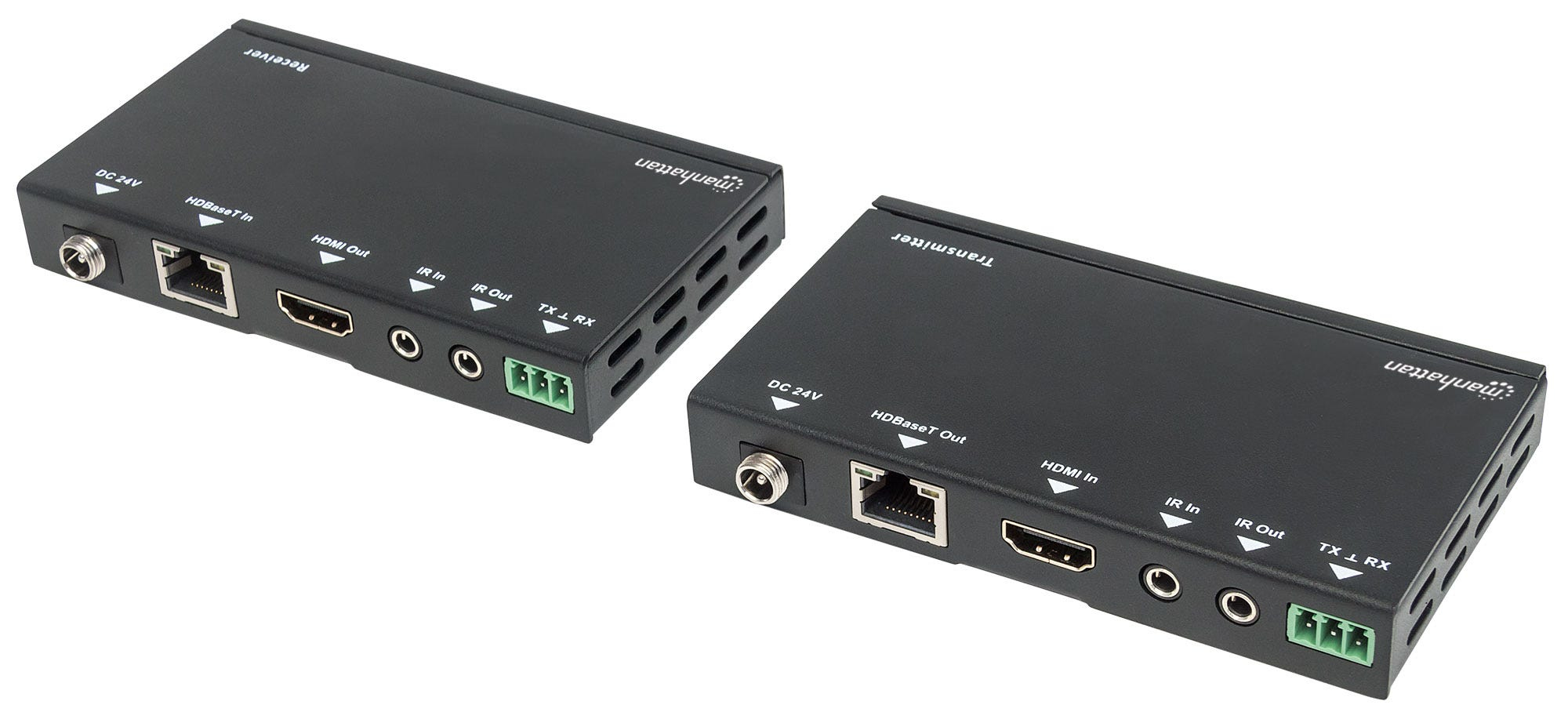

Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit, Extends Distances of 4K@30Hz up to 40m and 1080p up to 70m Using Single Ethernet Cable, Power over Cable,

Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit, Extends Distances of 4K@30Hz up to 40m and 1080p up to 70m Using Single Ethernet Cable, Power over Cable,

Model 207638EAN 766623207638

33 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight600 g
  • ColourBlack
  • Operating voltage24 V
  • Operating relative humidity (H-H)20 - 96%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
600 g
Colour
Black
Operating voltage
24 V
Operating relative humidity (H-H)
20 - 96%
Brand
Manhattan
Category
AV Extender
Model
207638
Part number
207638
EAN / UPC
766623207638
Also known as
Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit, Extends Distances of 4K@30Hz up to 40m and 1080p up to 70m Using Single Ethernet Cable, Power over Cable,

Specifications

33 specifications in 6 groups

Features

TypeAV transmitter & receiver
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
Bandwidth340 MHz
Baud rate115 Kbit/s
HDCPYes
LED indicatorsYes
MaterialMetal
Plug and PlayYes
Supported graphics resolutions3840 x 2160, 4096 x 2160
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Product colourBlack
HDBaseT certifiedYes
CertificationCE, FCC, RoHS2

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
DC-in jackYes

Power

Operating voltage24 V
Input current1 A

Operational conditions

Operating relative humidity (H-H)20 - 96%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width65 mm
Depth115 mm
Height17 mm
Weight600 g

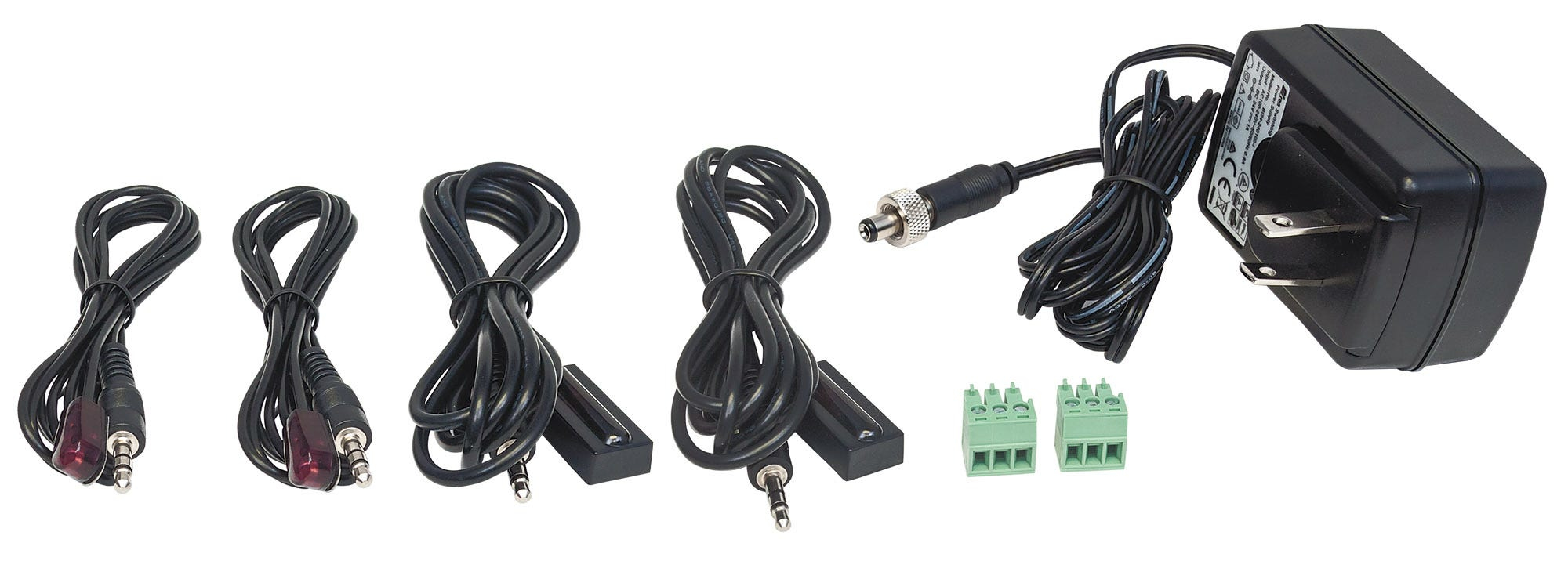

Packaging content

AC adapter includedYes
Quick start guideYes
Mounting kitYes
