4K HDMI over Ethernet Extender Kit, Extends 4K@30Hz signal up to 40m or a 1080p@60Hz signal up to 70m with a single Cat6 Ethernet Cable, Transmitter a
Model 168397EAN 766623168397
36 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight262 g
- Power source typeAC
- Operating relative humidity (H-H)20 - 90%
- Width69 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 262 g
- Power source type
- AC
- Operating relative humidity (H-H)
- 20 - 90%
- Width
- 69 mm
- Brand
- Manhattan
- Category
- AV Extender
- Model
- 168397
- Part number
- 168397
- EAN / UPC
- 766623168397
- Also known as
- Manhattan 4K HDMI over Ethernet Extender Kit, Extends 4K@30Hz signal up to 40m or a 1080p@60Hz signal up to 70m with a single Cat6 Ethernet Cable, Transmitter a
Specifications
36 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| EDID management | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| Material | Metal |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Certification | CE FCC RoHS UKCA |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 2 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 3 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 1 A |
| Power consumption (max) | 1.86 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 80 mm |
| Height | 17 mm |
| Weight | 262 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 69 mm |
| Package depth | 80 mm |
| Package height | 17 mm |
| Package weight | 390 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|

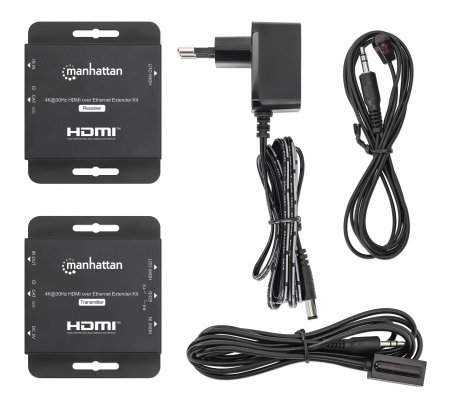

| Cables included | AC, IR |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UKCA, Federal Communications Commission (FCC) |
