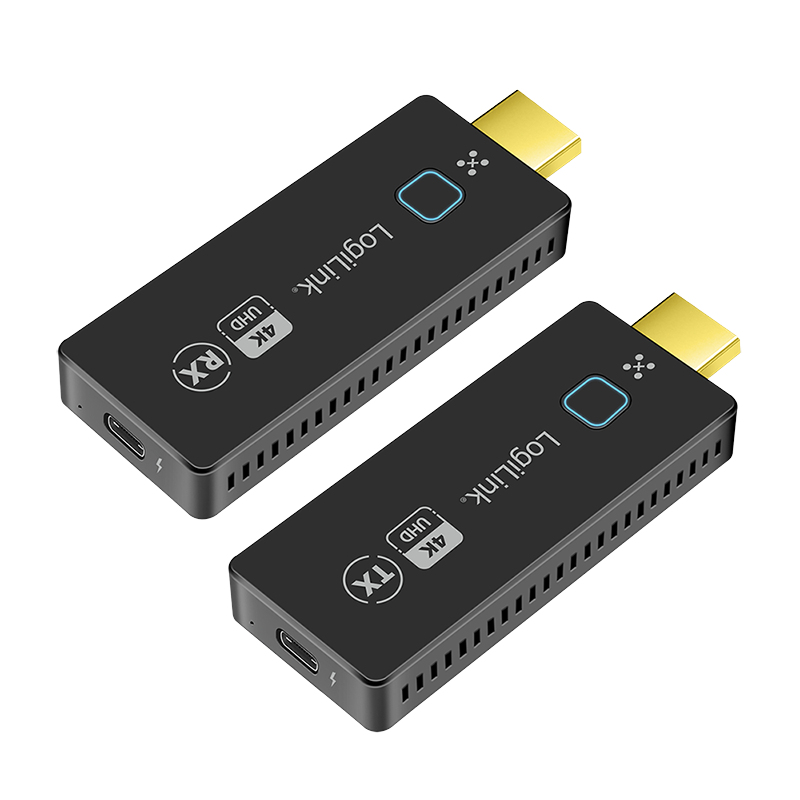

HDW0111 AV extender AV transmitter & receiver Black
Model HDW0111EAN 4052792075380
41 specifications
- ConnectivityWired & Wireless
- TypeAV transmitter & receiver
- ColourBlack
- Power source typeUSB
- Operating relative humidity (H-H)10 - 80%
- Width91 mm
Overview
- Connectivity
- Wired & Wireless
- Type
- AV transmitter & receiver
- Colour
- Black
- Power source type
- USB
- Operating relative humidity (H-H)
- 10 - 80%
- Width
- 91 mm
- Brand
- LogiLink
- Category
- AV Extender
- Model
- HDW0111
- Part number
- HDW0111
- EAN / UPC
- 4052792075380
- Also known as
- LogiLink HDW0111 AV extender AV transmitter & receiver Black
Specifications
41 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Built-in display | No |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Plug and Play | Yes |
| RF power | 22.02 mW |
| Security algorithms | 128-bit AES |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| HDMI in | 1 |
| HDMI version | 1.4/2.0 |
| Number of HDMI outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Operating voltage | 5 V |
| Input current | 0.5 A |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 91 mm |
| Depth | 34 mm |
| Height | 12.8 mm |
| Receiver dimensions (WxDxH) | 91 x 34 x 12.8 mm |
| Receiver weight | 25.5 g |
| Transmitter dimensions (WxDxH) | 91 x 34 x 12.8 mm |
| Transmitter weight | 28 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
| Package width | 119 mm |
| Package depth | 119 mm |
| Package height | 48 mm |
| Package weight | 263 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
