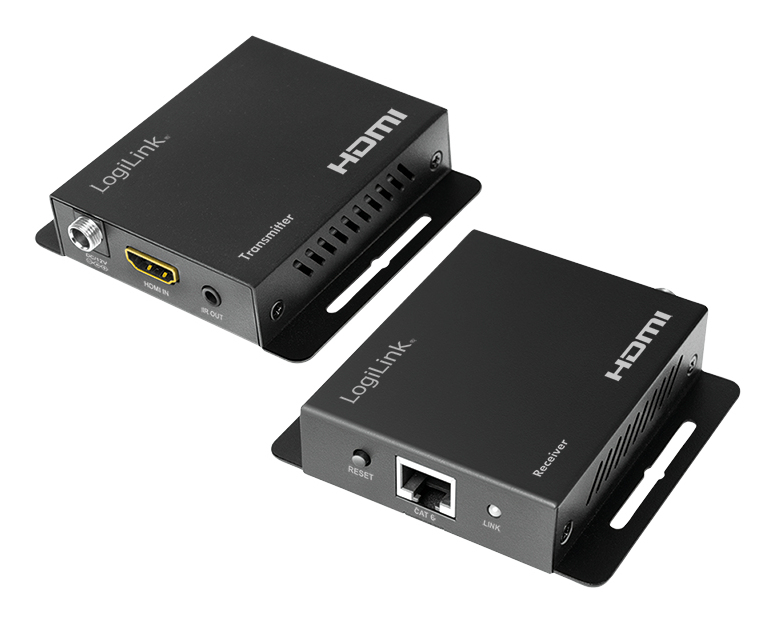

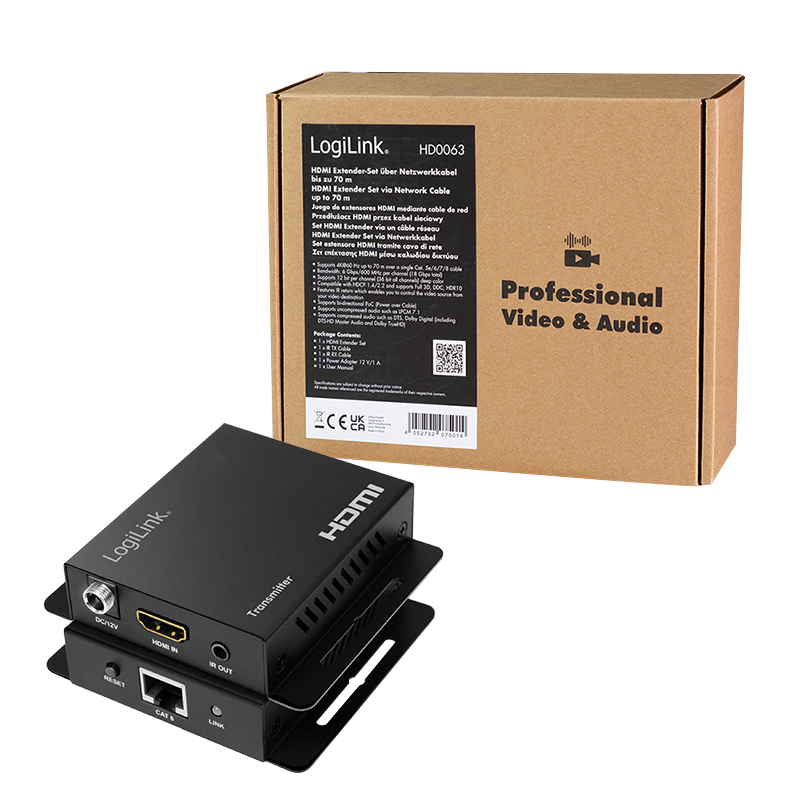

HD0063 AV extender AV transmitter & receiver Black
Model HD0063EAN 4052792075014
39 specifications
- ConnectivityWired & Wireless
- TypeAV transmitter & receiver
- ColourBlack
- External power adapterYes
- Operating relative humidity (H-H)10 - 85%
- Width84 mm
Overview
- Connectivity
- Wired & Wireless
- Type
- AV transmitter & receiver
- Colour
- Black
- External power adapter
- Yes
- Operating relative humidity (H-H)
- 10 - 85%
- Width
- 84 mm
- Brand
- LogiLink
- Category
- AV Extender
- Model
- HD0063
- Part number
- HD0063
- EAN / UPC
- 4052792075014
- Also known as
- LogiLink HD0063 AV extender AV transmitter & receiver Black
Specifications
39 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Built-in display | No |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| 3D | Yes |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Colour depth | 36 bit |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |

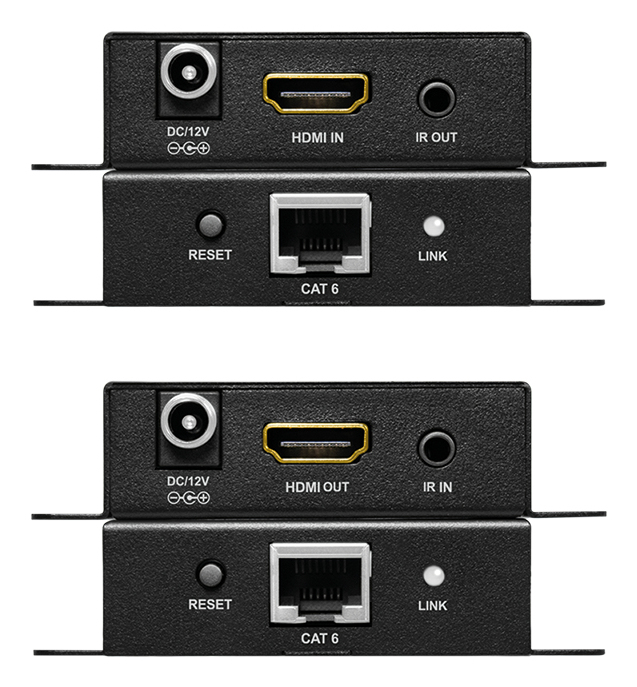

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
Power
| Specification | Value |
|---|---|

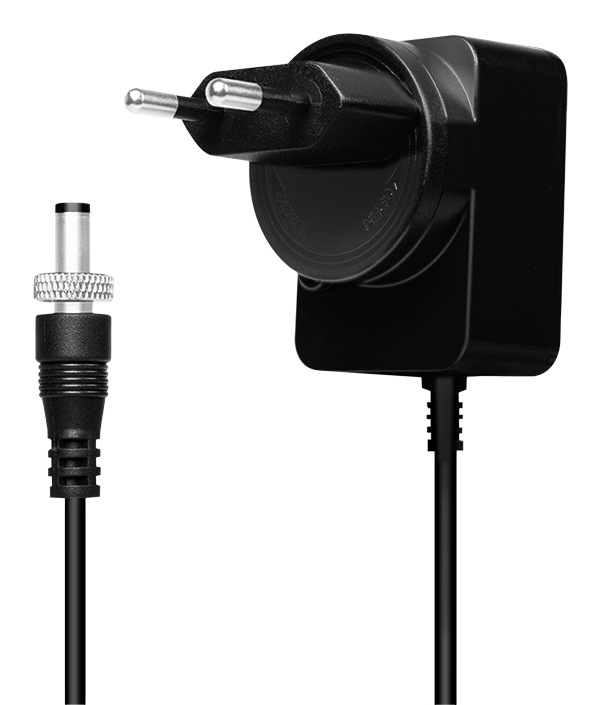

| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84 mm |
| Depth | 76.5 mm |
| Height | 20 mm |
| Receiver dimensions (WxDxH) | 84 x 76.5 x 20 mm |
| Receiver weight | 190 g |
| Transmitter dimensions (WxDxH) | 84 x 76.5 x 20 mm |
| Transmitter weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 246 mm |
| Package depth | 195 mm |
| Package height | 60 mm |
| Package weight | 571 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
