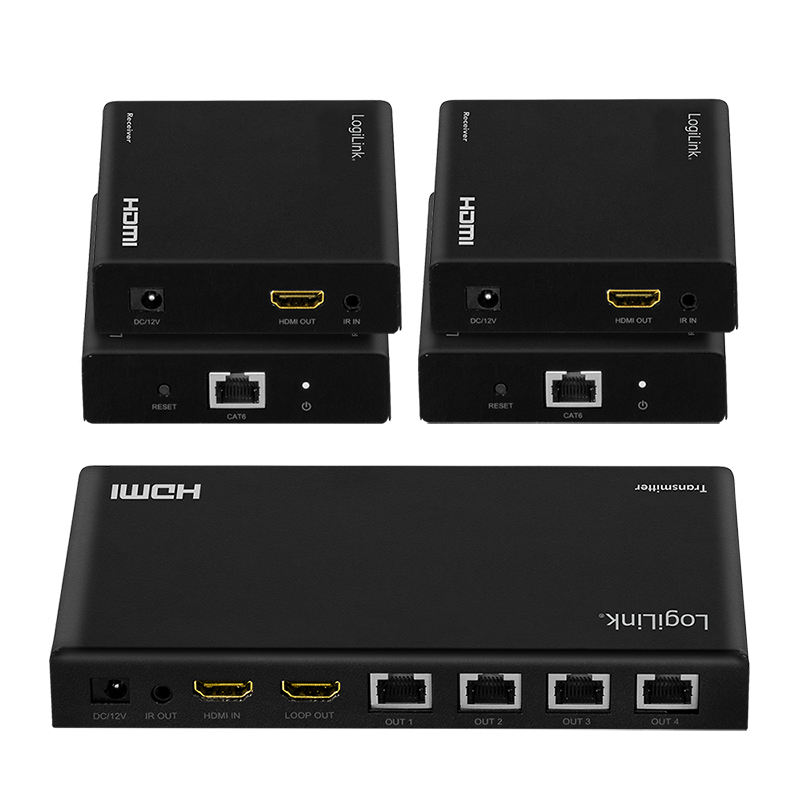

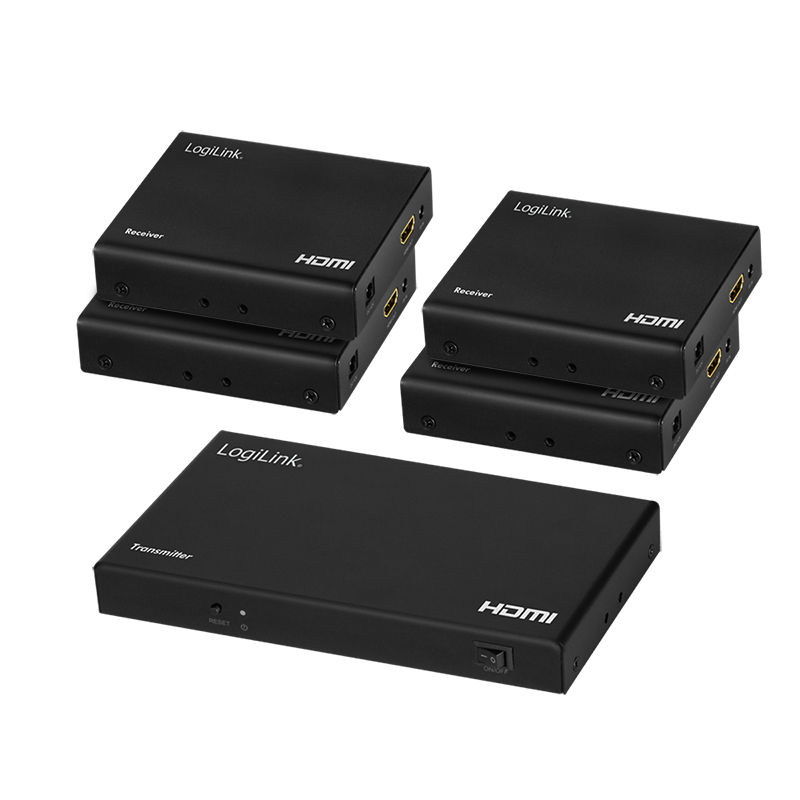

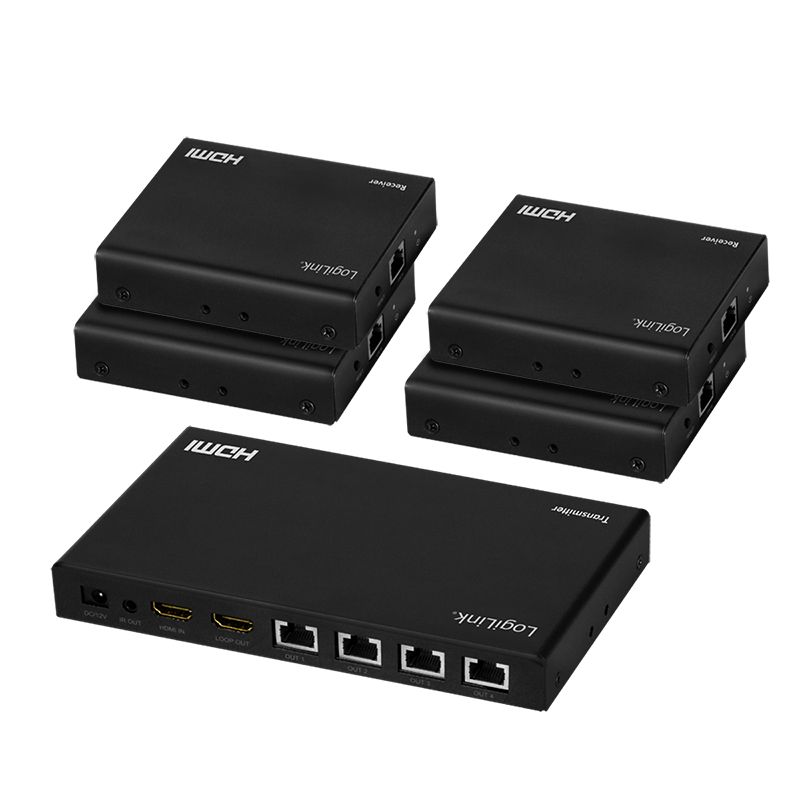

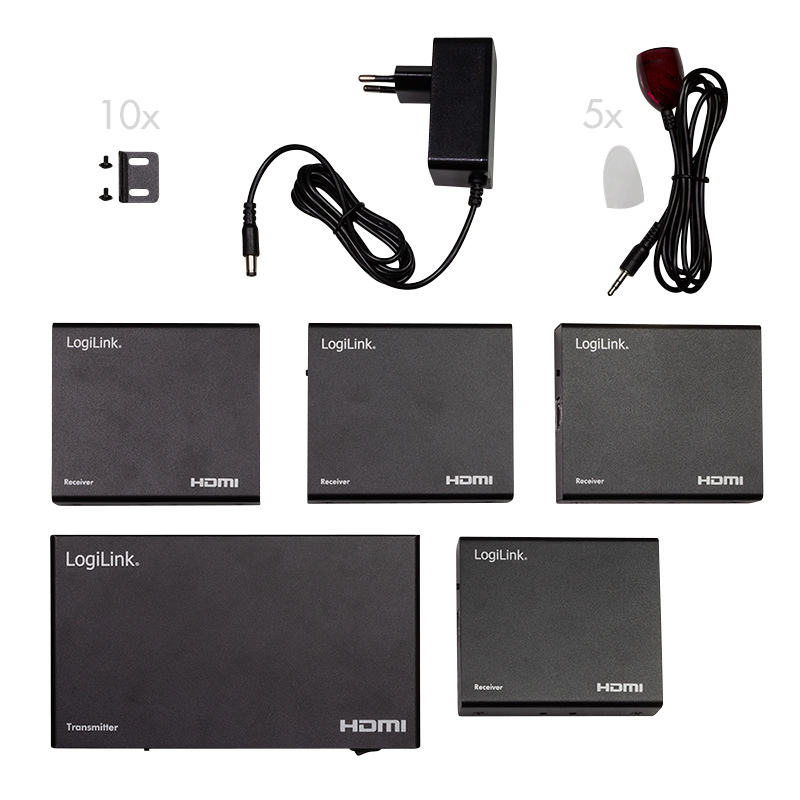

HD0031 AV extender AV transmitter & receiver Black
Model HD0031EAN 4052792050790
30 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 85%
- Receiver dimensions (WxDxH)100 x 88 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 85%
- Receiver dimensions (WxDxH)
- 100 x 88 x 23 mm
- Brand
- LogiLink
- Category
- AV Extender
- Model
- HD0031
- Part number
- HD0031
- EAN / UPC
- 4052792050790
- Also known as
- LogiLink HD0031 AV extender AV transmitter & receiver Black
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6, Cat7, Cat8.1 |
| 3D | Yes |
| Bandwidth | 6 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |

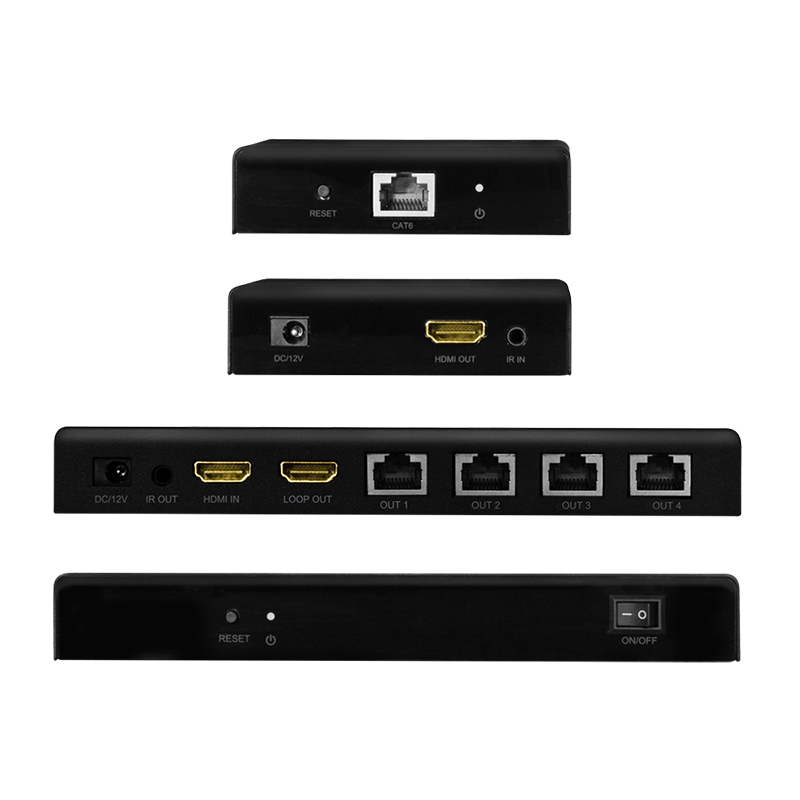

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |

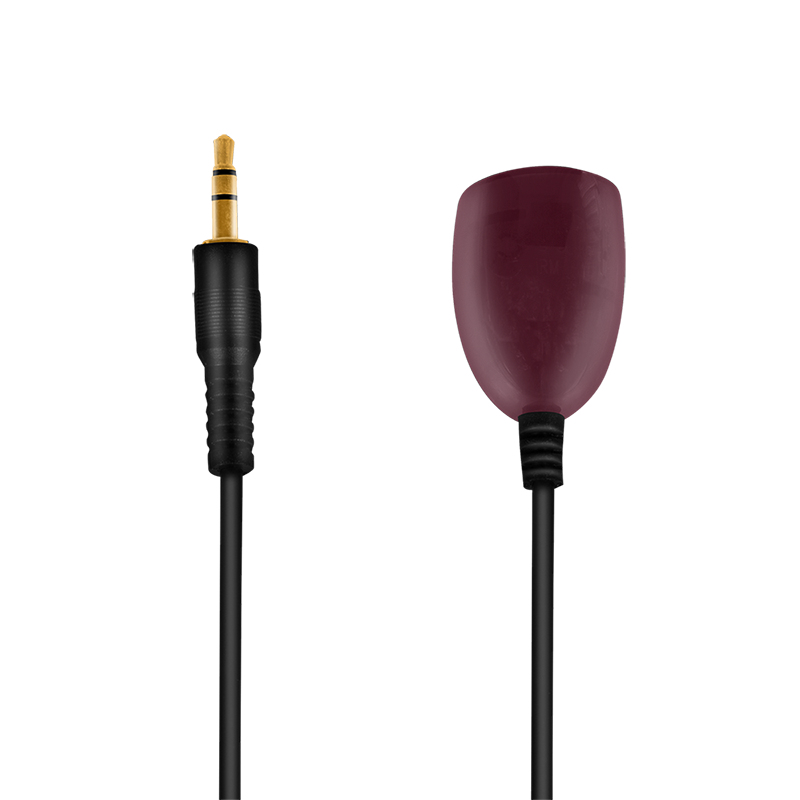

| Remote (IR) input | 1 |
| Remote (IR) output | 1 |

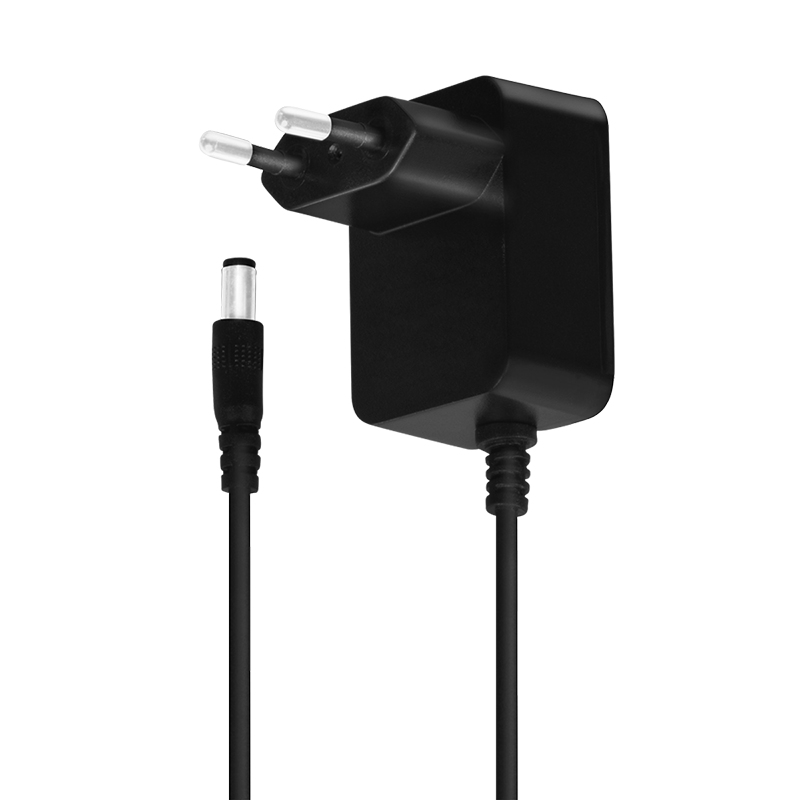

Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 12 V |
| Input current | 0.65 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Receiver weight | 200 g |
| Transmitter dimensions (WxDxH) | 180 x 103 x 24 mm |
| Transmitter weight | 390 g |
