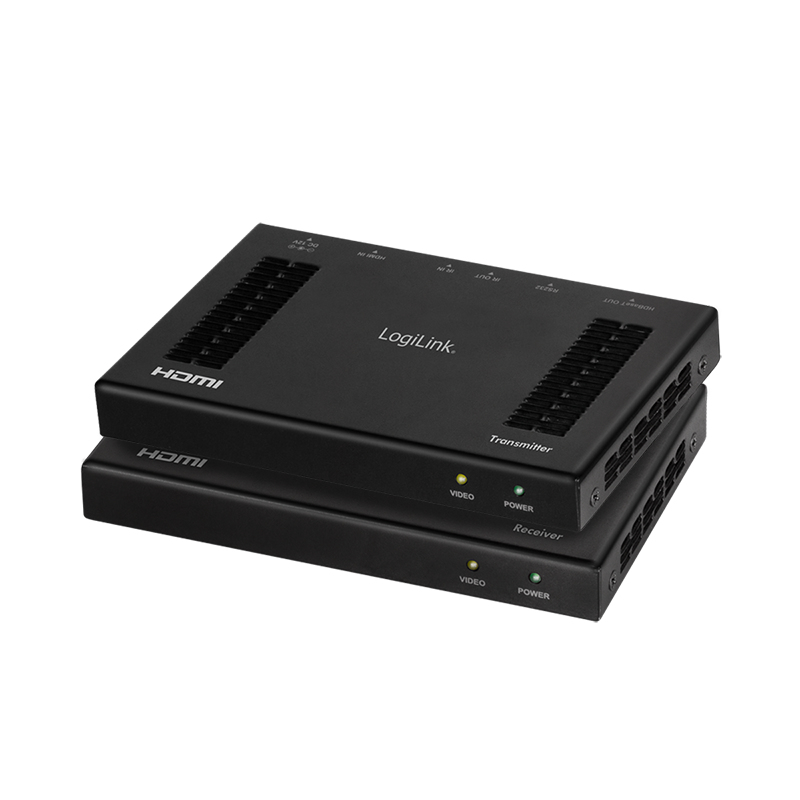

HD0026 AV extender AV transmitter & receiver Black
Model HD0026EAN 4052792050820
50 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- AC input voltage100 - 240 V
- Operating relative humidity (H-H)10 - 85%
- Receiver dimensions (WxDxH)147 x 94 x 18 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- AC input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 10 - 85%
- Receiver dimensions (WxDxH)
- 147 x 94 x 18 mm
- Brand
- LogiLink
- Category
- AV Extender
- Model
- HD0026
- Part number
- HD0026
- EAN / UPC
- 4052792050820
- Also known as
- LogiLink HD0026 AV extender AV transmitter & receiver Black
Specifications
50 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat8, Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 60 m |
| Maximum refresh rate | 60 Hz |
| Bidirectional | Yes |
| 3D | Yes |
| Audio formats supported | DTS, LPCM |
| Bandwidth | 6 Gbit/s |
| Bandwidth | 600 MHz |
| Cable length | 1.2 m |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |
| HDBaseT certified | Yes |

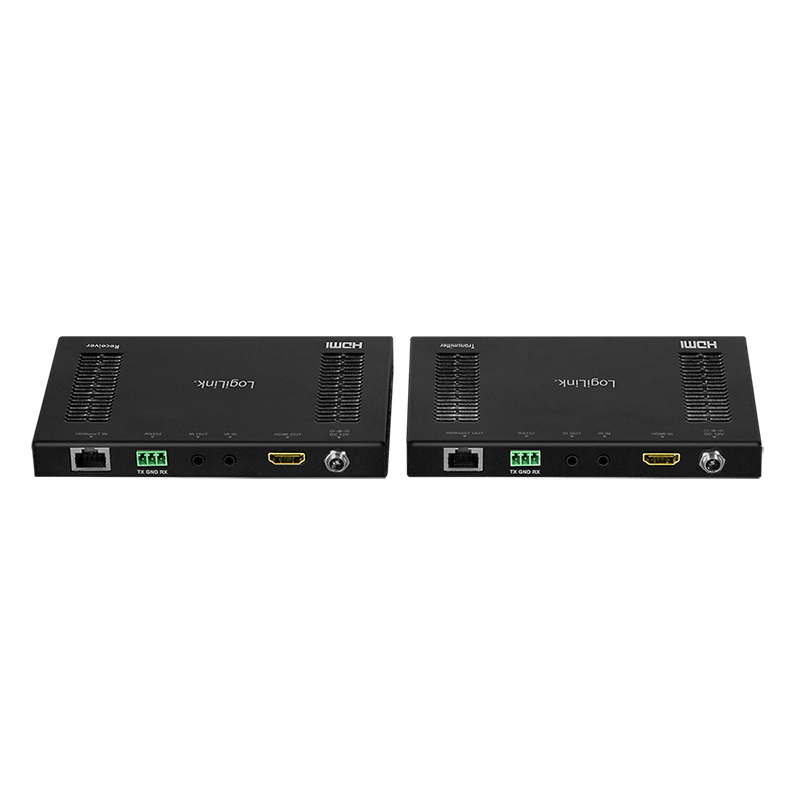

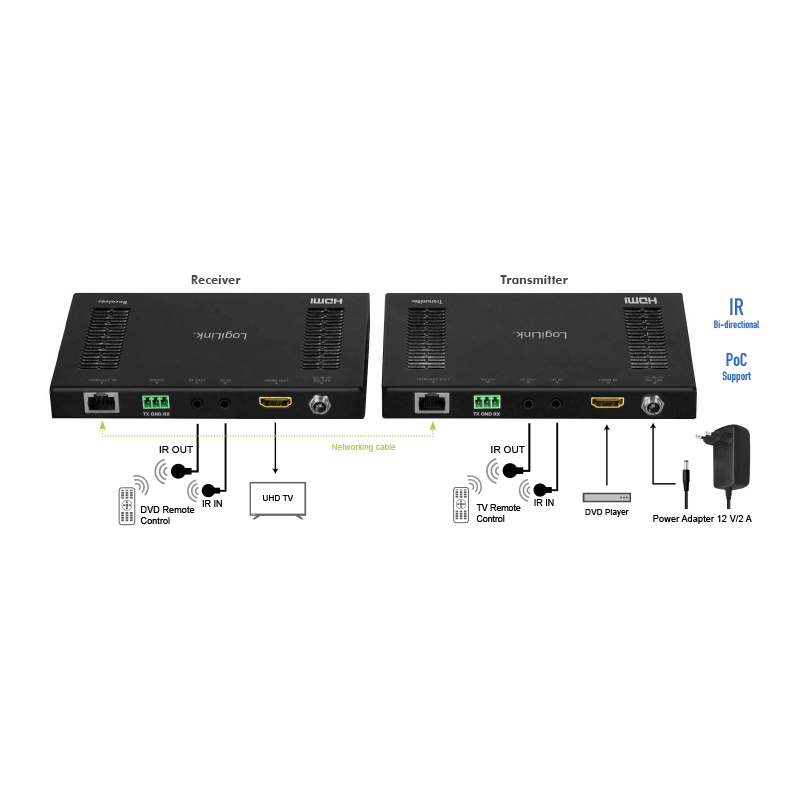

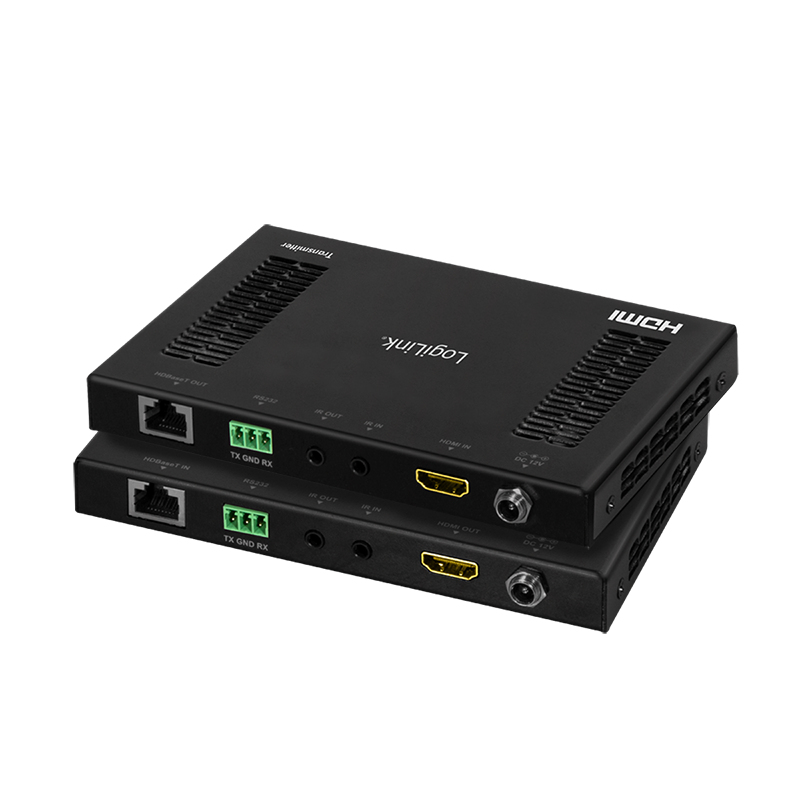

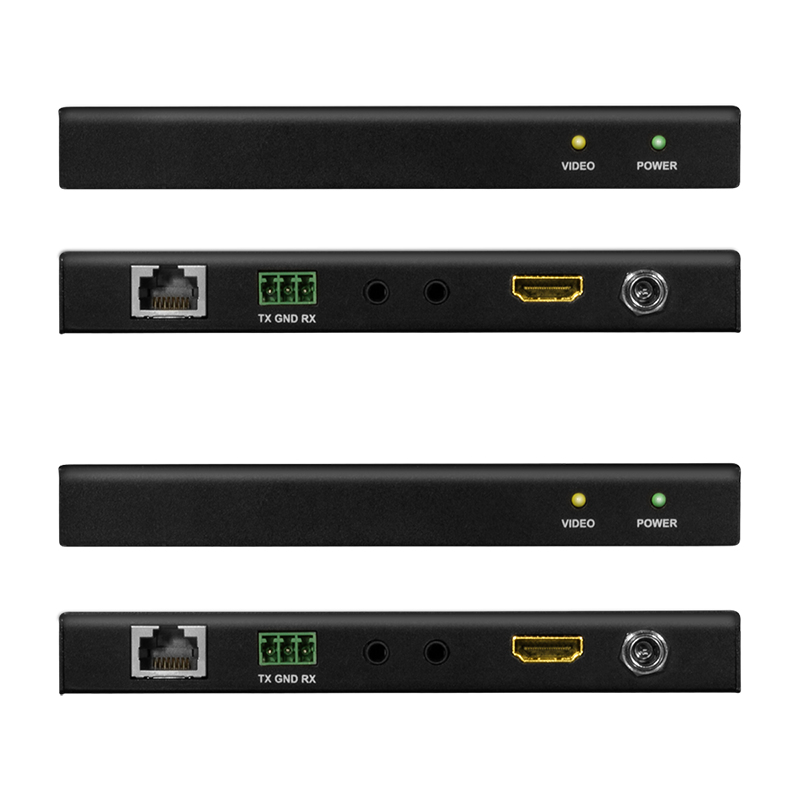

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 16 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 147 x 94 x 18 mm |
| Receiver weight | 350 g |
| Transmitter dimensions (WxDxH) | 147 x 94 x 18 mm |
| Transmitter weight | 350 g |

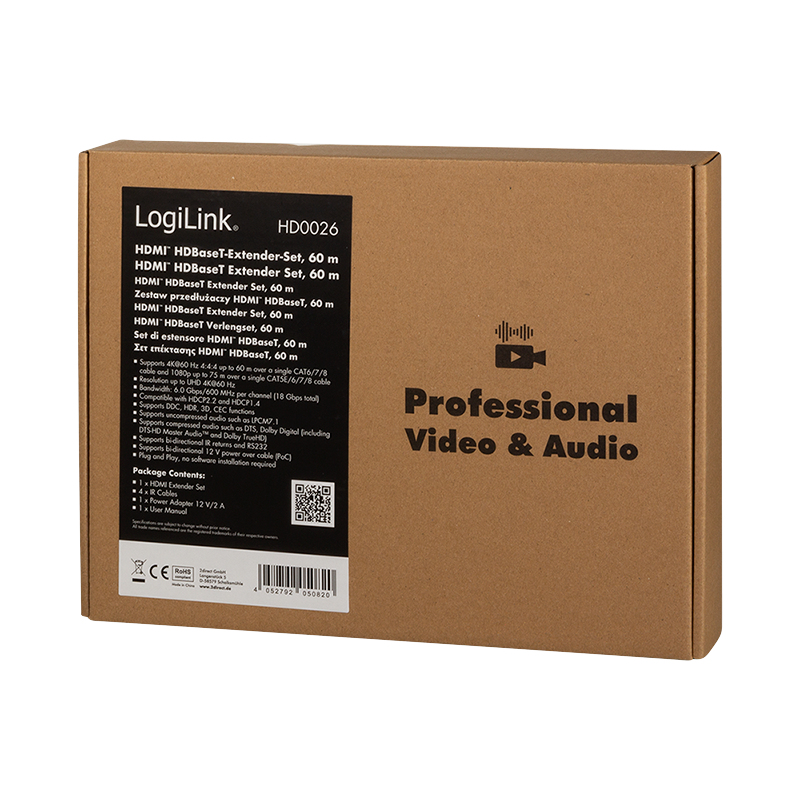

Packaging data
| Specification | Value |
|---|---|
| Package width | 315 mm |
| Package depth | 235 mm |
| Package height | 55 mm |
| Package weight | 1.07 kg |

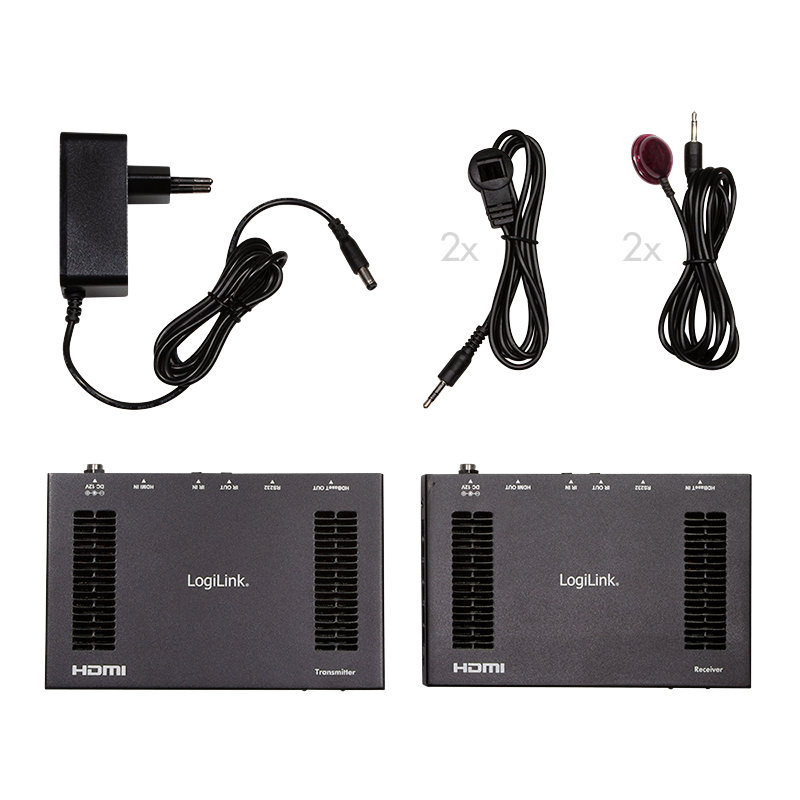

Packaging content
| Specification | Value |
|---|---|

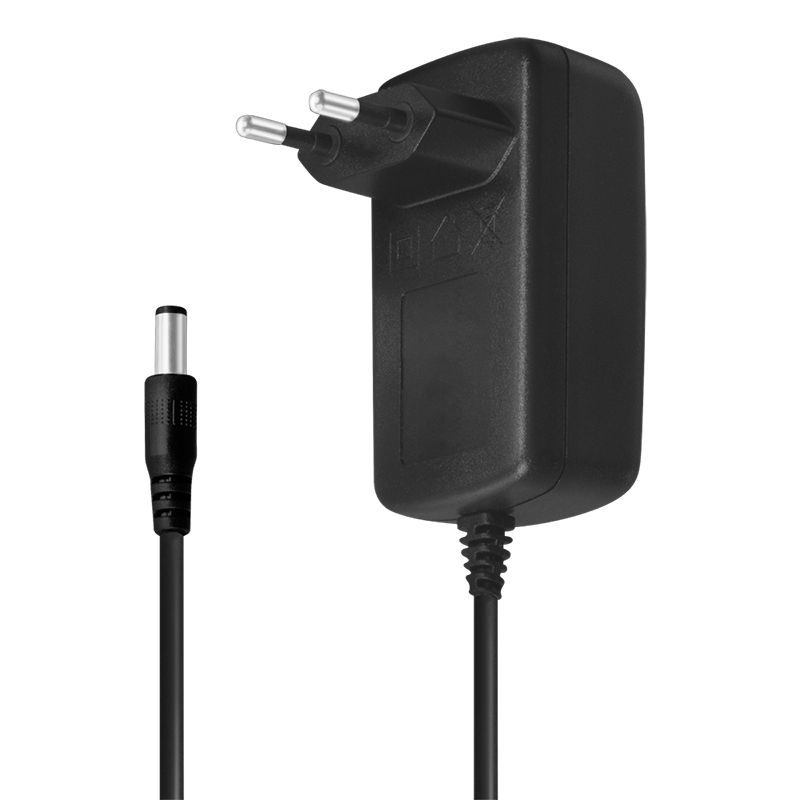

| AC adapter included | Yes |

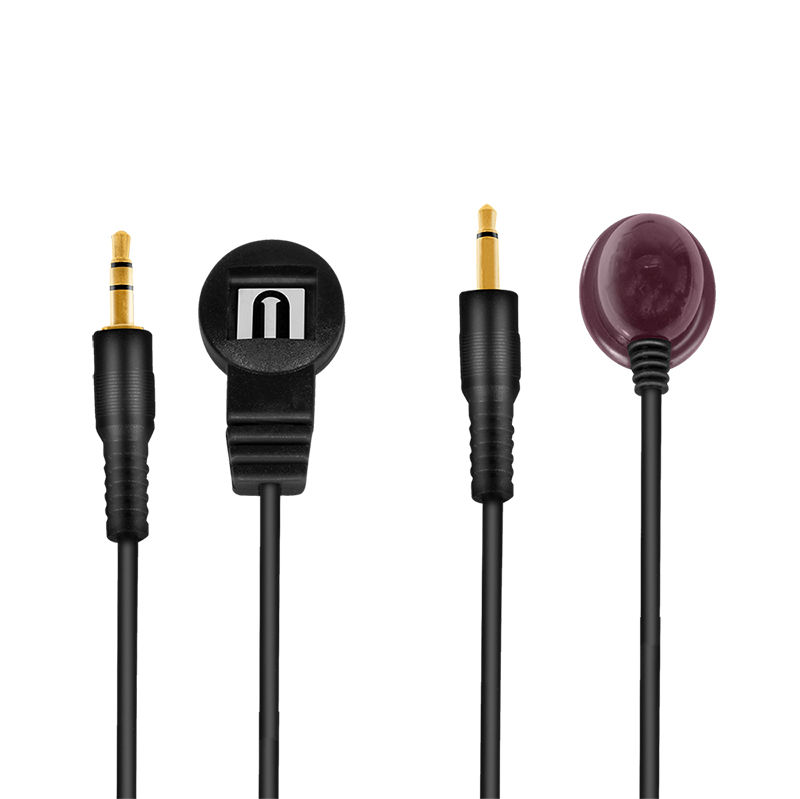

| Cables included | IR |
| Manual | Yes |
