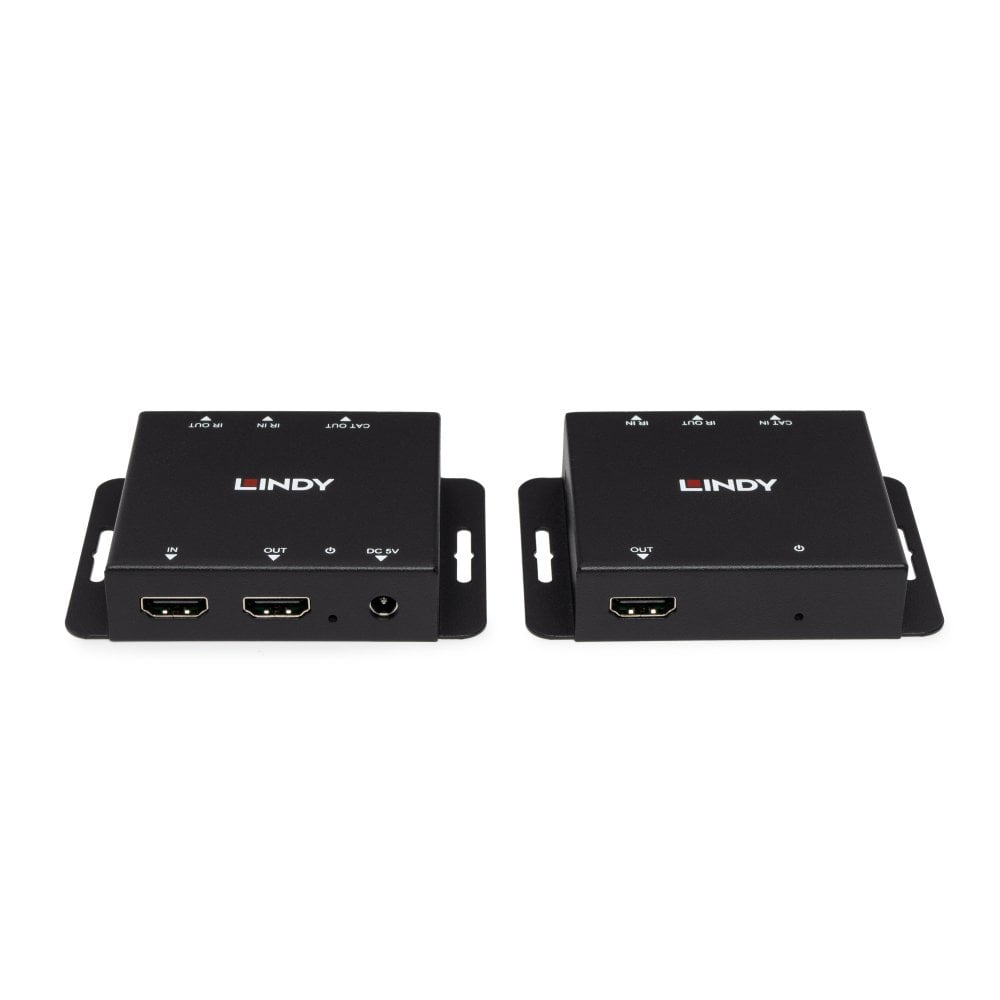

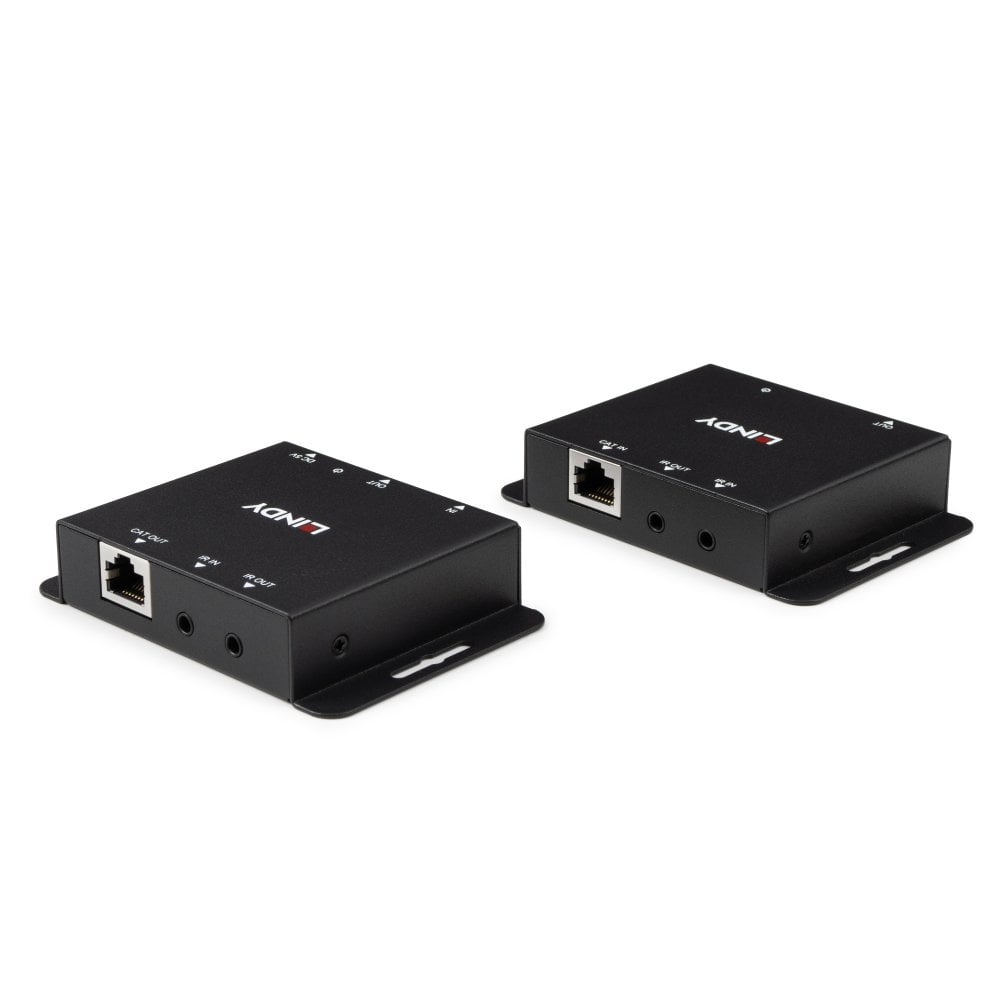

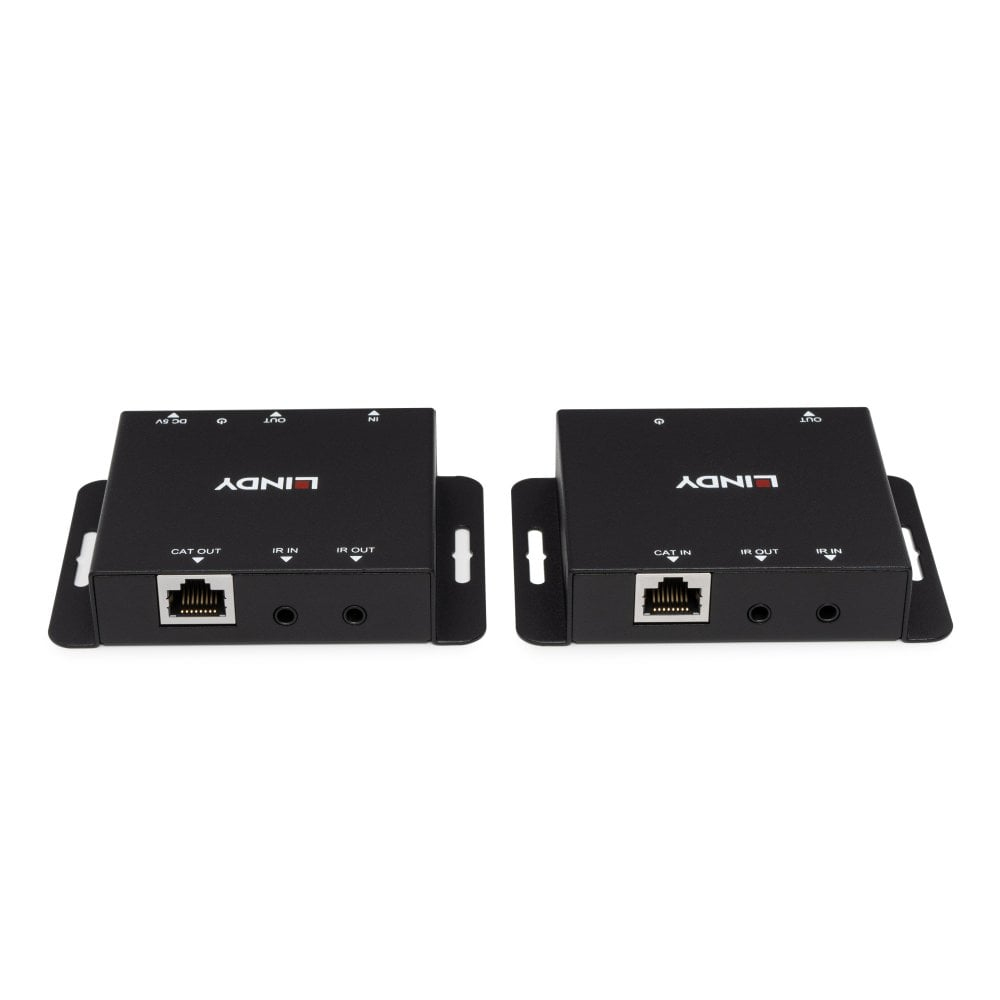

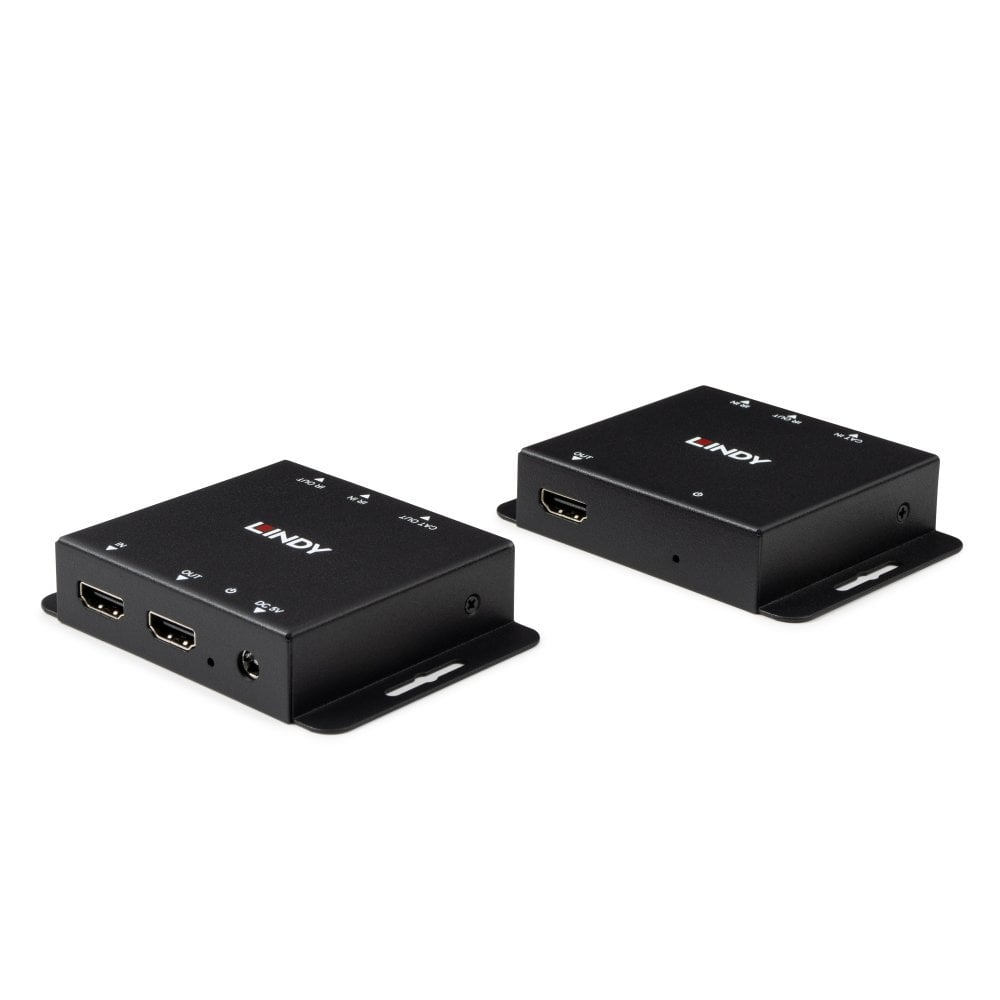

50m Cat.6 HDMI & IR Extender with PoC & Loop Out
Model 38509EAN 4002888385091
47 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage (transmitter)5 V
- Operating relative humidity (H-H)20 - 90%
- Receiver dimensions (WxDxH)96 x 20 x 68 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage (transmitter)
- 5 V
- Operating relative humidity (H-H)
- 20 - 90%
- Receiver dimensions (WxDxH)
- 96 x 20 x 68 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38509
- Part number
- 38509
- EAN / UPC
- 4002888385091
- Also known as
- Lindy 50m Cat.6 HDMI & IR Extender with PoC & Loop Out
Specifications
47 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | GSV100T |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 4.95 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Material | Metal |
| Supported video modes | 1080p |
| Video compression formats | H.265 |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH & California Proposition 65 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Video in | 1 |
| Video out | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 96 x 20 x 68 mm |
| Receiver weight | 440 g |
| Transmitter dimensions (WxDxH) | 96 x 20 x 68 mm |
| Transmitter weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 215 mm |
| Package depth | 135 mm |
| Package height | 75 mm |
| Package weight | 610 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Special features | PoC (Power over Cable), IR pass-through, Loop Out |
| Sustainability compliance | Yes |
