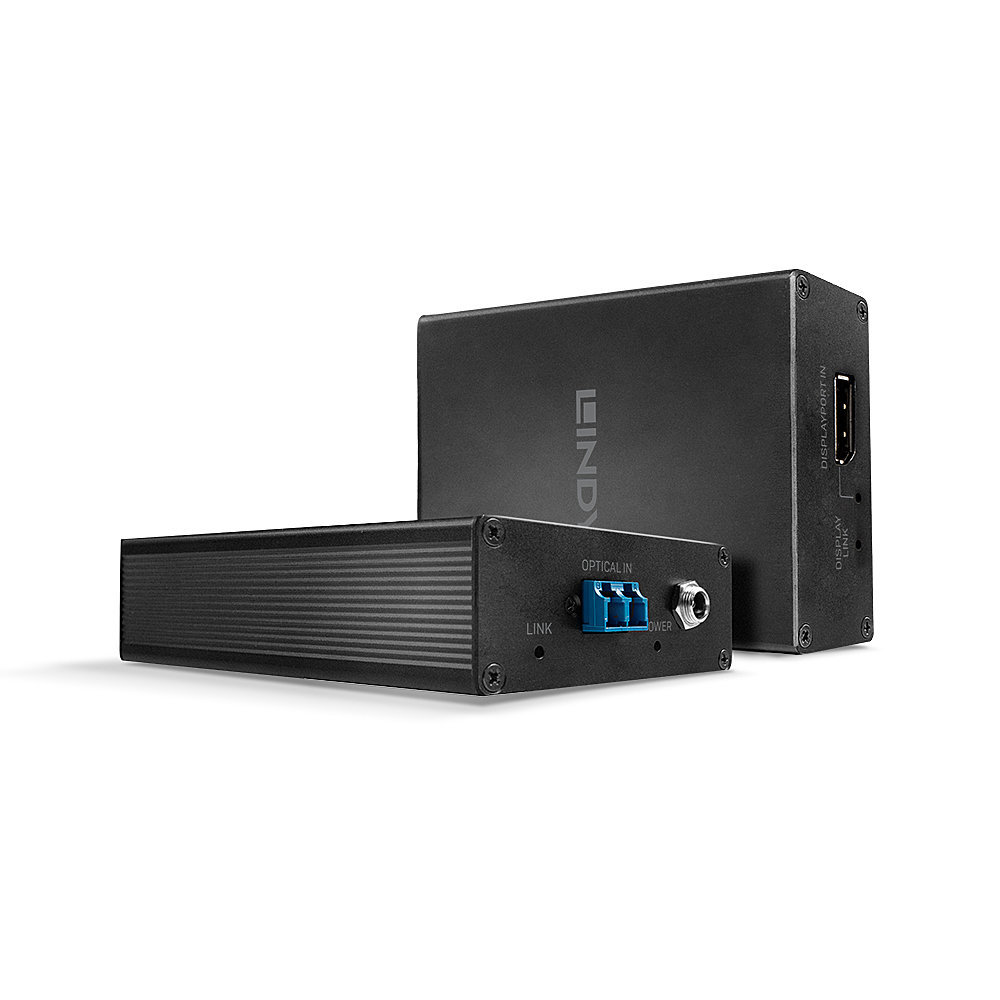

1200m Fibre Optic DisplayPort 1.2 Extender
Model 38417EAN 4002888384179
34 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight280 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 280 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38417
- Part number
- 38417
- EAN / UPC
- 4002888384179
- Also known as
- Lindy 1200m Fibre Optic DisplayPort 1.2 Extender
Specifications
34 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Chipset | PS8460 |
| Maximum transfer distance | 1200 m |
| Fiber optic wavelengths supported | 1310,1550 nm |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| HDCP pass-through | Yes |
| Bandwidth | 21.6 Gbit/s |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| Fiber optic connector | LC |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 75 mm |
| Height | 29 mm |
| Weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 175 mm |
| Package depth | 156 mm |
| Package height | 128 mm |
| Package weight | 1.25 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
