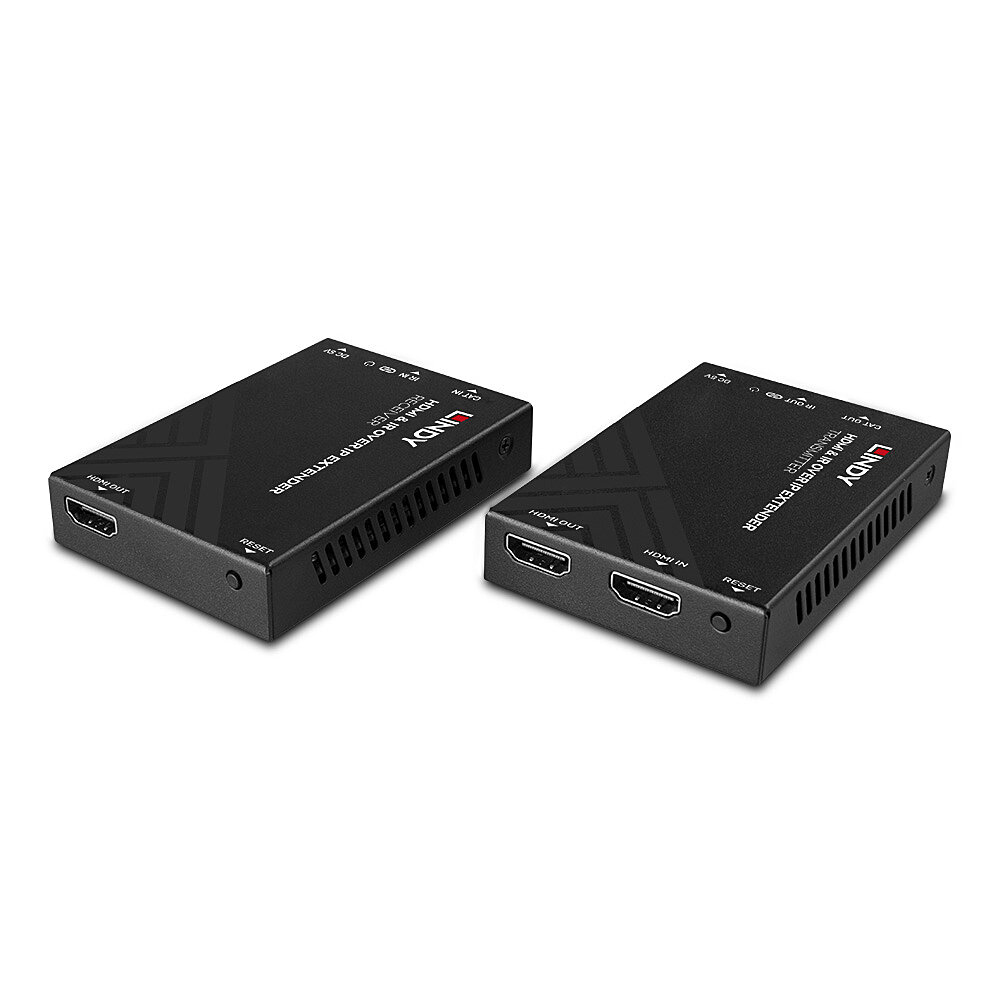

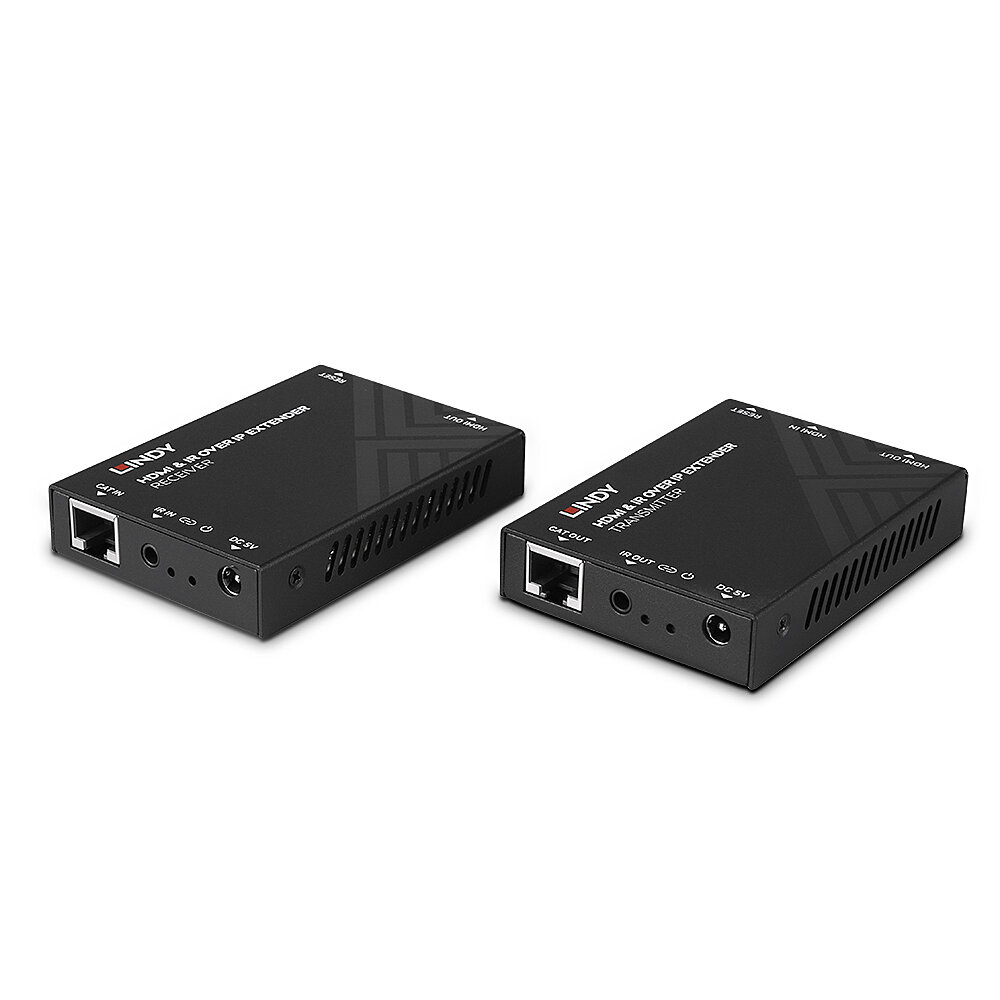

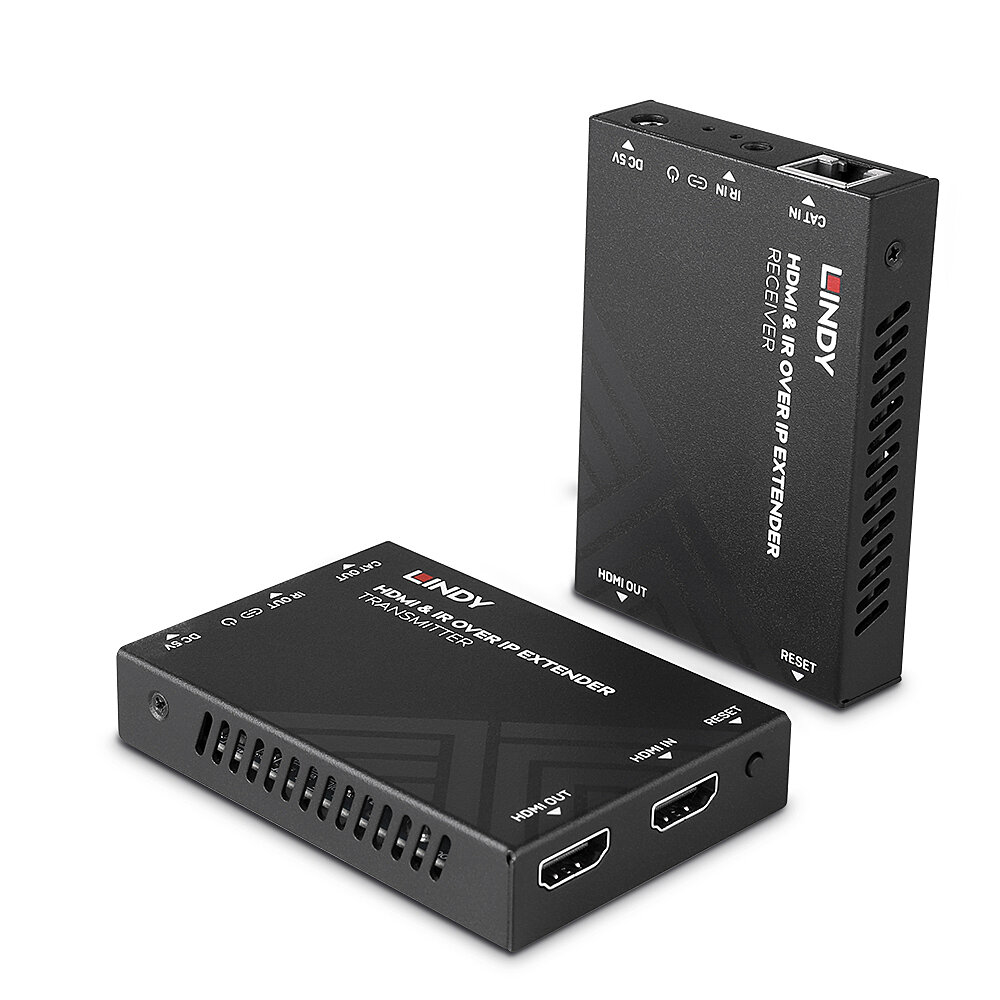

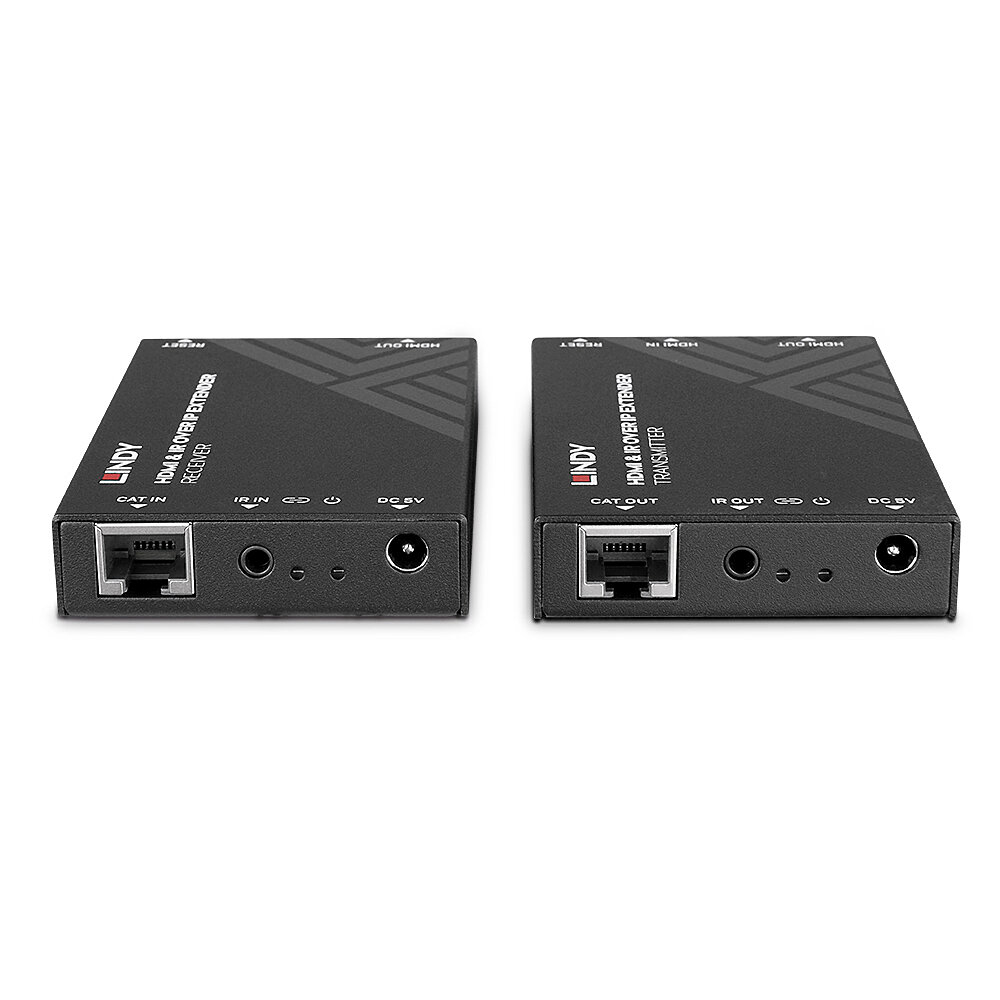

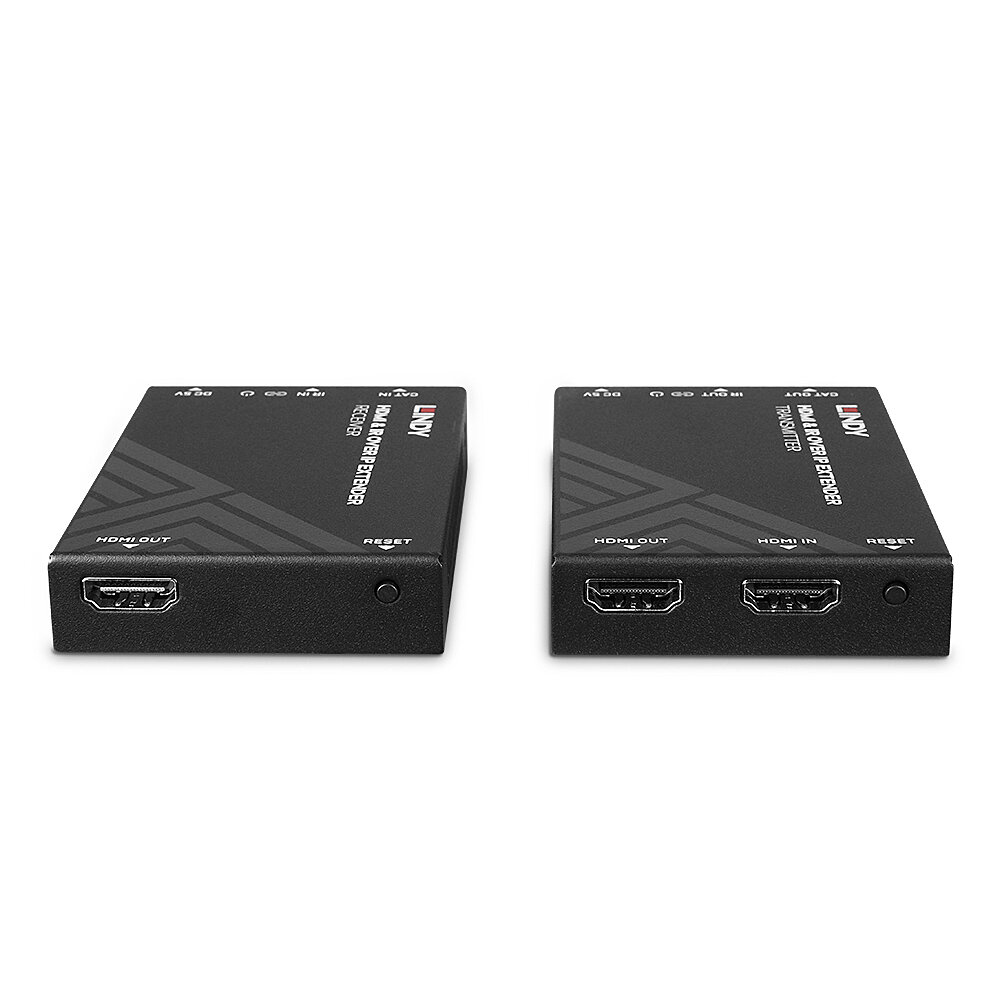

HDMI and IR over IP Extender
Model 38398EAN 4002888383981
42 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage (transmitter)5 V
- Operating relative humidity (H-H)20 - 90%
- Receiver dimensions (WxDxH)88 x 61.2 x 16.5 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage (transmitter)
- 5 V
- Operating relative humidity (H-H)
- 20 - 90%
- Receiver dimensions (WxDxH)
- 88 x 61.2 x 16.5 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38398
- Part number
- 38398
- EAN / UPC
- 4002888383981
- Also known as
- Lindy HDMI and IR over IP Extender
Specifications
42 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | SSC337DE - SSD203D |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 60 Hz |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Material | Metal |
| Supported video modes | 1080p |
| Video compression formats | H.265 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| Video in | 1 |
| Video out | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 88 x 61.2 x 16.5 mm |
| Receiver weight | 530 g |
| Transmitter dimensions (WxDxH) | 88 x 61.2 x 16.5 mm |
| Transmitter weight | 530 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 130 mm |
| Package height | 70 mm |
| Package weight | 730 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability compliance | Yes |
