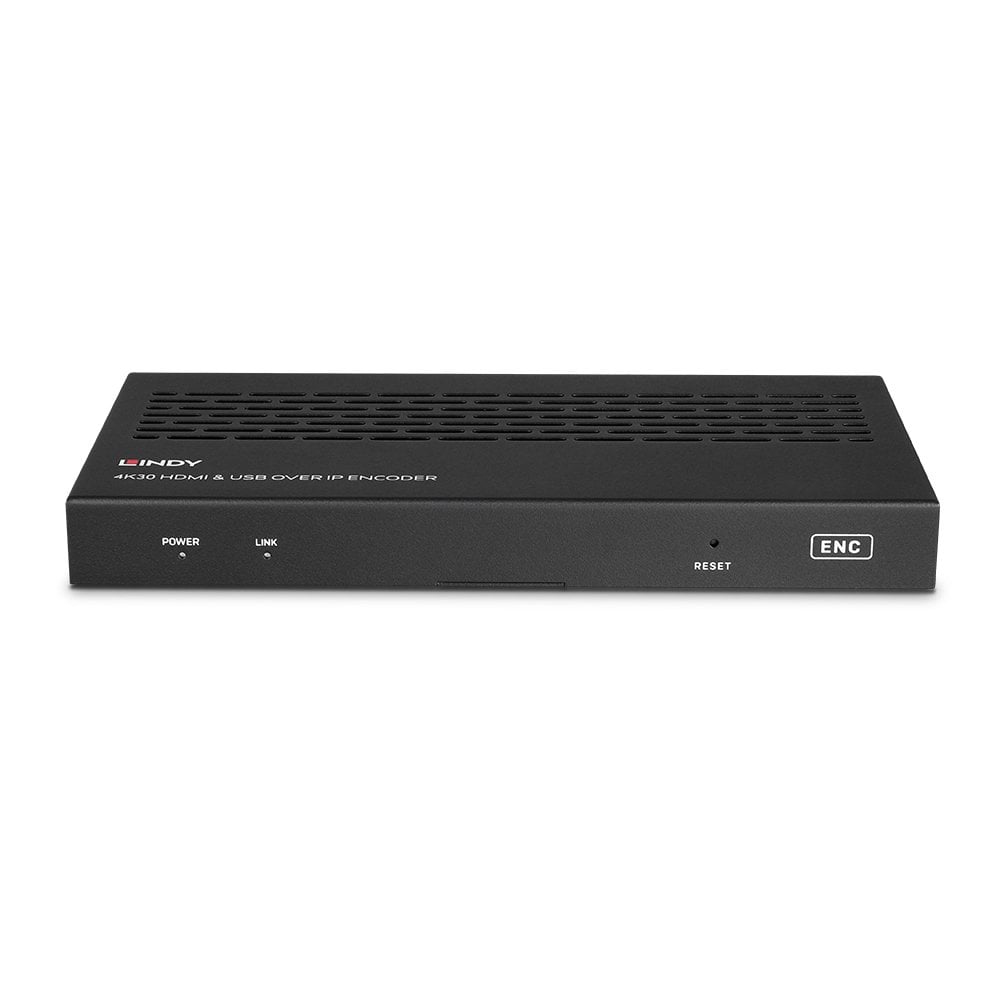

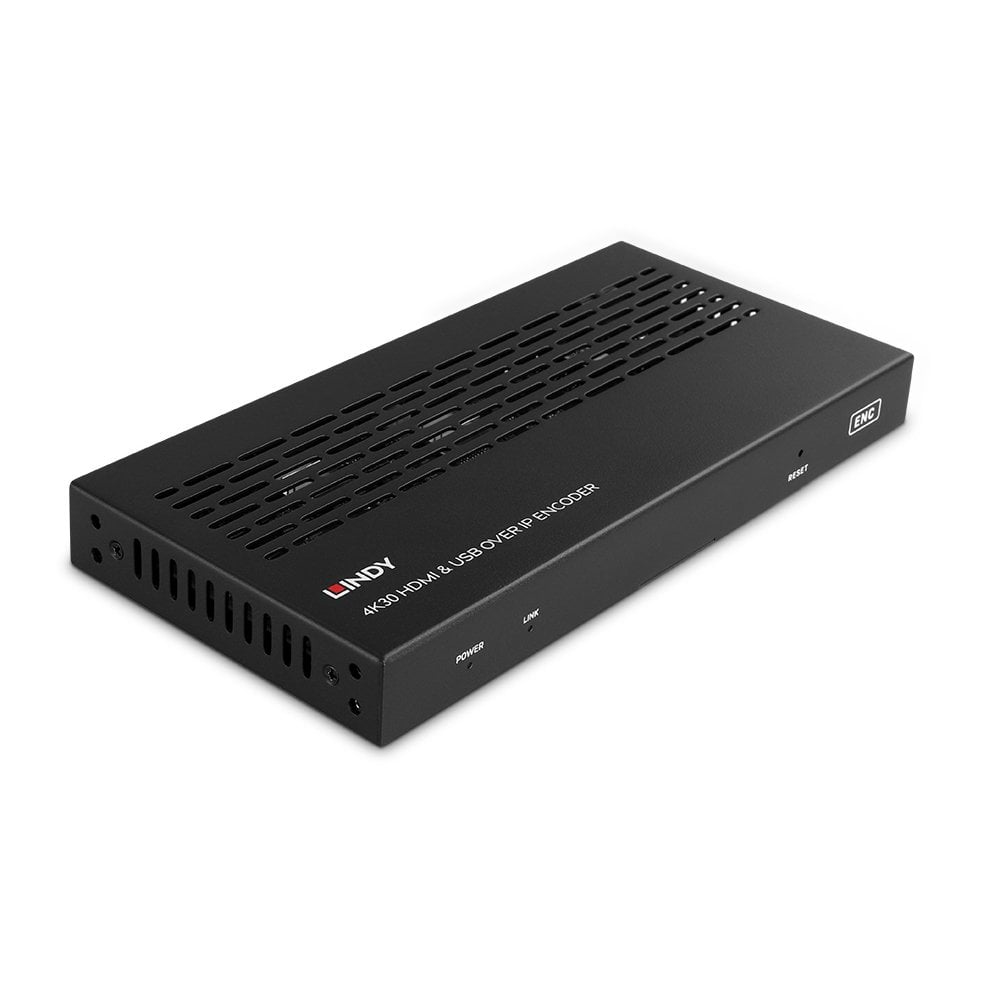

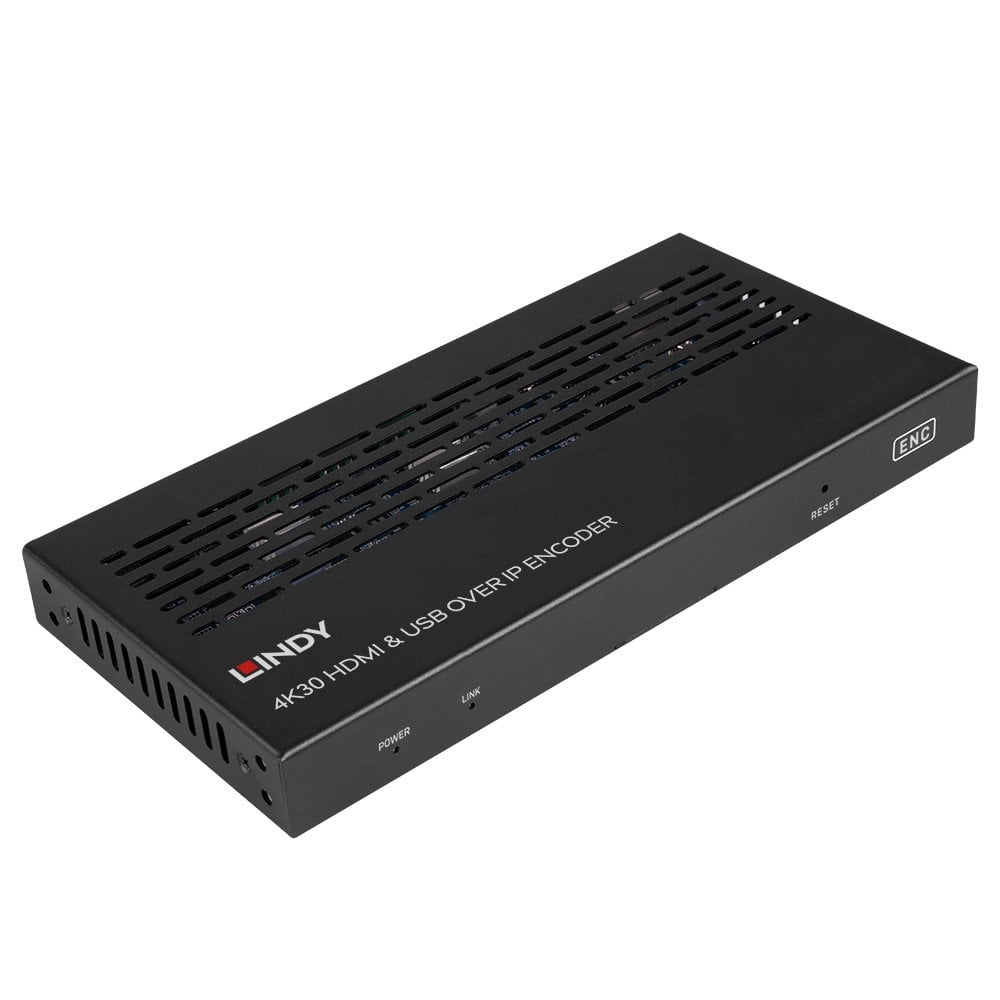

Lindy 4K30 HDMI and USB over IP System - Encoder
Lindy

4K30 HDMI and USB over IP System - Encoder

Model 38396EAN 4002888383967

51 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight780 g
  • ColourBlack
  • Power source typeDC
  • Operating relative humidity (H-H)20 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
780 g
Colour
Black
Power source type
DC
Operating relative humidity (H-H)
20 - 90%
Brand
Lindy
Category
AV Extender
Model
38396
Part number
38396
EAN / UPC
4002888383967
Also known as
Lindy 4K30 HDMI and USB over IP System - Encoder

Specifications

51 specifications in 8 groups

Features

TypeAV transmitter
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance100 m
Maximum refresh rate30 Hz
Supported network protocolsIP
Infrared (IR) frequency range20 - 60 kHz
Bandwidth18 Gbit/s
HDCPYes
HDCP version2.2
Product colourBlack

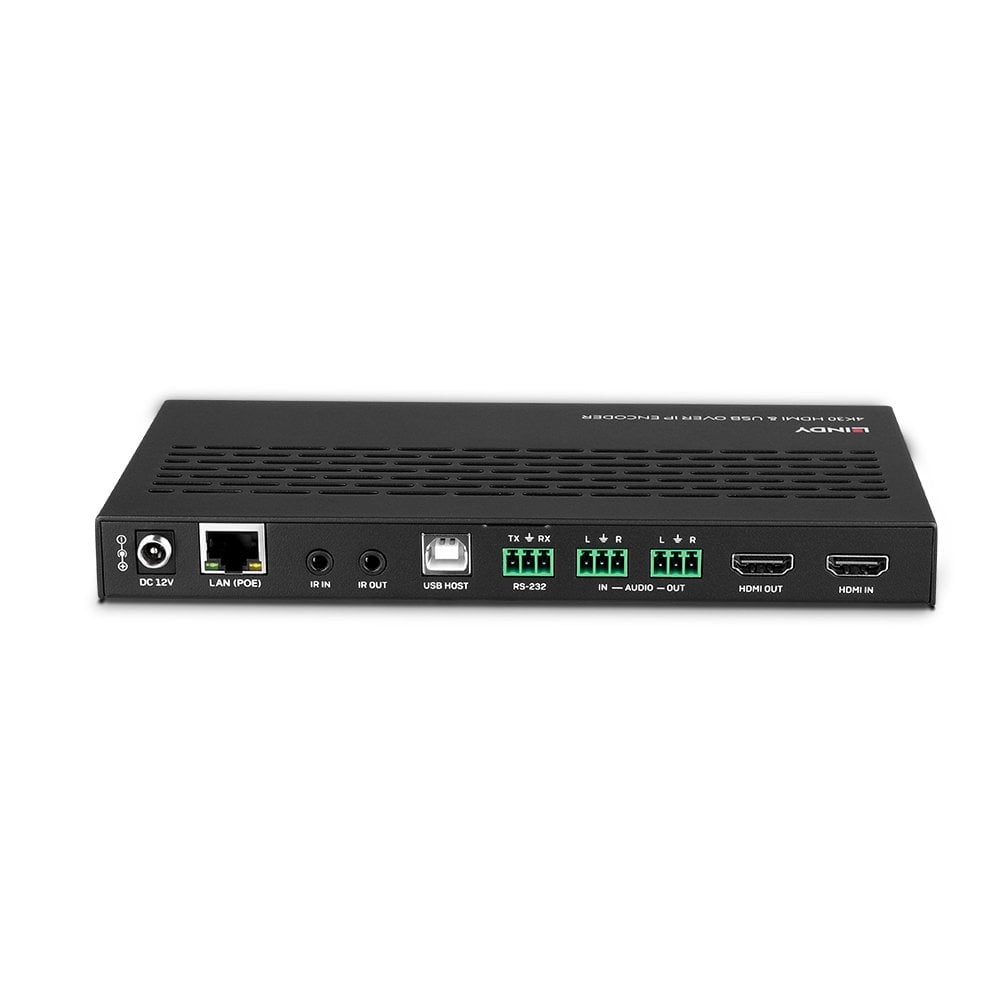

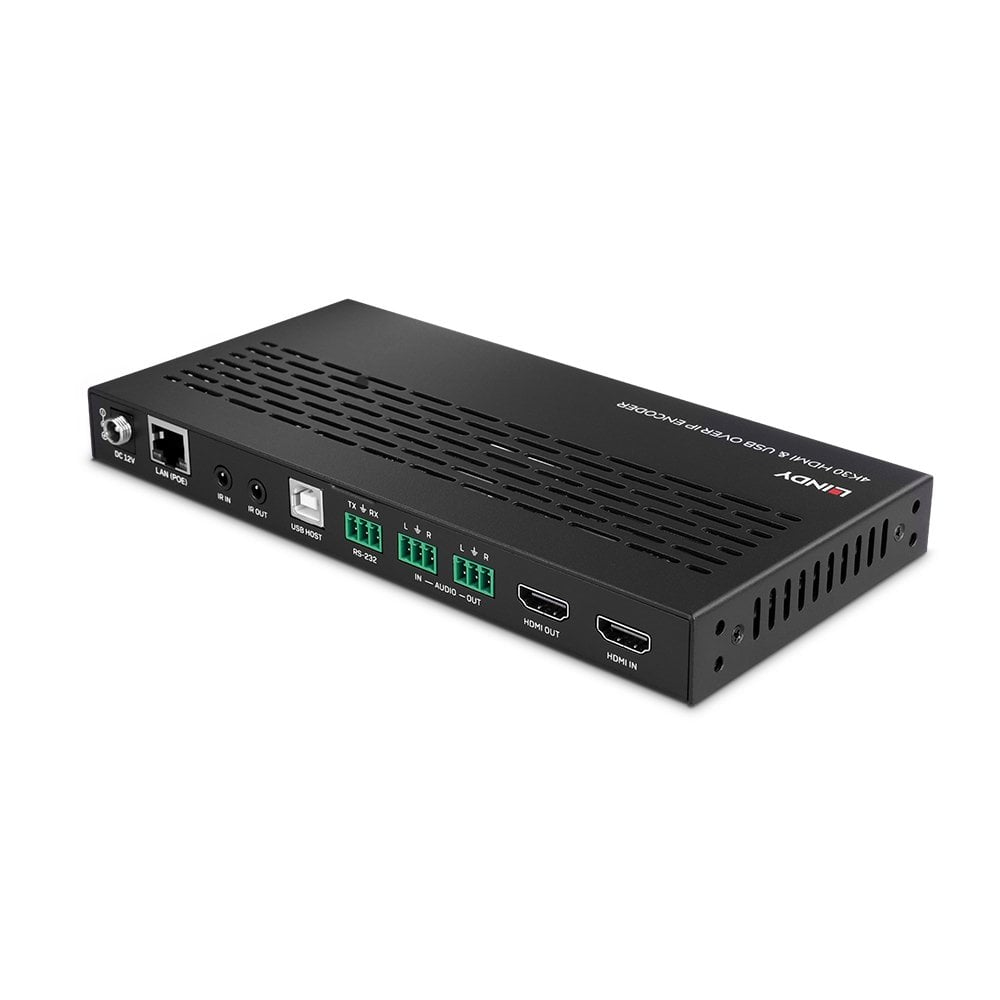

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RJ-45 input ports1
HDMI in1
HDMI version2.0
Number of HDMI outputs1
USB ports quantity1
USB connector typeUSB Type-B
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Remote (IR) input1
Remote (IR) output1
Serial interface typeRS-232
Serial ports quantity1
DC-in jackYes

Power

Power source typeDC
Operating voltage12 V
Output current1 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width204 mm
Depth134 mm
Height21.5 mm
Weight780 g

Packaging data

Quantity per pack1 pc(s)
Package width245 mm
Package depth185 mm
Package height75 mm
Package weight1.02 kg
Package typeBox

Packaging content

AC adapter includedYes
Cables includedIR
Included power plug typesAU, EU, UK, US
ManualYes
Mounting kitYes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Sustainability complianceYes
