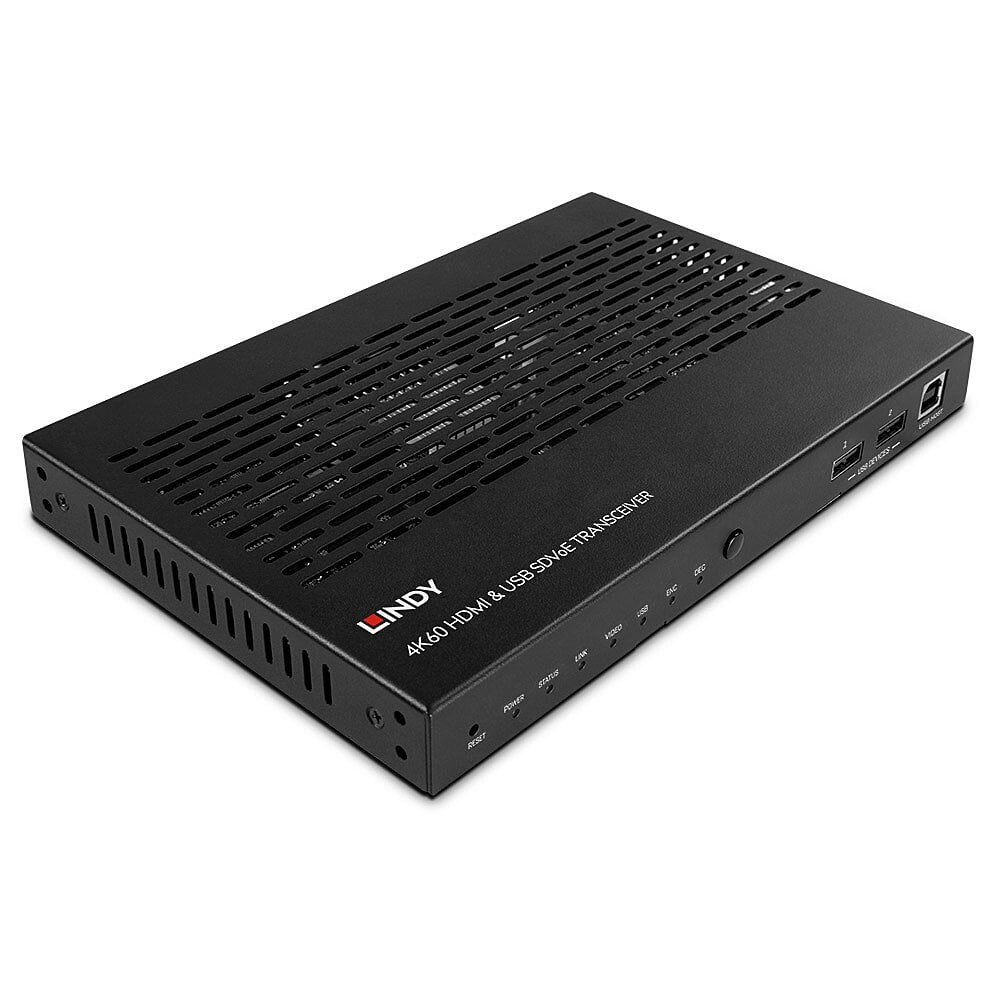

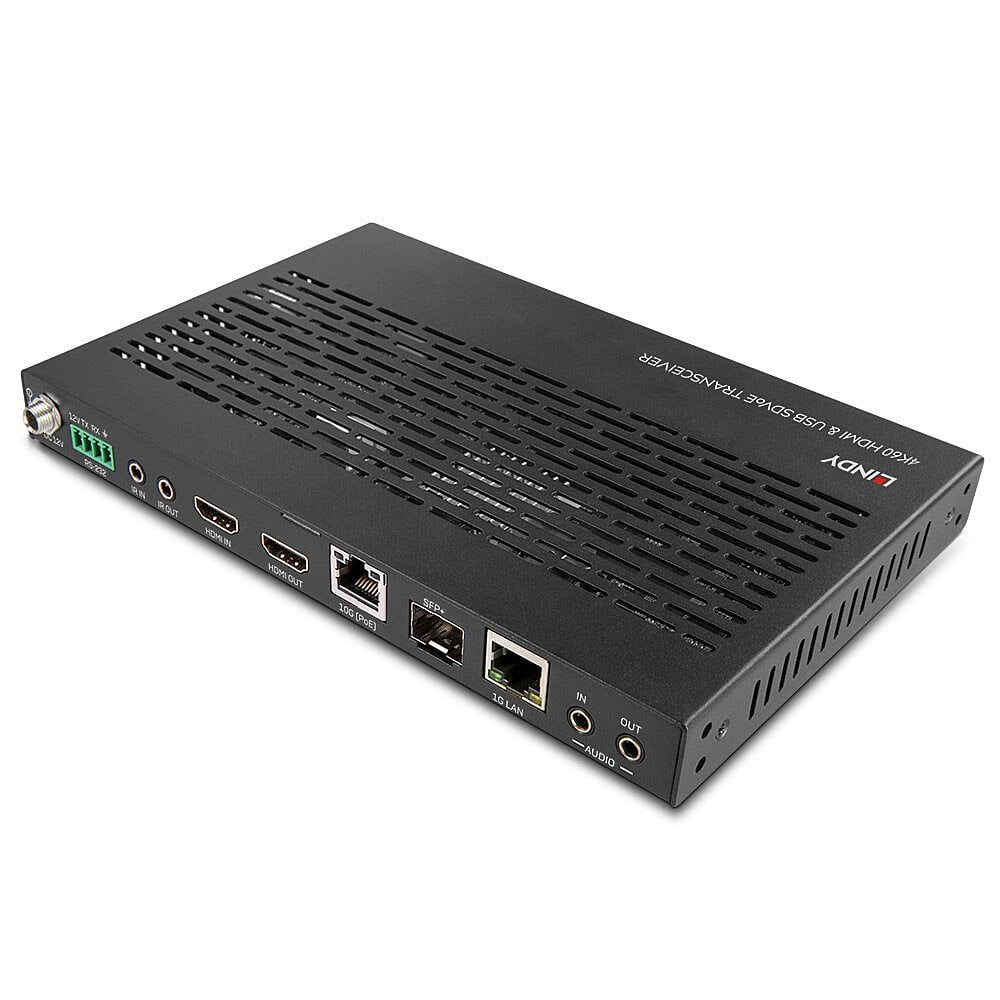

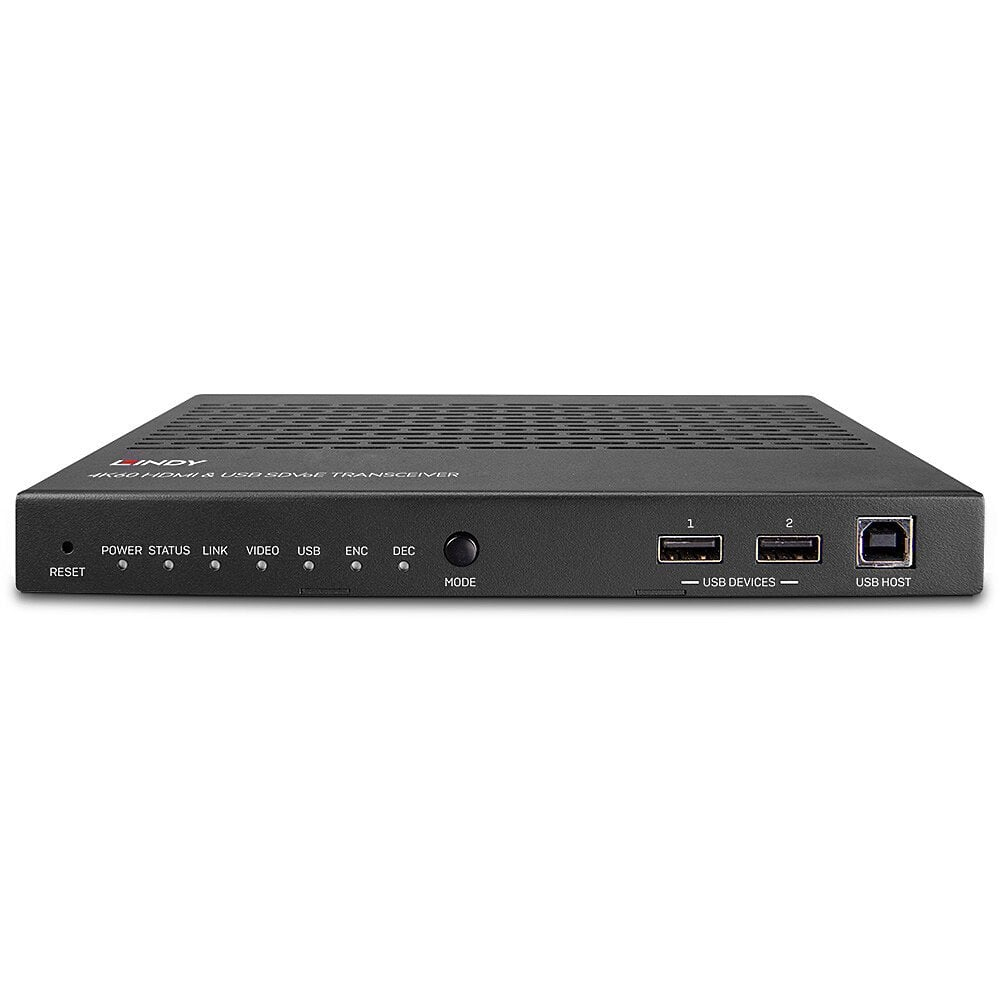

4K60 HDMI and USB SDVoE Transceiver
Model 38365EAN 4002888383653
52 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight980 g
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 980 g
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38365
- Part number
- 38365
- EAN / UPC
- 4002888383653
- Also known as
- Lindy 4K60 HDMI and USB SDVoE Transceiver
Specifications
52 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Product colour | Black |

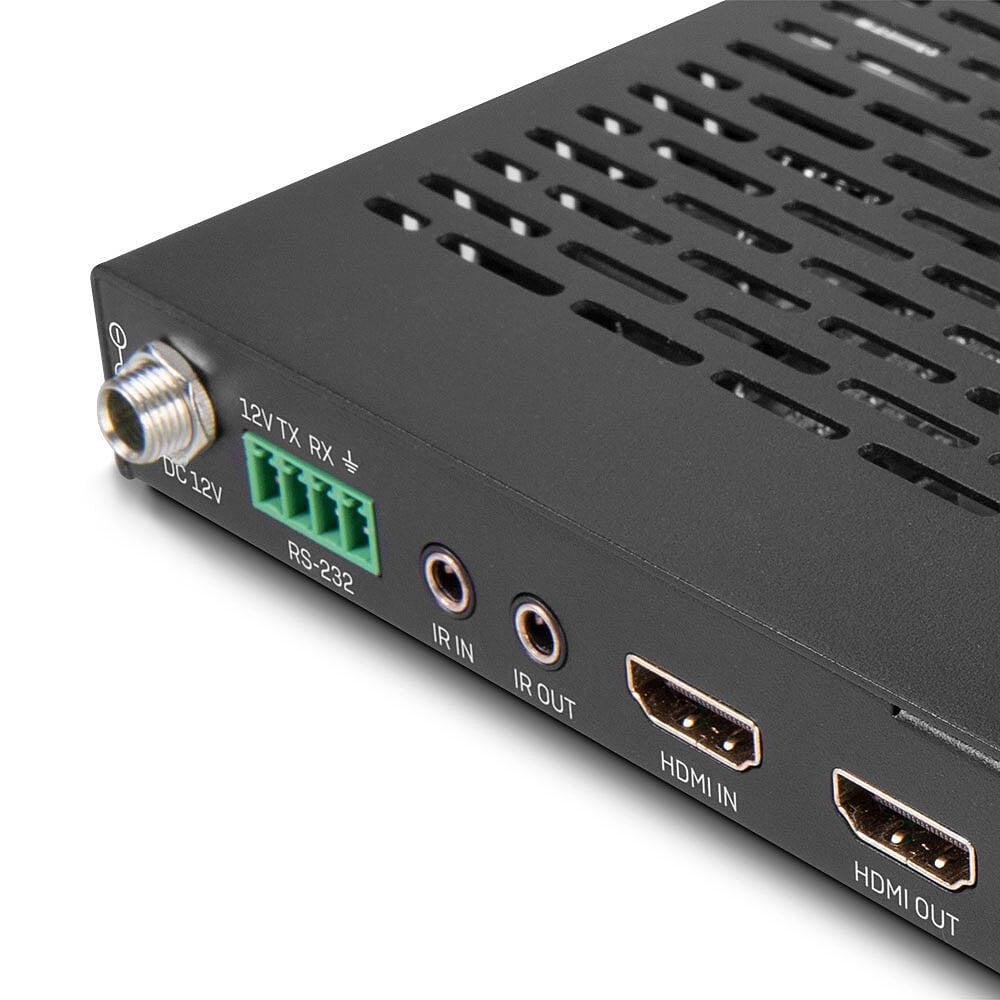

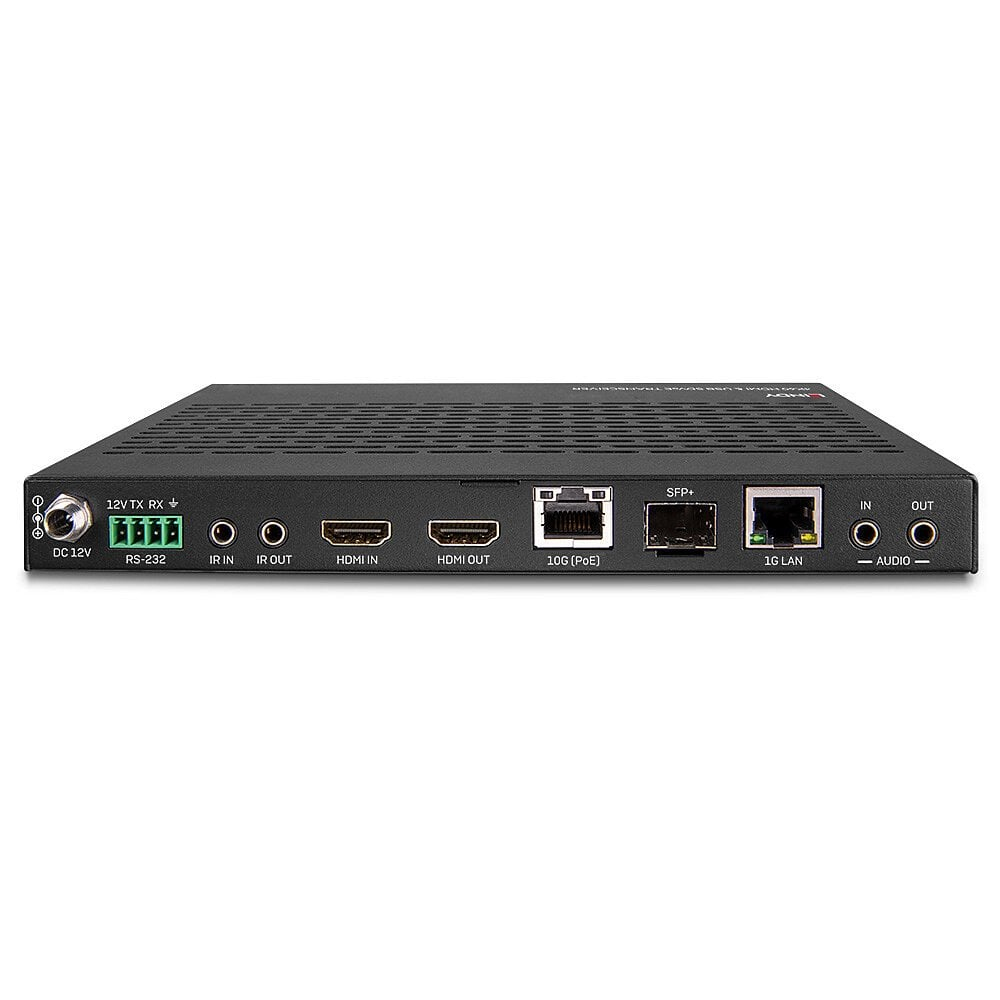

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| HDMI in | 1 |
| HDMI version | 2.0b |
| Number of HDMI outputs | 1 |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 1 |
| USB ports quantity | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 134 mm |
| Height | 21.5 mm |
| Weight | 980 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.3 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Included power plug types | AU, EU, UK, US |
| Quick start guide | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS |
| Sustainability compliance | Yes |
