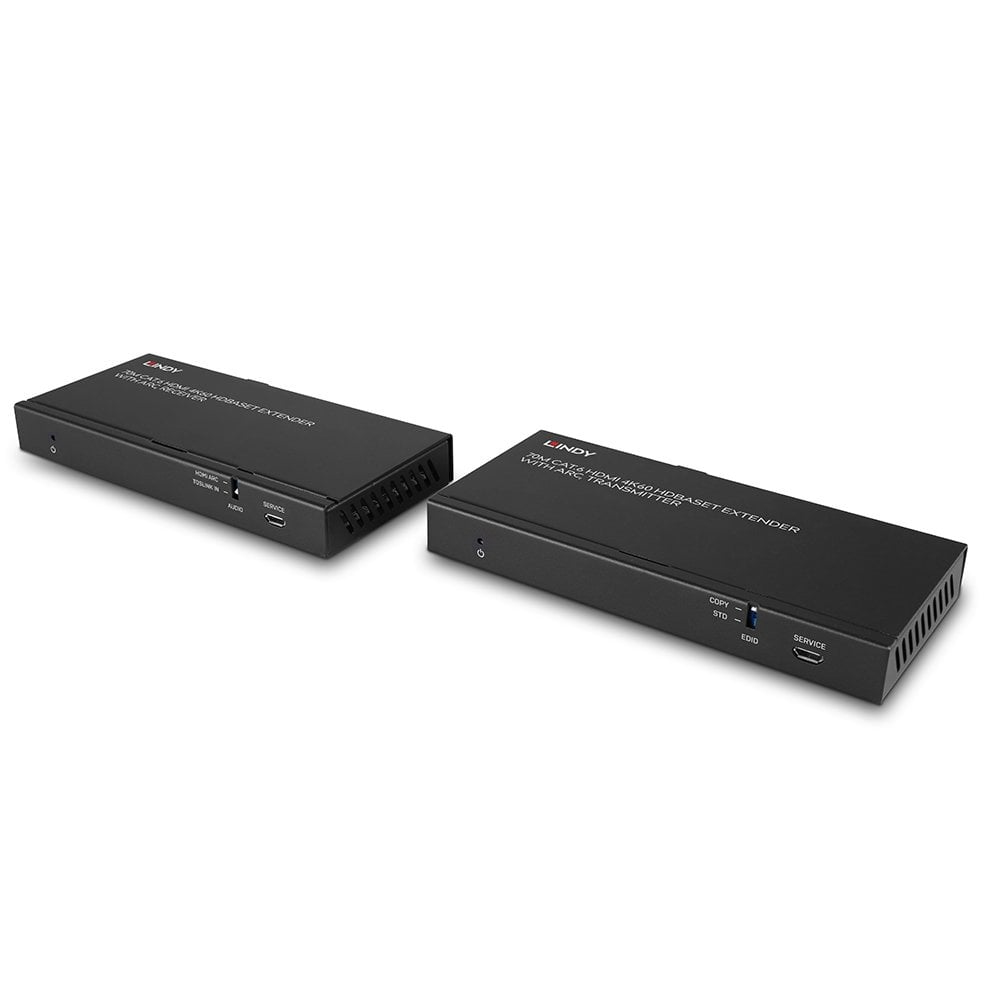

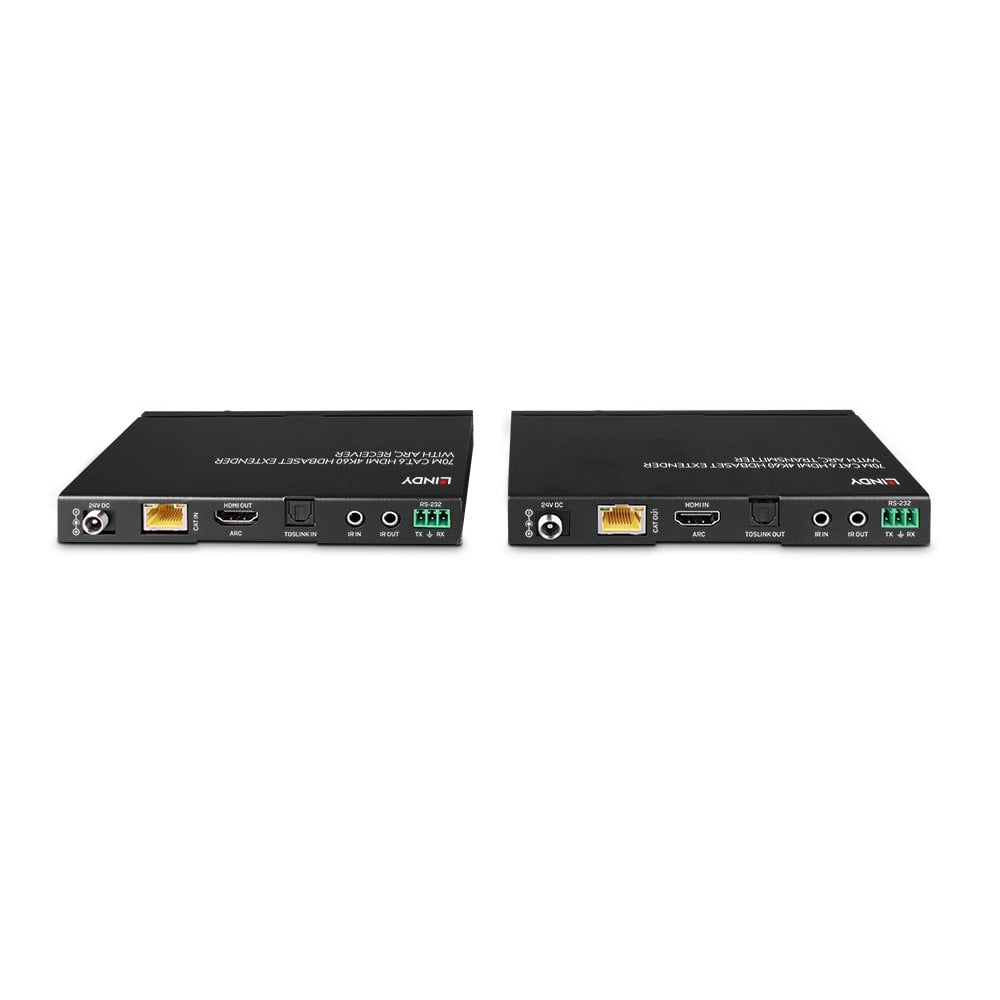

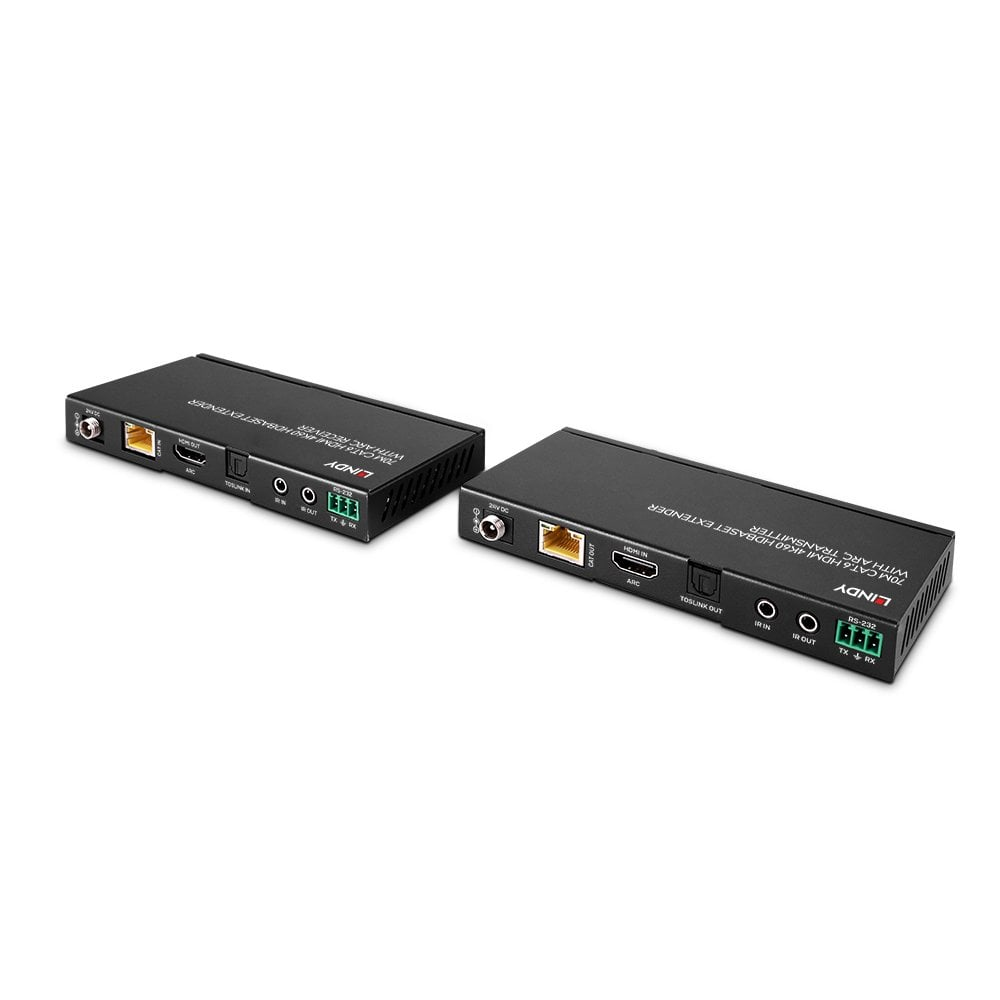

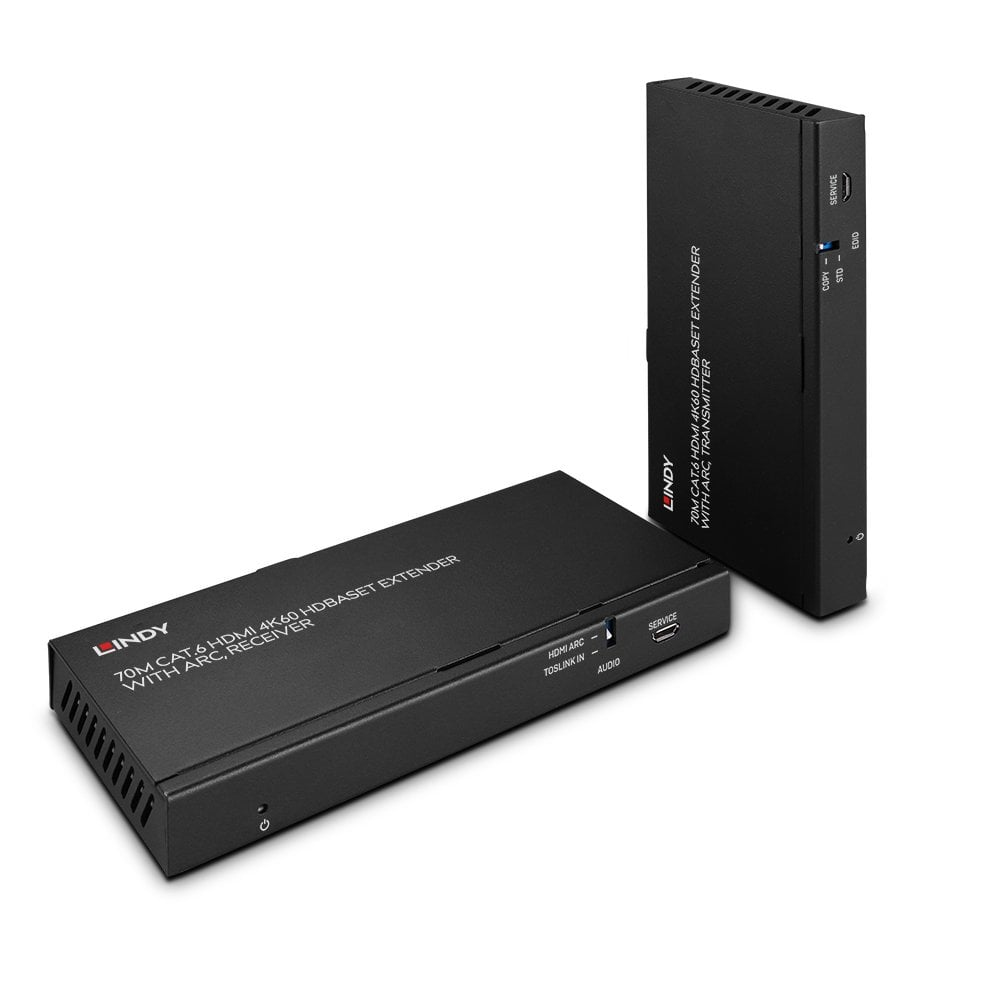

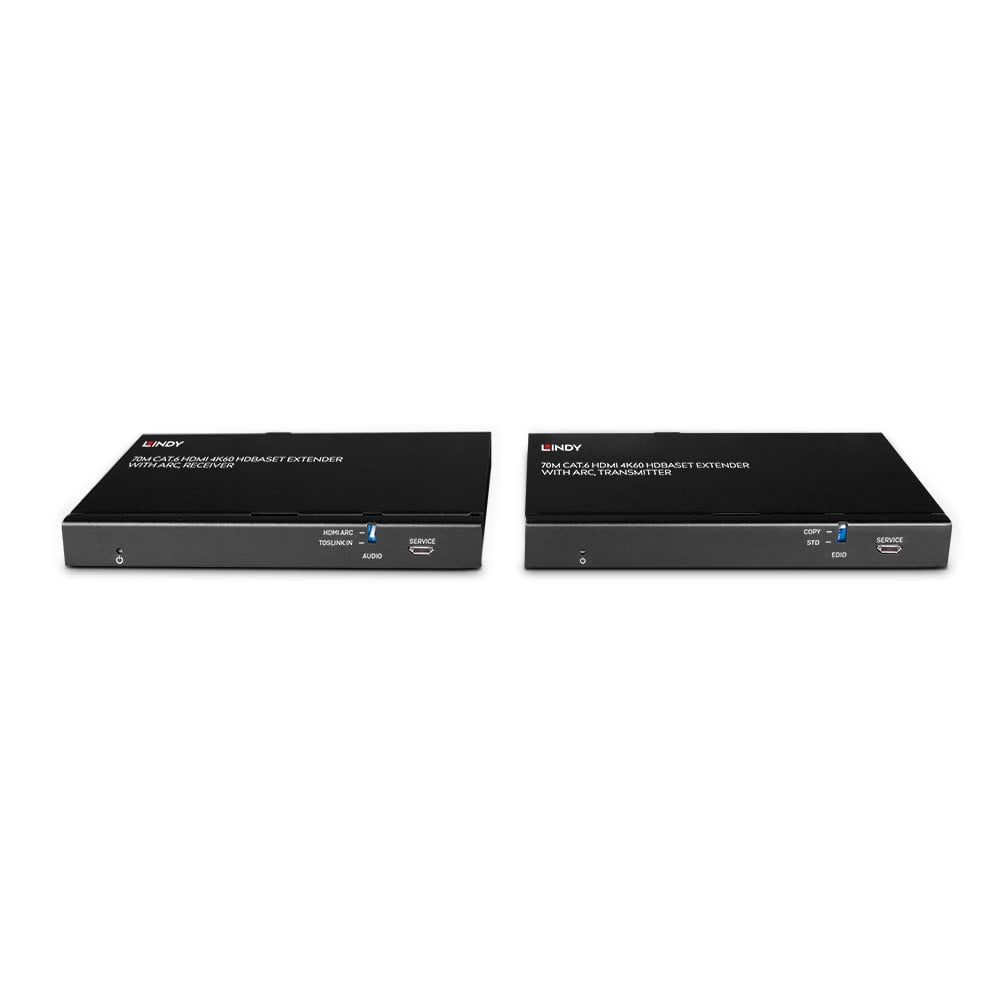

Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC
Lindy

70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC

Model 38349EAN 4002888383493

46 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight760 g
  • ColourBlack
  • Power requirements24VDC 1A
  • Operating relative humidity (H-H)20 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
760 g
Colour
Black
Power requirements
24VDC 1A
Operating relative humidity (H-H)
20 - 90%
Brand
Lindy
Category
AV Extender
Model
38349
Part number
38349
EAN / UPC
4002888383493
Also known as
Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC

Specifications

46 specifications in 8 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
ChipsetVS010-A0
Maximum transfer distance70 m
Maximum refresh rate60 Hz
BidirectionalYes
RS-232 pass-throughYes
Infrared (IR) frequency range20 - 60 kHz
Bandwidth18 Gbit/s
HDCPYes
HDCP version2.2
MaterialMetal
Product colourBlack
CertificationCalifornia Proposition 65

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
HDMI version2.0
Number of HDMI outputs1
Digital audio optical input typeTOSLINK
Digital audio optical output typeTosLink
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
DC-in jackYes

Power

Power requirements24VDC 1A

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width140 mm
Depth65 mm
Height18 mm
Weight760 g

Packaging data

Quantity per pack1 pc(s)
Package width245 mm
Package depth75 mm
Package height185 mm
Package weight940 g
Package typeBox

Packaging content

ManualYes
Packaging contentHDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Special featuresPoC, ARC
Sustainability complianceYes
Warranty period2 year(s)
