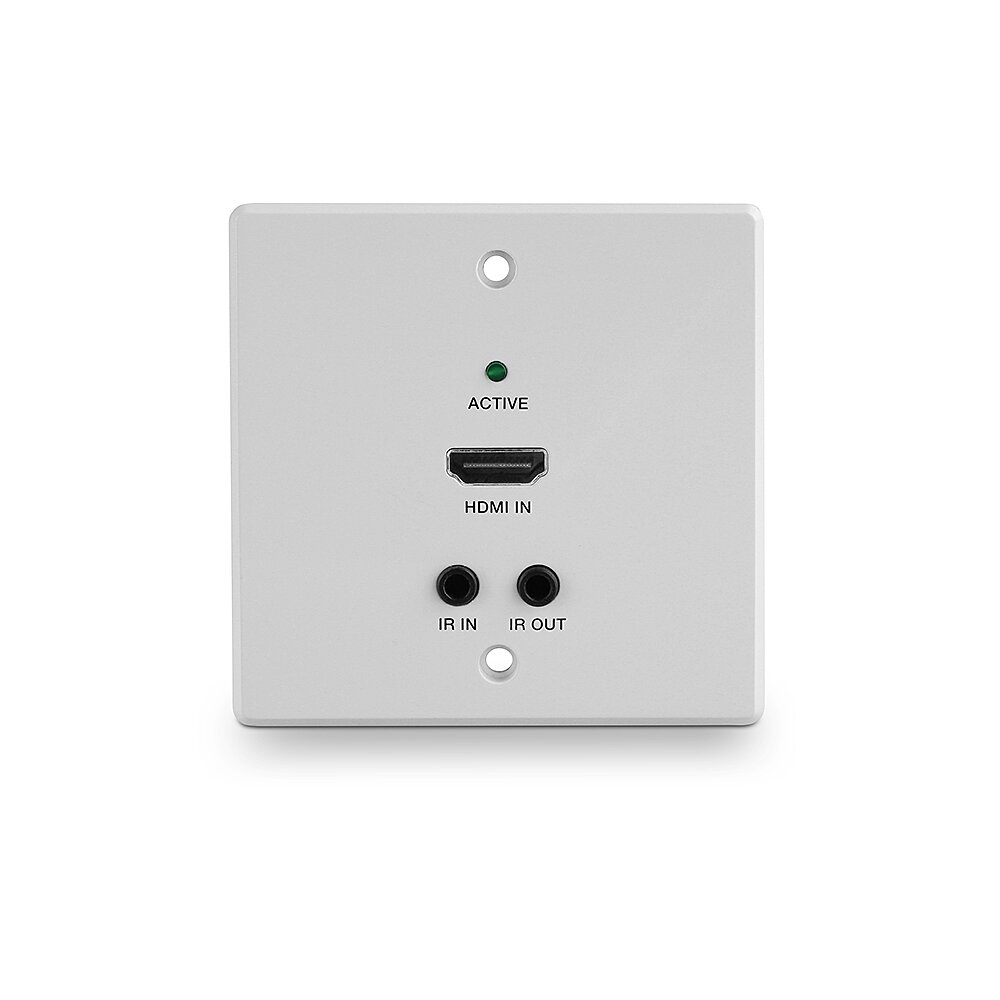

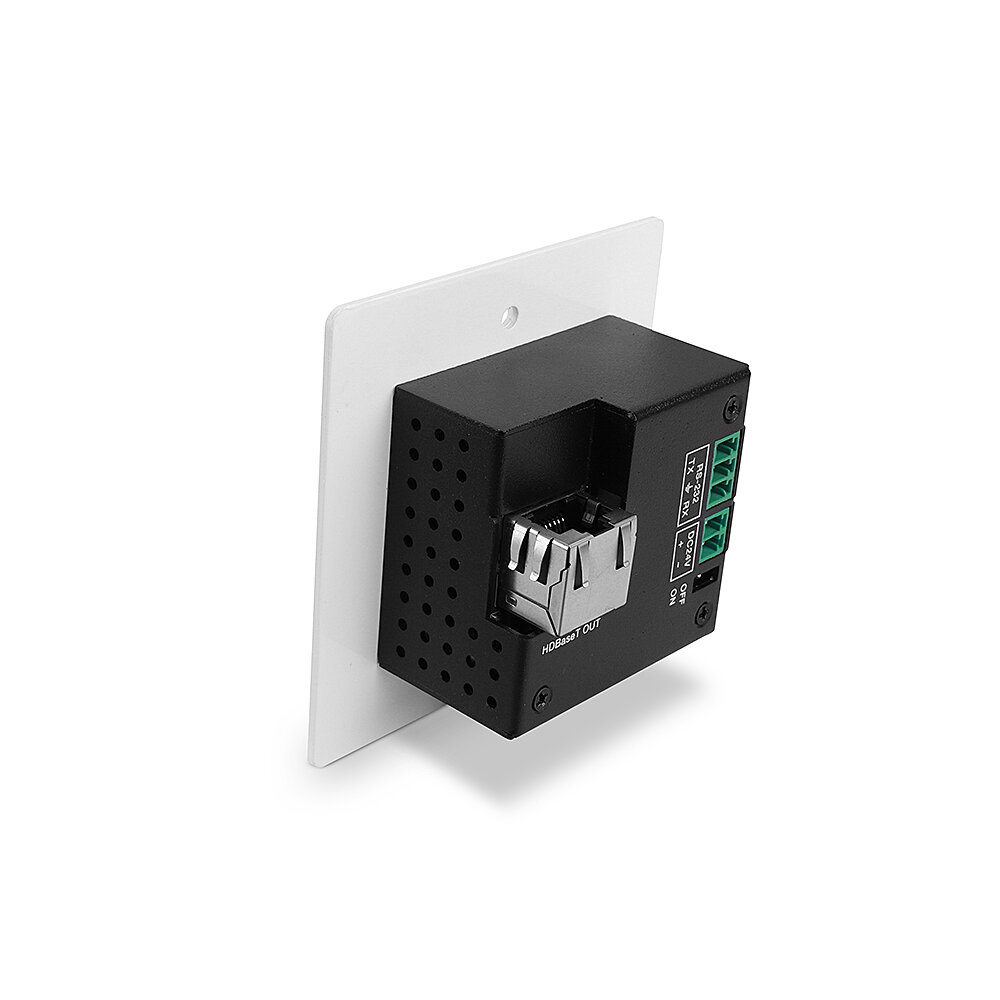

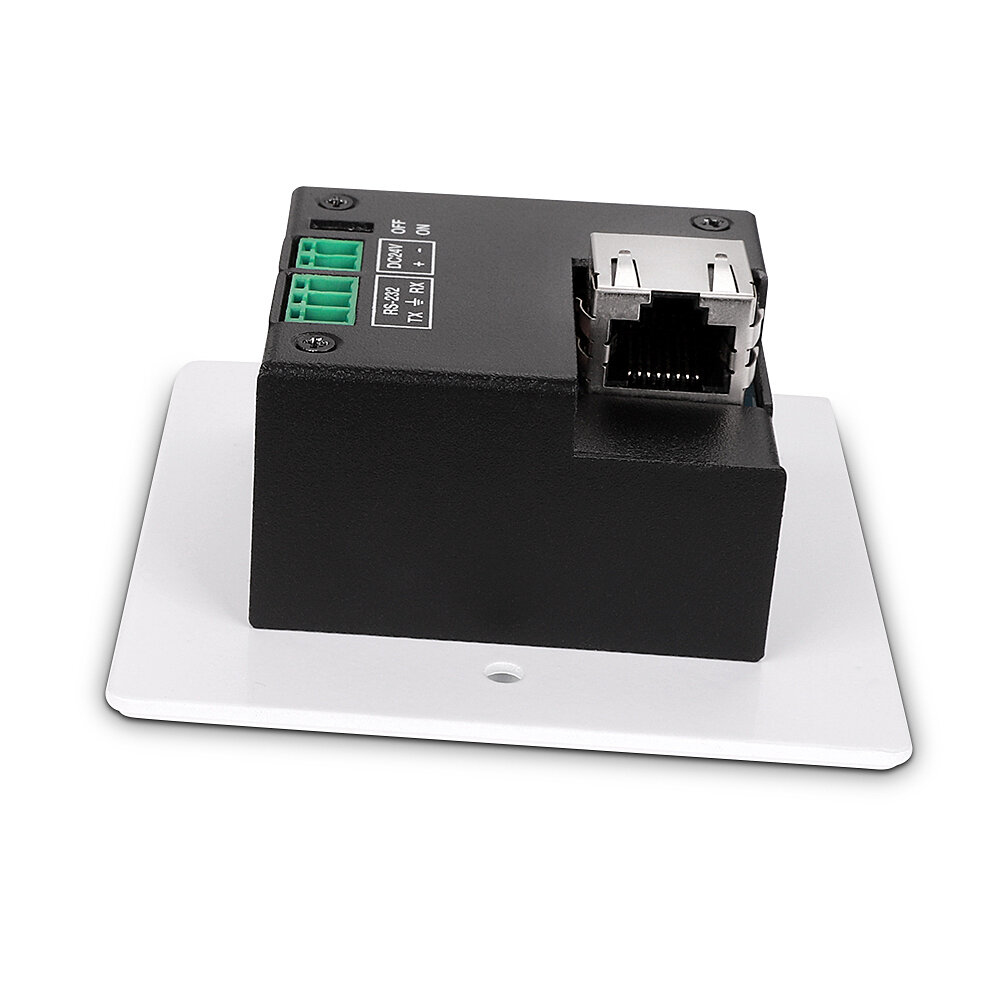

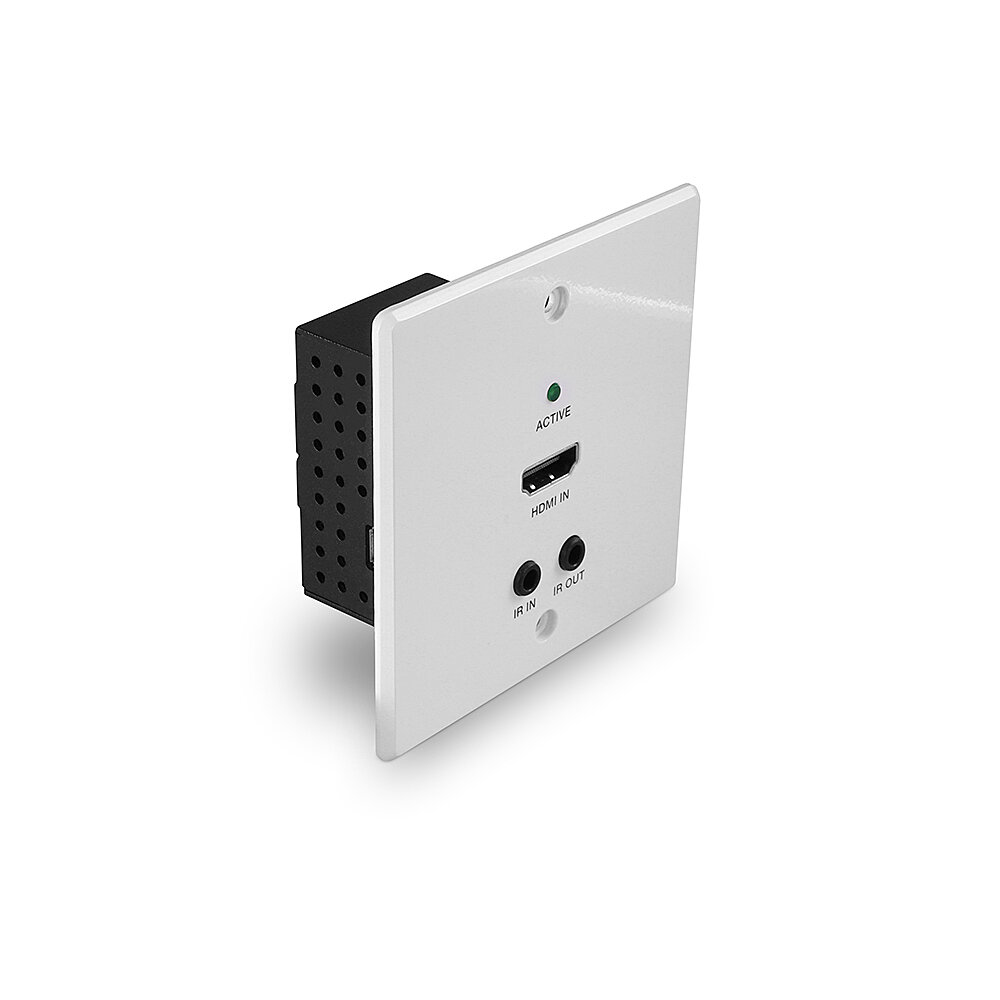

38348 AV extender AV transmitter White
Model 38348EAN 4002888383486
39 specifications
- TypeAV transmitter
- Weight390 g
- ColourWhite
- RJ-45 output ports1
- Power source typeDC
- Operating relative humidity (H-H)20 - 90%
Overview
- Type
- AV transmitter
- Weight
- 390 g
- Colour
- White
- RJ-45 output ports
- 1
- Power source type
- DC
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38348
- Part number
- 38348
- EAN / UPC
- 4002888383486
- Also known as
- Lindy 38348 AV extender AV transmitter White
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | VS010 |
| Maximum transfer distance | 70 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Bidirectional | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video in | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage (transmitter) | 24 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 80 mm |
| Height | 38 mm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 152 mm |
| Package depth | 133 mm |
| Package height | 95 mm |
| Package weight | 540 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Transceiver(s) included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Sustainability compliance | Yes |
