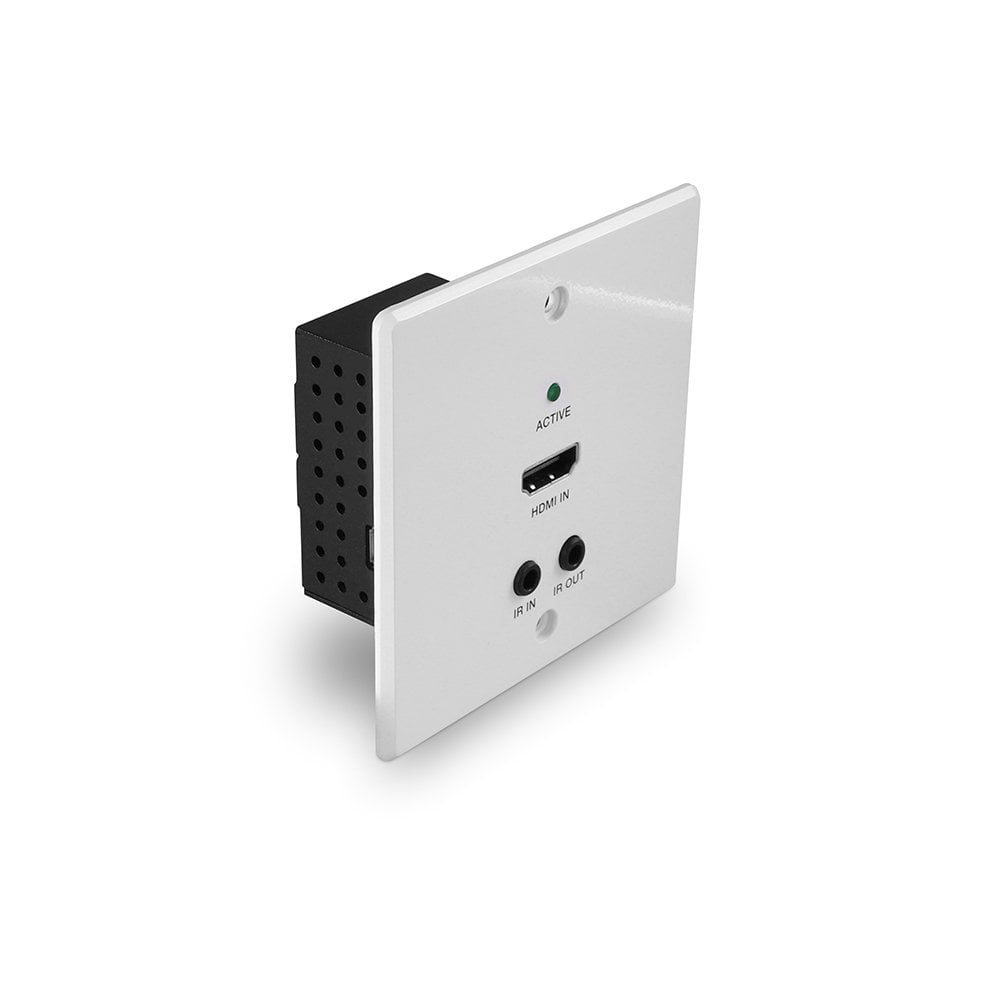

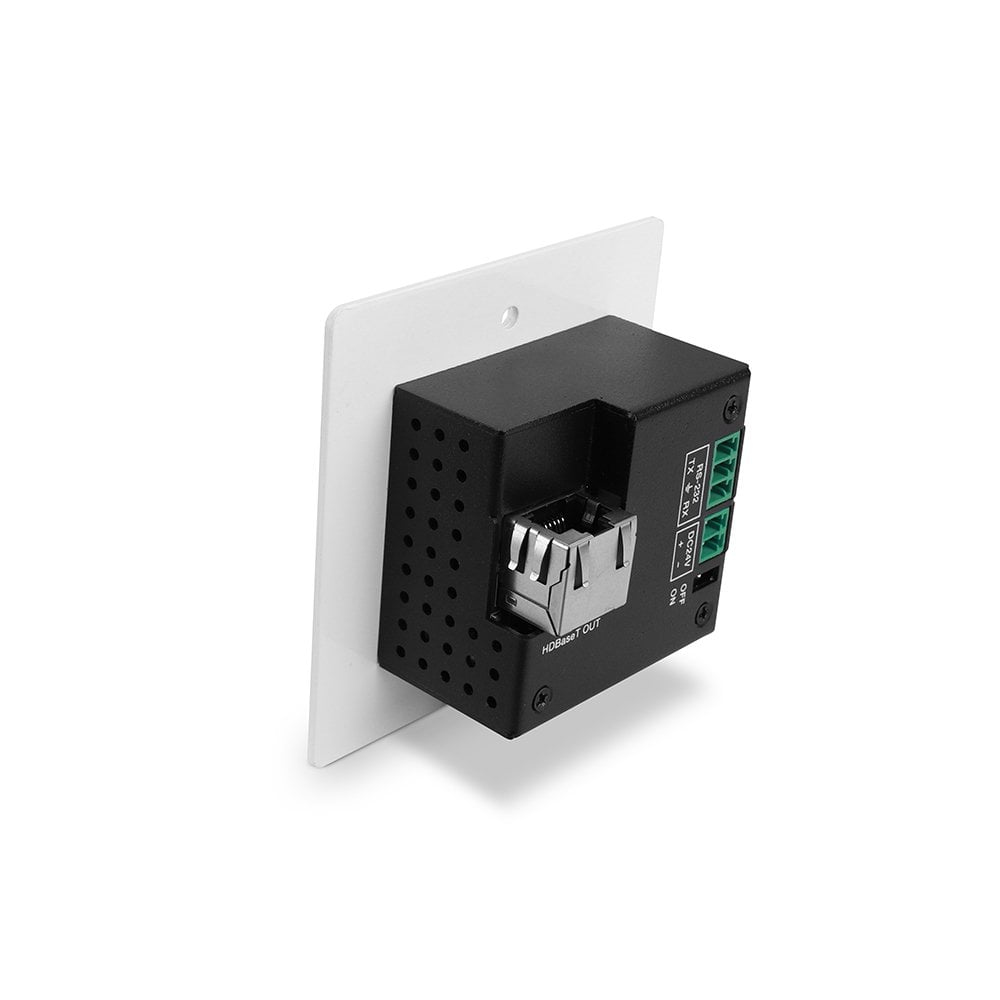

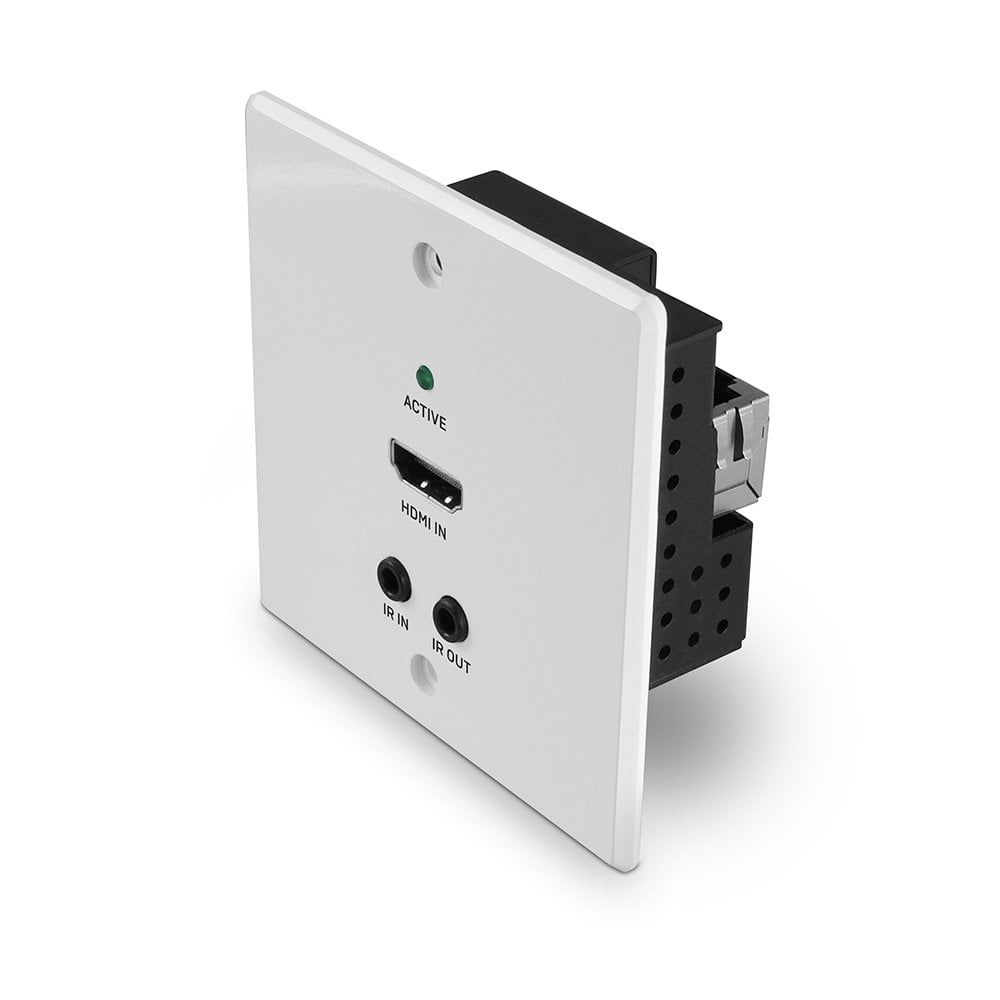

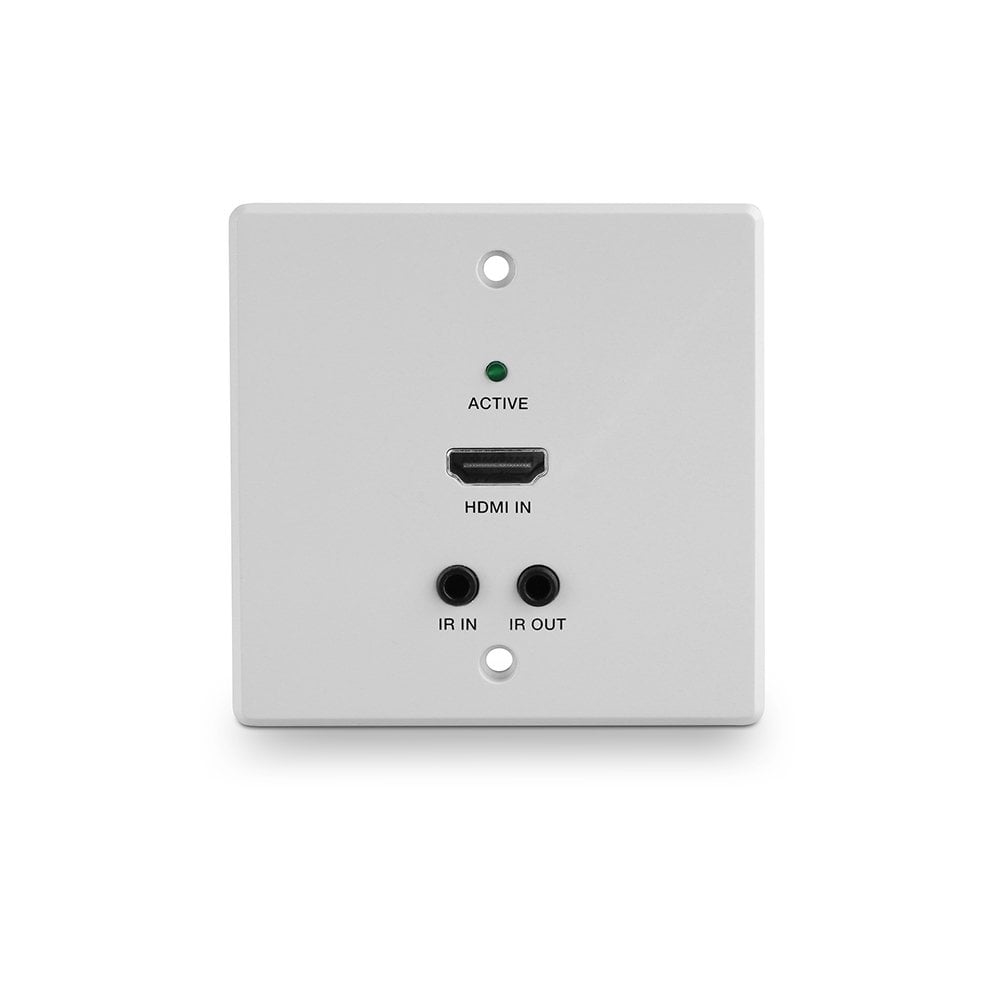

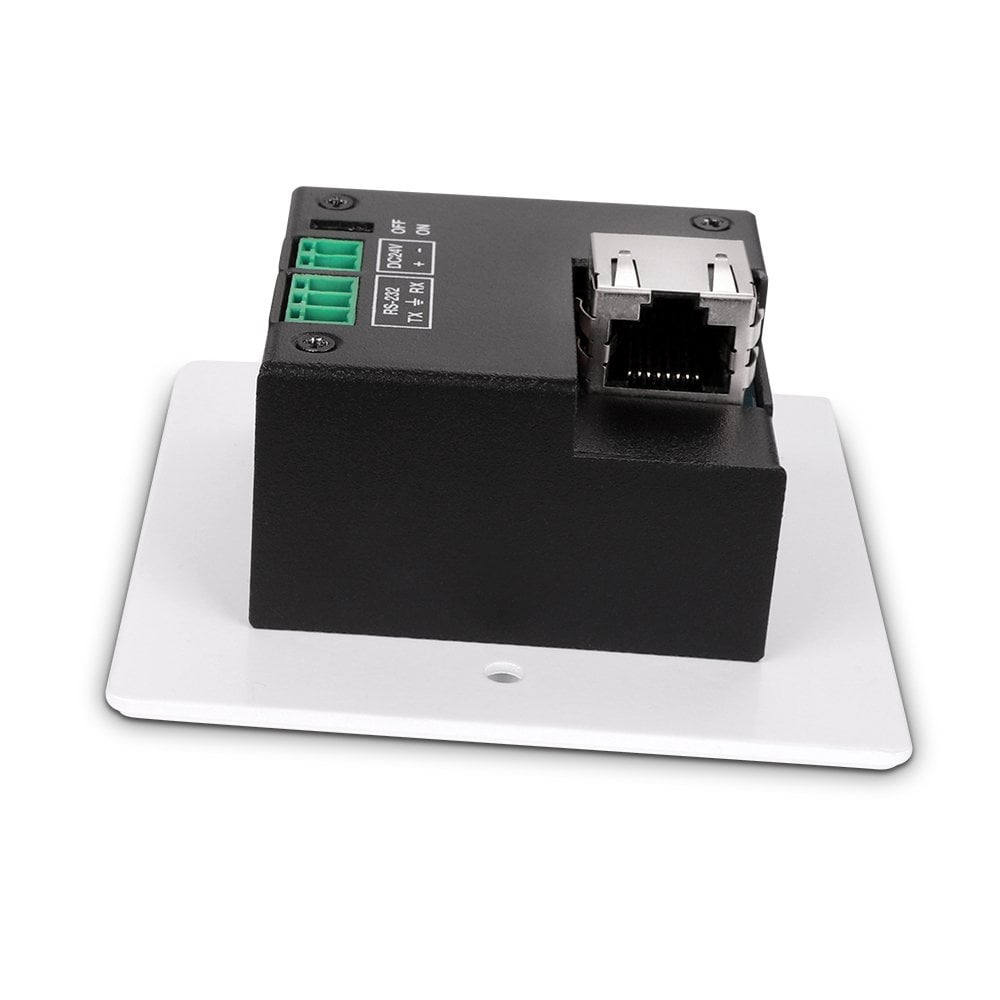

Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter
Lindy

70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter

Model 38347EAN 4002888383479

49 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight390 g
  • ColourBlack, White
  • Power source typeDC
  • Operating relative humidity (H-H)20 - 90%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
390 g
Colour
Black, White
Power source type
DC
Operating relative humidity (H-H)
20 - 90%
Brand
Lindy
Category
AV Extender
Model
38347
Part number
38347
EAN / UPC
4002888383479
Also known as
Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter

Specifications

49 specifications in 8 groups

Features

TypeAV transmitter
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
ChipsetVS010
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Extended display identification data (EDID)Yes
BidirectionalYes
RS-232 pass-throughYes
Infrared (IR) frequency range20 - 60 kHz
Bandwidth18 Gbit/s
HDCPYes
HDCP version2.2
MaterialMetal
On/off switchYes
Wall mountableYes
Product colourBlack, White
CertificationCalifornia Proposition 65

Ports & interfaces

Connectivity technologyWired
RJ-45 output ports1
HDBaseT portYes
HDMI in1
HDMI version2.0
RS-232 output ports1
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes

Power

Power source typeDC
Operating voltage (transmitter)24 V
Output current1 A
Power requirements24VDC 1A

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width86 mm
Depth38 mm
Height86 mm
Weight390 g

Packaging data

Quantity per pack1 pc(s)
Package width152 mm
Package depth95 mm
Package height133 mm
Package weight540 g
Package typeBox

Packaging content

ManualYes
Packaging contentHDMI Transmitter Multi-country Power Supply (UK, EU, US & AUS) IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 3-Pin Terminal Block 2-Pin Terminal Block Lindy Manual

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
Special featuresBi-directional IR, PoC
Sustainability complianceYes
Warranty period2 year(s)
