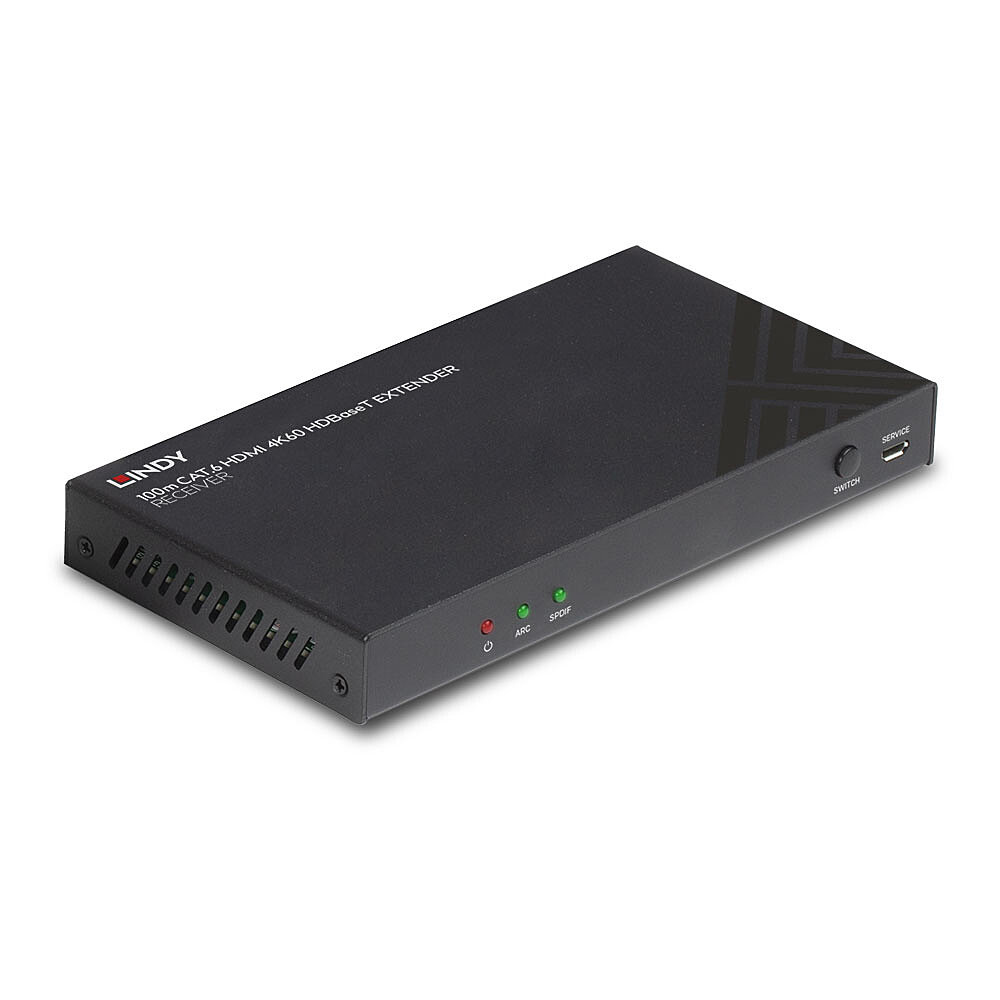

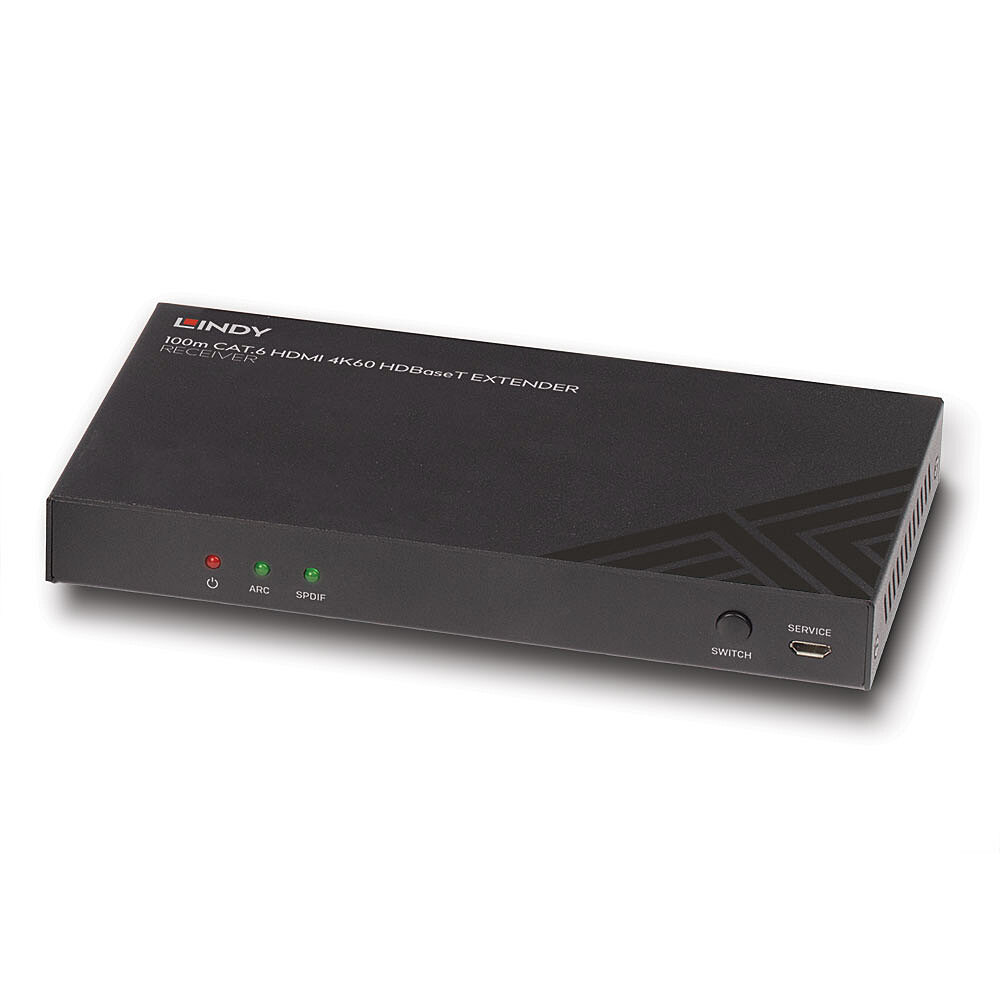

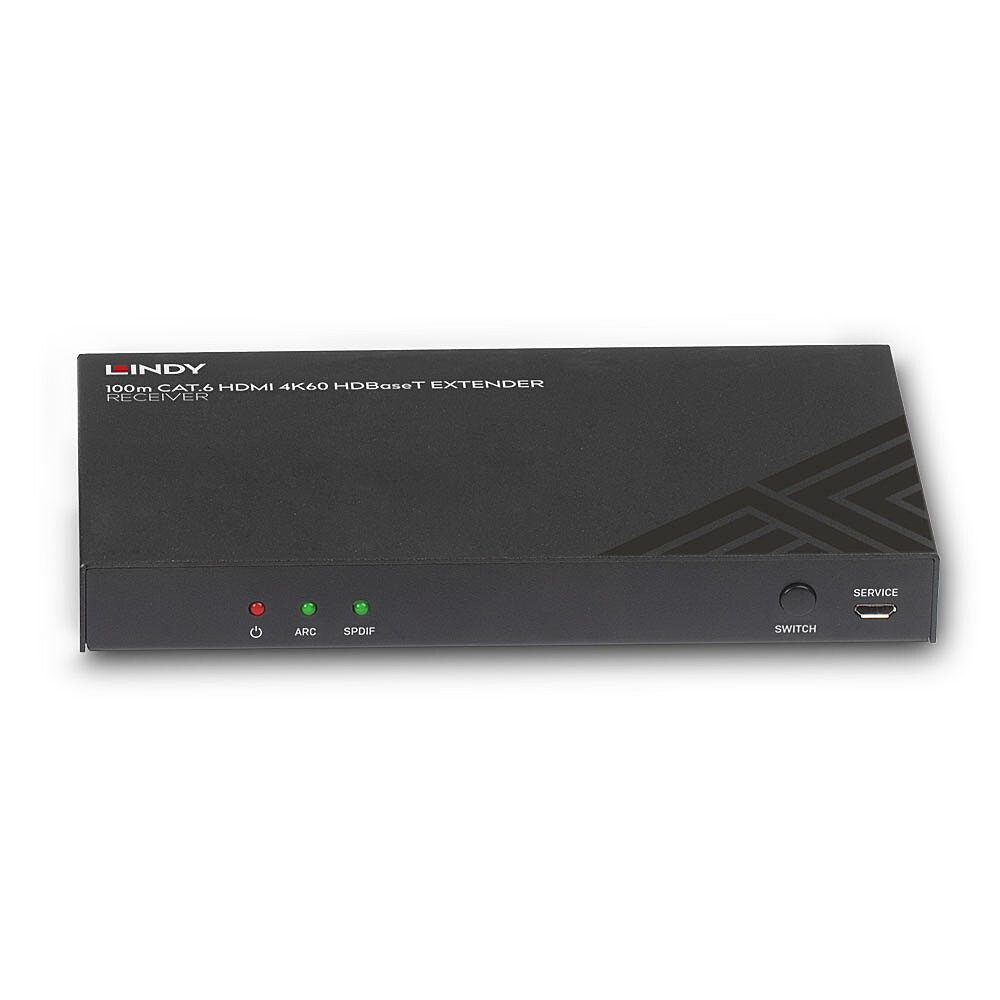

100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Receiver
Model 38342EAN 4002888383424
37 specifications
- ConnectivityWired
- TypeAV receiver
- Weight380 g
- ColourBlack
- Operating voltage24 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV receiver
- Weight
- 380 g
- Colour
- Black
- Operating voltage
- 24 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38342
- Part number
- 38342
- EAN / UPC
- 4002888383424
- Also known as
- Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Receiver
Specifications
37 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | VS2310TX-A1 |
| Maximum transfer distance | 100 m |
| EDID management | Yes |
| CEC pass-through | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |

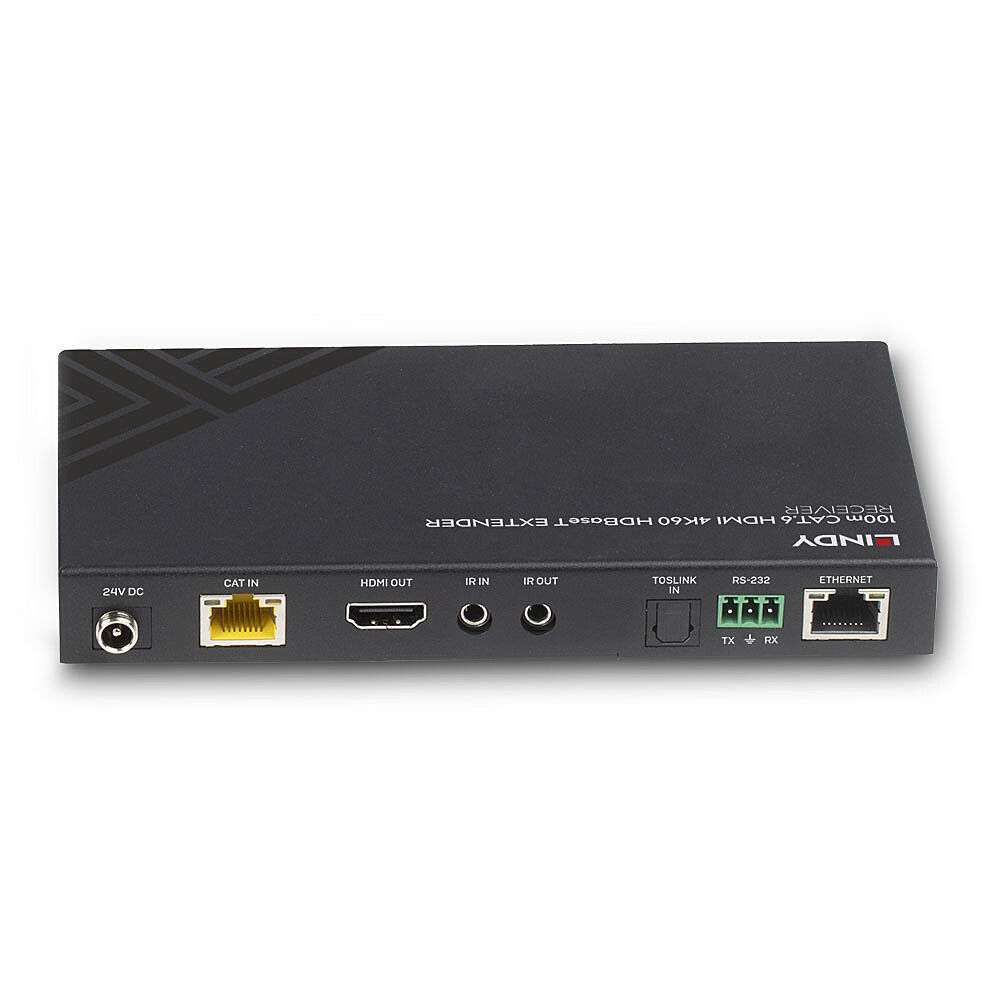

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | TOSLINK |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 24 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 90 mm |
| Height | 16 mm |
| Weight | 380 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 130 mm |
| Package weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, IR |
| Manual | Yes |
| Mounting brackets included | Yes |
