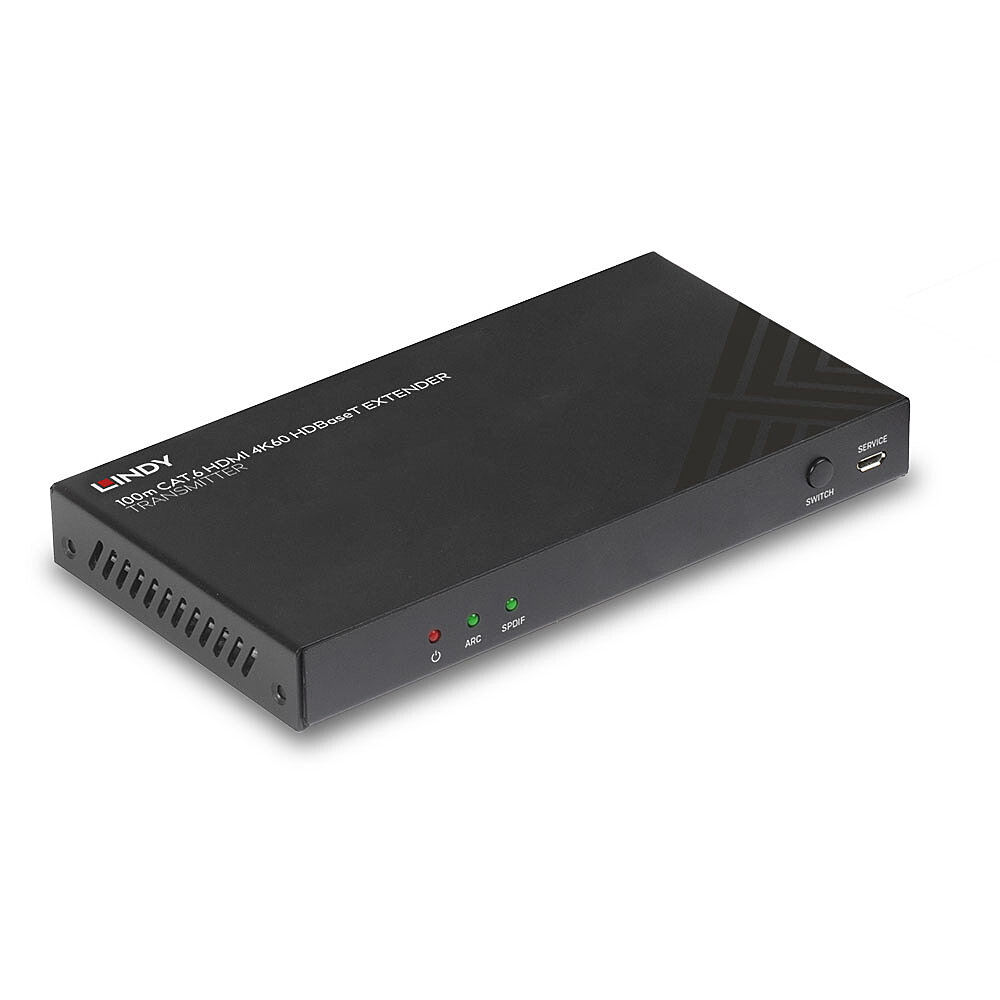

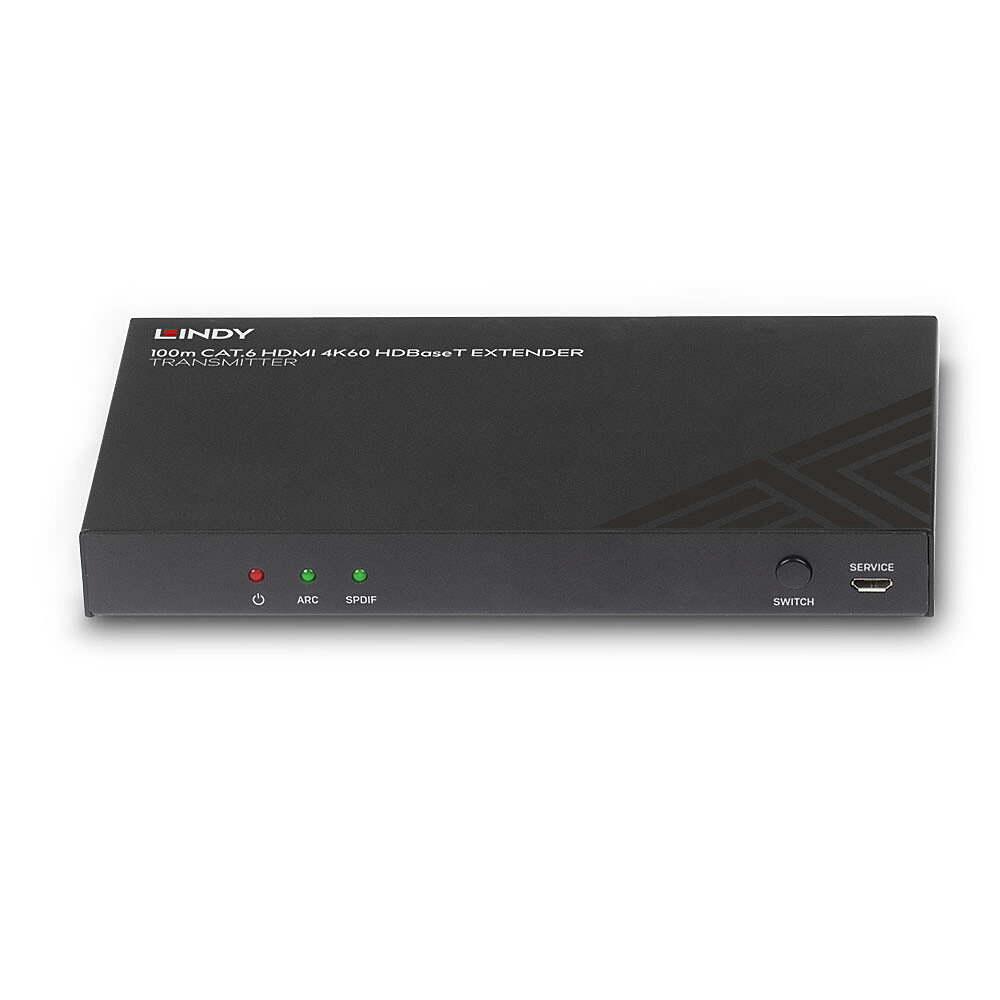

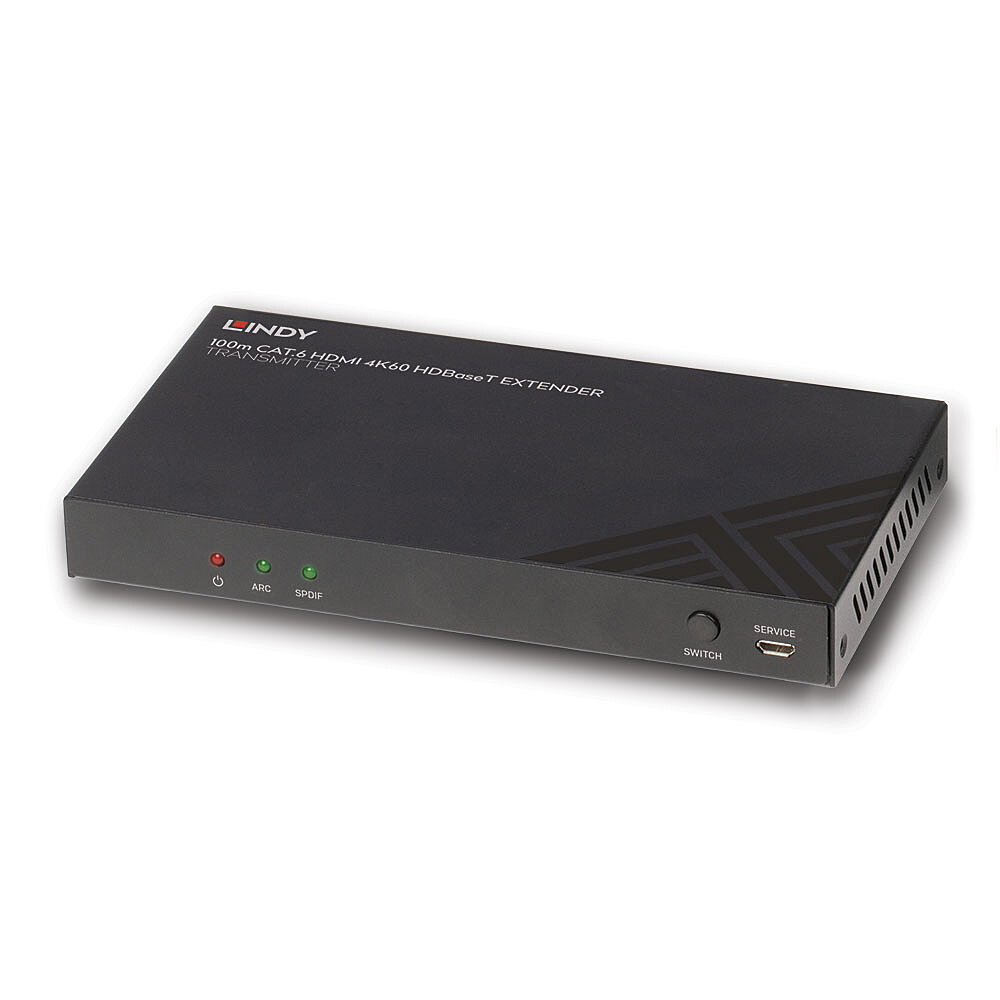

100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Transmitter
Model 38341EAN 4002888383417
37 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight380 g
- ColourBlack
- Operating relative humidity (H-H)20 - 90%
- Width163 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 380 g
- Colour
- Black
- Operating relative humidity (H-H)
- 20 - 90%
- Width
- 163 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38341
- Part number
- 38341
- EAN / UPC
- 4002888383417
- Also known as
- Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Transmitter
Specifications
37 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| CEC pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Product colour | Black |

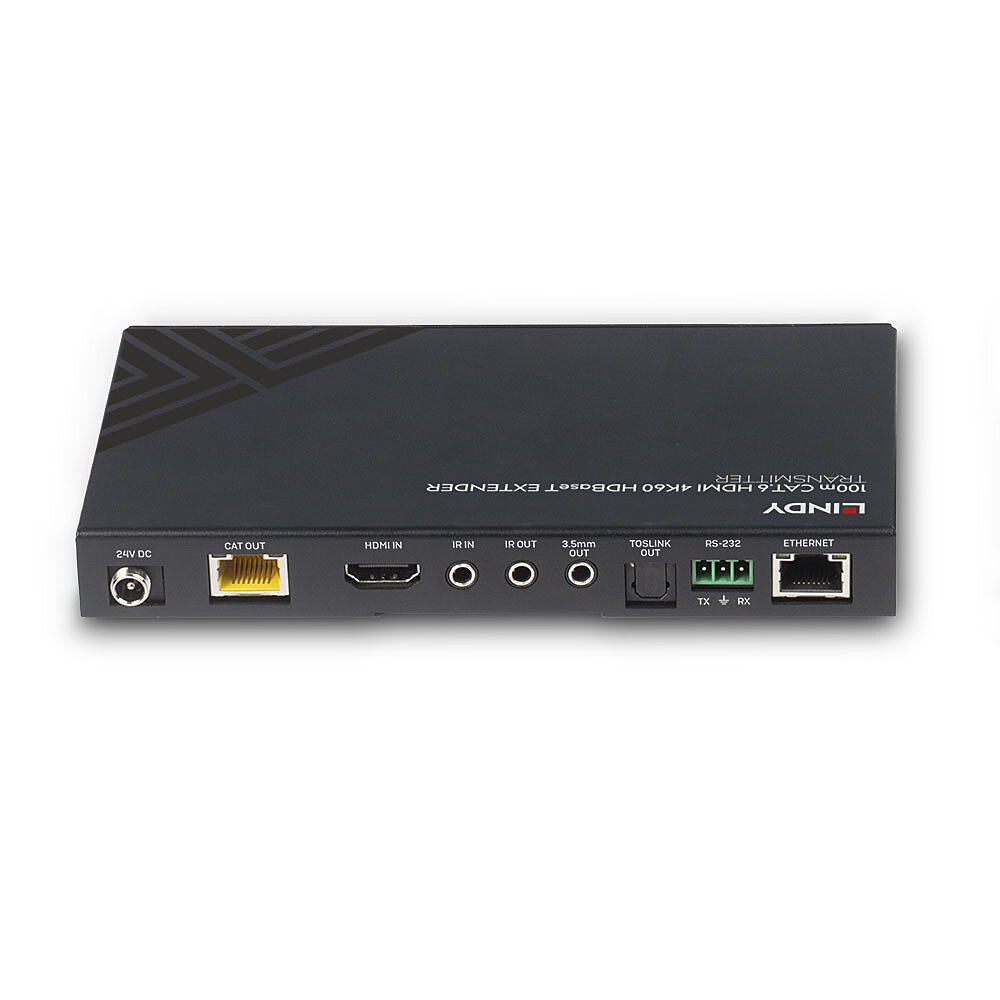

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Digital audio optical out | 3 |
| Digital audio optical output type | TOSLINK |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 90 mm |
| Height | 16 mm |
| Weight | 380 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 130 mm |
| Package weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
