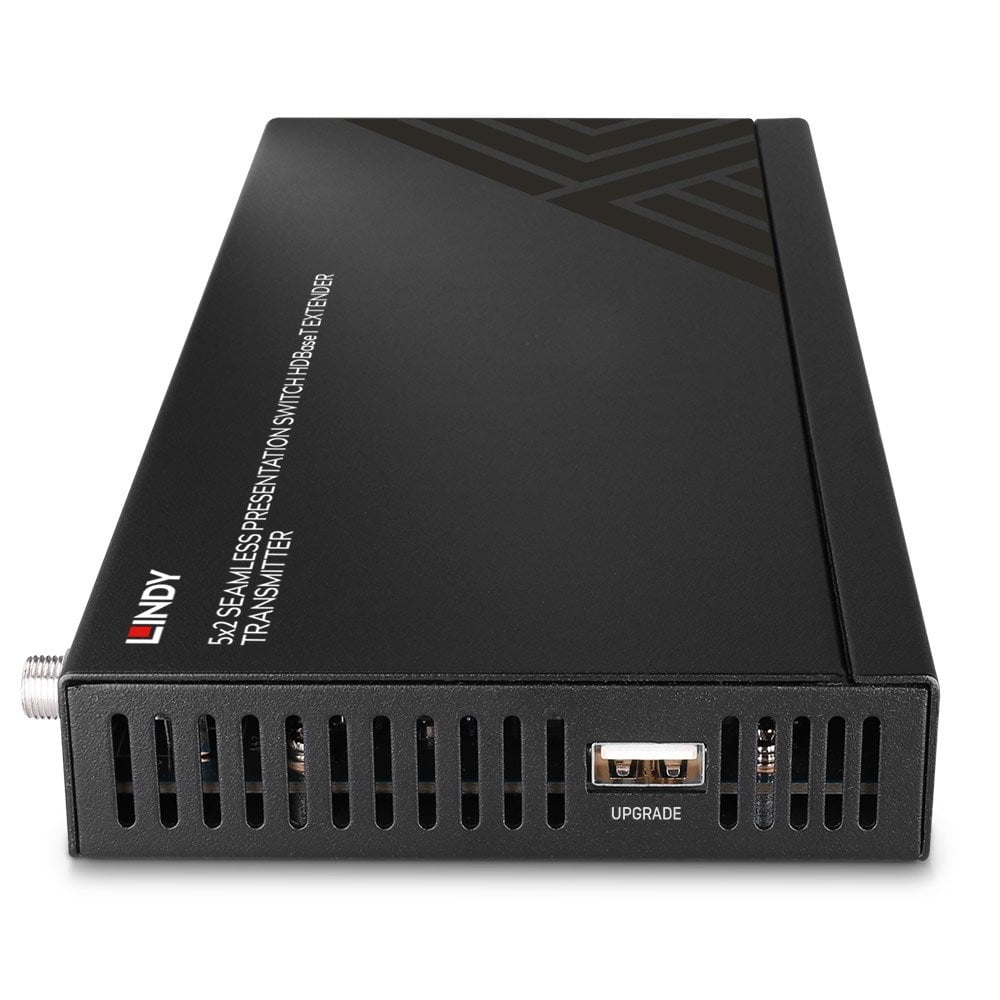

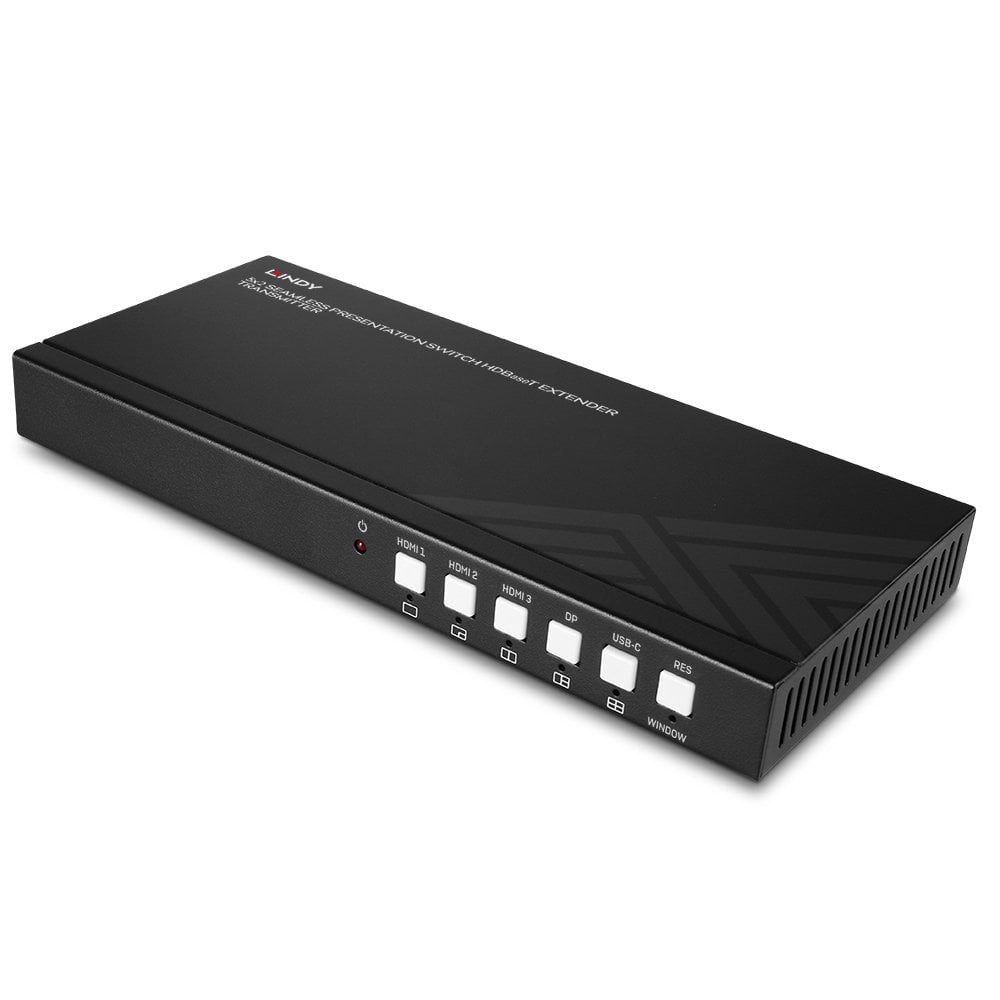

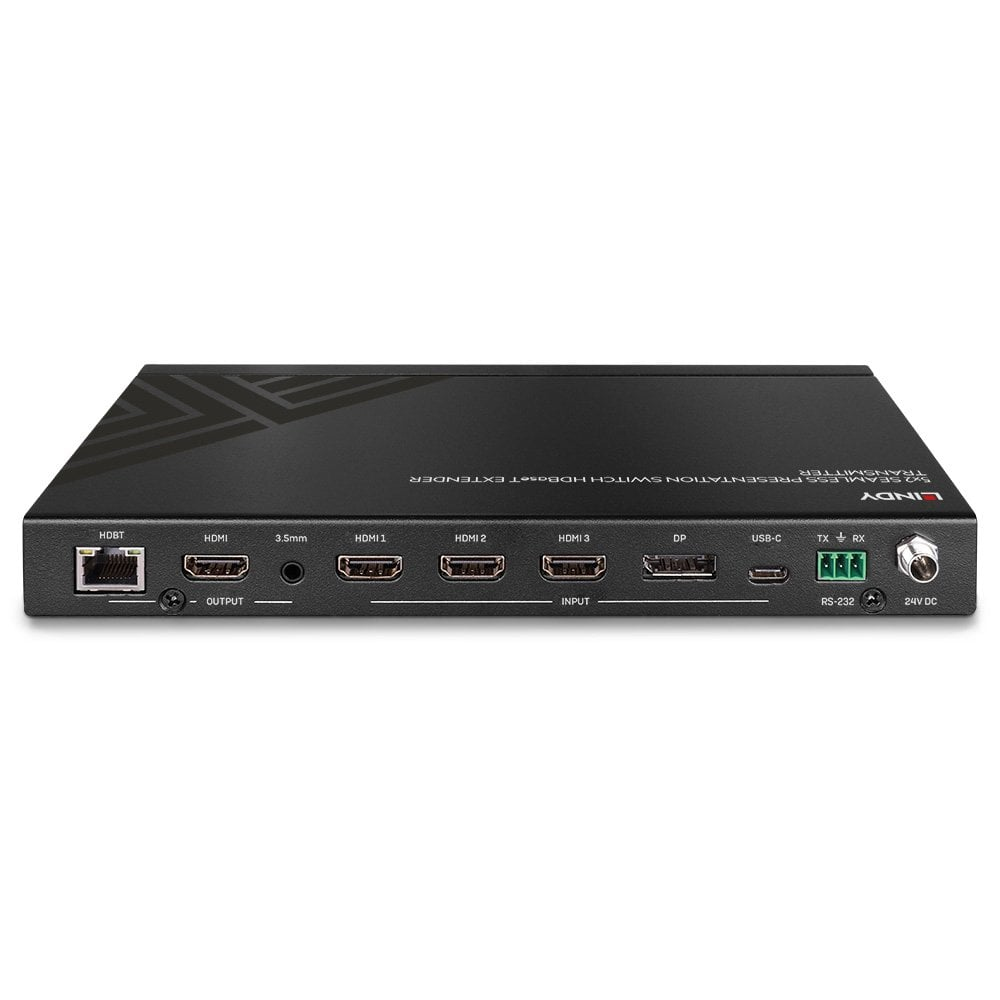

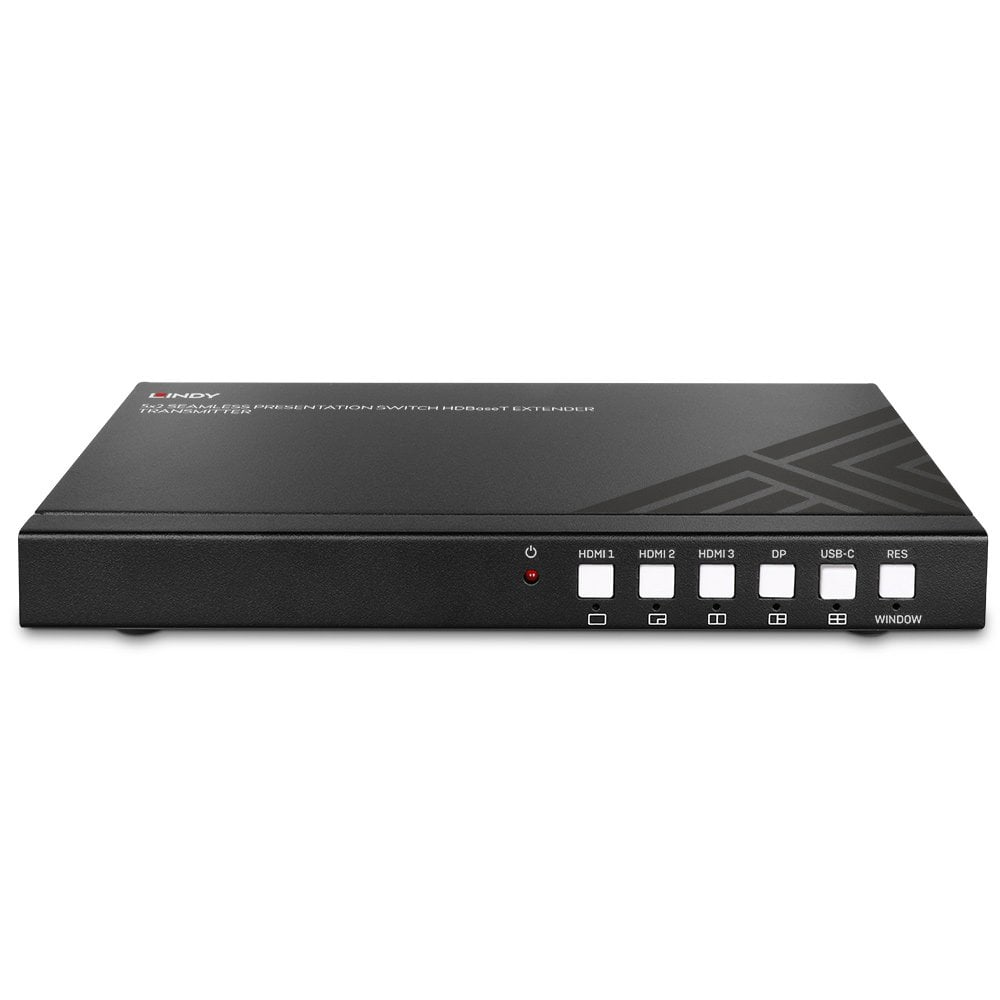

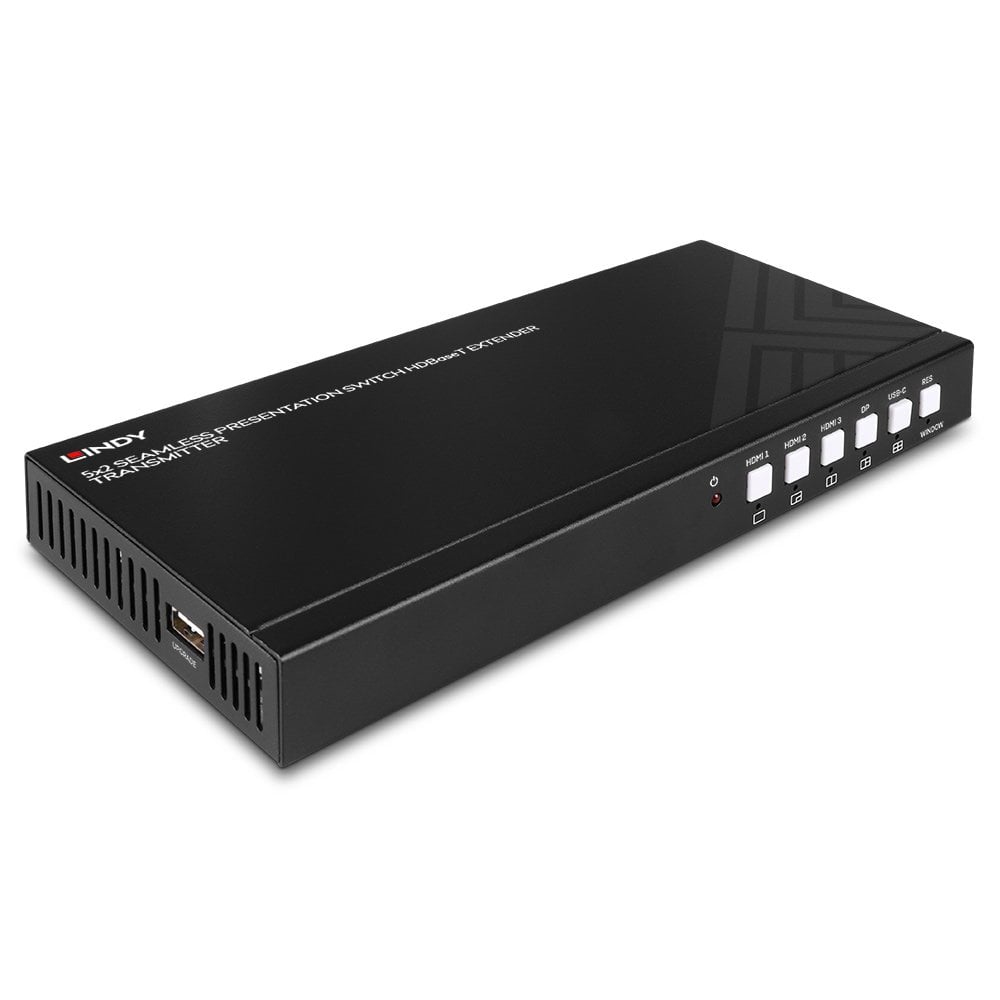

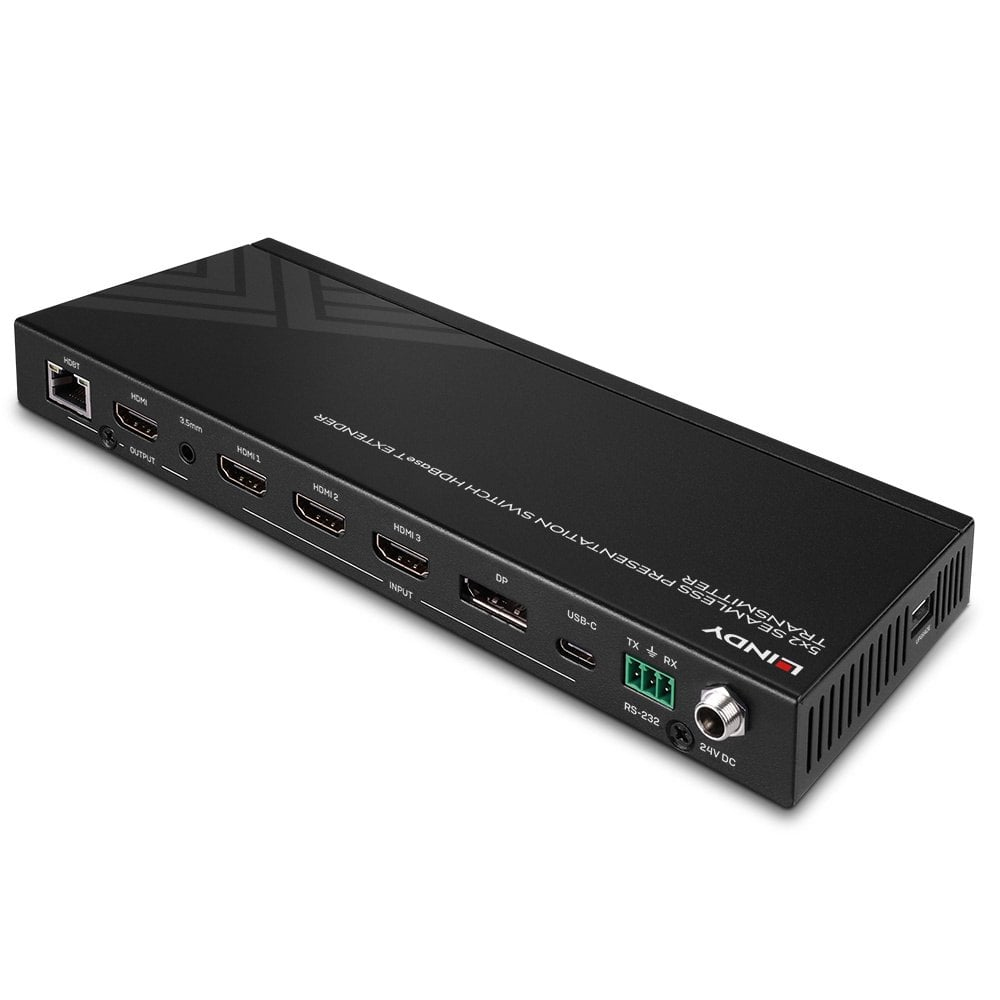

5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter
Model 38338EAN 4002888383387
32 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight590 g
- ColourBlack
- Operating relative humidity (H-H)10 - 50%
- Width225 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 590 g
- Colour
- Black
- Operating relative humidity (H-H)
- 10 - 50%
- Width
- 225 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38338
- Part number
- 38338
- EAN / UPC
- 4002888383387
- Also known as
- Lindy 5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter
Specifications
32 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | MST9804 |
| Maximum transfer distance | 70 m |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| DisplayPorts in | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 50% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 100 mm |
| Height | 25 mm |
| Weight | 590 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 273 mm |
| Package depth | 138 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
