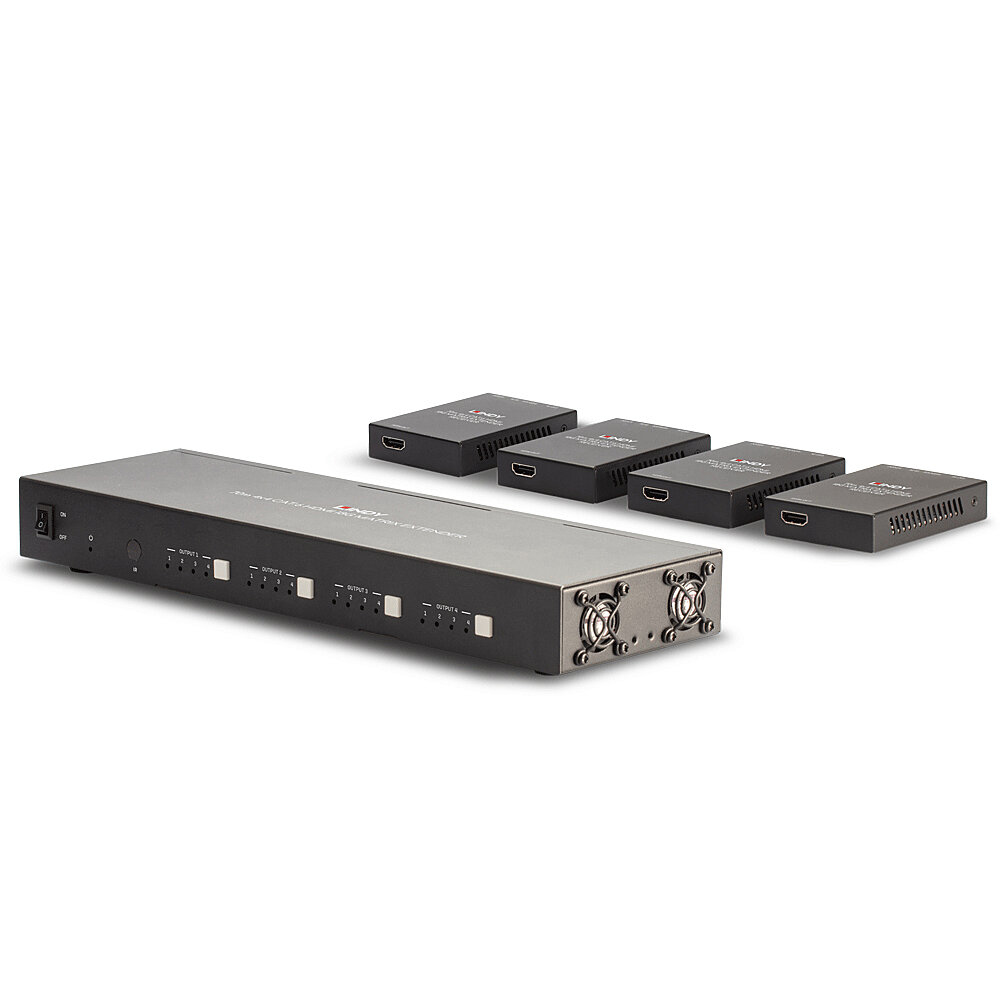

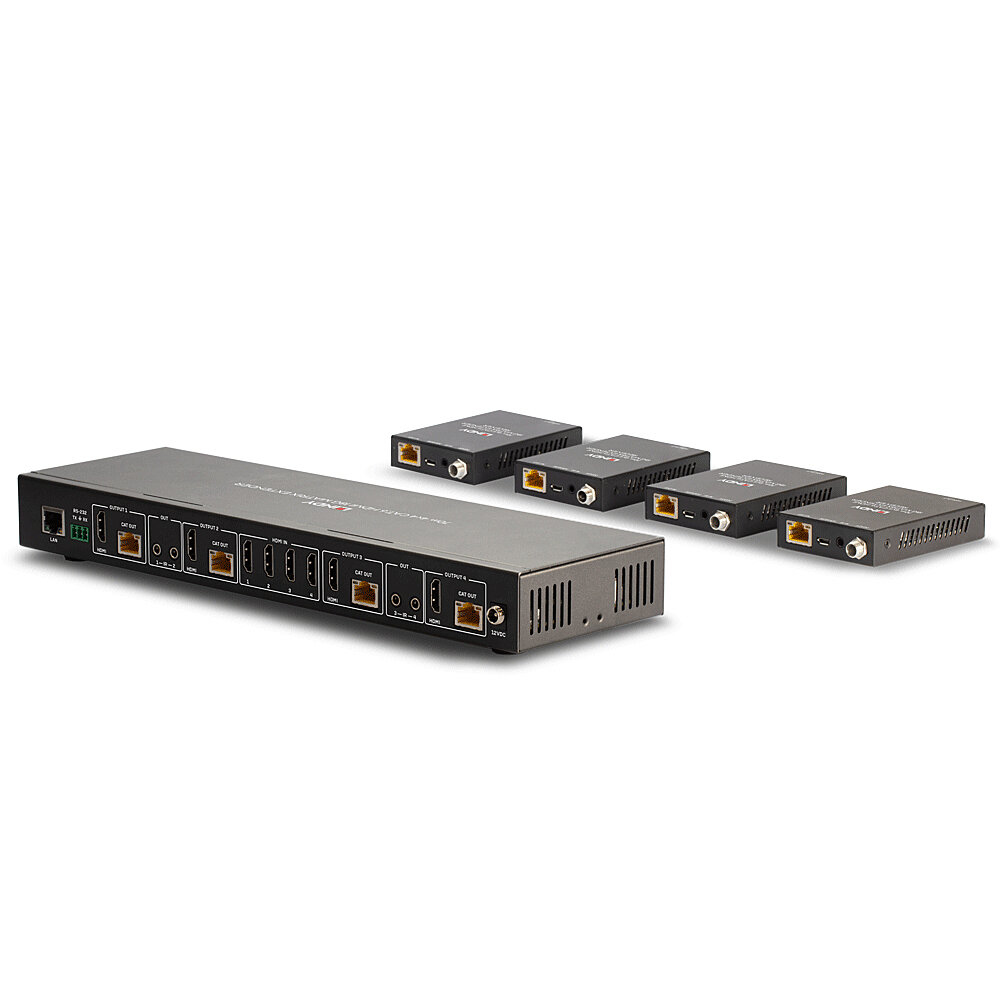

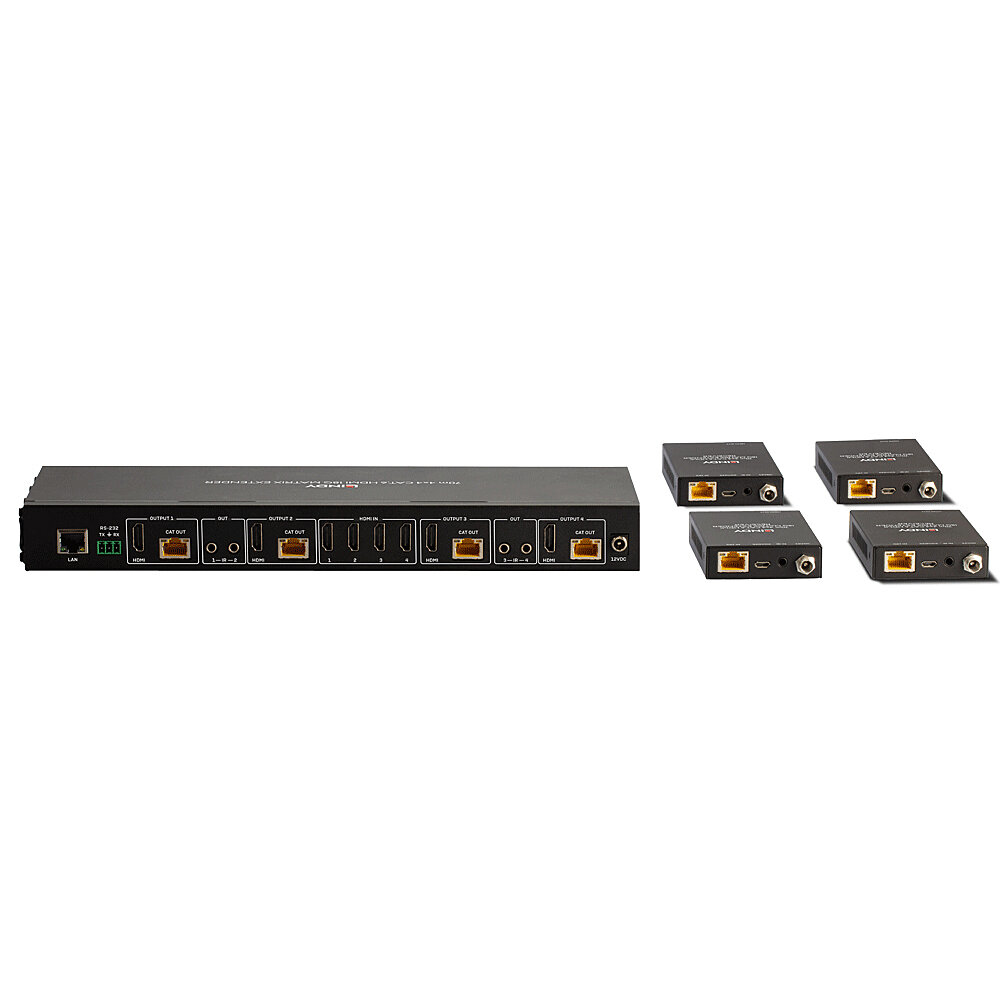

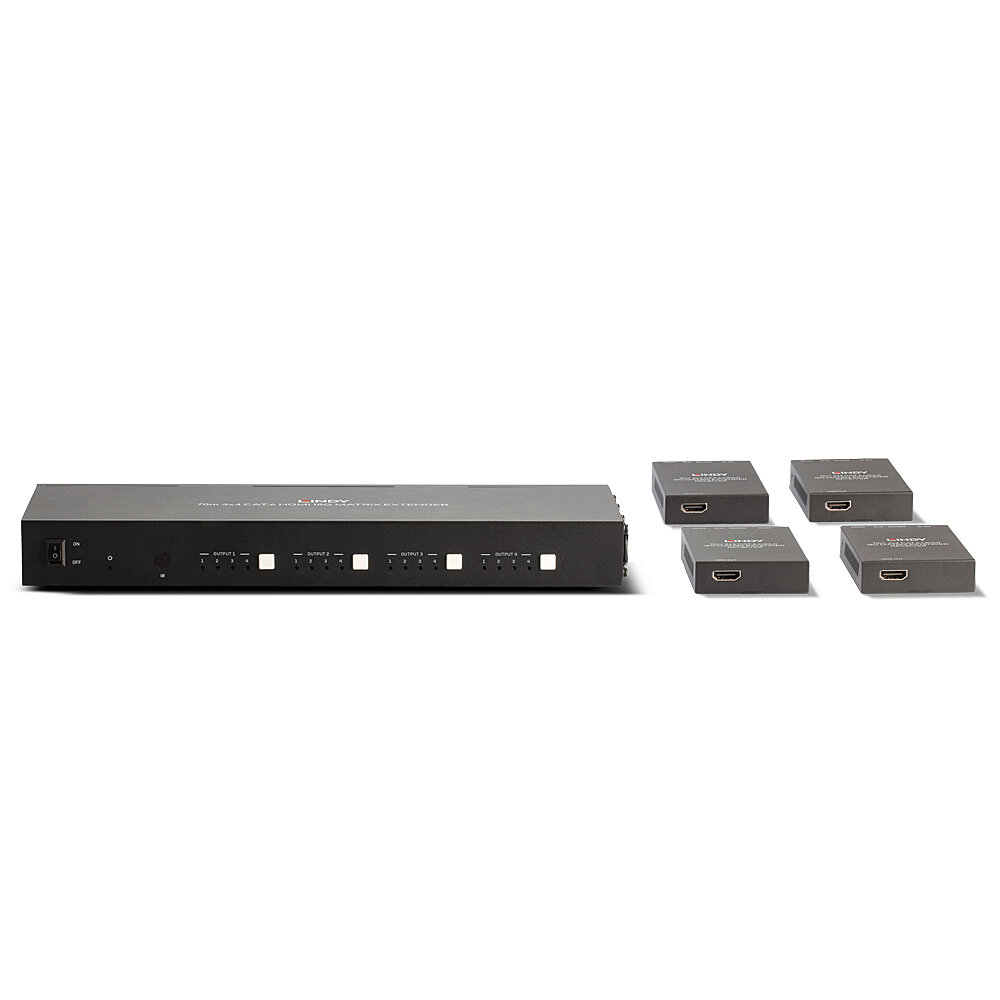

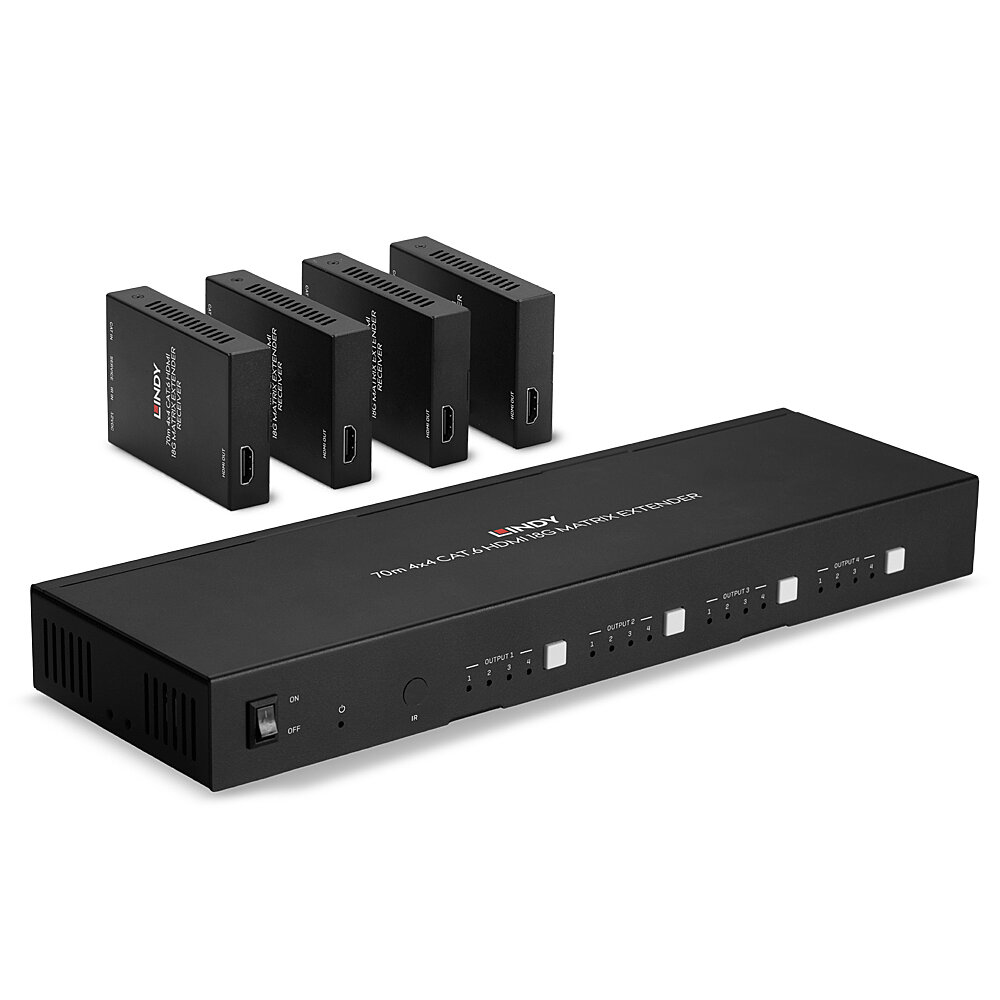

70m Cat.6 4x4 HDMI 4K60 Matrix Extender
Model 38328EAN 4002888383288
25 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage12 V
- Operating temperature (T-T)0 - 40 °C
- Receiver dimensions (WxDxH)61 x 88 x 18 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 12 V
- Operating temperature (T-T)
- 0 - 40 °C
- Receiver dimensions (WxDxH)
- 61 x 88 x 18 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38328
- Part number
- 38328
- EAN / UPC
- 4002888383288
- Also known as
- Lindy 70m Cat.6 4x4 HDMI 4K60 Matrix Extender
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Bandwidth | 18 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI version | 2.0 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 2.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 61 x 88 x 18 mm |
| Receiver weight | 140 g |
| Transmitter dimensions (WxDxH) | 320 x 100 x 36 mm |
| Transmitter weight | 950 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | RS-232 |
| Manual | Yes |
