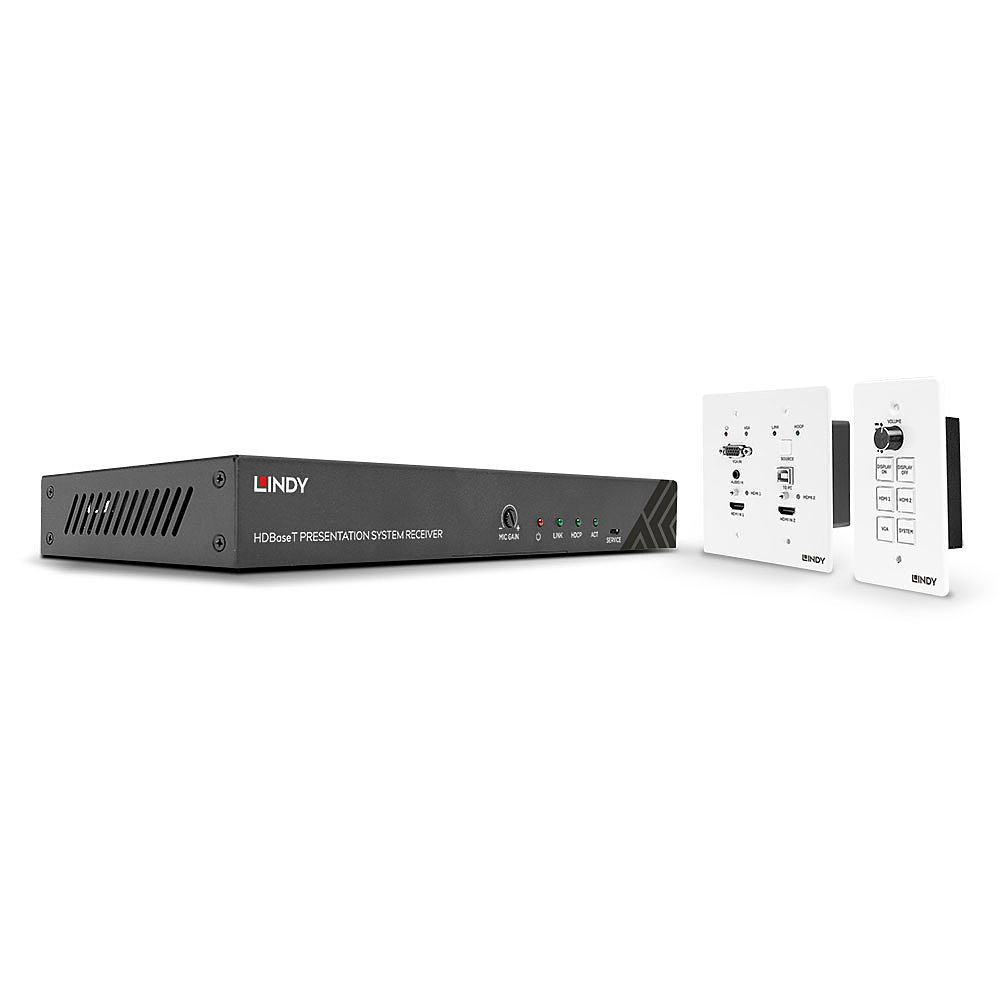

HDBaseT Presentation System with Control Keypad
Model 38288EAN 4002888382885
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight1.23 kg
- ColourBlack, White
- Operating relative humidity (H-H)20 - 90%
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 1.23 kg
- Colour
- Black, White
- Operating relative humidity (H-H)
- 20 - 90%
- Compliance certificates
- RoHS
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38288
- Part number
- 38288
- EAN / UPC
- 4002888382885
- Also known as
- Lindy HDBaseT Presentation System with Control Keypad
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | VS210 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 30 Hz |
| Extended display identification data (EDID) | Yes |
| CEC pass-through | Yes |
| HDCP pass-through | Yes |
| IR pass-through | No |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black, White |
| Certification | CE, FCC, RoHS & REACH |

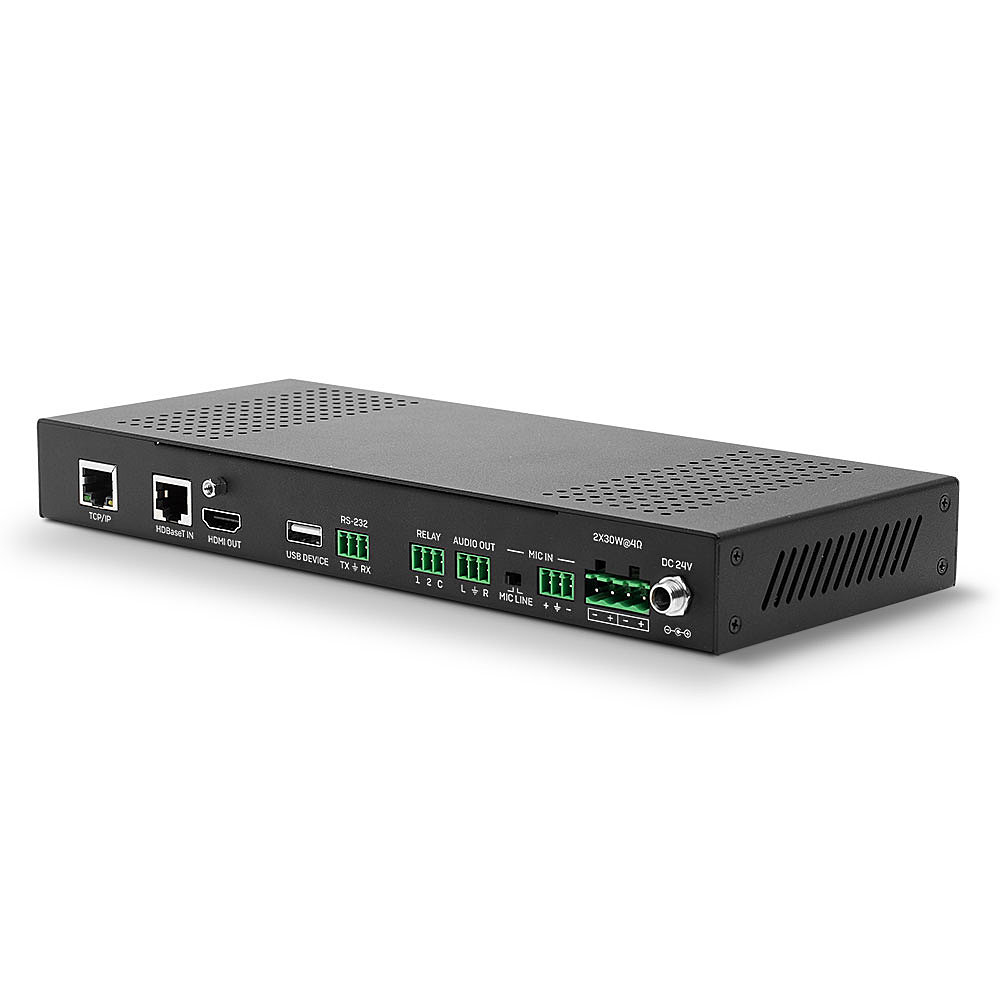

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| RS-232 input ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| Audio output | 1 |
| VGA (D-Sub) ports quantity | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.23 kg |
| Receiver dimensions (WxDxH) | 250 x 104 x 30 mm |
| Transmitter dimensions (WxDxH) | 115.9 x 114.3 x 38.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 300 mm |
| Package depth | 275 mm |
| Package height | 110 mm |
| Package weight | 2.14 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
