4K HDMI & USB over IP Extender, Transmitter
Model 38266EAN 4002888382663
46 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight670 g
- ColourBlack
- Operating voltage5 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 670 g
- Colour
- Black
- Operating voltage
- 5 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38266
- Part number
- 38266
- EAN / UPC
- 4002888382663
- Also known as
- Lindy 4K HDMI & USB over IP Extender, Transmitter
Specifications
46 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |
| Product colour | Black |
| Certification | CE, FCC, REACH |

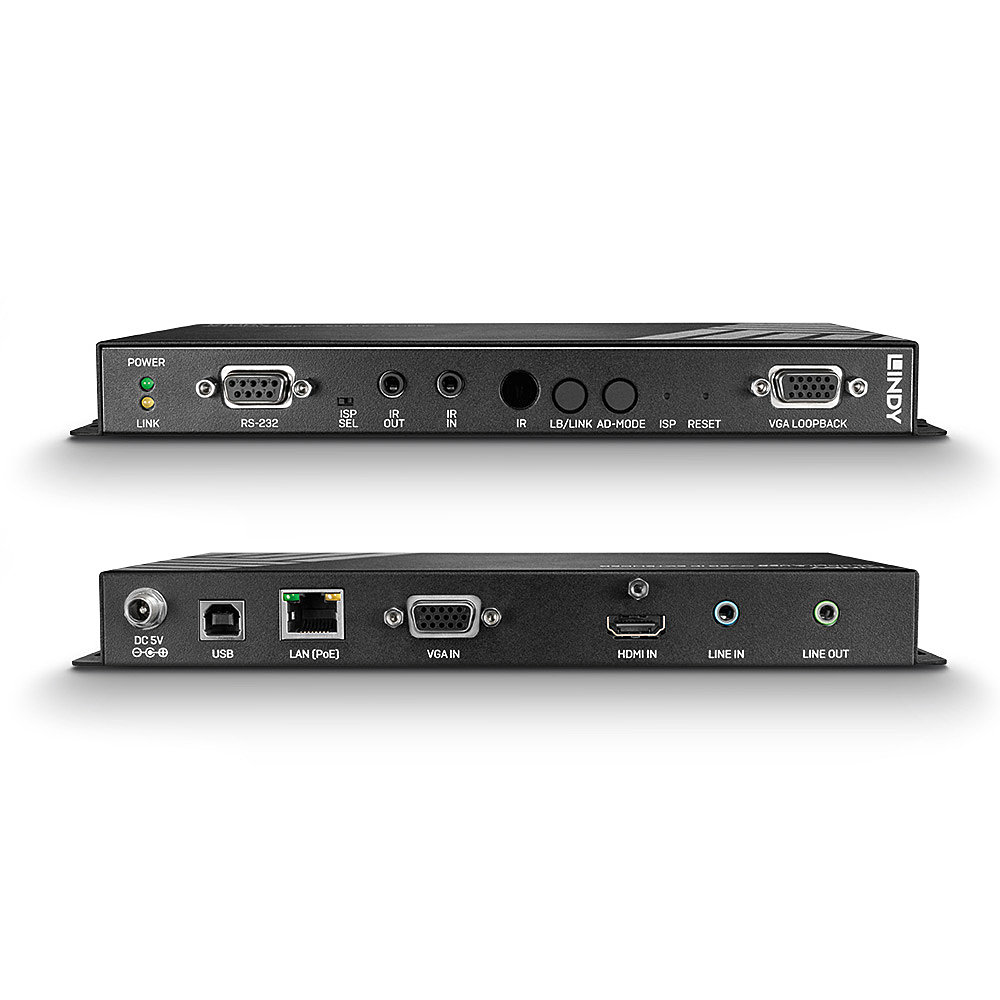

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| RS-232 input ports | 1 |
| Line outputs (RCA) | 1 |
| Line-in | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Input current | 2.4 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 25 mm |
| Height | 108 mm |
| Weight | 670 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 225 mm |
| Package depth | 190 mm |
| Package height | 80 mm |
| Package weight | 1.15 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
