70m Cat.6 4 Port HDMI 4K60 Splitter Extender
Model 38262EAN 4002888382625
38 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating relative humidity (H-H)5 - 90%
- Receiver dimensions (WxDxH)100 x 88 x 23 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating relative humidity (H-H)
- 5 - 90%
- Receiver dimensions (WxDxH)
- 100 x 88 x 23 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38262
- Part number
- 38262
- EAN / UPC
- 4002888382625
- Also known as
- Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender
Specifications
38 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | GSV2006, GSV5100 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Material | Metal |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |

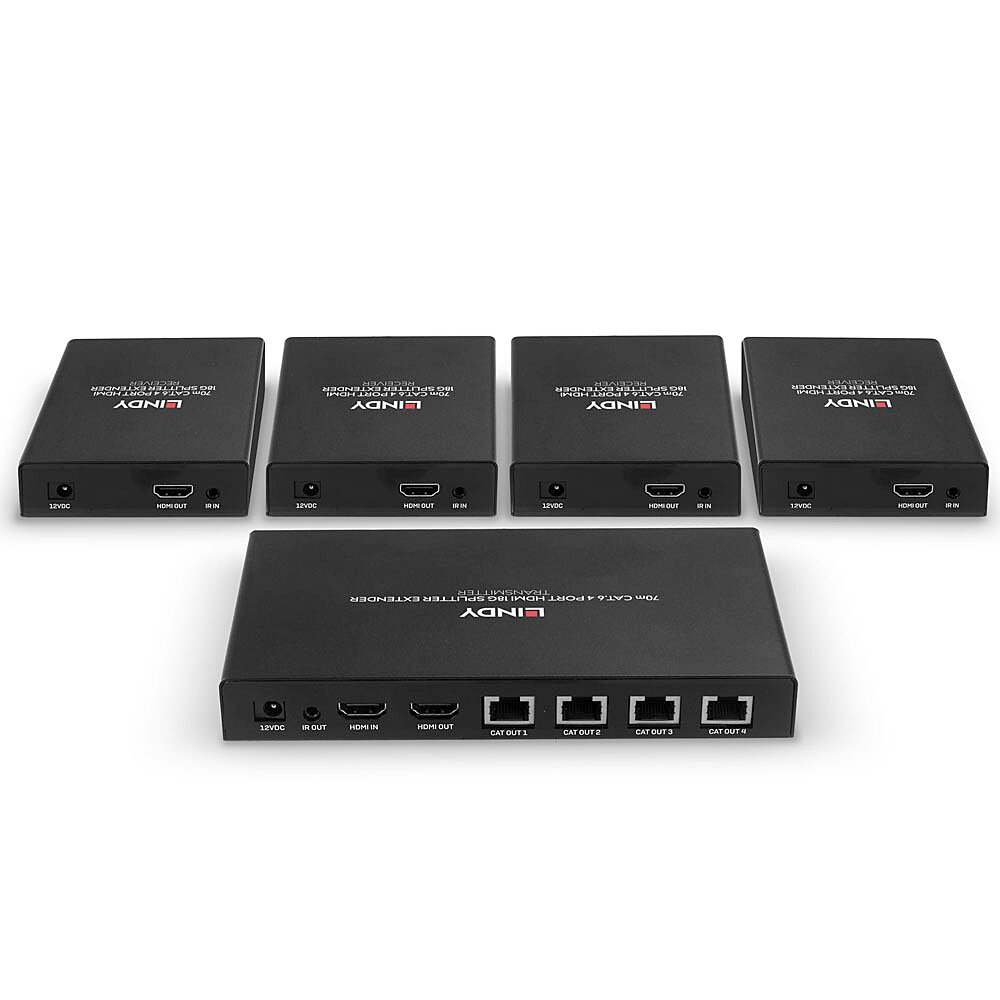

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 5 |
| Remote (IR) input | 4 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Receiver weight | 199 g |
| Transmitter dimensions (WxDxH) | 180 x 103 x 23 mm |
| Transmitter weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 423 mm |
| Package depth | 60 mm |
| Package height | 354 mm |
| Package weight | 2 kg |
| Package type | Box |

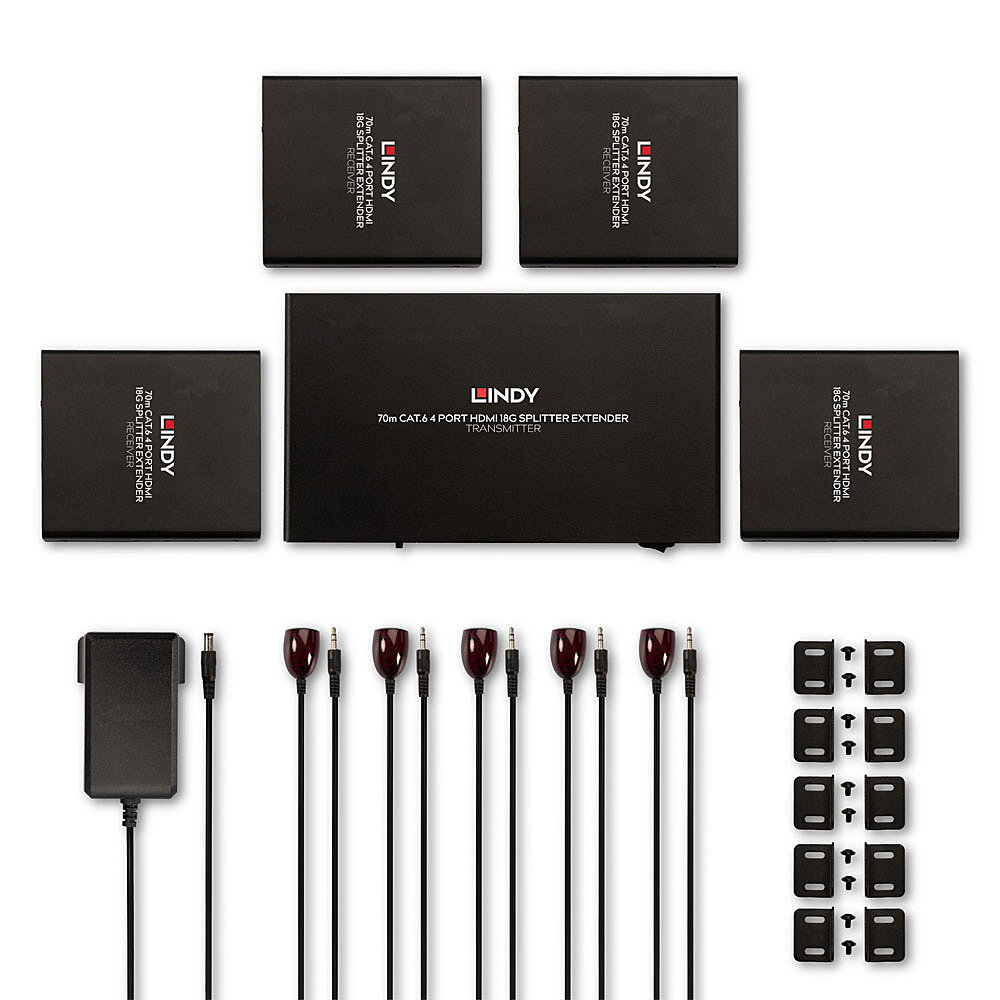

Packaging content
| Specification | Value |
|---|---|
| Cables included | IR, IR sensor |
| Manual | Yes |
| Mounting brackets included | Yes |
