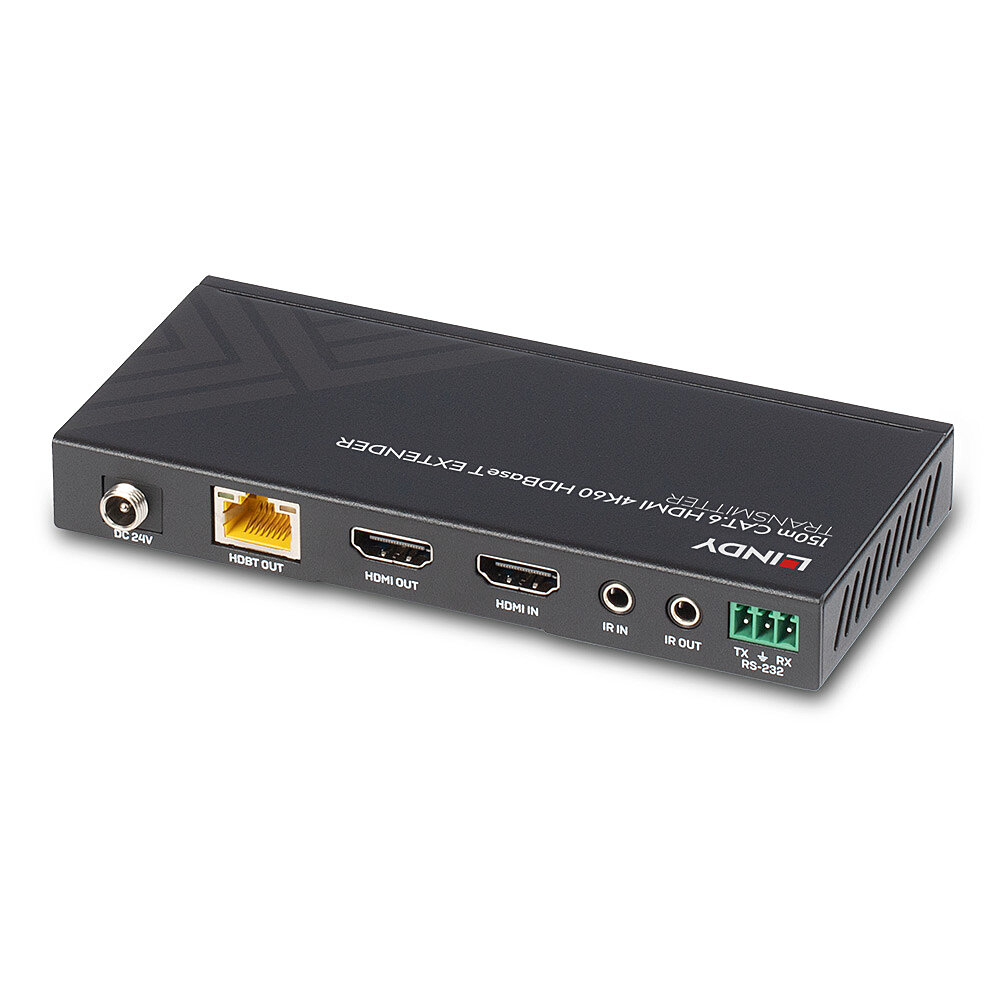

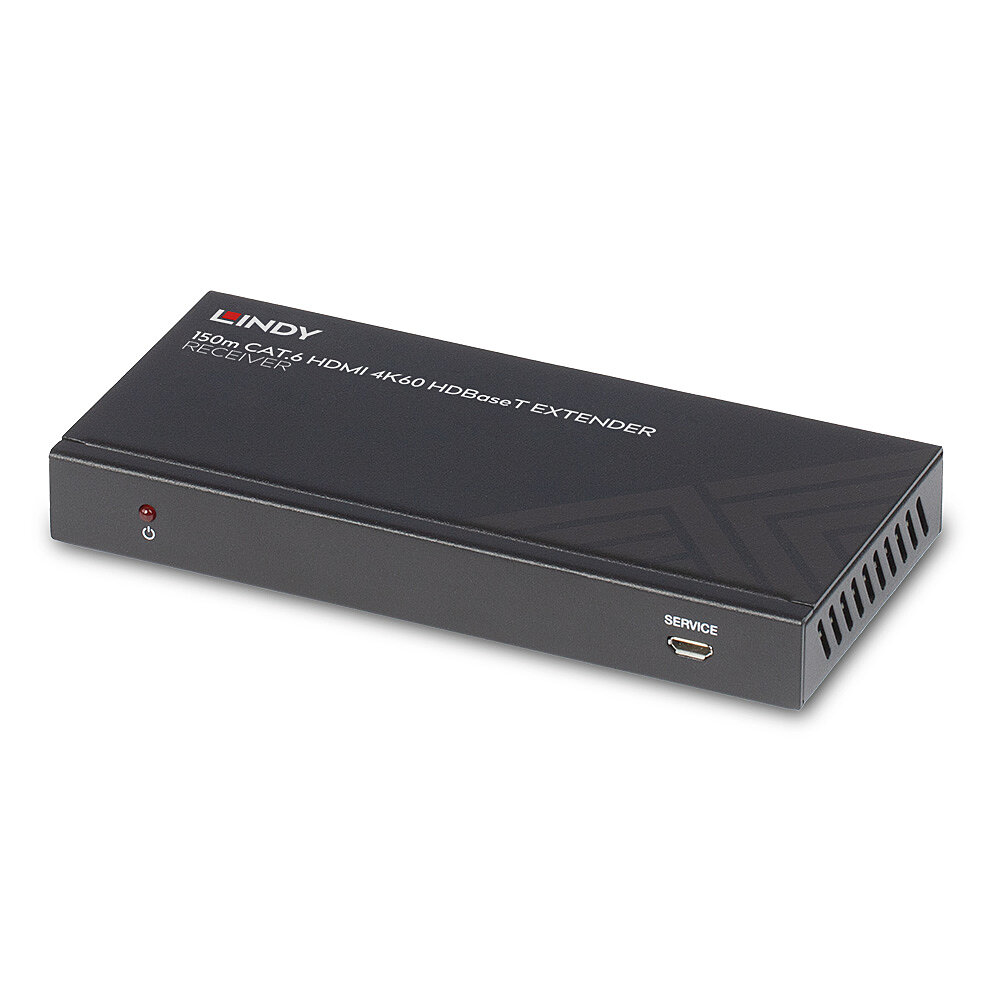

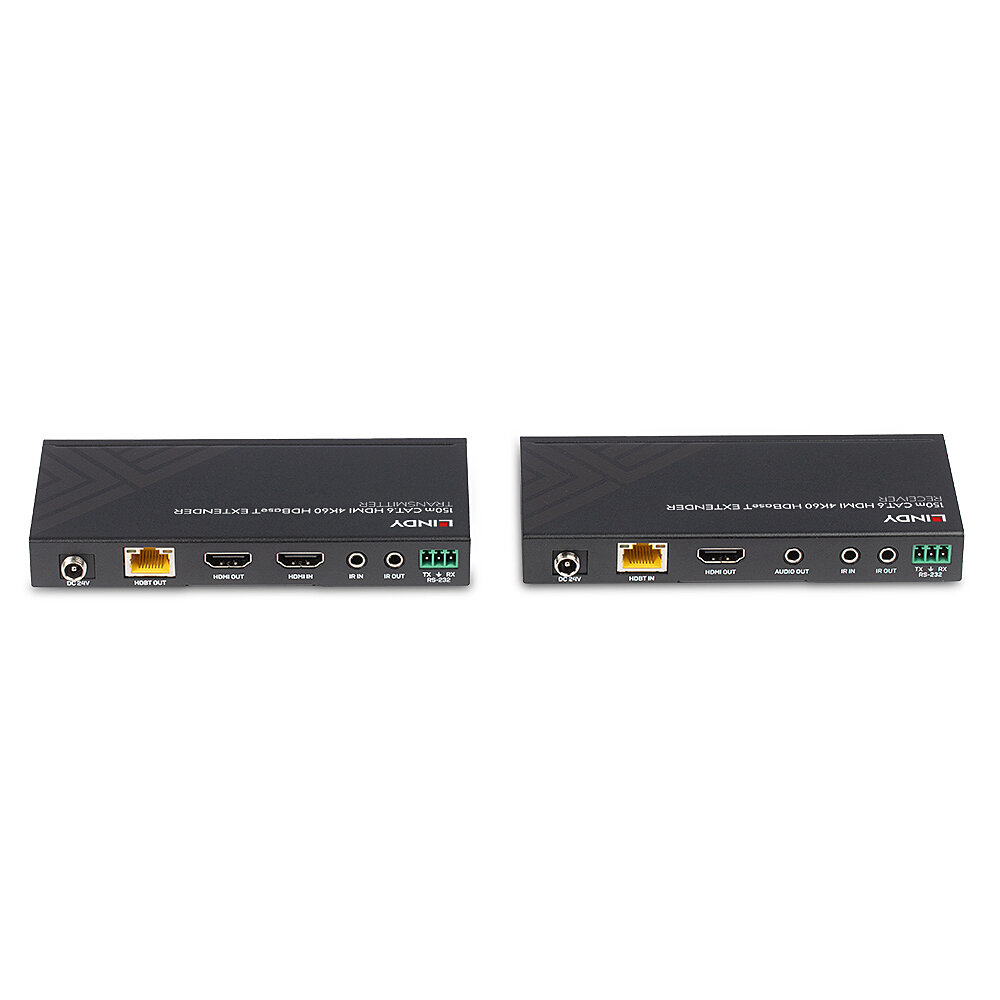

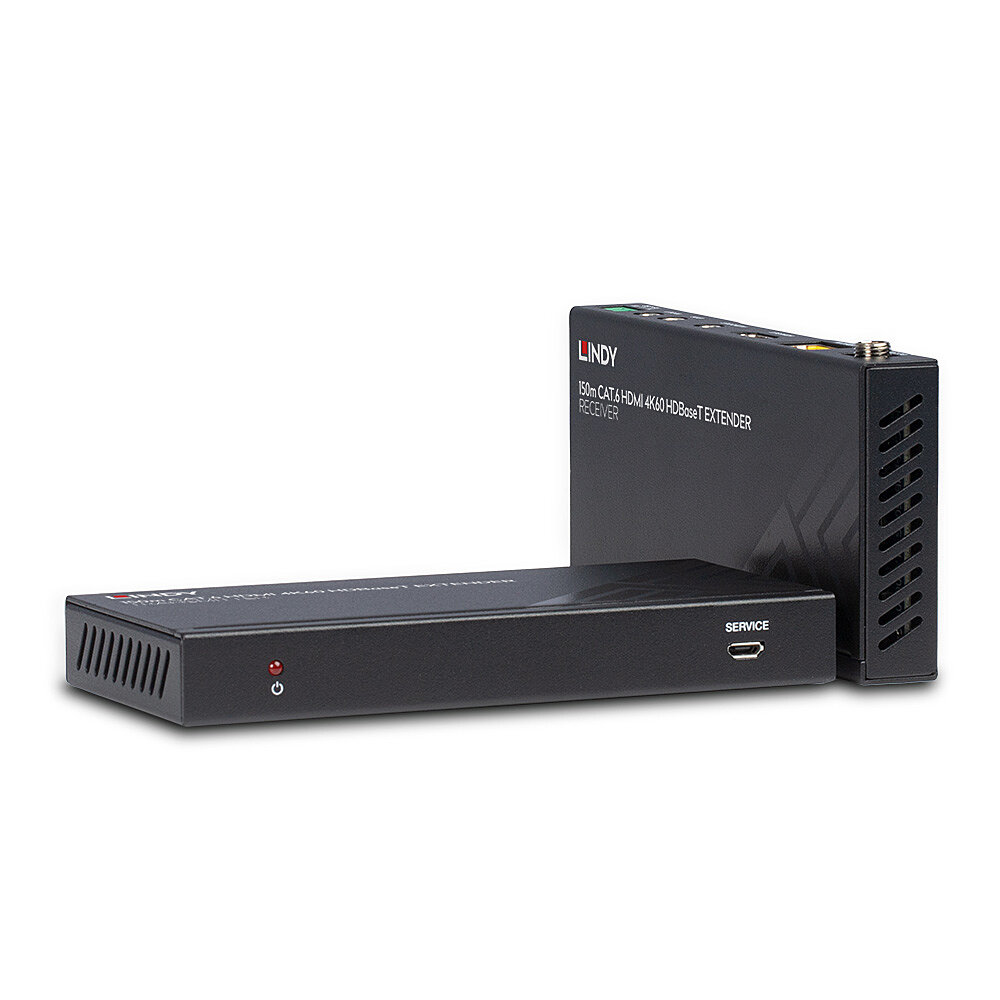

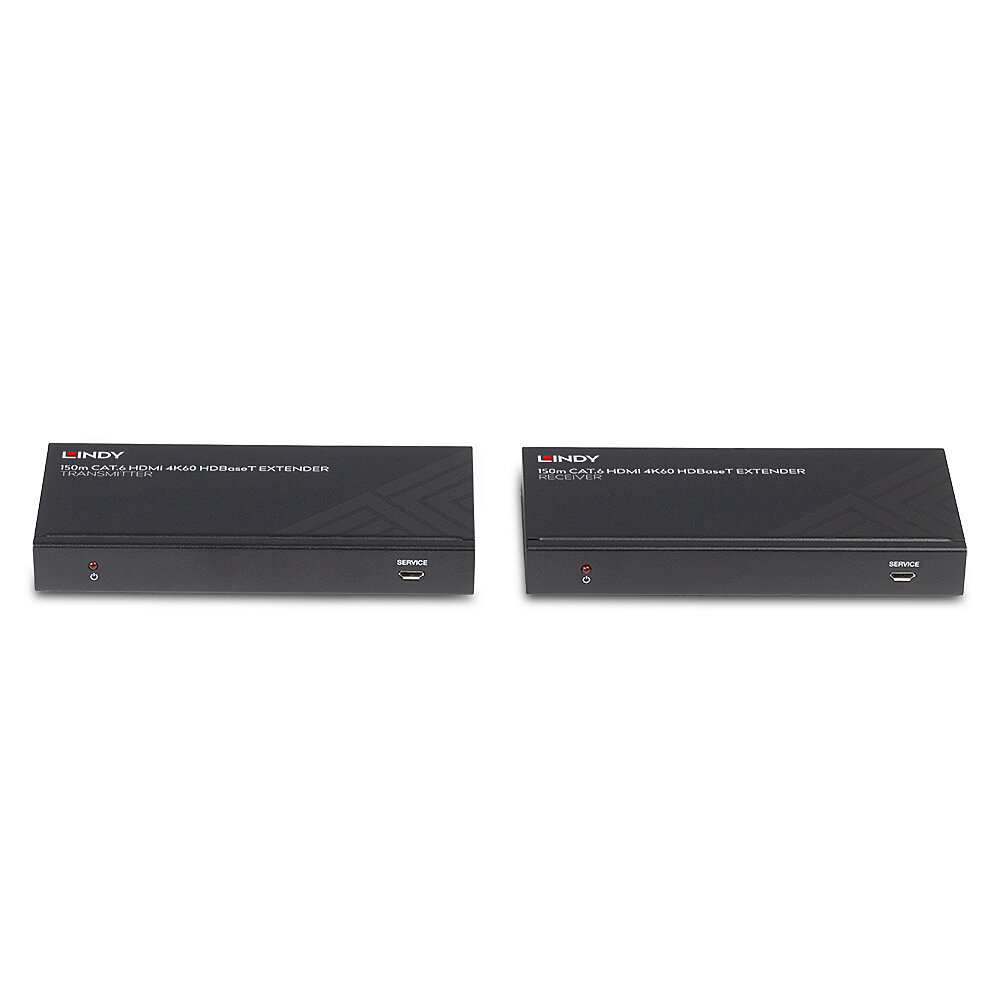

150m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT Extender
Model 38217EAN 4002888382175
42 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight760 g
- ColourBlack
- Power source typeDC
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 760 g
- Colour
- Black
- Power source type
- DC
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38217
- Part number
- 38217
- EAN / UPC
- 4002888382175
- Also known as
- Lindy 150m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT Extender
Specifications
42 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | VS010-A0 |
| Maximum transfer distance | 150 m |
| Extended display identification data (EDID) | Yes |
| CEC pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| Colour depth | 4 bit |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| RS-232 input ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Operating voltage | 24 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 65 mm |
| Height | 18 mm |
| Weight | 760 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 75 mm |
| Package height | 185 mm |
| Package weight | 970 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, IR |
| IR emitter included | Yes |
| Manual | Yes |
