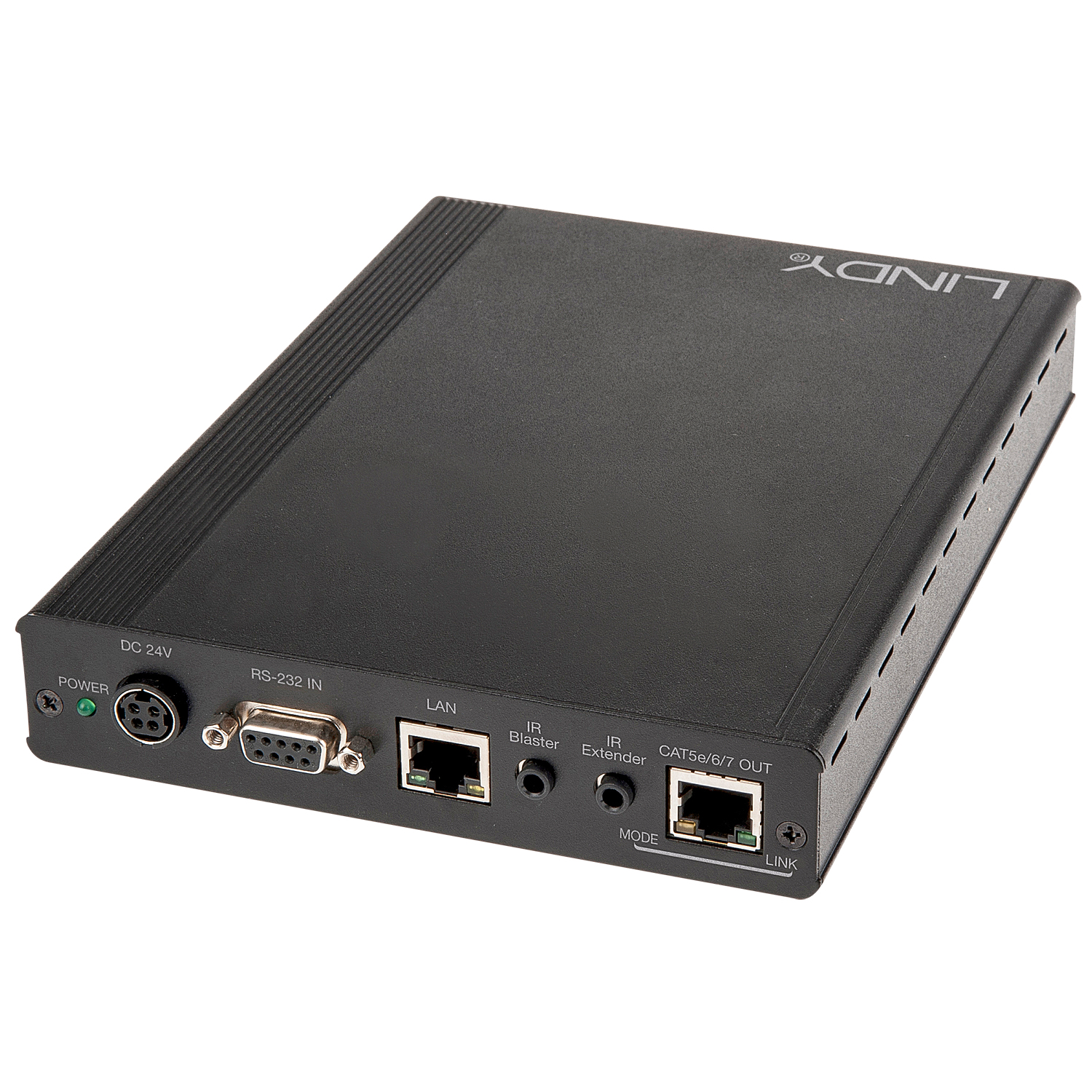

100m C6 HDBaseT HDMI/VGA Extender - Transmitter
Model 38215EAN 4002888382151
30 specifications
- TypeAV transmitter
- Weight608 g
- RJ-45 input ports1
- Power over Ethernet (PoE)Yes
- Dimensions (WxDxH)145 x 202 x 30 mm
Overview
- Type
- AV transmitter
- Weight
- 608 g
- RJ-45 input ports
- 1
- Power over Ethernet (PoE)
- Yes
- Dimensions (WxDxH)
- 145 x 202 x 30 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38215
- Part number
- 38215
- EAN / UPC
- 4002888382151
- Also known as
- Lindy 100m C6 HDBaseT HDMI/VGA Extender - Transmitter
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| 3D | Yes |
| Colour depth | 36 bit |
| HDCP | Yes |
| Remote control type | IR |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio input | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 145 x 202 x 30 mm |
| Weight | 608 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, IR |
| Manual | Yes |
| Remote control included | Yes |
