70m C6 HDBaseT HDMI
18G & IR Extender Transmitter
Model 38213EAN 4002888382137
42 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight345 g
- ColourBlack
- Operating voltage24 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 345 g
- Colour
- Black
- Operating voltage
- 24 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38213
- Part number
- 38213
- EAN / UPC
- 4002888382137
- Also known as
- Lindy 70m C6 HDBaseT HDMI 18G & IR Extender Transmitter
Specifications
42 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | VS010 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| CEC pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH & California Proposition 65 |

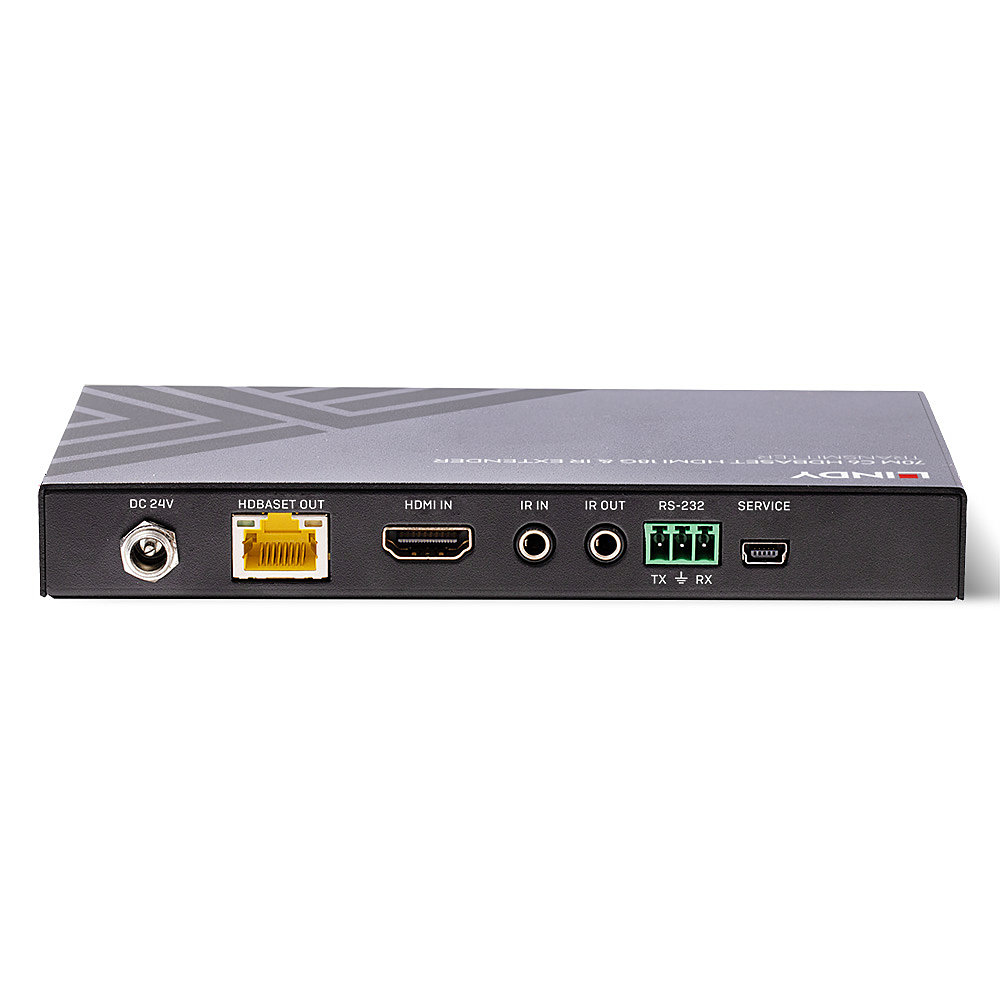

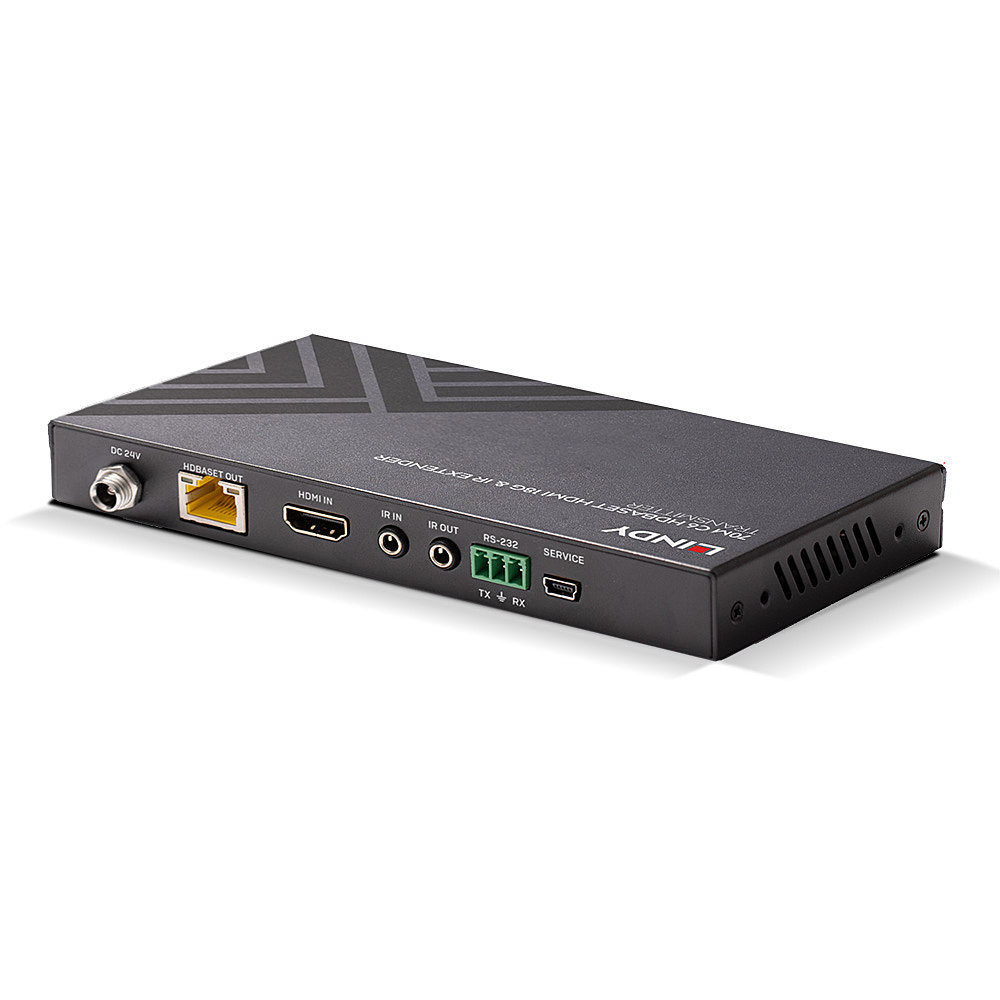

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| RS-232 input ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 24 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 157 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 345 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 130 mm |
| Package height | 70 mm |
| Package weight | 847 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
