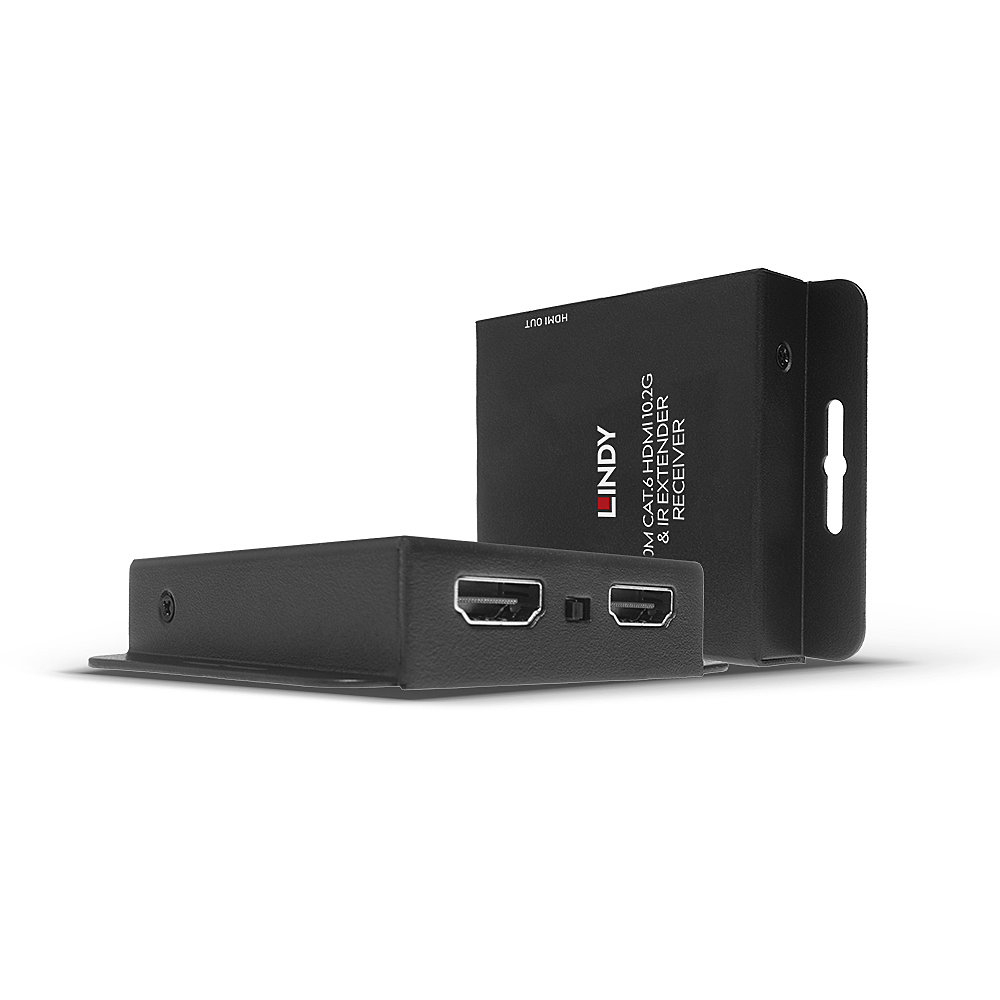

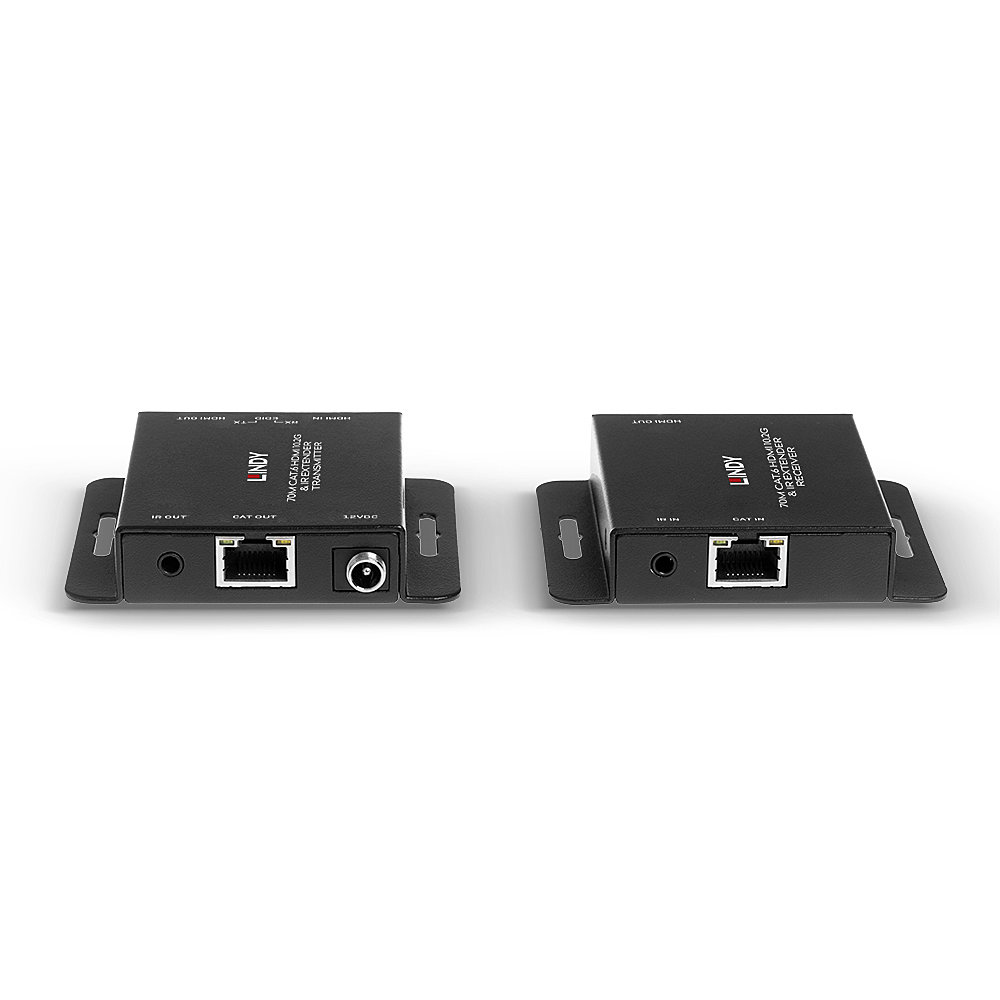

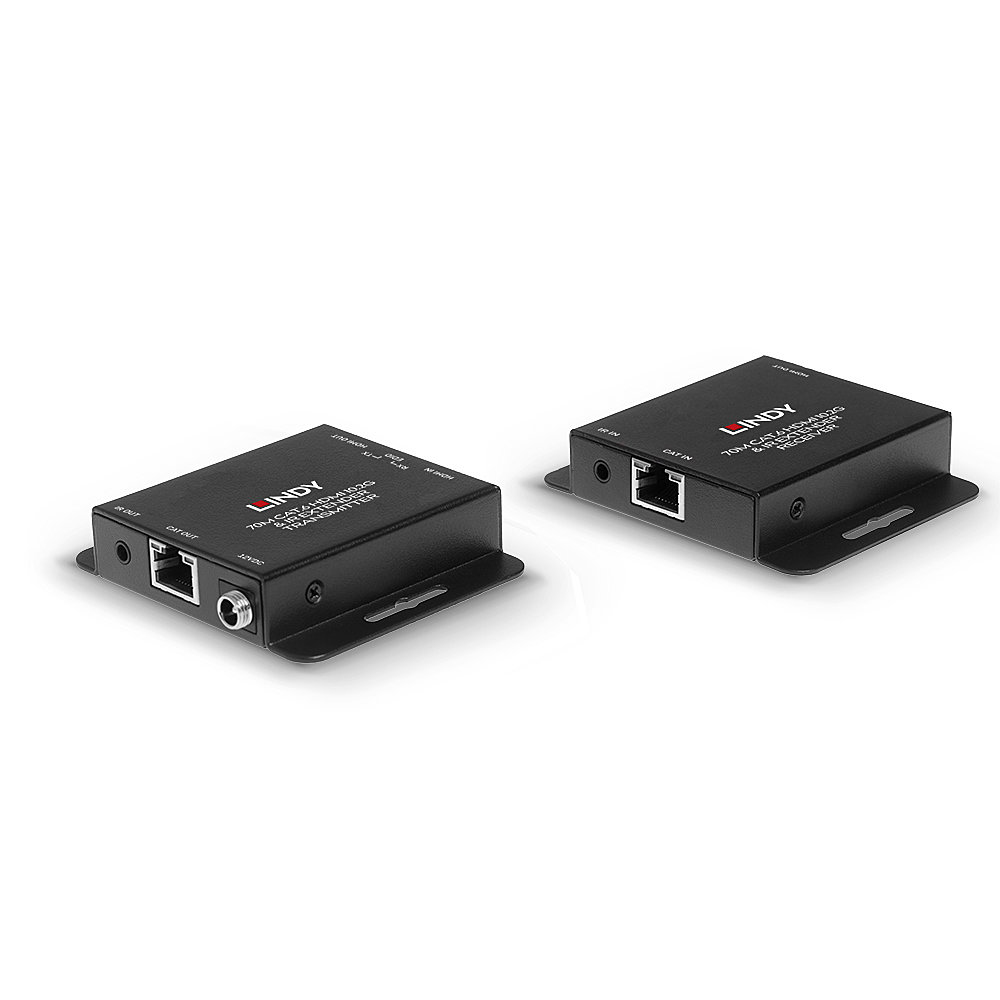

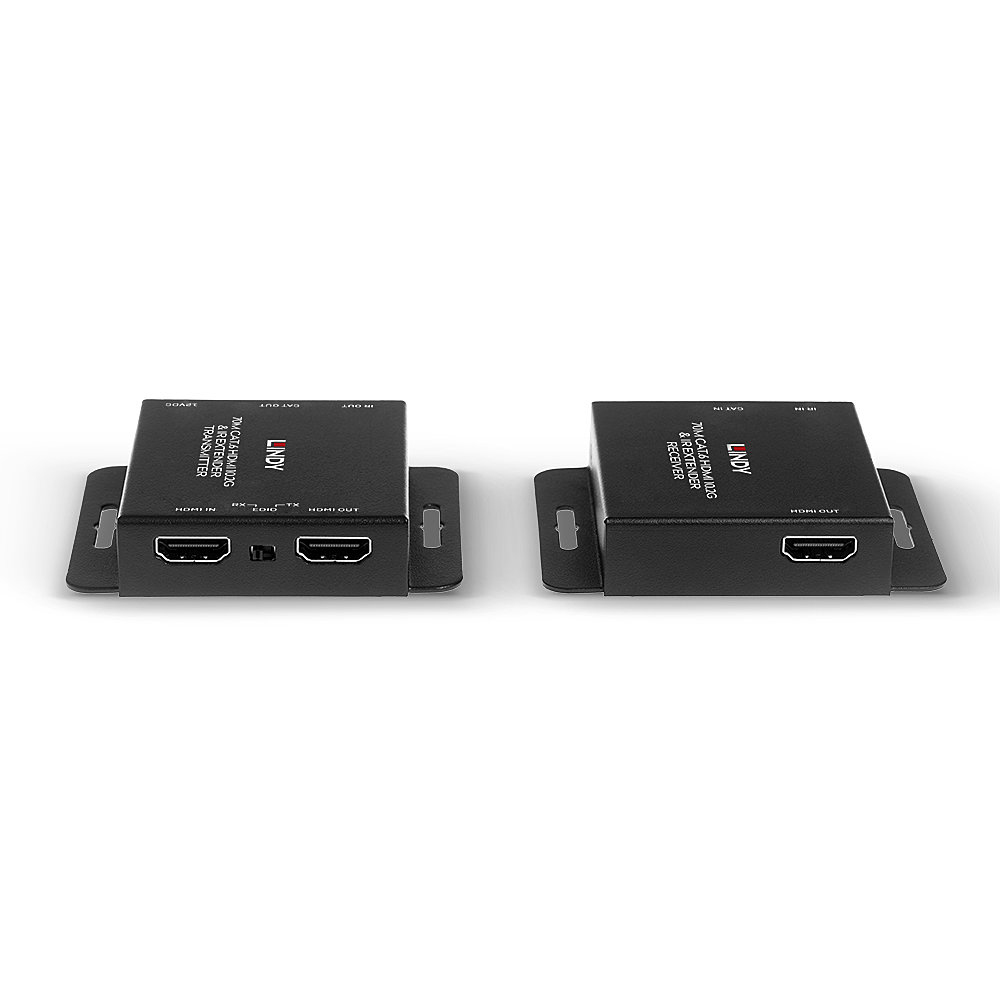

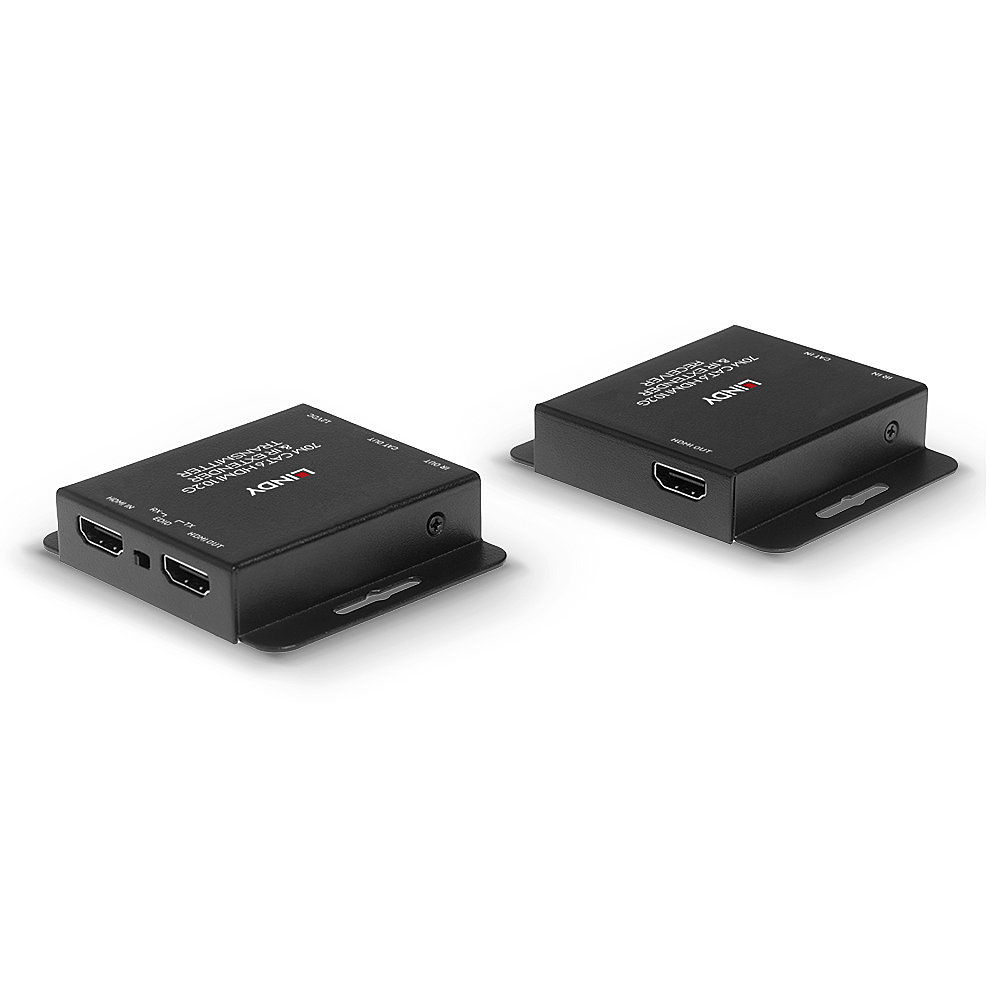

70m Cat.6 HDMI 4K30 and IR Extender with PoC and Loop Out
Model 38208EAN 4002888382083
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight130 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)20 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 130 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 20 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38208
- Part number
- 38208
- EAN / UPC
- 4002888382083
- Also known as
- Lindy 70m Cat.6 HDMI 4K30 and IR Extender with PoC and Loop Out
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | GSV1001 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Audio output channels | 7.1 channels |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Material | Metal |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 79.5 mm |
| Depth | 69 mm |
| Height | 16.5 mm |
| Weight | 130 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 70 mm |
| Package height | 113 mm |
| Package weight | 414 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
