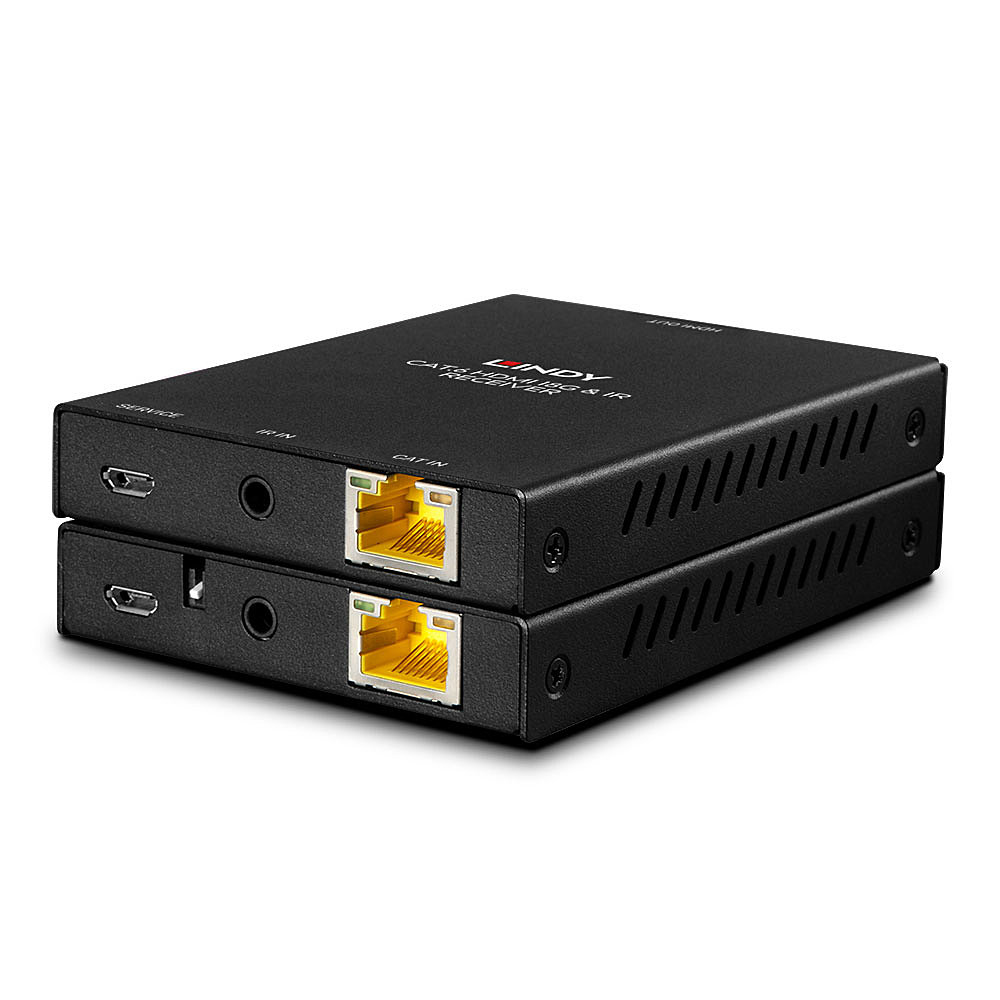

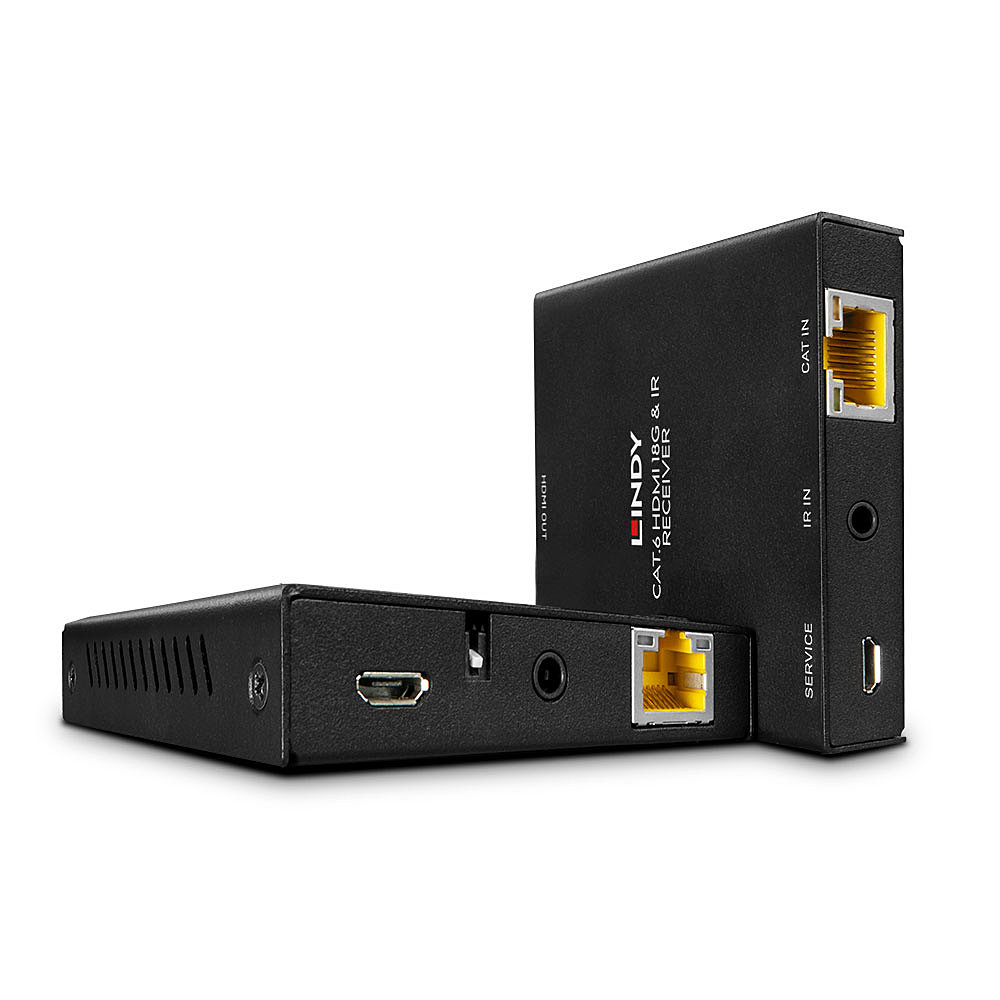

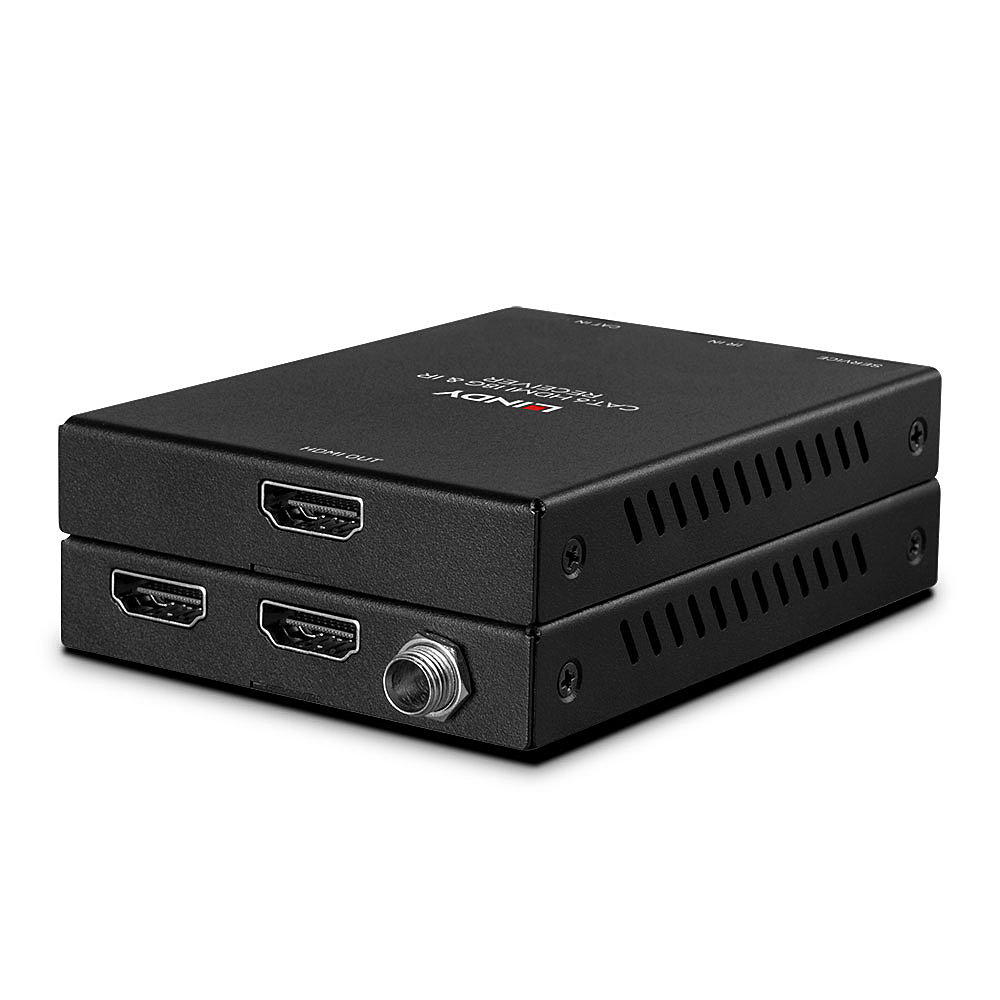

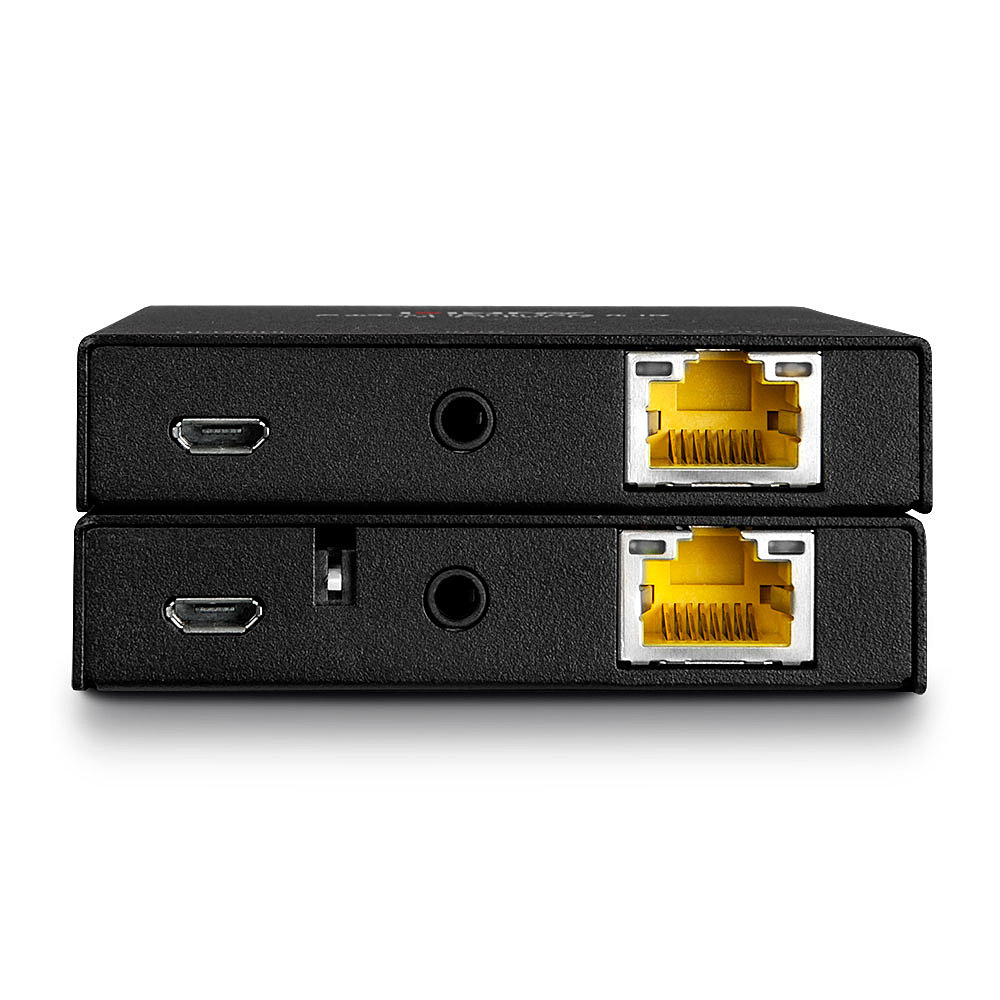

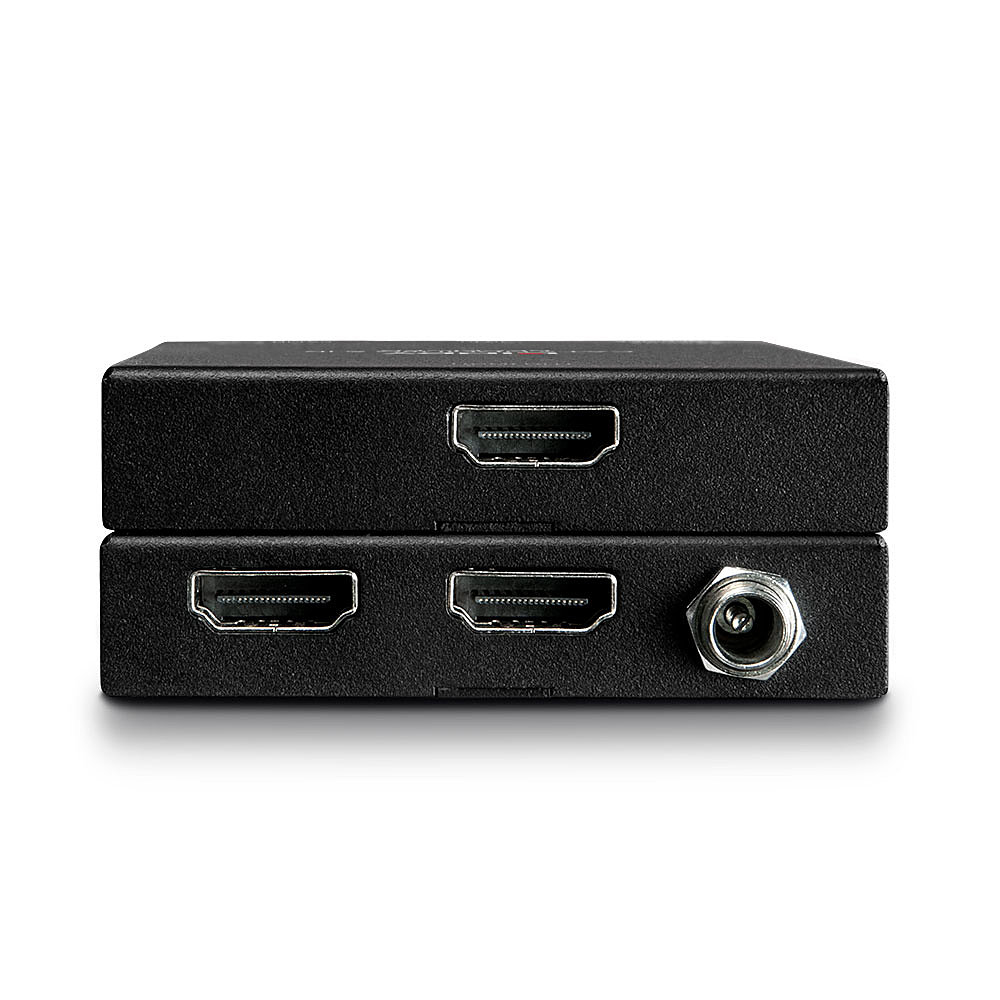

50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out
Model 38205EAN 4002888382052
42 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Operating voltage24 V
- Operating relative humidity (H-H)20 - 90%
- Receiver dimensions (WxDxH)70 x 15 x 97 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Operating voltage
- 24 V
- Operating relative humidity (H-H)
- 20 - 90%
- Receiver dimensions (WxDxH)
- 70 x 15 x 97 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38205
- Part number
- 38205
- EAN / UPC
- 4002888382052
- Also known as
- Lindy 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out
Specifications
42 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | SIL9396, SIL9630 |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH & California Proposition 65 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| USB ports quantity | 2 |
| USB connector type | Micro-USB |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 24 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 70 x 15 x 97 mm |
| Receiver weight | 151 g |
| Transmitter dimensions (WxDxH) | 70 x 15 x 97 mm |
| Transmitter weight | 156 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 130 mm |
| Package weight | 605 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
