C6 HDMI 2.0 Receiver Pro with HDBaseT
Model 38201EAN 4002888382014
33 specifications
- TypeAV receiver
- ColourBlack
- Ethernet LANYes
- Receiver dimensions (WxDxH)165 x 141 x 33 mm
Overview
- Type
- AV receiver
- Colour
- Black
- Ethernet LAN
- Yes
- Receiver dimensions (WxDxH)
- 165 x 141 x 33 mm
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38201
- Part number
- 38201
- EAN / UPC
- 4002888382014
- Also known as
- Lindy C6 HDMI 2.0 Receiver Pro with HDBaseT
Specifications
33 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| Infrared (IR) frequency range | 30 - 50 kHz |
| 3D | Yes |
| Baud rate | 115.2 Kbit/s |
| Colour depth | 48 bit |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |
| Certification | CE, FCC |

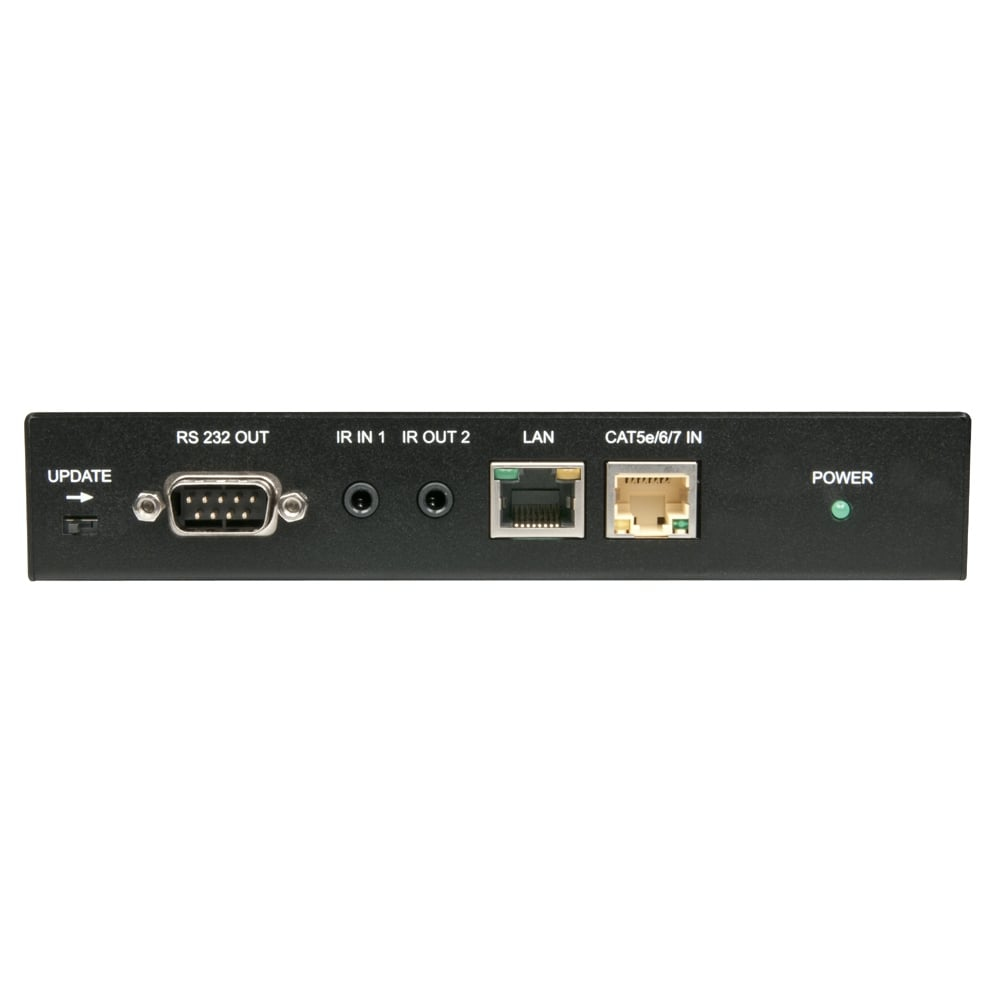

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| RS-232 output ports | 1 |
| Video out | 1 |
| Audio output | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver dimensions (WxDxH) | 165 x 141 x 33 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Quick start guide | Yes |
| Manual | Yes |
