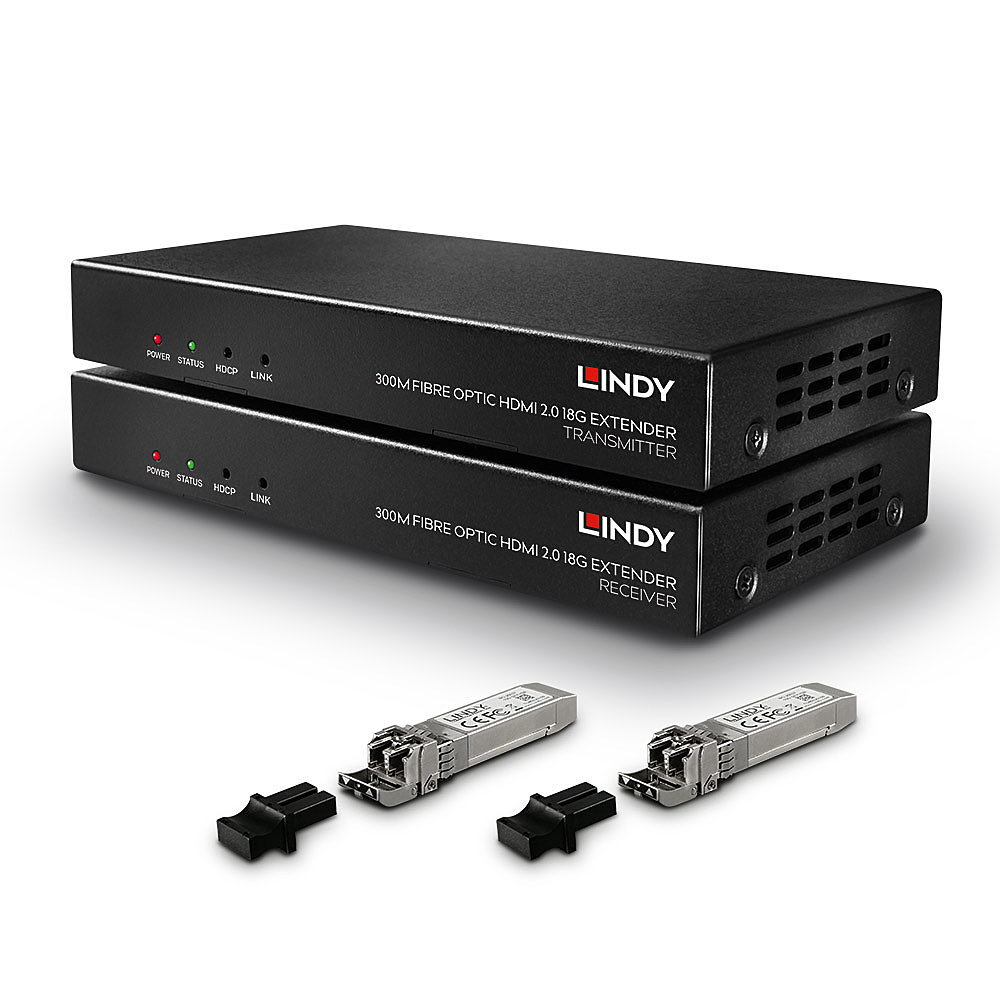

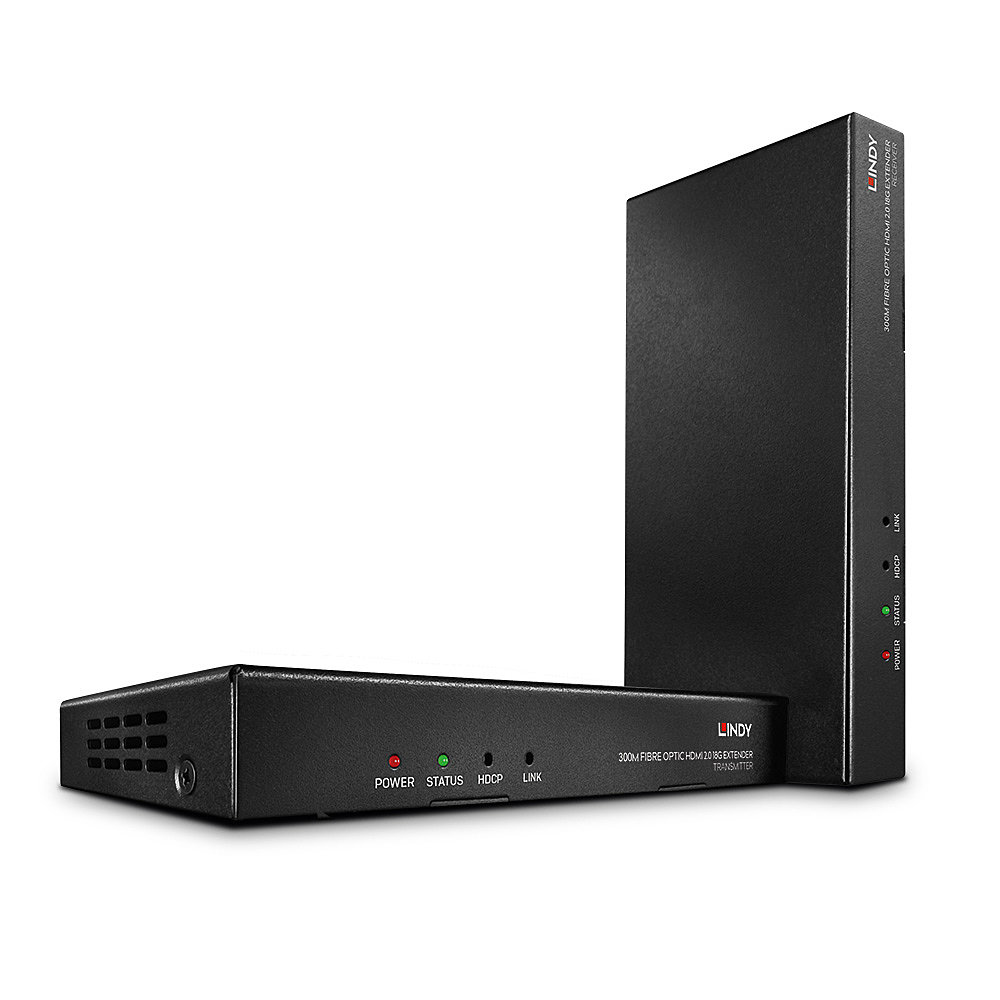

300m Fibre Optic HDMI
18G & IR Extender
Model 38174EAN 4002888381741
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight300 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)10 - 90%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 300 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38174
- Part number
- 38174
- EAN / UPC
- 4002888381741
- Also known as
- Lindy 300m Fibre Optic HDMI 18G & IR Extender
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 300 m |
| Fiber optic wavelengths supported | 850 nm |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| HDCP pass-through | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH |

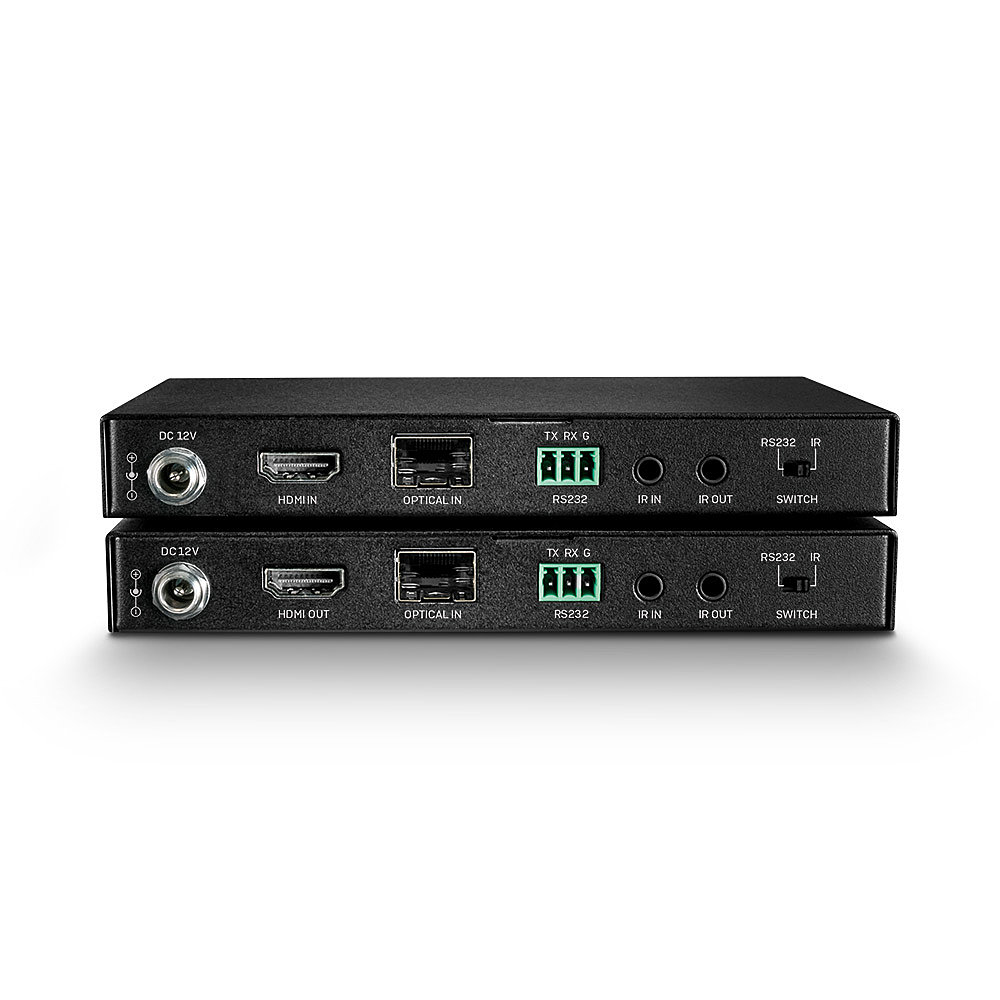

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | LC |
| Digital audio optical in | 2 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 20 mm |
| Height | 74.4 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 180 mm |
| Package height | 75 mm |
| Package weight | 1.23 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
