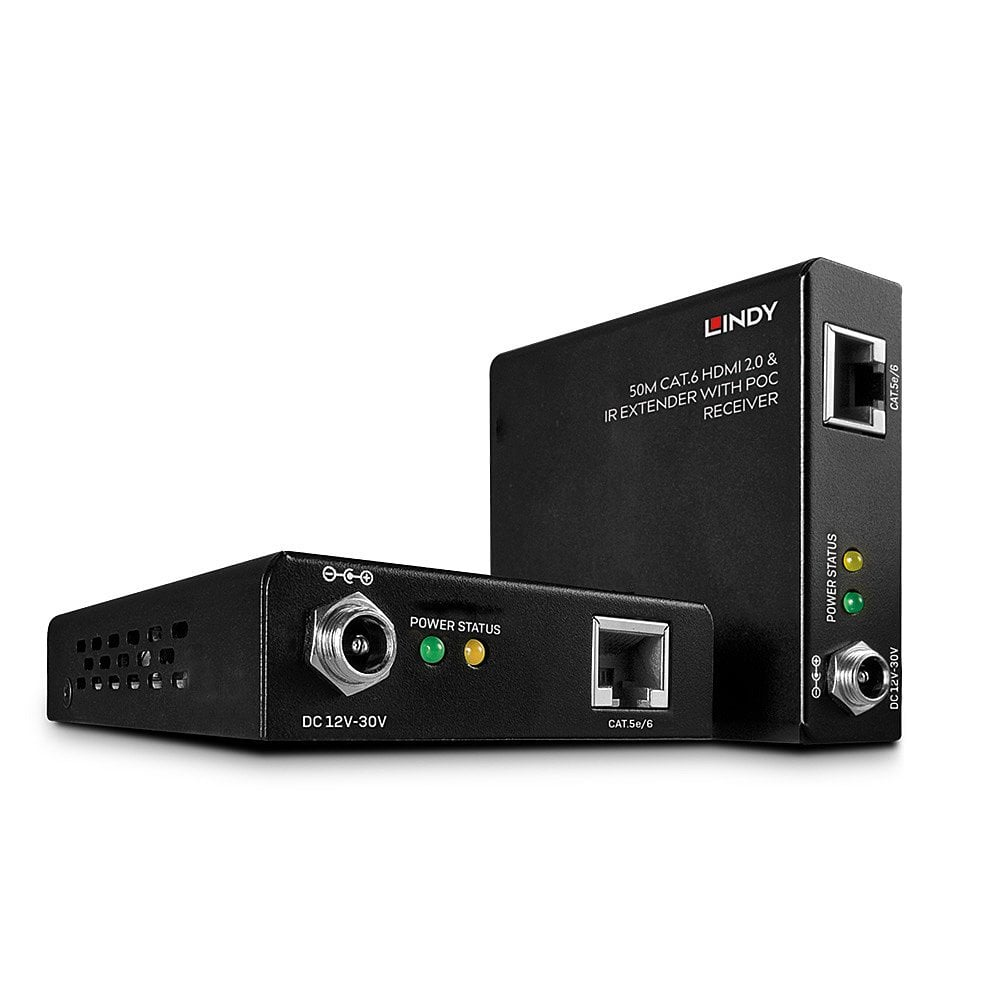

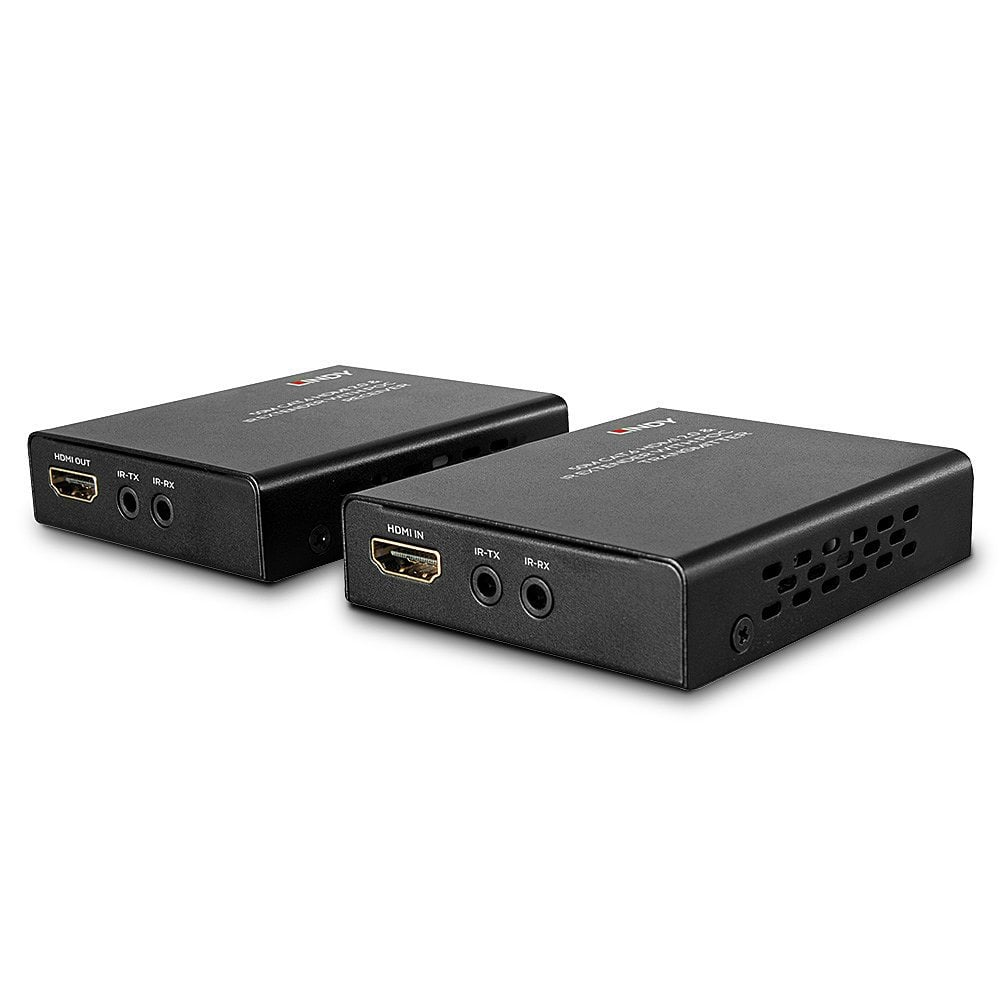

38169 AV extender AV transmitter & receiver Black
Model 38169EAN 4002888381697
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight140 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)0 - 55%
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 140 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 0 - 55%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38169
- Part number
- 38169
- EAN / UPC
- 4002888381697
- Also known as
- Lindy 38169 AV extender AV transmitter & receiver Black
Specifications
40 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Chipset | Maxim 3815A |
| Maximum transfer distance | 50 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| Audio output channels | 7.1 channels |
| CEC pass-through | Yes |
| HDCP pass-through | Yes |
| HDCP | Yes |
| LED indicators | Power, Status |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 2 A |
| Current | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 55% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.5 mm |
| Depth | 82.6 mm |
| Height | 19 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 750 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
