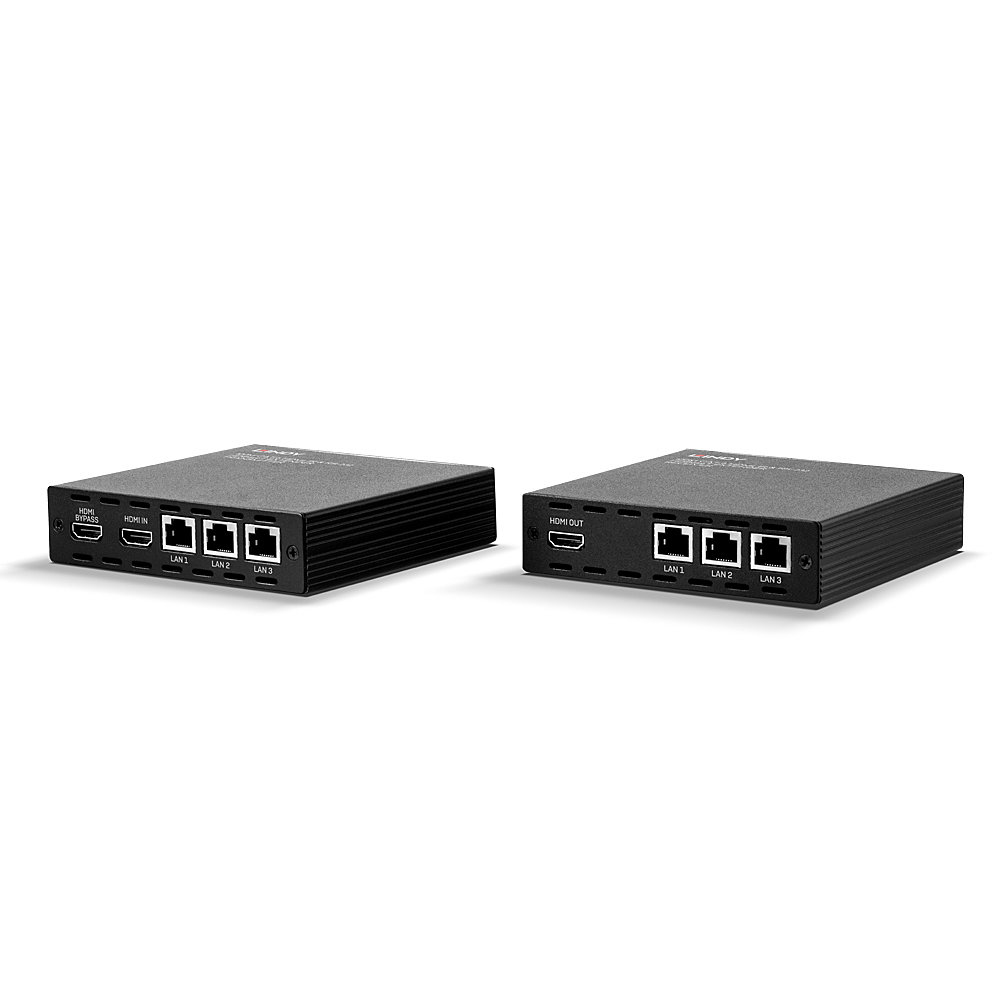

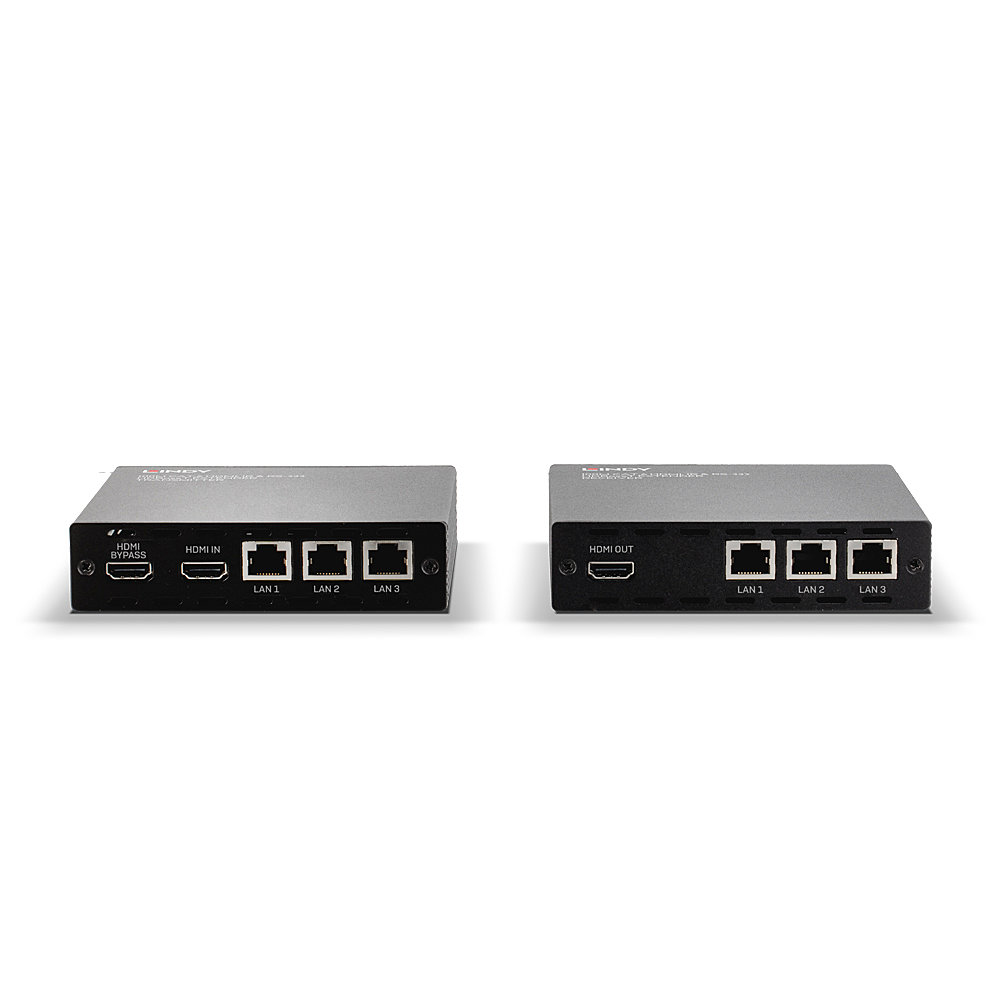

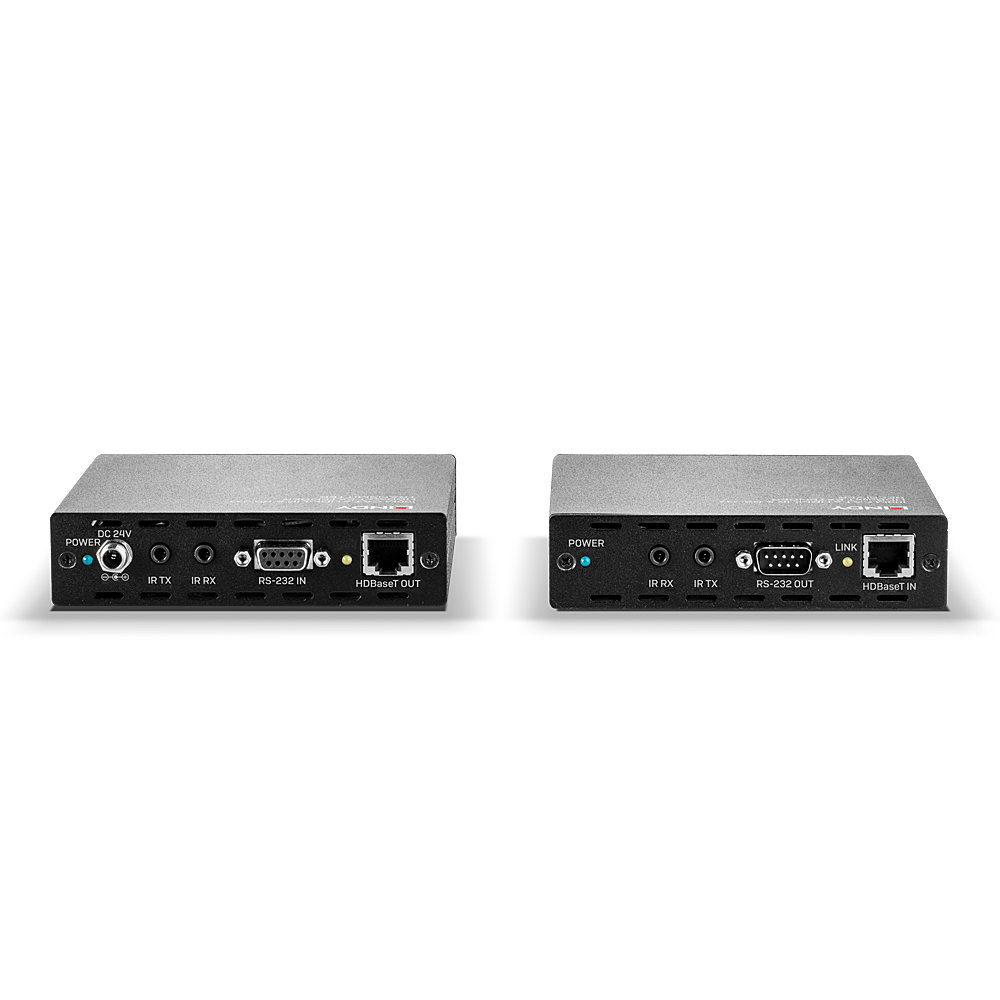

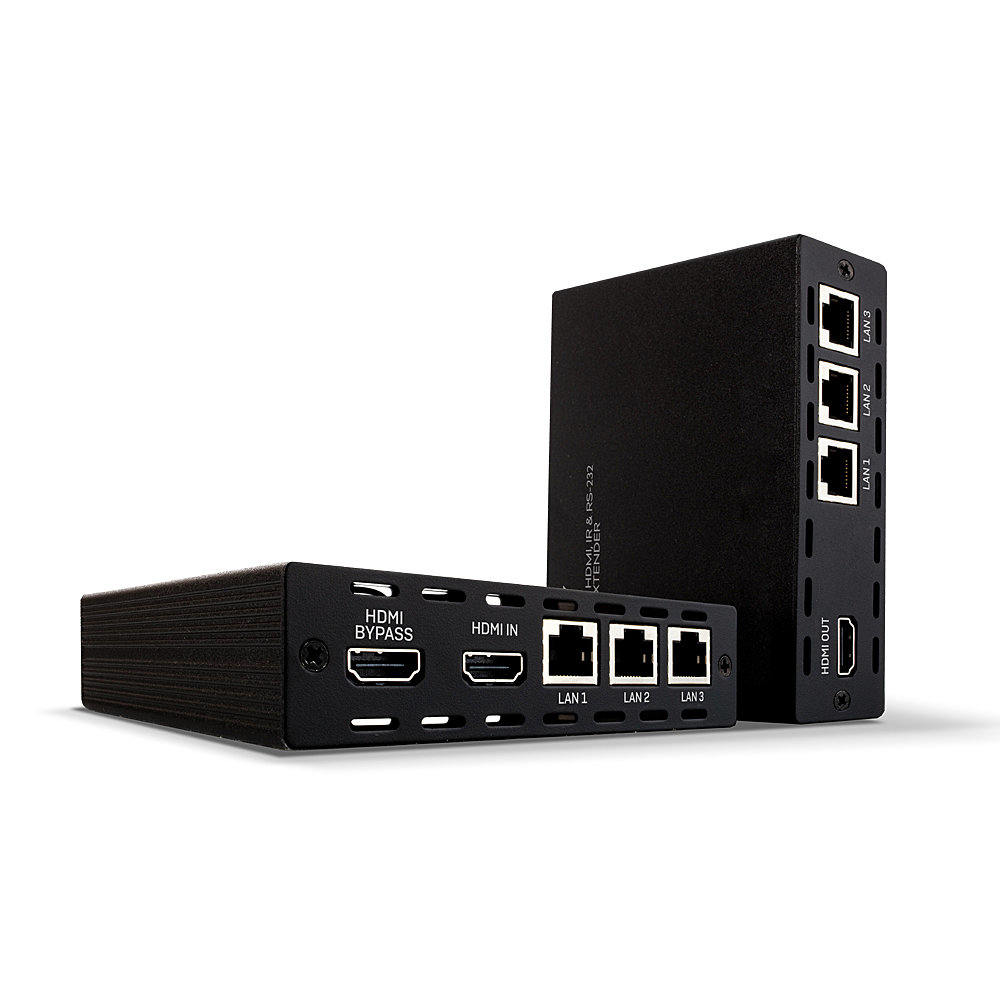

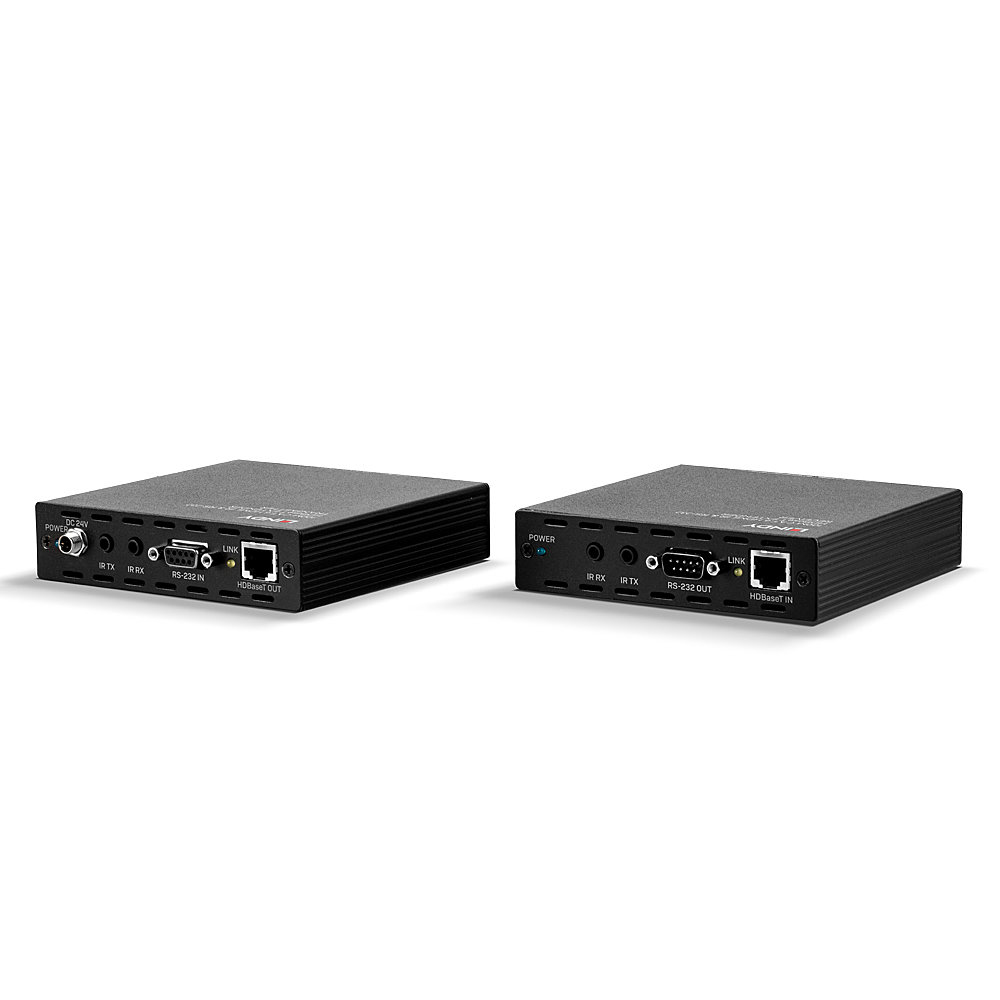

100m C6 HDBaseT HDMI, RS232 & IR Extender with PoH
Model 38115EAN 4002888381154
23 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- AC input voltage100-240 V
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- AC input voltage
- 100-240 V
- Brand
- Lindy
- Category
- AV Extender
- Model
- 38115
- Part number
- 38115
- EAN / UPC
- 4002888381154
- Also known as
- Lindy 100m C6 HDBaseT HDMI, RS232 & IR Extender with PoH
Specifications
23 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat6, Cat7 |
| Maximum transfer distance | 100 m |
| Audio system | Multichannel |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| LED indicators | Link, Power |
| Supported video modes | 480i, 576i, 720i, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 3 |
| RJ-45 output ports | 3 |
| HDMI in | 2 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, IR |
| Manual | Yes |
