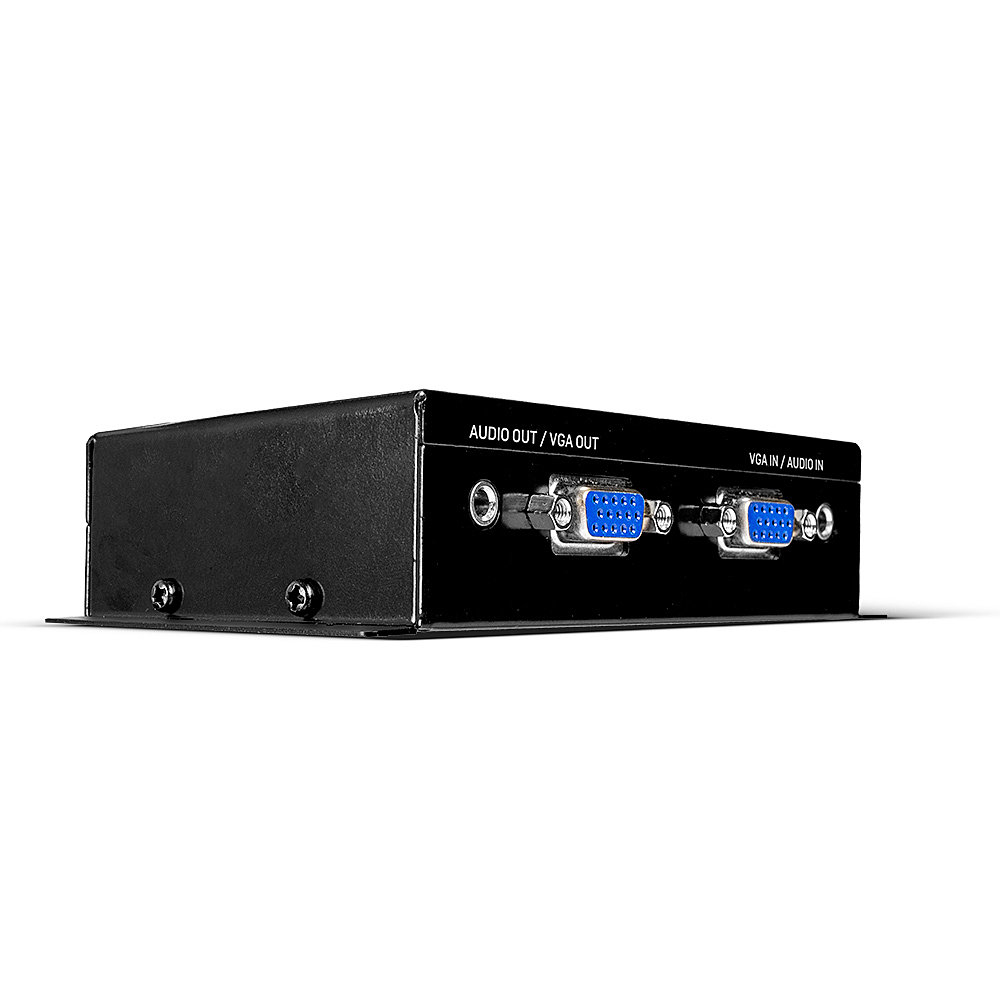

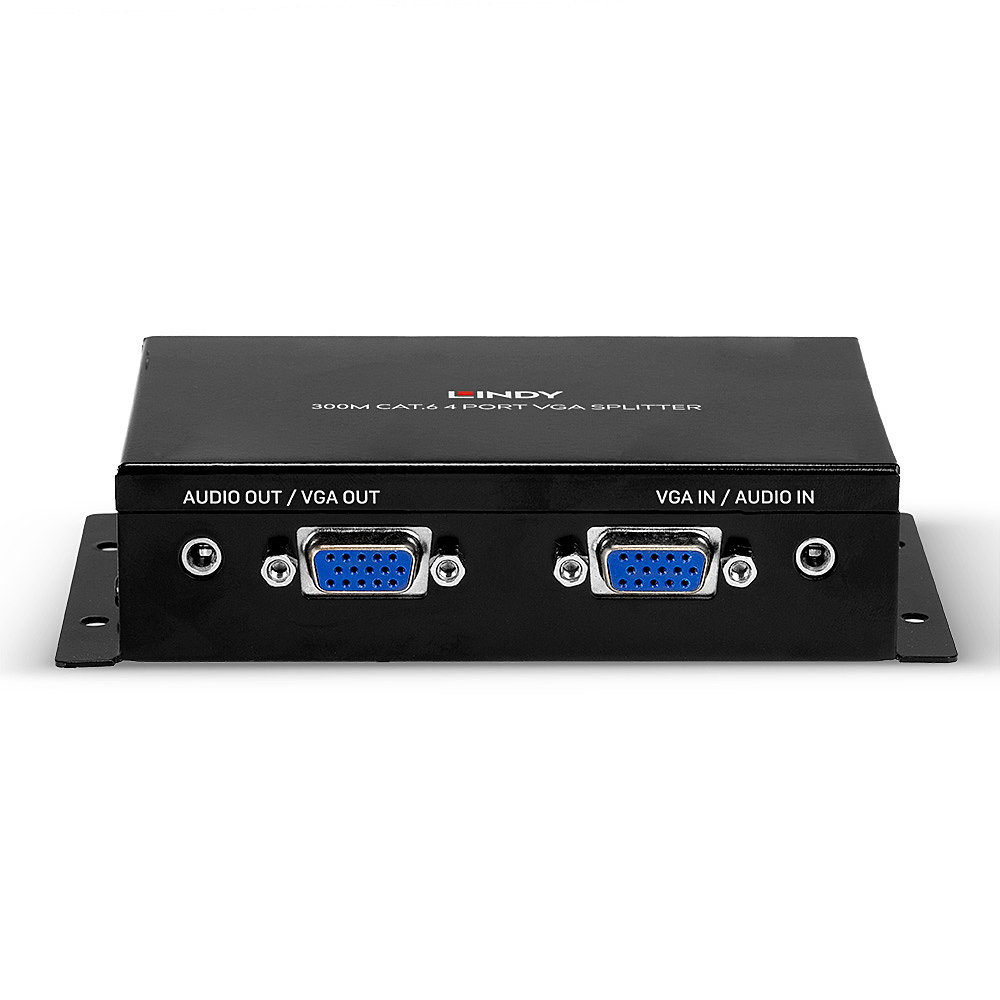

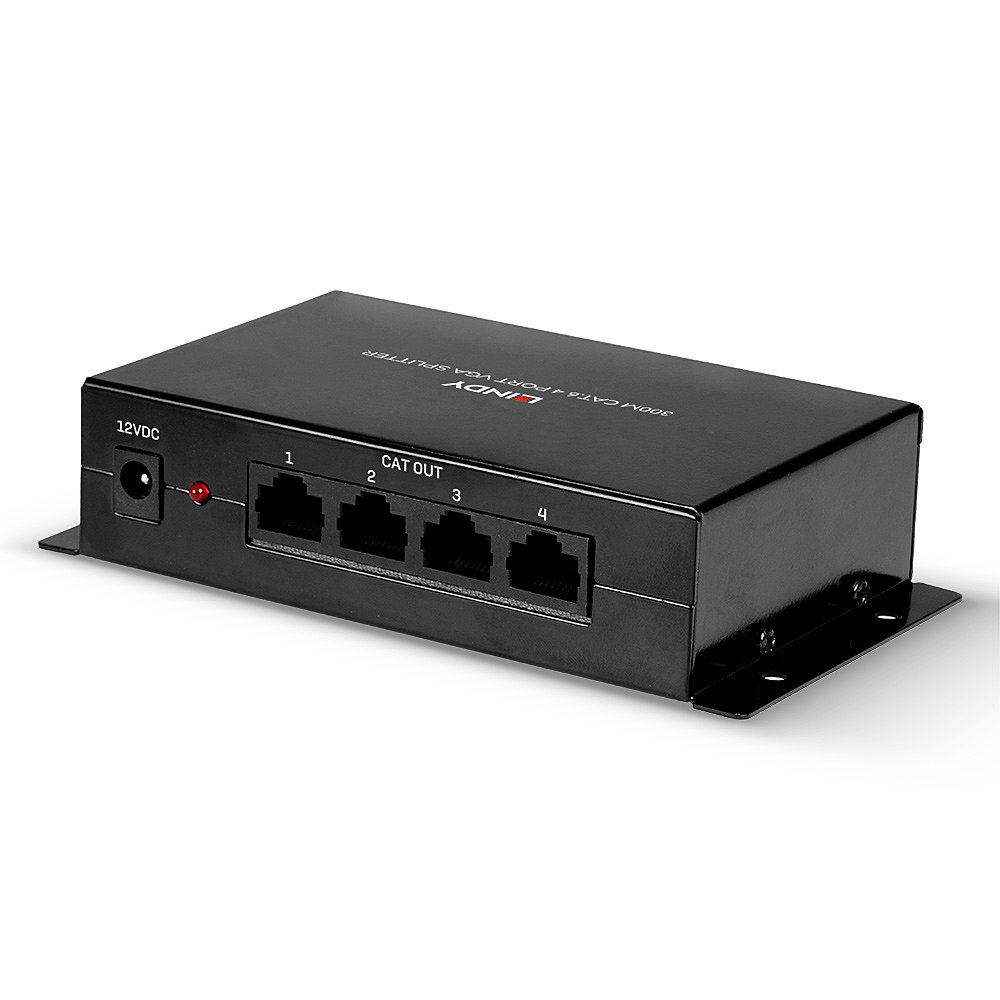

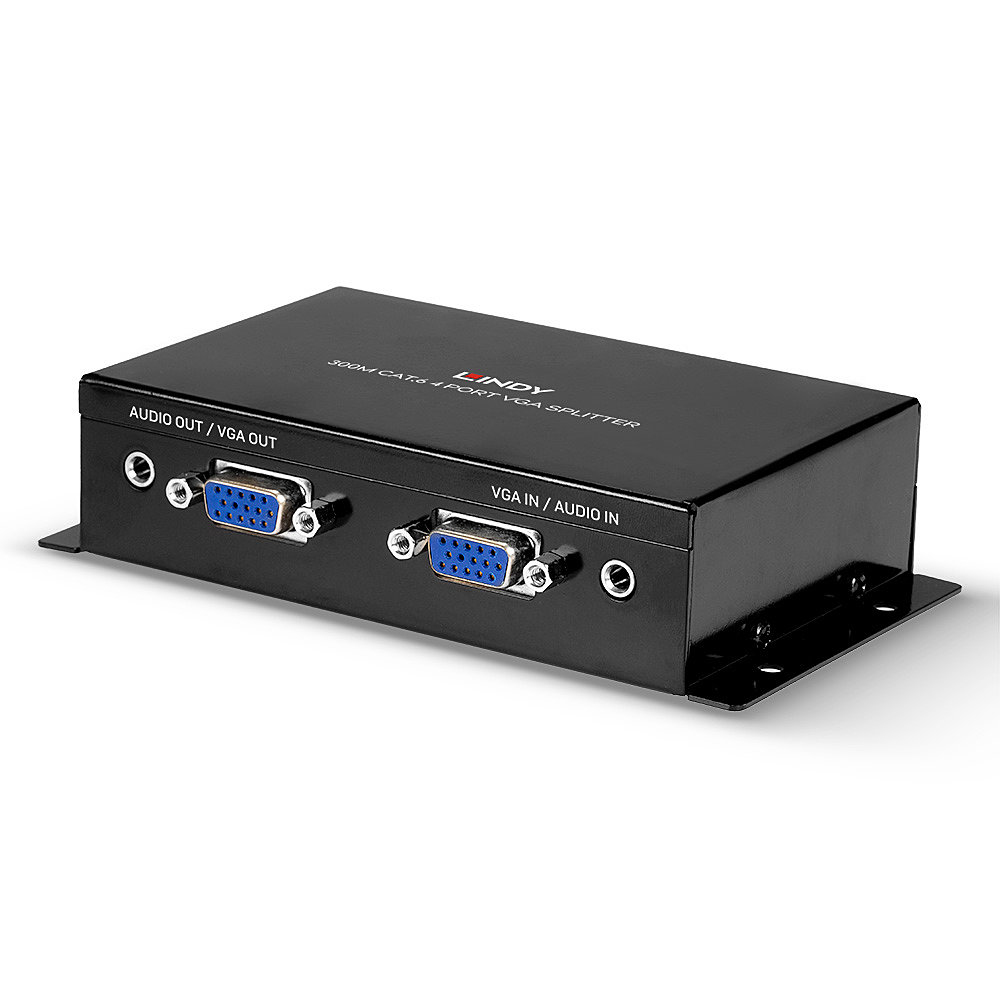

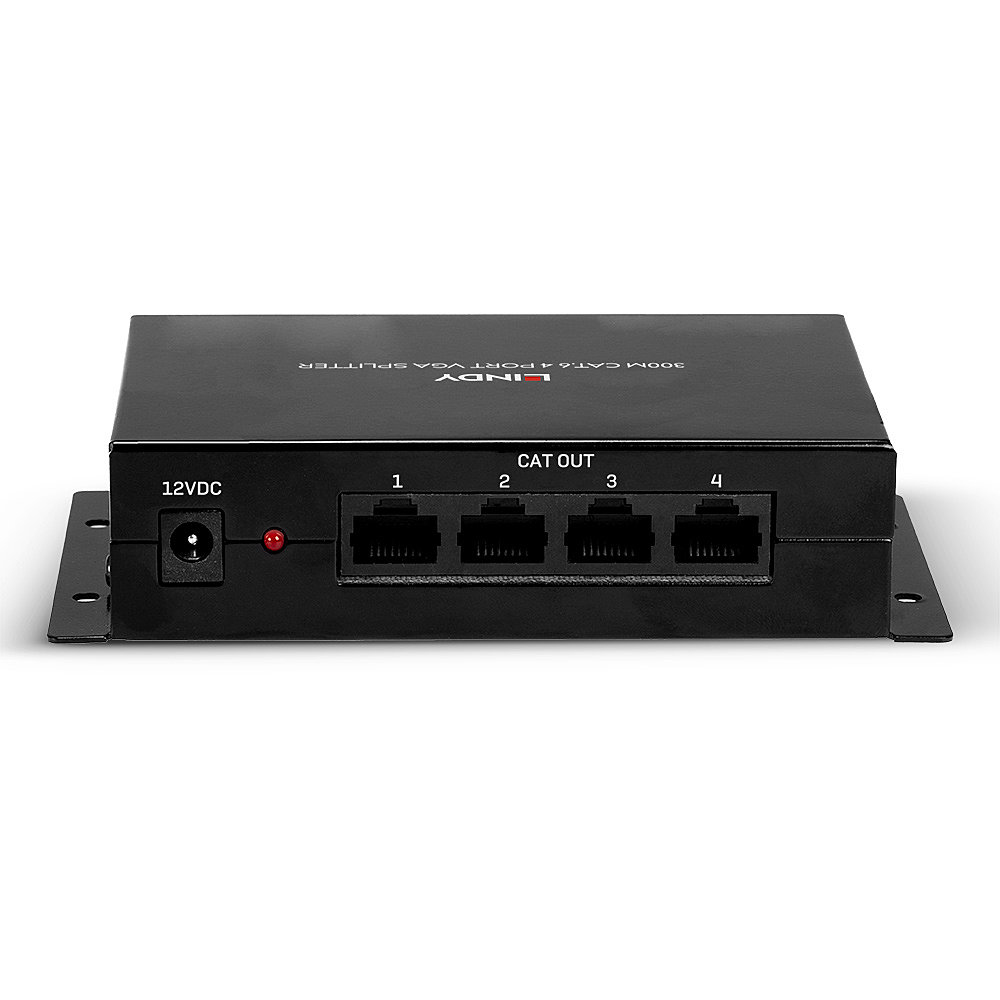

300m Cat.6 4 Port VGA Splitter Extender Transmitter
Model 35403EAN 4002888354035
31 specifications
- ConnectivityWired
- TypeAV transmitter
- Weight484 g
- ColourBlack
- Operating voltage12 V
- Operating relative humidity (H-H)20 - 80%
Overview
- Connectivity
- Wired
- Type
- AV transmitter
- Weight
- 484 g
- Colour
- Black
- Operating voltage
- 12 V
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Lindy
- Category
- AV Extender
- Model
- 35403
- Part number
- 35403
- EAN / UPC
- 4002888354035
- Also known as
- Lindy 300m Cat.6 4 Port VGA Splitter Extender Transmitter
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Chipset | EL4543IUZ |
| Maximum transfer distance | 300 m |
| Bandwidth | 350 MHz |
| Material | Metal |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| RJ-45 output ports | 4 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Input current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135.4 mm |
| Depth | 73 mm |
| Height | 31 mm |
| Weight | 484 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 177 mm |
| Package depth | 75 mm |
| Package height | 110 mm |
| Package weight | 547 g |
