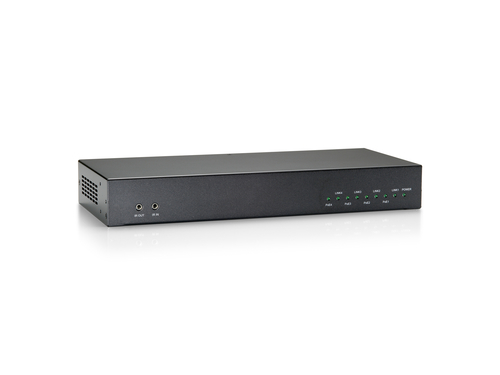

HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel Outputs, 802.3af PoE
Model HVE-9214PTEAN 4015867193006
47 specifications
- TypeAV transmitter
- Weight380 g
- RJ-45 output ports4
- Operating voltage12 V
- Width300 mm
- Country of originTaiwan
Overview
- Type
- AV transmitter
- Weight
- 380 g
- RJ-45 output ports
- 4
- Operating voltage
- 12 V
- Width
- 300 mm
- Country of origin
- Taiwan
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9214PT
- Part number
- HVE-9214PT
- EAN / UPC
- 4015867193006
- Also known as
- LevelOne HDMI over Cat.5 Transmitter, HDBaseT, 100m, 4 Channel Outputs, 802.3af PoE
Specifications
47 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Baud rate | 115.2 Kbit/s |
| Carrier frequency | 38 kHz |
| Colour depth | 36 bit |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| LED indicators | Link, PoE, Power |
| Material | Metal |
| Networking standards | IEEE 802.3af |
| Plug and Play | Yes |
| Supported video modes | 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Power consumption (transmitter) (max) | 5000 mA |
| Current | 6.6 A |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 380 g |
| Transmitter dimensions (WxDxH) | 300 x 160 x 44 mm |
| Transmitter weight | 1.27 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 280 x 160 x 120 mm |
| Package width | 280 mm |
| Package depth | 160 mm |
| Package height | 120 mm |
| Package weight | 2.25 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
