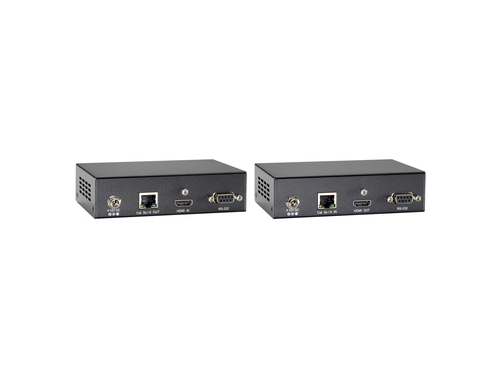

LevelOne HDMI over Cat.5 Extender Kit, HDBaseT, 100m
Model HVE-9200EAN 846359037584
31 specifications
- TypeAV transmitter & receiver
- RJ-45 input ports1
- Operating voltage12 V
- Width125 mm
Overview
- Type
- AV transmitter & receiver
- RJ-45 input ports
- 1
- Operating voltage
- 12 V
- Width
- 125 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9200
- Part number
- HVE-9200
- EAN / UPC
- 846359037584, 4015867192894
- Also known as
- LevelOne HDMI over Cat.5 Extender Kit, HDBaseT, 100m
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Bandwidth | 10.2 Gbit/s |
| Colour depth | 48 bit |
| HDCP | Yes |
| LED indicators | Yes |
| Material | Metal |
| Supported video modes | 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 85 mm |
| Height | 40 mm |
| Receiver dimensions (WxDxH) | 85 x 125 x 40 mm |
| Transmitter dimensions (WxDxH) | 85 x 125 x 40 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 300 x 170 x 120 mm |
| Package width | 300 mm |
| Package depth | 170 mm |
| Package height | 120 mm |
| Package weight | 1.52 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
