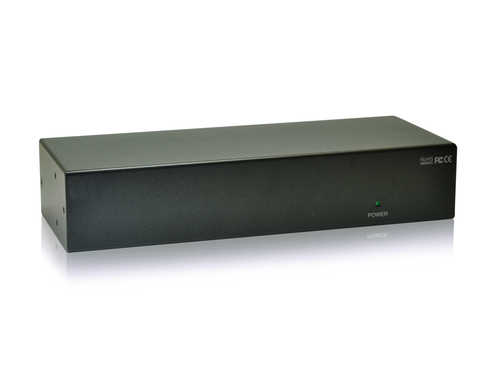

8-Port VGA Audio over Cat.5 Transmitter, 300m
Model HVE-9118VTEAN 4015867205273
28 specifications
- TypeAV transmitter
- Weight665 g
- ColourBlack
- RJ-45 output ports8
- Input current5 A
- Operating temperature (T-T)0 - 48 °C
Overview
- Type
- AV transmitter
- Weight
- 665 g
- Colour
- Black
- RJ-45 output ports
- 8
- Input current
- 5 A
- Operating temperature (T-T)
- 0 - 48 °C
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9118VT
- Part number
- HVE-9118VT
- EAN / UPC
- 4015867205273
- Also known as
- LevelOne 8-Port VGA Audio over Cat.5 Transmitter, 300m
Specifications
28 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum transfer distance | 300 m |
| Maximum refresh rate | 75 Hz |
| Extended display identification data (EDID) | Yes |
| Bandwidth | 600 MHz |
| Product colour | Black |

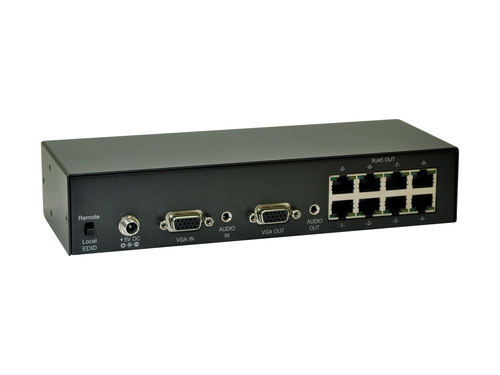

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 8 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 83 mm |
| Height | 44 mm |
| Weight | 665 g |
| Transmitter dimensions (WxDxH) | 220 x 80 x 44 mm |
| Transmitter weight | 665 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 177 mm |
| Package depth | 120 mm |
| Package height | 308 mm |
| Package weight | 1.23 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Outer carton dimensions (W x D x H) | 630 x 330 x 400 mm |
