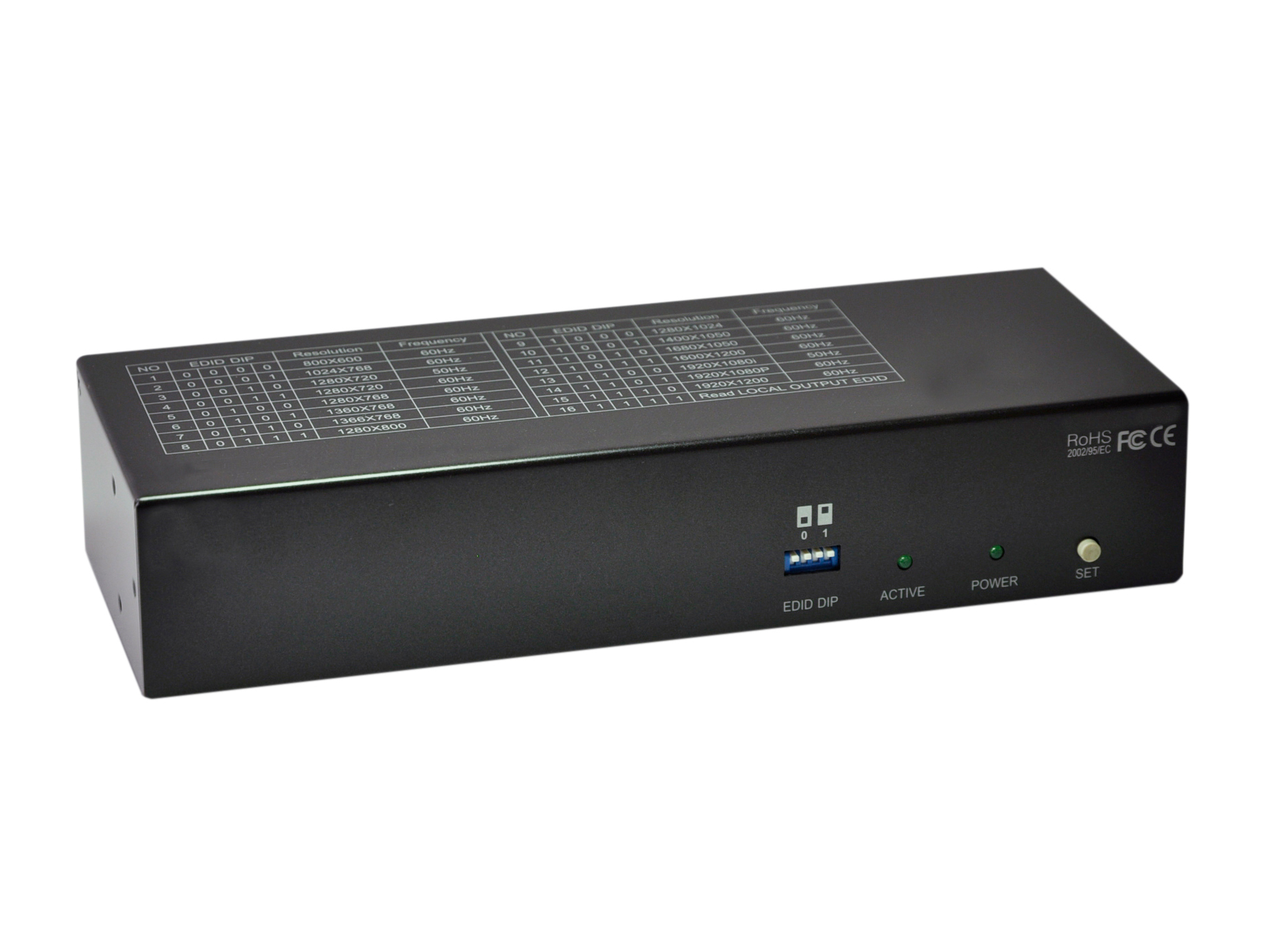

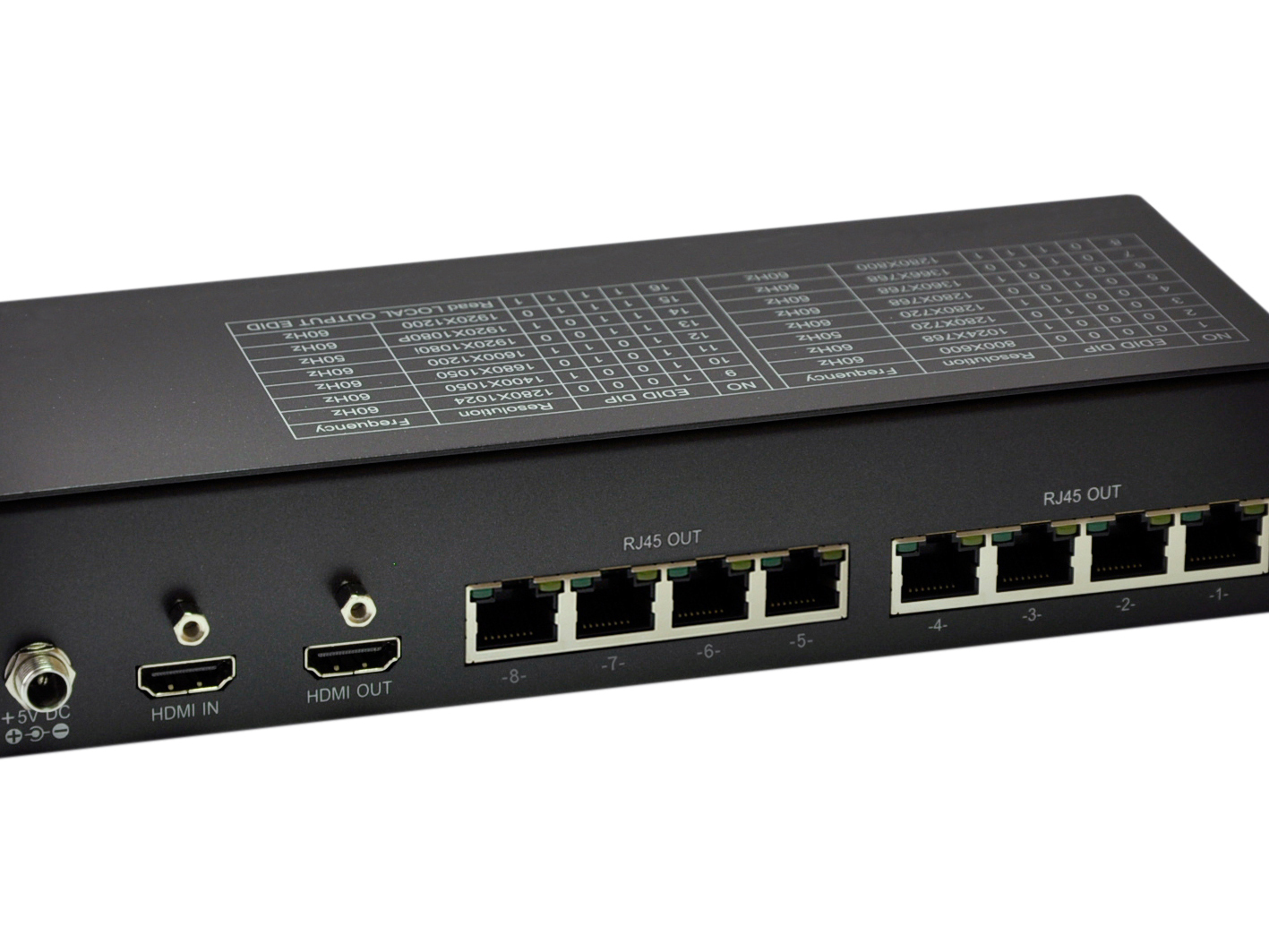

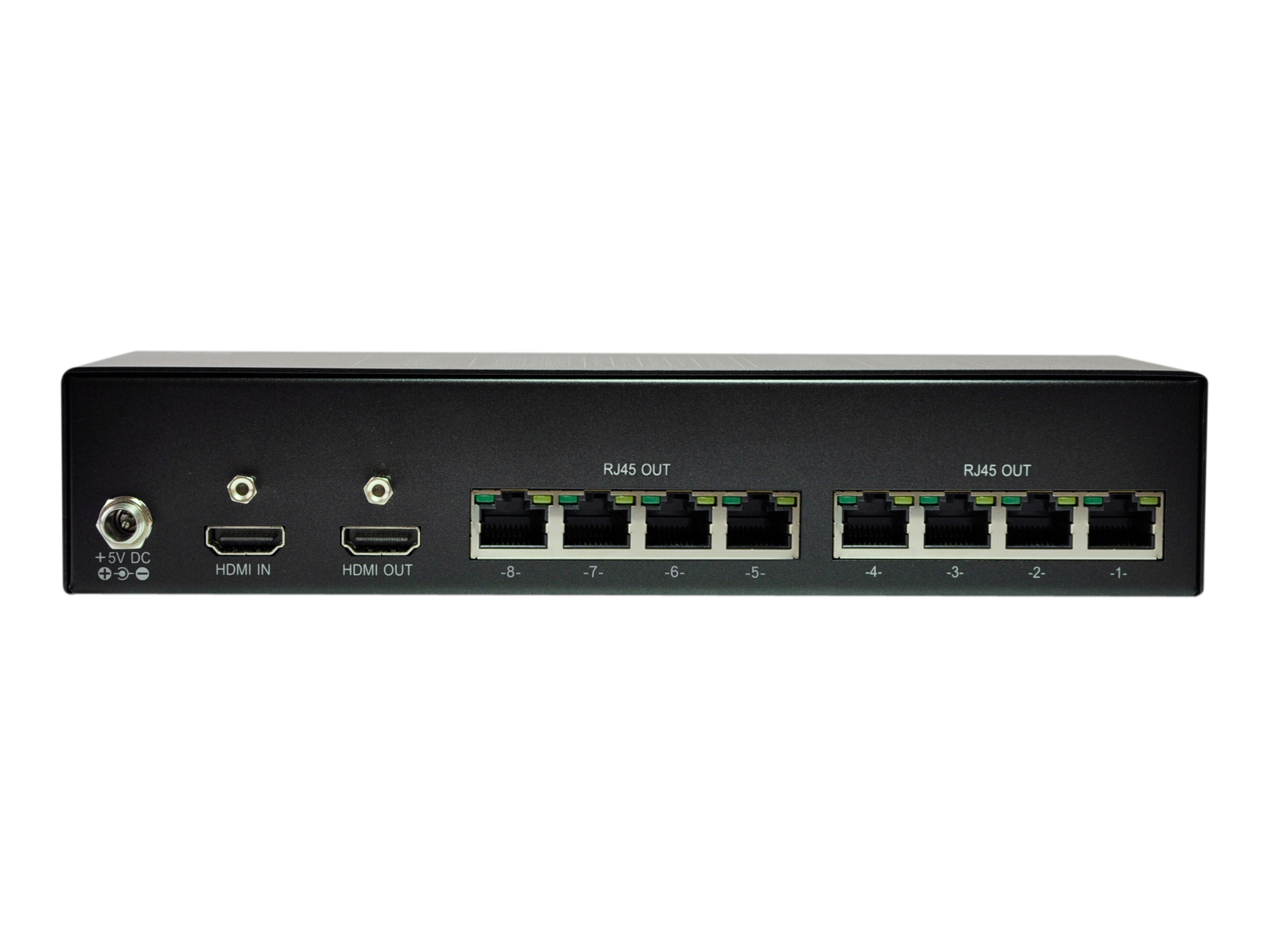

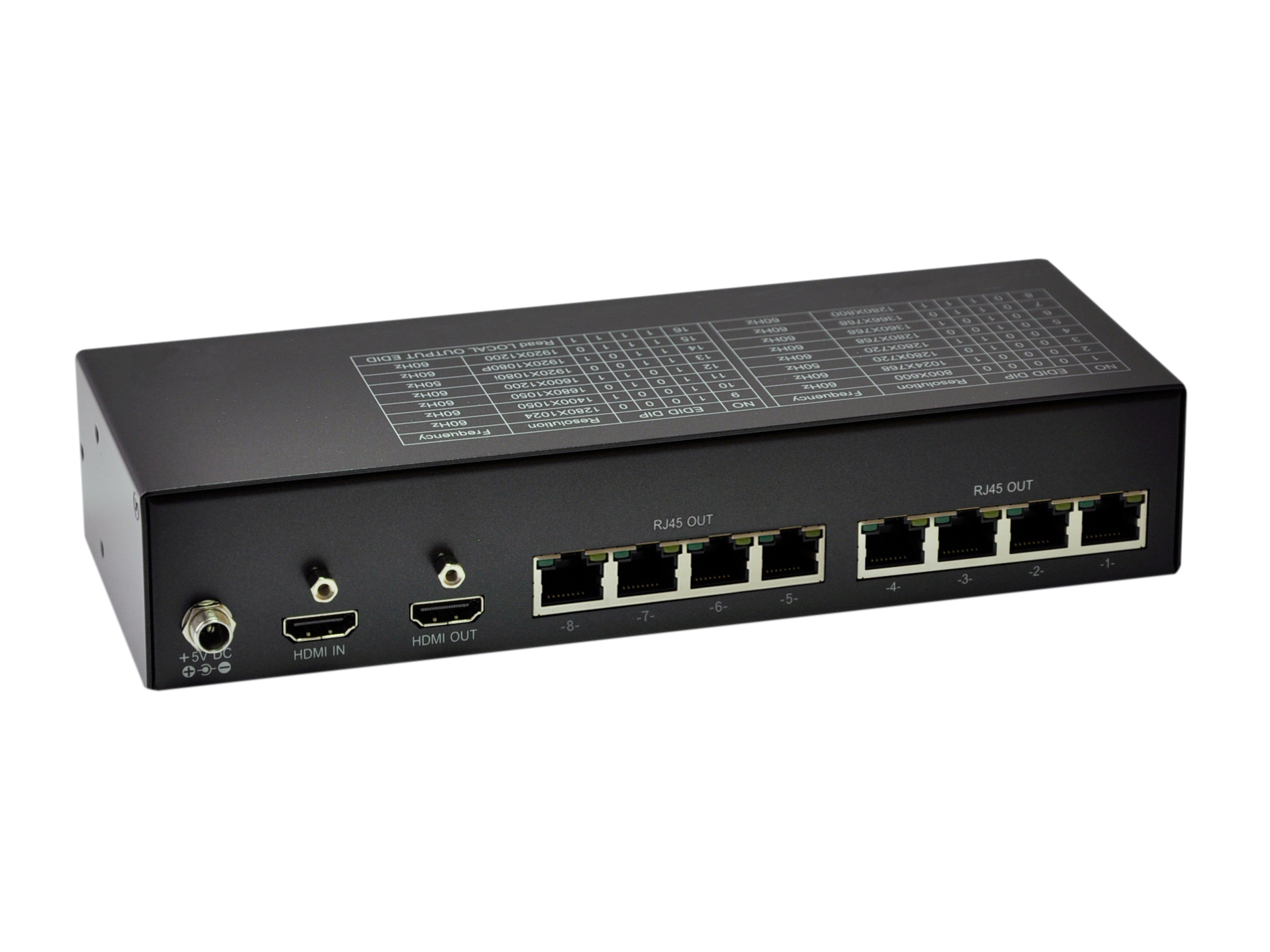

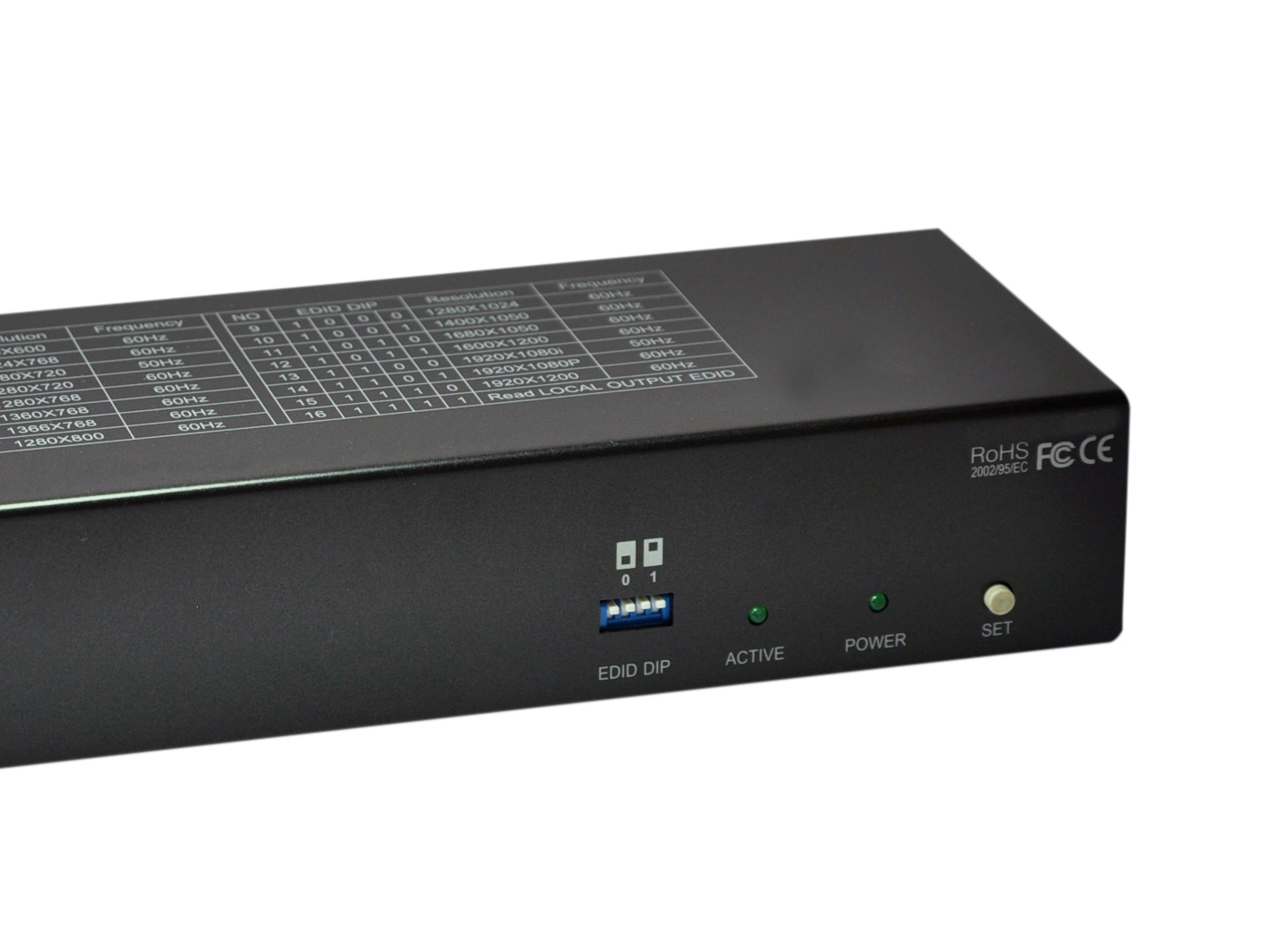

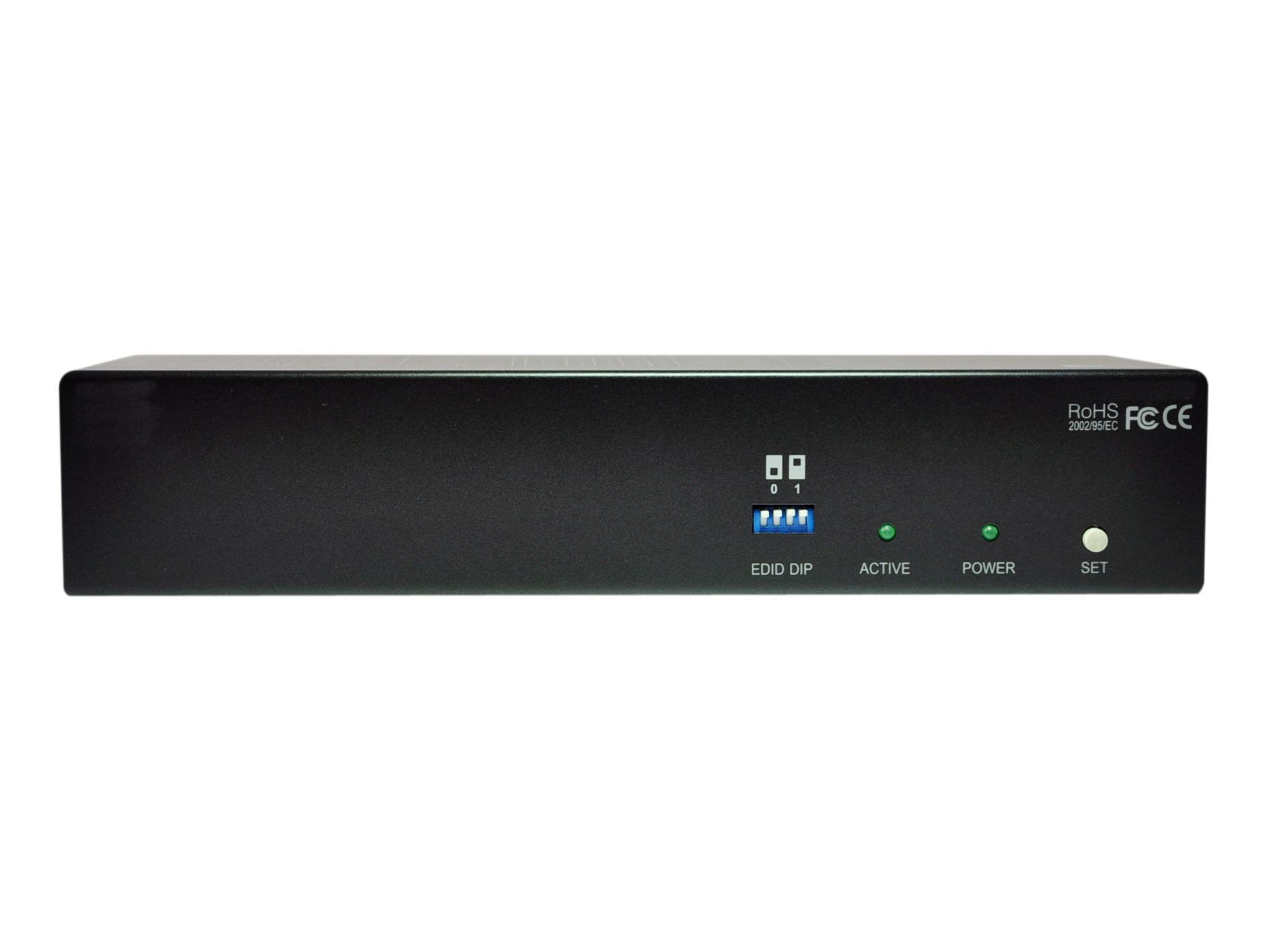

LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs

LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs

Model HVE-9118TEAN 4015867201831

36 specifications
  • TypeAV transmitter
  • Weight612 g
  • ColourBlack
  • RJ-45 output ports8
  • AC input voltage5 V
  • Operating relative humidity (H-H)10 - 80%
See all specifications

Overview

Type
AV transmitter
Weight
612 g
Colour
Black
RJ-45 output ports
8
AC input voltage
5 V
Operating relative humidity (H-H)
10 - 80%
Brand
LevelOne
Category
AV Extender
Model
HVE-9118T
Part number
HVE-9118T
EAN / UPC
4015867201831
Also known as
LevelOne HDMI over Cat.5 Transmitter, 300m, 8 Channel Outputs

Specifications

36 specifications in 9 groups

Features

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz
Bandwidth340 MHz
HDCP & EDID bypassYes
LED indicatorsActivity, Power
Supported video modes1080p
Product colourBlack

Ports & interfaces

RJ-45 output ports8
HDMI in1
Number of HDMI outputs1

Power

AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)900 mA

Operational conditions

Operating relative humidity (H-H)10 - 80%
Operating temperature (T-T)0 - 48 °C

Weight & dimensions

Width90 mm
Depth220 mm
Height45 mm
Weight612 g
Transmitter dimensions (WxDxH)220 x 83 x 44 mm
Transmitter weight650 g

Packaging data

Package dimensions (WxDxH)173 x 305 x 122 mm
Package weight1.18 kg
Package typeBox

Packaging content

AC adapter includedYes
Cables includedAC
Quick start guideYes

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width400 mm
Master (outer) case length330 mm
Master (outer) case height630 mm
Master (outer) case gross weight13 kg
Products per master (outer) case10 pc(s)
