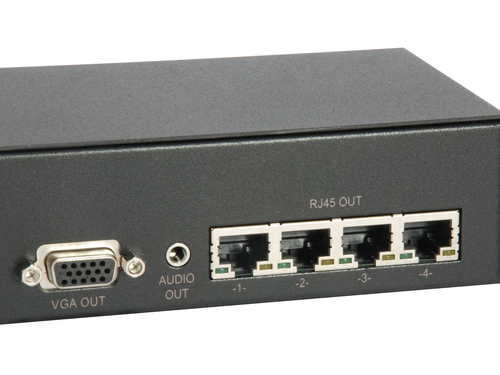

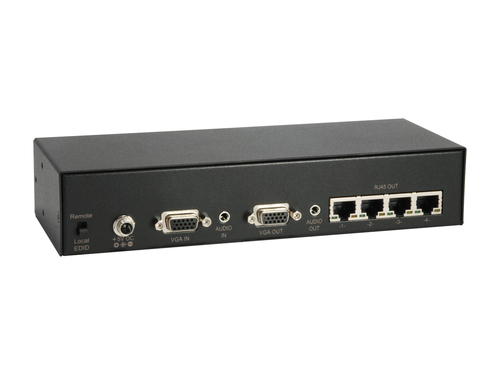

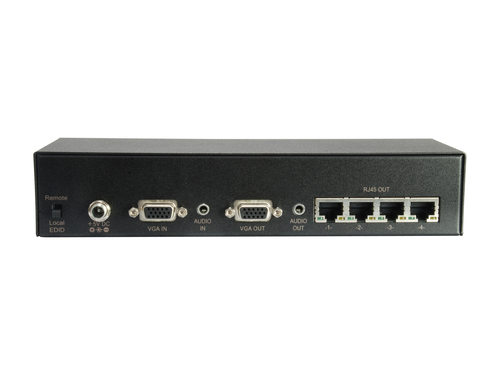

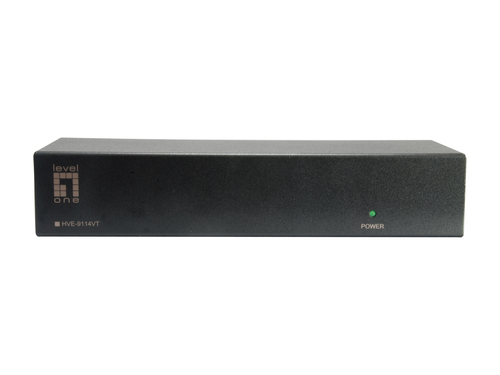

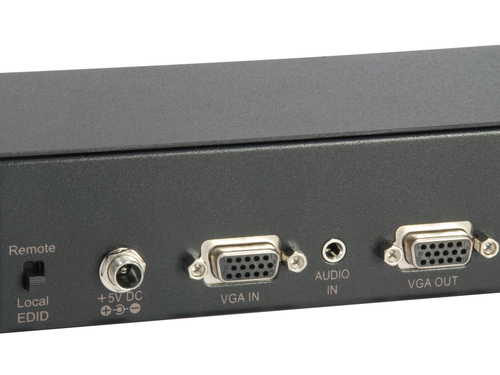

LevelOne 4-Port VGA Audio over Cat.5 Transmitter, 300m

LevelOne 4-Port VGA Audio over Cat.5 Transmitter, 300m

Model HVE-9114VTEAN 4015867205266

34 specifications
  • TypeAV transmitter
  • Weight623 g
  • ColourBlack
  • RJ-45 output ports4
  • Power consumption (transmitter) (max)450 mA
  • Operating temperature (T-T)0 - 48 °C
See all specifications

Overview

Type
AV transmitter
Weight
623 g
Colour
Black
RJ-45 output ports
4
Power consumption (transmitter) (max)
450 mA
Operating temperature (T-T)
0 - 48 °C
Brand
LevelOne
Category
AV Extender
Model
HVE-9114VT
Part number
HVE-9114VT
EAN / UPC
4015867205266
Also known as
LevelOne 4-Port VGA Audio over Cat.5 Transmitter, 300m

Specifications

34 specifications in 9 groups

Features

TypeAV transmitter
Maximum resolution2048 x 1536 pixels
Cable types supportedCat5, Cat6, Cat7
Maximum transfer distance300 m
Maximum refresh rate75 Hz
Bandwidth600 MHz
LED indicatorsPower
Product colourBlack

Ports & interfaces

RJ-45 output ports4
VGA (D-Sub) input ports1
VGA (D-Sub) output ports1
Audio input3.5 mm
Audio output3.5 mm
DC-in jackYes

Power

Power consumption (transmitter) (max)450 mA

Operational conditions

Operating temperature (T-T)0 - 48 °C
Storage temperature (T-T)0 - 48 °C

Weight & dimensions

Width83 mm
Depth220 mm
Height44 mm
Weight623 g

Packaging data

Package width177 mm
Package depth308 mm
Package height120 mm
Package weight1.19 kg
Package typeBox

Packaging content

AC adapter includedYes
Quick start guideYes

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width330 mm
Master (outer) case length630 mm
Master (outer) case height400 mm
Master (outer) case gross weight12 kg
Products per master (outer) case10 pc(s)
