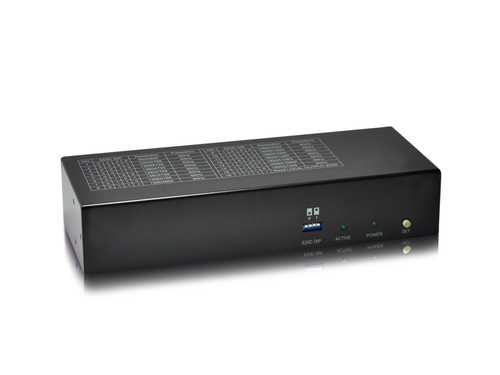

LevelOne HDMI over Cat.5 Transmitter, 300m, 4 Channel Outputs

LevelOne HDMI over Cat.5 Transmitter, 300m, 4 Channel Outputs

Model HVE-9114TEAN 4015867192870

40 specifications
  • ConnectivityWired
  • TypeAV transmitter
  • Weight600 g
  • ColourBlack
  • AC input voltage5 V
  • Operating relative humidity (H-H)10 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter
Weight
600 g
Colour
Black
AC input voltage
5 V
Operating relative humidity (H-H)
10 - 80%
Brand
LevelOne
Category
AV Extender
Model
HVE-9114T
Part number
HVE-9114T
EAN / UPC
4015867192870
Also known as
LevelOne HDMI over Cat.5 Transmitter, 300m, 4 Channel Outputs

Specifications

40 specifications in 9 groups

Features

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz
Bandwidth340 MHz
HDCP & EDID bypassYes
LED indicatorsYes
Supported video modes1080p
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 output ports4
HDMI in1
Number of HDMI outputs1

Power

AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)800 mA

Operational conditions

Operating relative humidity (H-H)10 - 80%
Operating temperature (T-T)0 - 48 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width85 mm
Depth220 mm
Height44 mm
Weight600 g
Transmitter dimensions (WxDxH)220 x 85 x 44 mm
Transmitter weight600 g

Packaging data

Package width170 mm
Package depth295 mm
Package height120 mm
Package weight855 g
Package typeBox

Packaging content

AC adapter includedYes
Cables includedAC
Quick start guideYes

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width320 mm
Master (outer) case length630 mm
Master (outer) case height400 mm
Master (outer) case gross weight1.4 kg
Products per master (outer) case10 pc(s)
