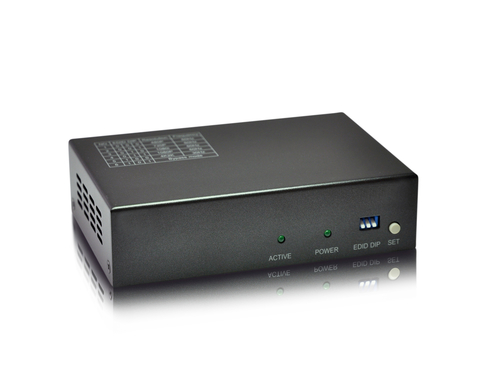

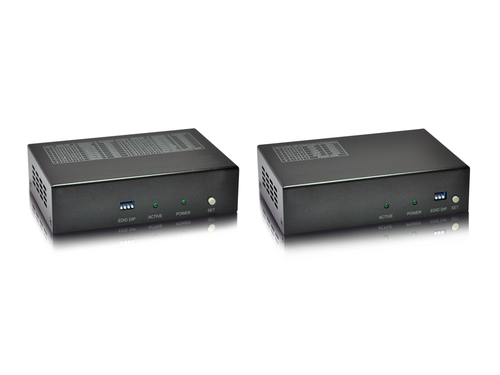

LevelOne HDMI over Cat.5 Extender Kit, 300m, 4K2K

LevelOne HDMI over Cat.5 Extender Kit, 300m, 4K2K

Model HVE-9100EAN 4015867192818

43 specifications
  • ConnectivityWired
  • TypeAV transmitter & receiver
  • Weight365 g
  • ColourBlack
  • AC input voltage5 V
  • Operating relative humidity (H-H)10 - 80%
See all specifications

Overview

Connectivity
Wired
Type
AV transmitter & receiver
Weight
365 g
Colour
Black
AC input voltage
5 V
Operating relative humidity (H-H)
10 - 80%
Brand
LevelOne
Category
AV Extender
Model
HVE-9100
Part number
HVE-9100
EAN / UPC
4015867192818
Also known as
LevelOne HDMI over Cat.5 Extender Kit, 300m, 4K2K

Specifications

43 specifications in 9 groups

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz
Bandwidth340 MHz
HDCP & EDID bypassYes
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2

Power

AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)700 mA
Power consumption (receiver) (max)1200 mA

Operational conditions

Operating relative humidity (H-H)10 - 80%
Operating temperature (T-T)0 - 48 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width85 mm
Depth130 mm
Height35 mm
Weight365 g
Receiver dimensions (WxDxH)130 x 92 x 35 mm
Receiver weight365 g
Transmitter dimensions (WxDxH)130 x 97 x 35 mm
Transmitter weight360 g

Packaging data

Package width170 mm
Package depth295 mm
Package height120 mm
Package weight620 g
Package typeBox

Packaging content

AC adapter includedYes
Cables includedAC
Quick start guideYes

Technical details

Country of originTaiwan

Logistics data

Master (outer) case width320 mm
Master (outer) case length640 mm
Master (outer) case height400 mm
Master (outer) case gross weight1.4 kg
Products per master (outer) case10 pc(s)
