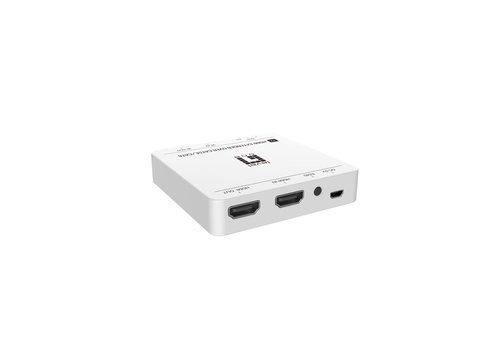

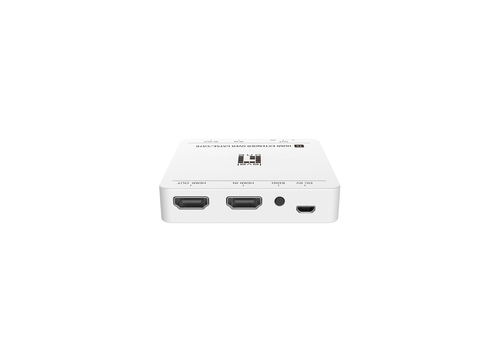

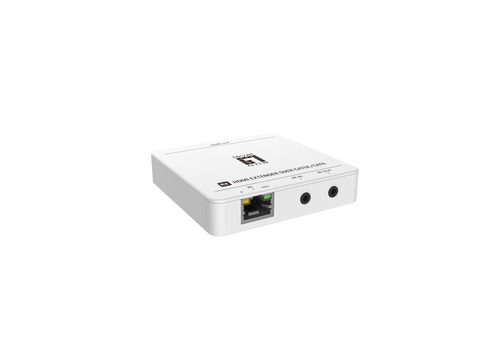

HVE-9007 AV extender AV transmitter & receiver White
Model HVE-9007EAN 4015867225745
40 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- Weight74 g
- ColourWhite
- Operating relative humidity (H-H)0 - 90%
- Width16.8 mm
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Weight
- 74 g
- Colour
- White
- Operating relative humidity (H-H)
- 0 - 90%
- Width
- 16.8 mm
- Brand
- LevelOne
- Category
- AV Extender
- Model
- HVE-9007
- Part number
- HVE-9007
- EAN / UPC
- 4015867225745
- Also known as
- LevelOne HVE-9007 AV extender AV transmitter & receiver White
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Bidirectional | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP version | 1.4 |
| Plug and Play | Yes |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| DVI input ports | 1 |
| DVI output ports | 1 |
| USB ports quantity | 1 |
| USB connector type | Micro-USB |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 16.8 mm |
| Depth | 66 mm |
| Height | 66 mm |
| Weight | 74 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 143 mm |
| Package depth | 74 mm |
| Package height | 200 mm |
| Package weight | 250 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Pallet net height | 150 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
